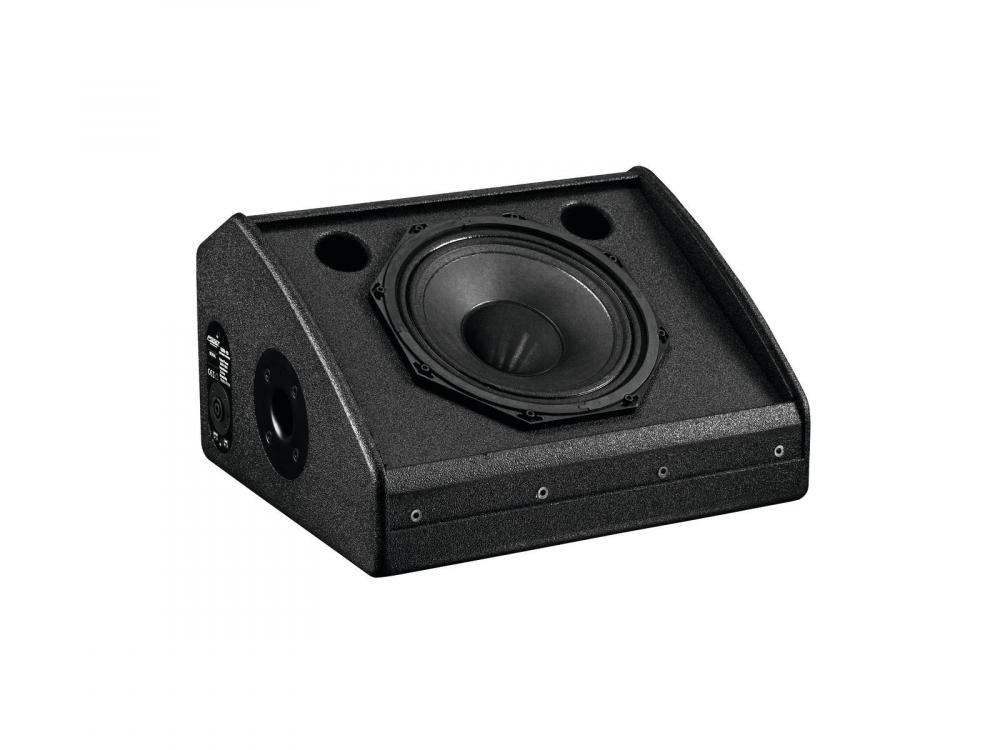

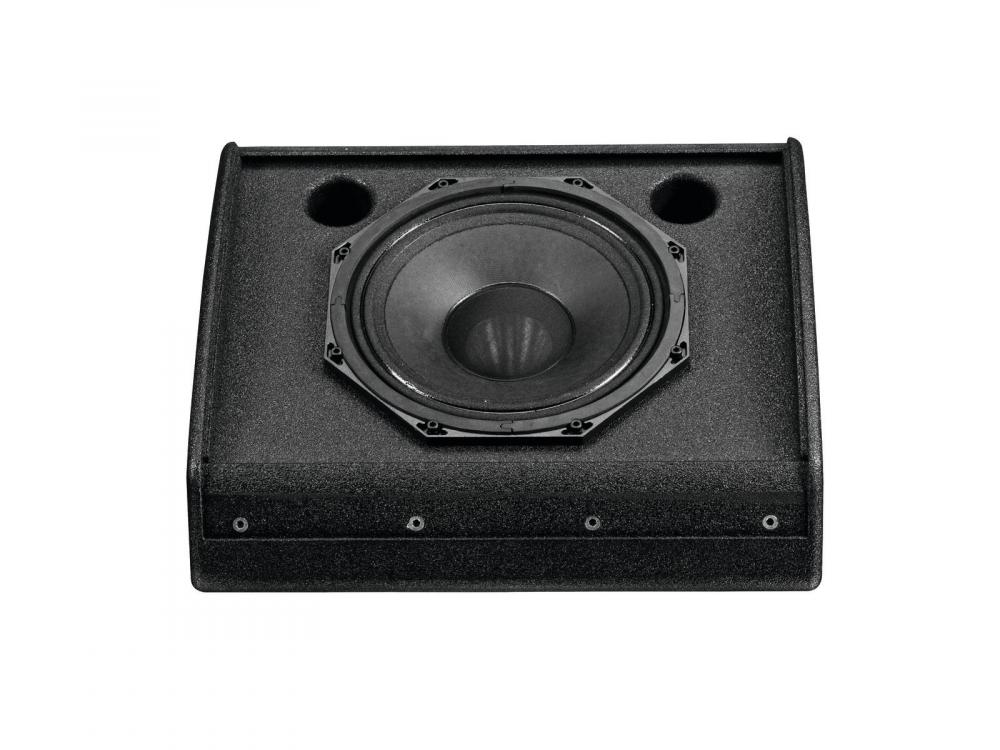

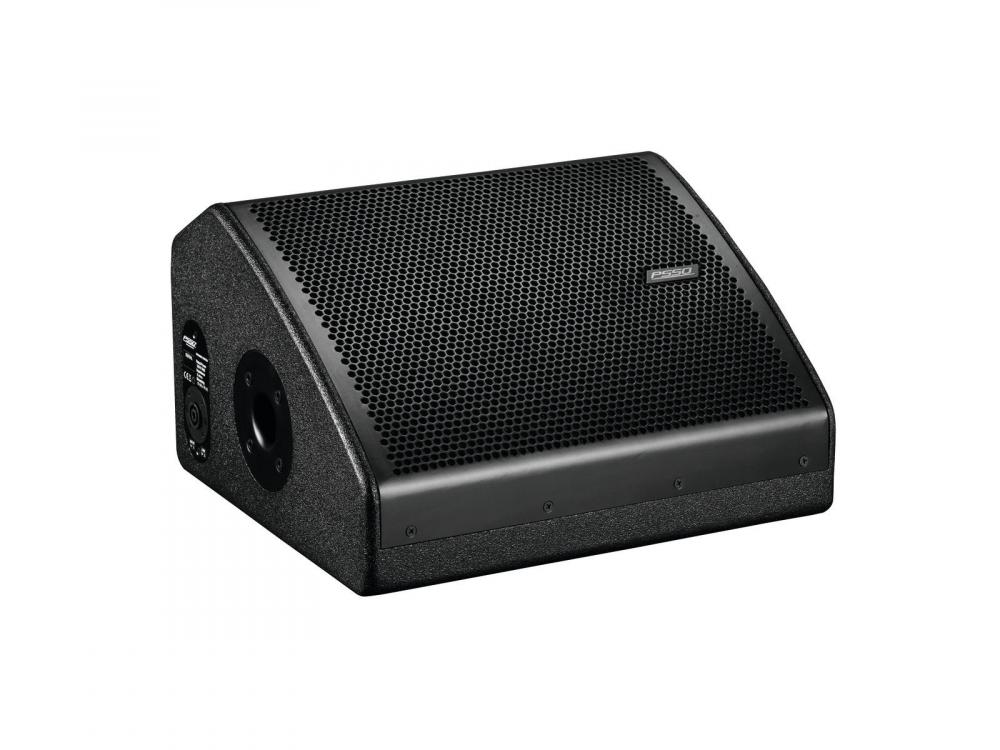

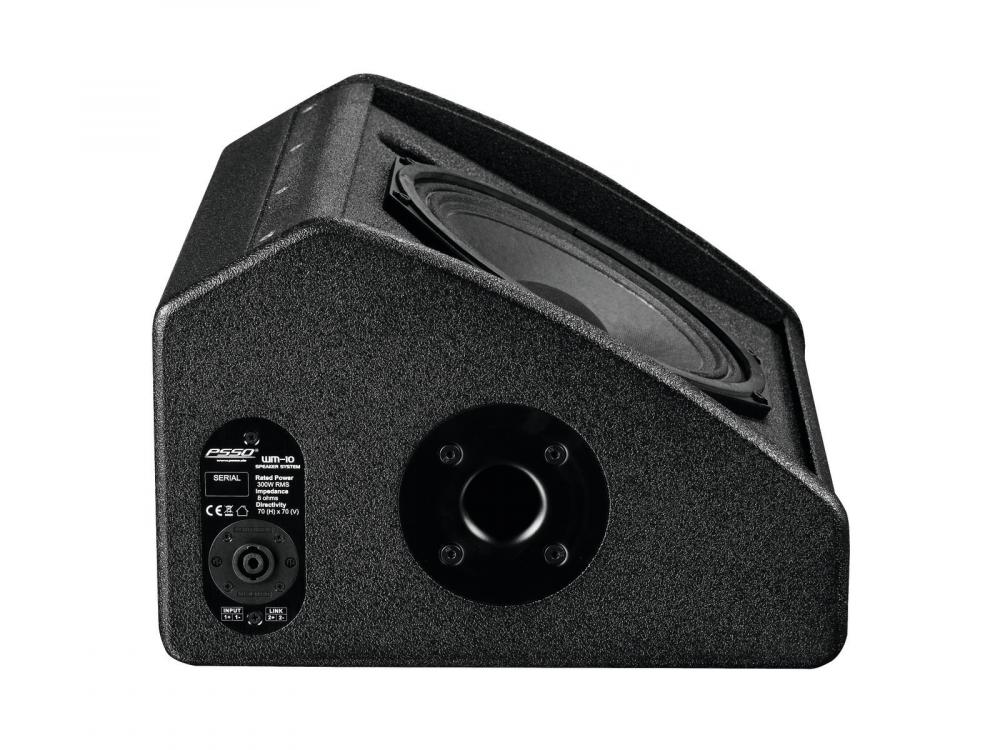

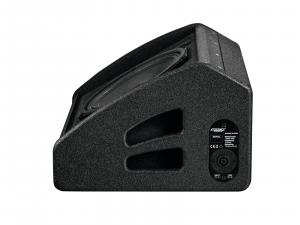

PSSO K-210CM 2-Way Coaxial Wedge 300W

PSSO

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for PSSO K-210CM 2-Way Coaxial Wedge 300W

Info
order code
11041115
product link
EAN
4026397516326
Product Name
PSSO K-210CM 2-Way Coaxial Wedge 300W
technical overview
Components: 25 cm woofer (10"), 2.5 cm horn (1")
Connection: 2 x Speakon
Sensitivity: 96 dB
Maximum SPL: 127 dB
Impedance: 8 ohms
Crossover frequency: 1.8 kHz
Dispersion angle: 75° x 75°
Dimensions (H x W x D): 260 x 444 x 390 mm
Weight: 15 kg
Size of woofer: (10") ca. 25 cm
Rated power: 300 W RMS
Program power: 600 W
Frequency range: 68 - 20000 Hz
Height: 26 cm
Depth: 39 cm
Width: 44,4 cm
Impedance: 8 Ohm
main features
Pro PA speaker, 10" woofer, 1" horn, 300 W RMS / 8 ohms
-Rugged 2-way coaxial wedge, qualified for touring applications
-Housing made of 15 mm birch plywood
-25 cm (10") bass speaker with diecast aluminum basket
-25 mm horn tweeter (1", 44 mm voice coil)
-Premium custom-made drivers by European manufacturer CELTO Acoustique
-Permium passive 2-way crossover
-Bassreflex system
-Parallel Neutrik Speakon connectors
-Scratch-resistant lacquer surface
-Impact-resistant steel grille with acoustic foam
-Flange for stand installation
-Applications: standing, on a subwoofer or speaker stand, suspended, and as sidefill
Audio
Frequency response, from
68 Hz
Frequency response, to
20000 Hz
impedance
8 ohm
Electrical
power consumption watt, max
300.00 W
Mechanical
weight
15.00 kg
width
444.00 mm
height
260.00 mm
length
390.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00083314.pdf
