Info | |
---|---|
order code |
10006770
|
product link | |
EAN |
4026397340976
|
Product Name |

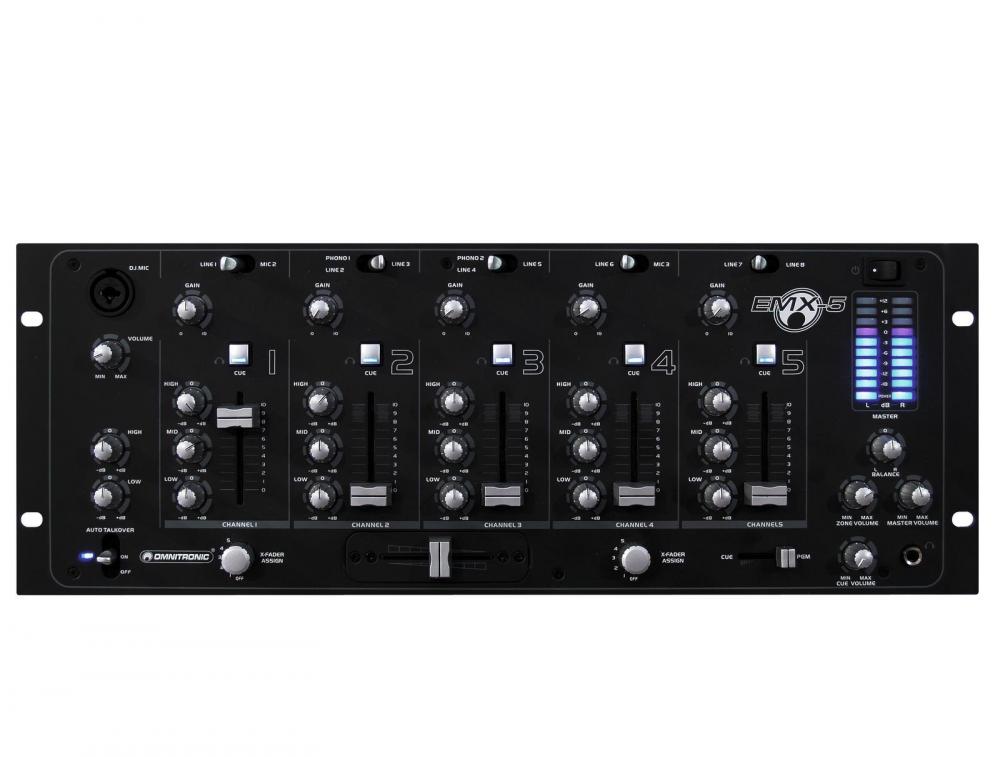

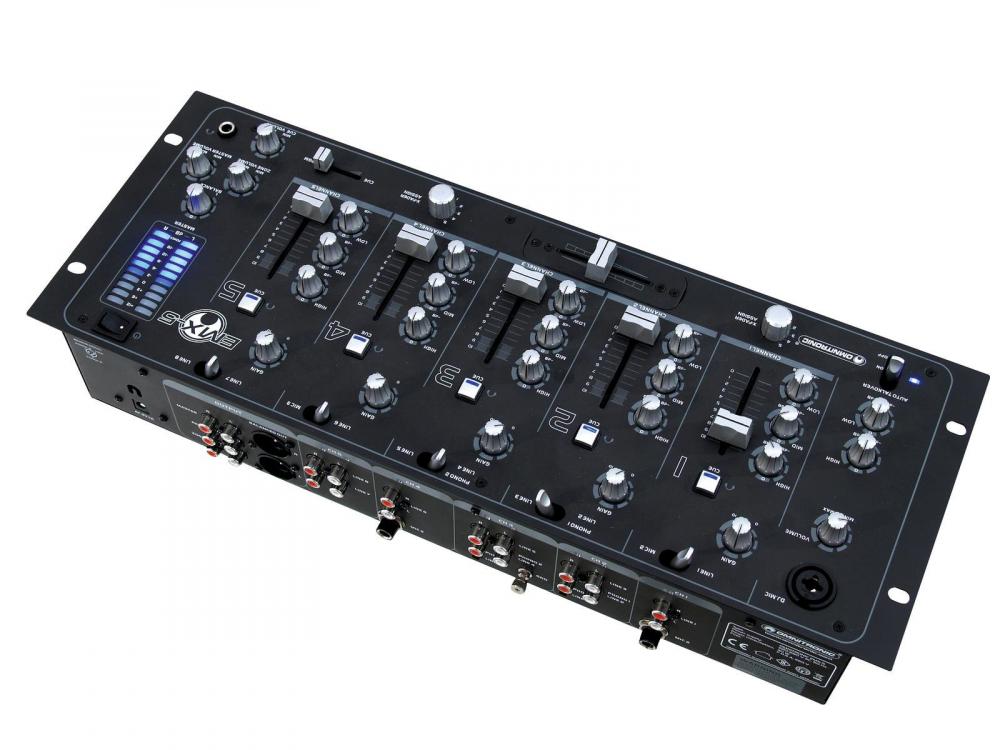

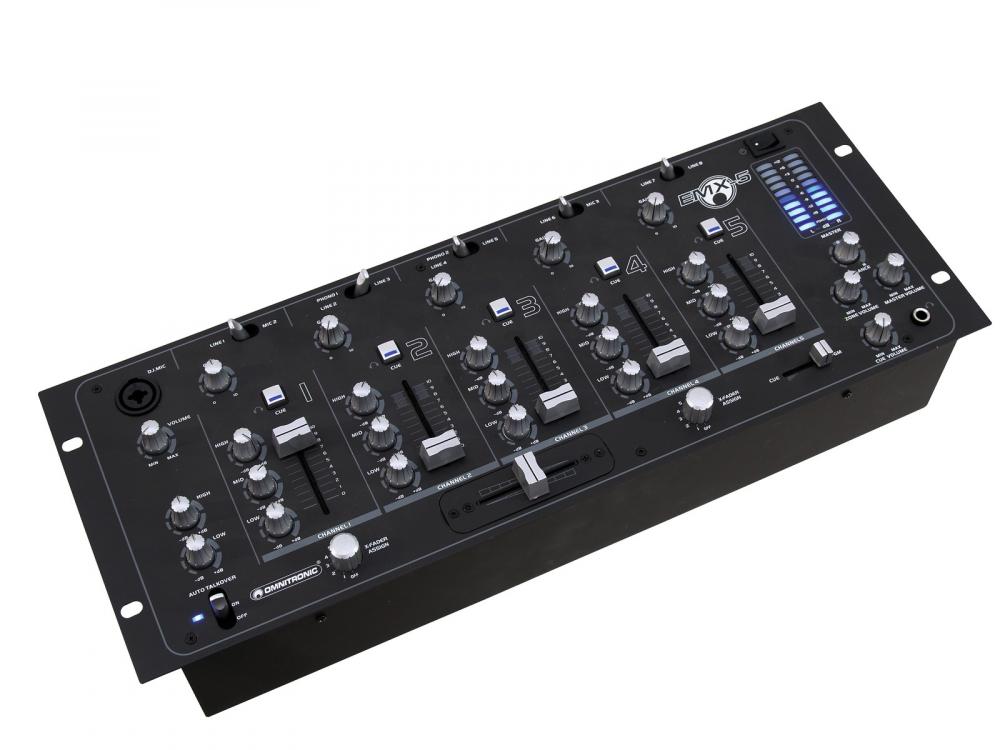

OMNITRONIC EMX-5 5-Channel Club Mixer
|
technical overview |
Power supply: 230 V AC, 50 Hz, via supplied power unit Inputs: DJ microphone (front): combined XLR (3-pin)/ 6.3 mm jack (1/4") (bal.) MIC 1.2 (rear): 6.3 mm jack (1/4") (bal.) Impedance: 1 kohms Minimum input voltage: 1.5 mV RMS LINE 1-5: stereo RCA Impedance: 27 kohms Minimum input voltage: 150 mV RMS PHONO 1.2: stereo RCA Impedance: 47 kohms Minimum input voltage: 3 mV RMS Outputs: MASTER: stereo RCA, stereo XLR (3-pin) ZONE: stereo RCA Impedance: 400 ohms Output voltage: 1 V RMS/ 0 dB REC: stereo RCA Impedance: 5 kohms Output voltage: 225 mV RMS Headphones output: 6.3 mm stereo jack (min. 16 ohms) Tone control (DJ microphone): 1 x High: -12 dB to +12 dB/ 1 kHz, ±1 dB 1 x Low: -12 dB to +12 dB/ 1 kHz, ±1 dB Tone control (channels 1-5): 5 x High: -12 dB to +12 dB/ 1 kHz, ±1 dB 5 x Mid: -12 dB to +12 dB/ 1 kHz, ±1 dB 5 x Low: -12 dB to +12 dB/ 1 kHz, ±1 dB S/N ratio: >80 dB Distortion: 0.02% Dimensions (WxHxD): 483 x 179 x 94 mm (19", 4 U) Weight: 4 kg Power consumption: 30,00 W Frequency range: 20 - 20000 Hz Height: 8,9 cm Depth: 17,9 cm Width: 48,3 cm Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) Power supply: 110-240 V AC, 50/60 Hz |
main features |

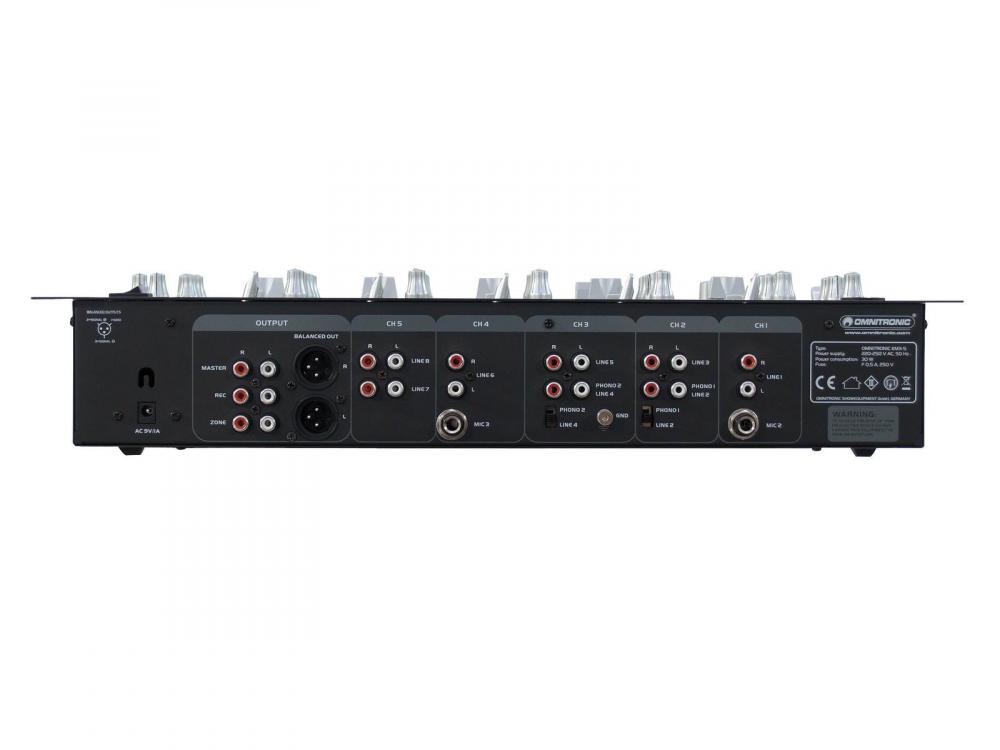

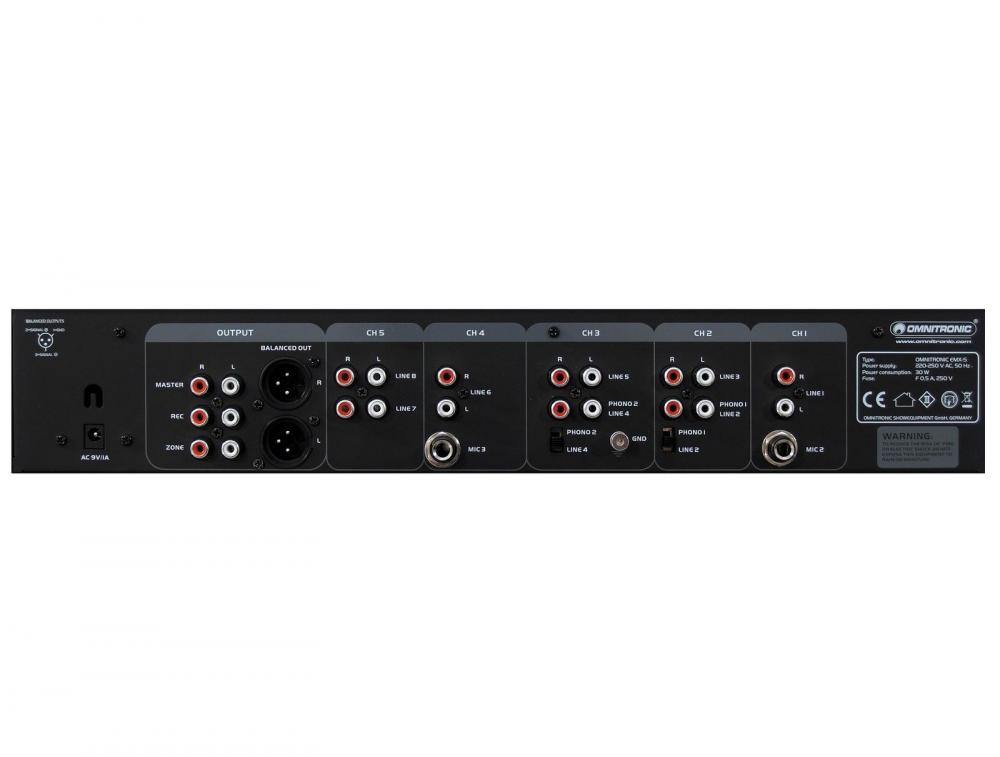

Low-price 5-channel club mixer -5 channels with gain control, 3-band equalizer, cue button and super-smooth channel faders -1 DJ microphone channel with talkover selector and 2-band equalizer -Pre-fader listening to all stereo input channels and the master output via adjustable stereo headphones output -Replaceable crossfader for crossfading between input channels with assignment switches -10-digit stereo LED level meter, master level control, and balance level control -Adjustable zone output, and record output, independent of the master -Inputs: 6 x line (stereo RCA), 2 x phono/line (stereo RCA), switchable; 2 x microphone (6.3 mm jack), 1 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack) -Outputs: master (3-pin XLR, stereo RCA), zone and record (both stereo RCA) -Operation via supplied power unit -Rack installation, 4 U -Housing design: (19") 48,3 cm rack installation -Height unit: 4 U -Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Signal to Noise Ratio |
80.00 dB
|
Connectors | |
Audio output > RCA / Cinch Stereo-Set (L/R) |
yes
|
Audio output > XLR 3P |
yes
|
Electrical | |
power consumption watt, max |
30.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
external PSU |
yes
|
Mechanical | |
weight |
4.00 kg
|
width |
483.00 mm
|
height |
89.00 mm
|
length |
179.00 mm
|
