Info | |
---|---|
order code |
10006818
|
product link | |
EAN |
4026397313420
|
Product Name |

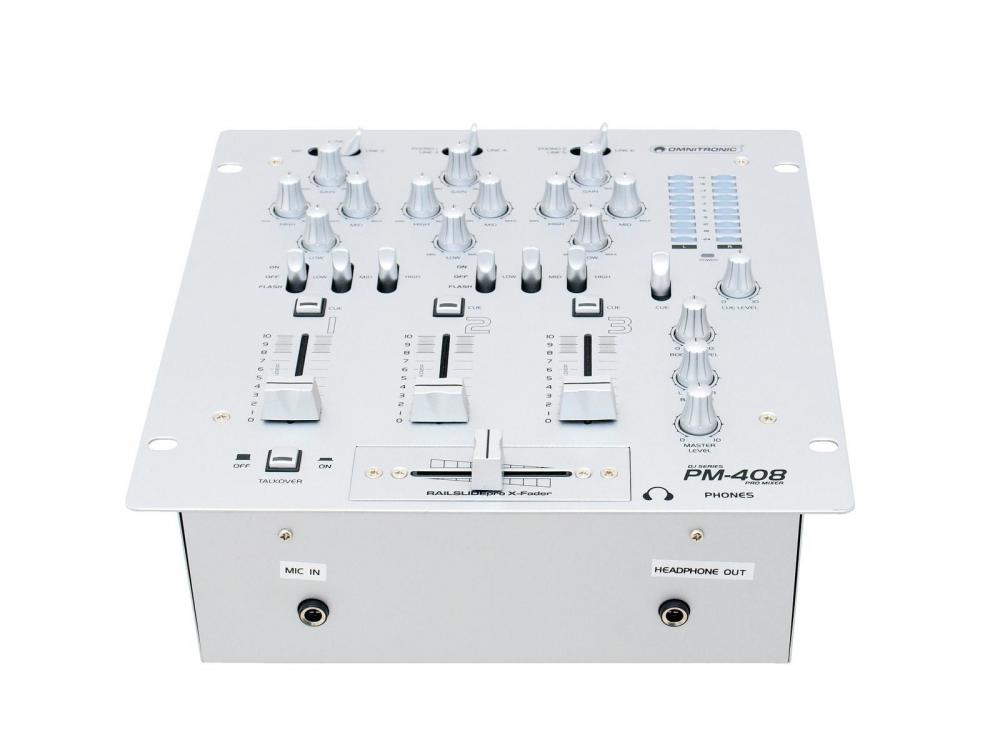

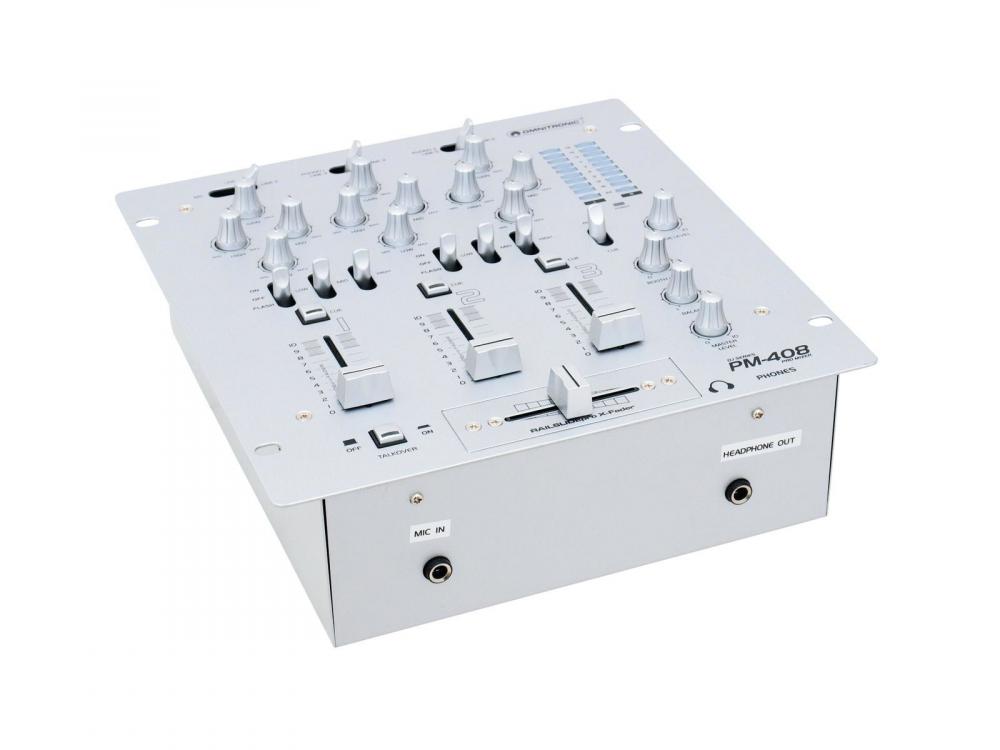

OMNITRONIC PM-408 DJ Mixer
|
technical overview |

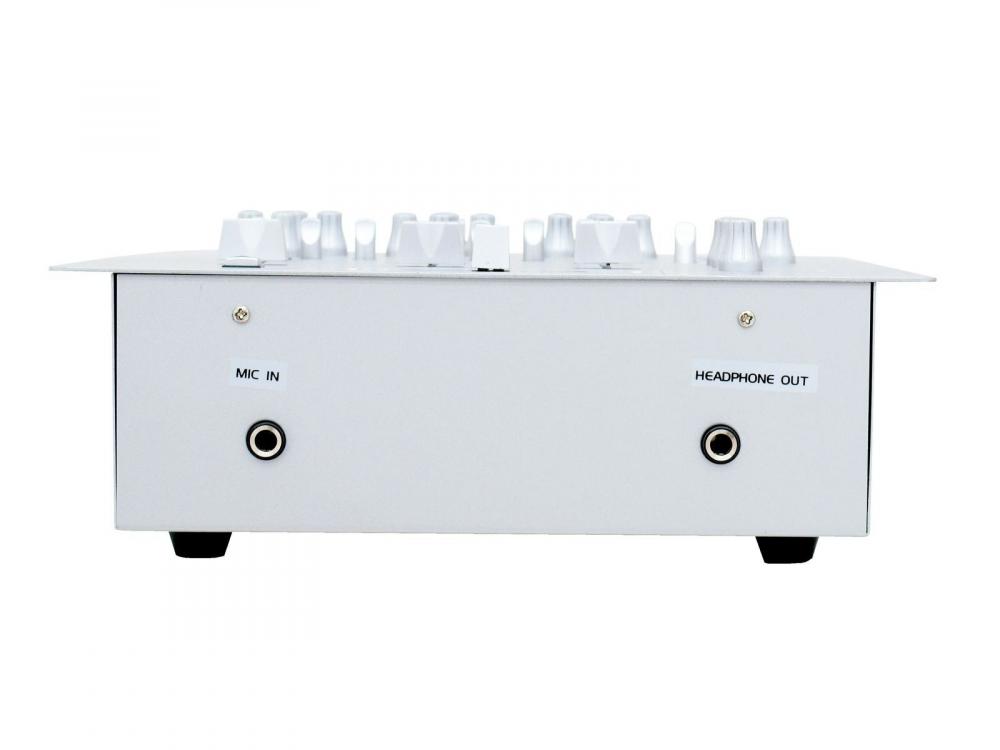

Power supply: 230 V AC, 50 Hz Inputs: DJ microphone: 6.3 mm jack Minimum input voltage: 1.5 mV RMS/ 1 kohm LINE 1-6: stereo RCA Minimum input voltage: 150 mV RMS/ 270 kohm PHONO 1-2: stereo RCA Minimum input voltage: 3 mV RMS/ 470 kohm Outputs: MASTER: stereo RCA, stereo XLR (3-pin) BOOTH: stereo RCA Max. output level: +22 dBu Output voltage: 9 V RMS REC: stereo RCA Output voltage: 225 mV RMS/ 5 kohm Headphones output: 6.3 mm stereo jack, 16 ohms Tone control: 3 x High: -12 dB to +12 dB/ 1 kHz 3 x Middle: -12 dB to +12 dB/ 1 kHz 3 x Low: 12 dB to +12 dB/ 1 kHz S/N ratio: >80 dB Distortion: 0.05% (line/phono) Dimensions (WxHxD): 262 x 255 x 110 mm Weight: 2,8 kg Power consumption: 5,00 W Frequency range: 20 - 20000 Hz Height: 11 cm Depth: 26,2 cm Width: 25,5 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
main features |

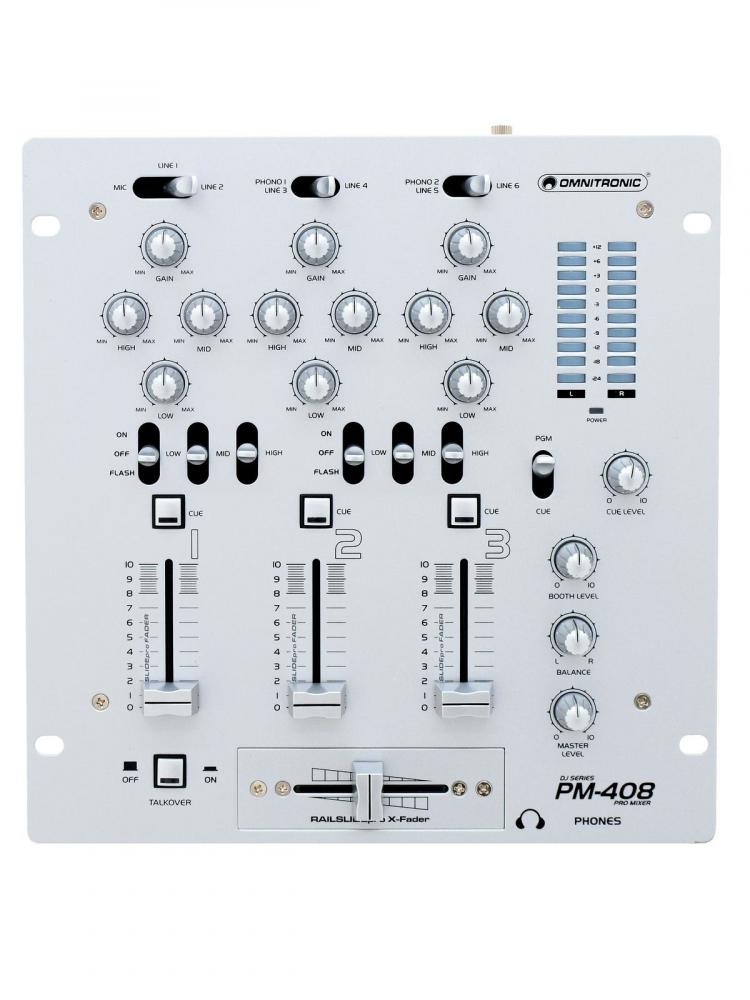

Professional 3-channel DJ mixer -3 input channels with gain control and 3-way equalizer, channel 1 and 3 with kill function -Talkover button for the DJ microphone channel -Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output -Replaceable crossfader for crossfading between input channels -High-quality and super-smooth channel faders -10-digit stereo LED level meter, master level control and booth level control -Inputs: 4 x line (stereo RCA), 2 x phono/line (stereo RCA), switchable; DJ microphone and headphones (both 6.3 mm jack) -Outputs: master (3-pin XLR, stereo RCA), booth and record (both stereo RCA) -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Maximum Output Level |
22.00 dBu
|
Signal to Noise Ratio |
80.00 dB
|

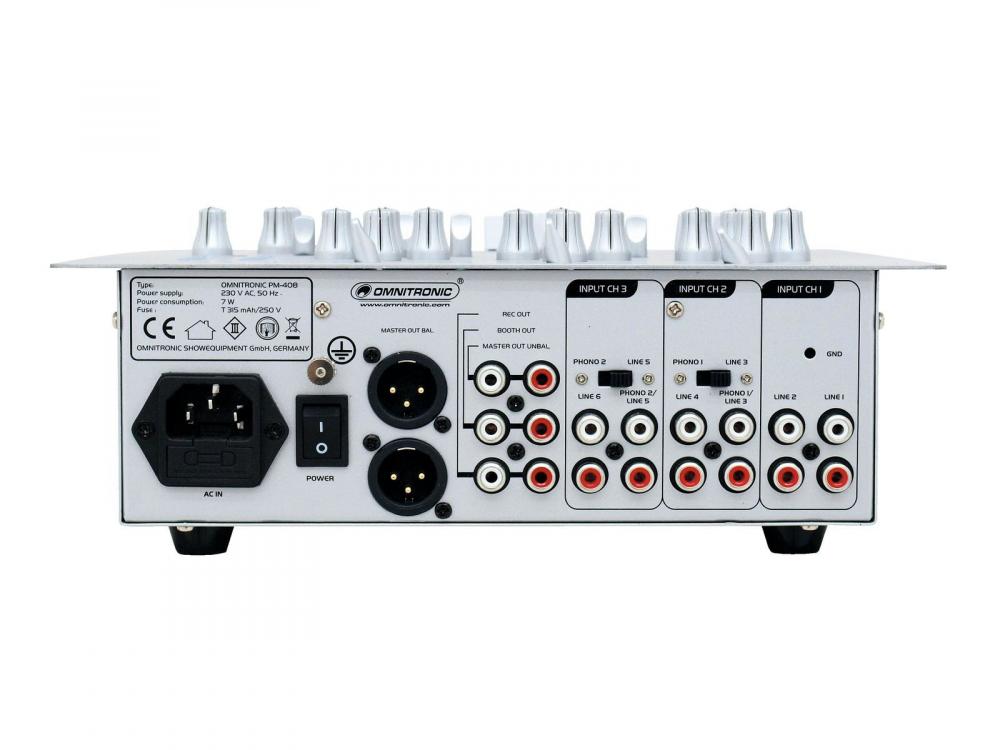

Connectors | |
Audio output > RCA / Cinch Stereo-Set (L/R) |
yes
|
Audio output > XLR 3P |
yes
|
Electrical | |
power consumption watt, max |
5.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
2.80 kg
|
width |
262.00 mm
|
height |
255.00 mm
|
length |
110.00 mm
|
