Info | |
---|---|
order code |
10006819
|
product link | |
EAN |
4026397380392
|
Product Name |

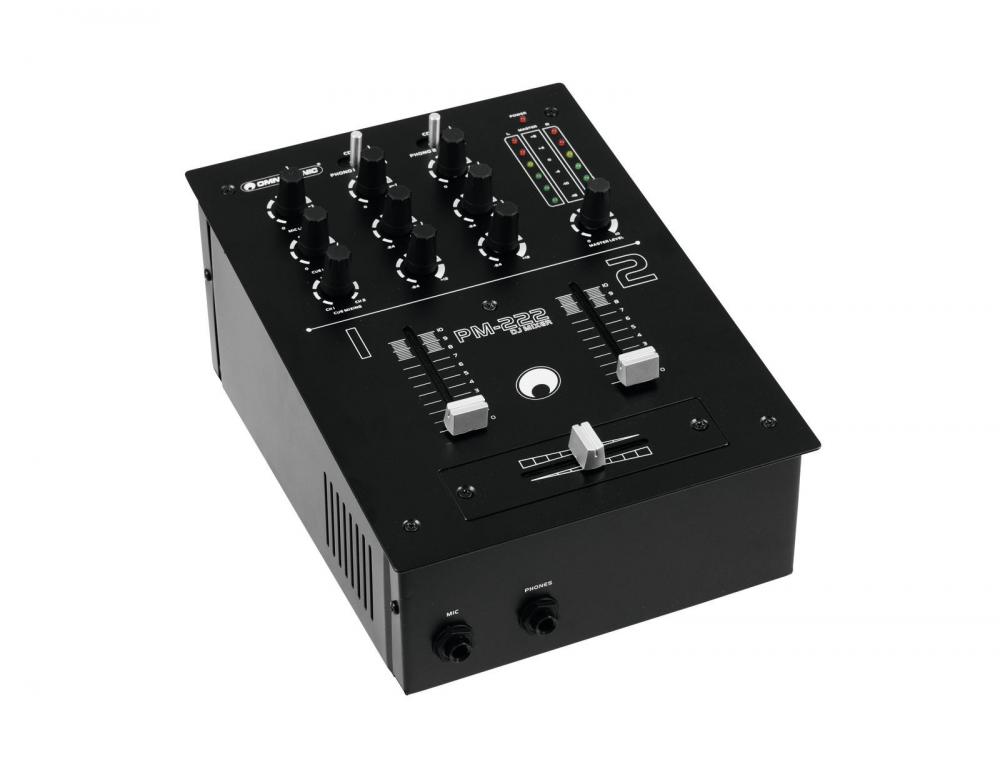

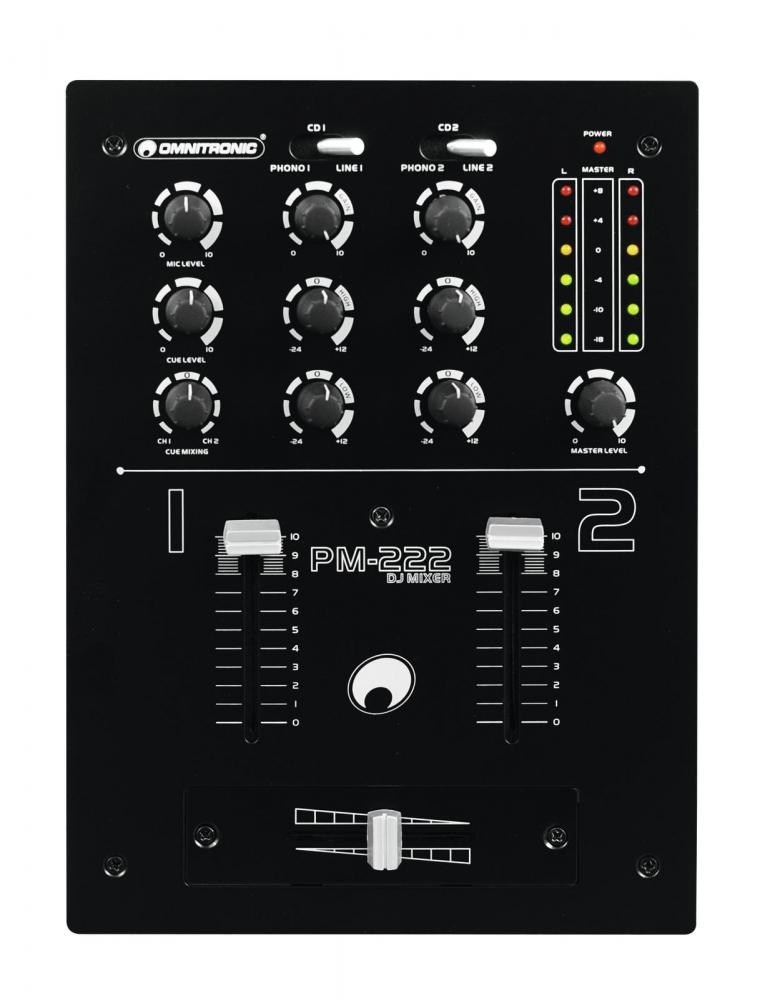

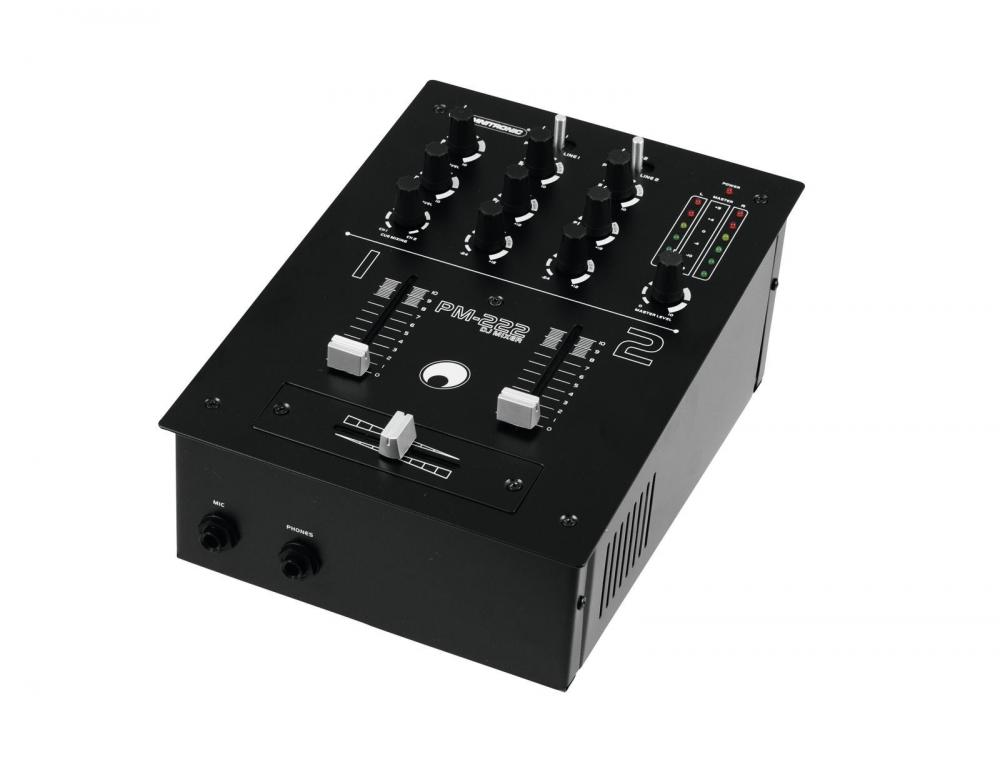

OMNITRONIC PM-222 2-Channel DJ Mixer
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Inputs: DJ microphone: 6.3 mm jack Minimum input voltage: 3 mV RMS/ 47 kohms LINE: stereo RCA Minimum input voltage: 150 mV RMS/ 47 kohms PHONO: stereo RCA Minimum input voltage: 3 mV RMS/ 47 kohms Outputs: MASTER: stereo RCA Max. output level: +19 dBu Output voltage: 7 V RMS REC: stereo RCA Output voltage: 2.4V RMS Headphones output: 6.3 mm stereo jack (min. 32 ohms) Tone control: 2 x High: -24 dB to +15 dB/ 12 kHz 2 x Low: -24 dB to +15 dB/ 100 Hz S/N ratio: >70 dB Distortion: Dimensions (L x W x H): 260 x 190 x 137 mm Weight: 2 kg Power consumption: 30,00 W Frequency range: 20 - 20000 Hz Height: 13,7 cm Depth: 26 cm Width: 19 cm Power connection: Mains Input Socket (M) Euro plug (M) mounting version Power supply cord with Euro plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |

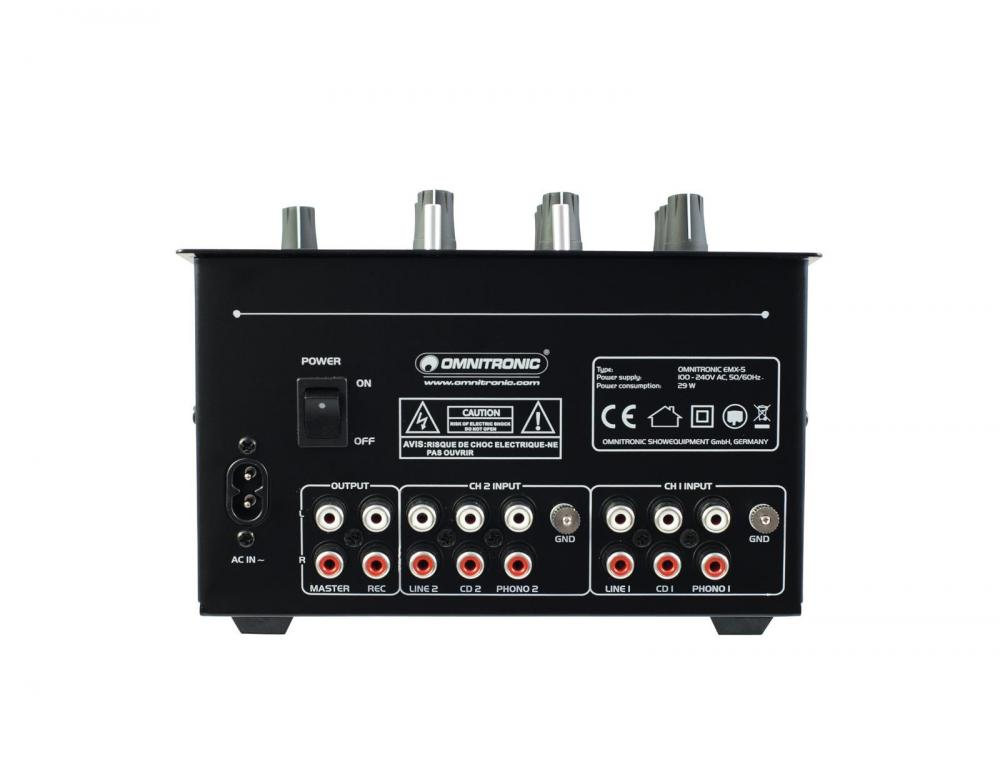

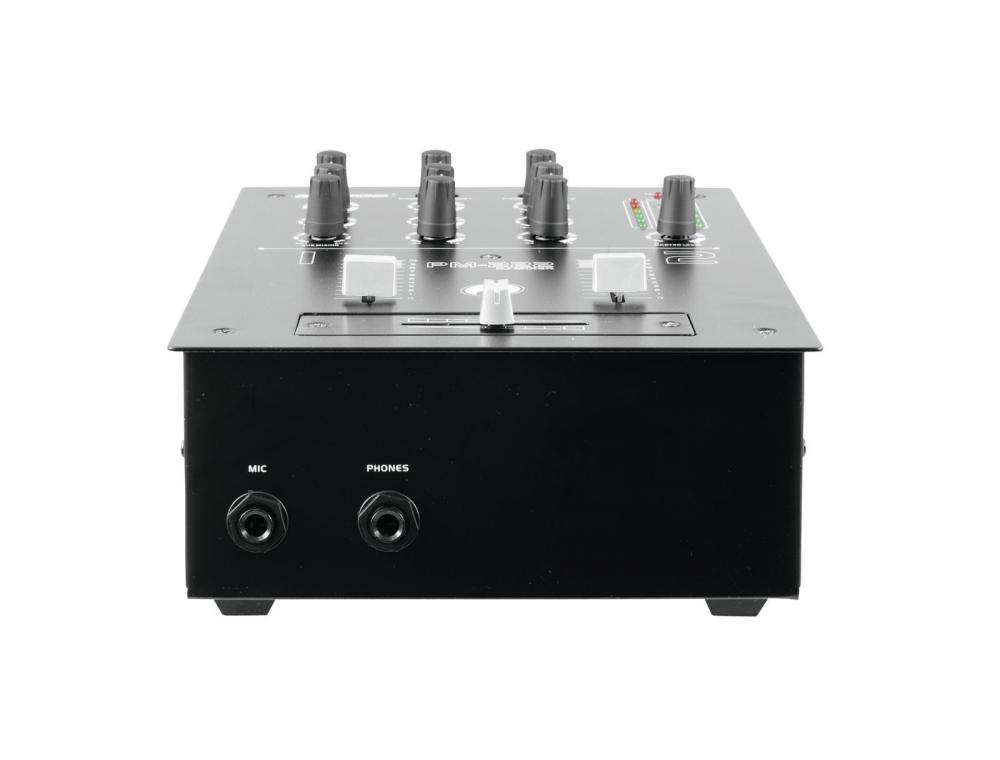

2-channel DJ mixer -2 input channels with gain control, 2-way equalizer and phono/line switching -DJ microphone input with level control -Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output, with cue mix control -Replaceable crossfader for crossfading between both channels -6-digit stereo LED level meter and master level control -Inputs: 4 x line and 2 x phono (stereo RCA), DJ microphone and headphones (6.3 mm jack) -Outputs: master and record (stereo RCA) -Power connection: Mains Input Socket (M) Euro plug (M) mounting version Power supply cord with Euro plug (M) (provided) |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Maximum Output Level |
19.00 dBu
|
Signal to Noise Ratio |
70.00 dB
|
Connectors | |
Audio output > RCA / Cinch Stereo-Set (L/R) |
yes
|
Electrical | |
power consumption watt, max |
30.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
power input connector |
Europlug
|
Mechanical | |
weight |
2.00 kg
|
width |
190.00 mm
|
height |
137.00 mm
|
length |
260.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00047035.pdf |
