Info | |
---|---|
order code |
10006823
|
product link | |
EAN |
4026397453423
|
Product Name |

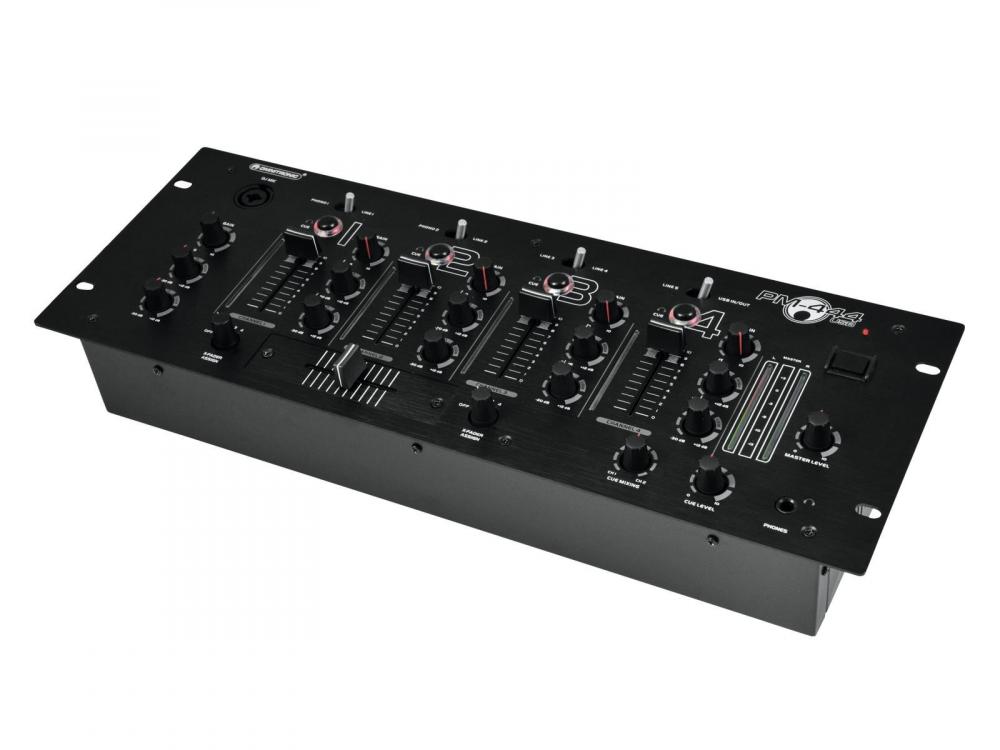

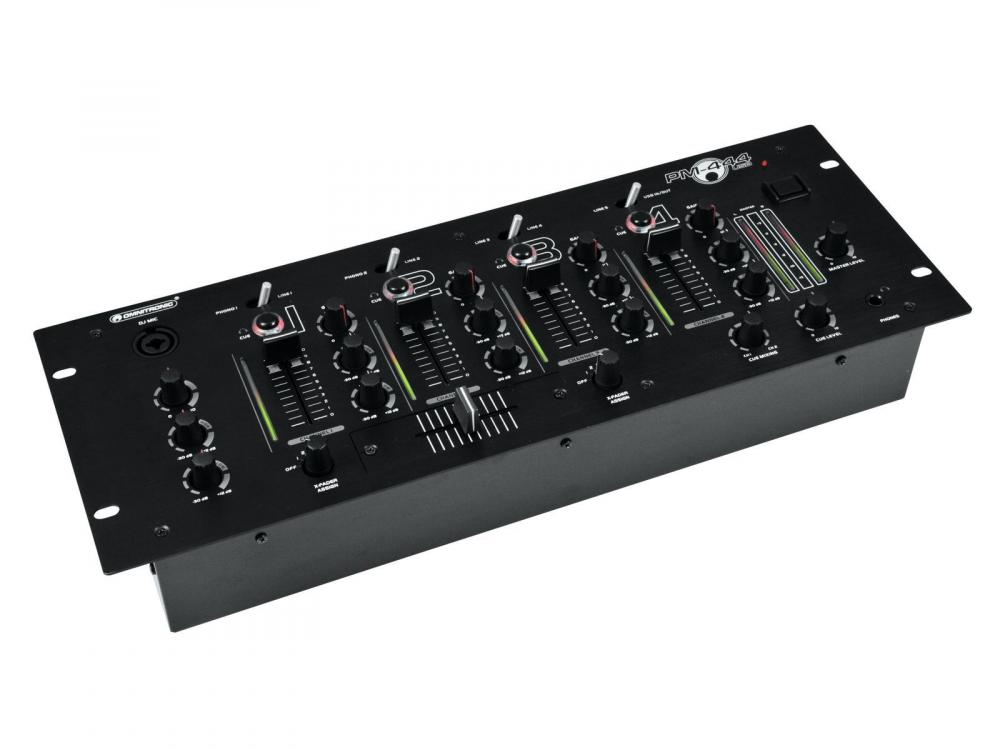

OMNITRONIC PM-444USB 4-Channel DJ mixer
|
technical overview |

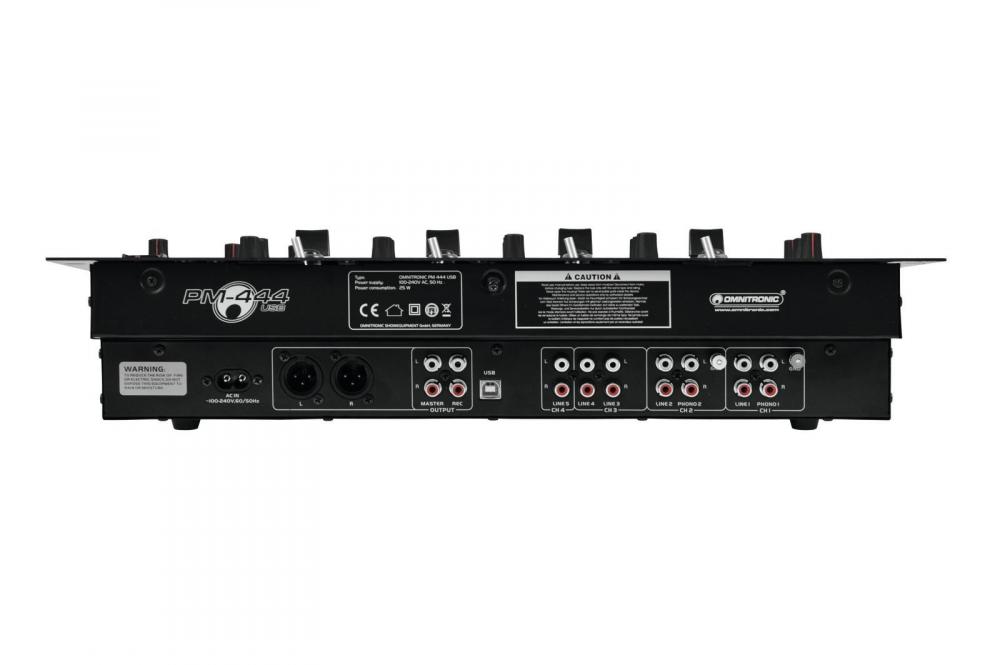

Power supply: 100-240 V AC, 50/60 Hz USB port: 2.0, type B Inputs: DJ microphone (front): combined 3-pin XLR/6.3 mm jack (bal.) Impedance: 1 kohms Minimum input voltage: 10 mV RMS LINE 1-4: stereo RCA Impedance: 1 kohms Minimum input voltage: 300 mV RMS PHONO 1.2: stereo RCA Impedance: 1 kohms Minimum input voltage: 3 mV RMS Outputs: MASTER: stereo RCA, XLR L/R (bal.) Output voltage: 3 V RMS REC: stereo RCA Output voltage: 7 V RMS Headphones output: 6.3 mm stereo jack (>16 ohms) Tone control (DJ microphone): 1 x High: -30 dB to +12 dB/ 10 kHz, ±1 dB 1 x Low: -30 dB to +12 dB/ 100 Hz, ±1 dB Tone control (ch 1-4): 1 x High: -30 dB to +12 dB/ 40 kHz, ±1 dB 1 x Low: -30 dB to +12 dB/ 40 kHz, ±1 dB S/N ratio: 60 dB Dimensions (WxHxD): 483 x 177 x 101 mm (19", 4 U) Power consumption: 25,00 W Weight: 2,9 kg Frequency range: 20 - 20000 Hz Height: 8,9 cm Depth: 17,8 cm Width: 48,3 cm Power connection: Mains Input Socket (M) Euro plug (M) mounting version Power supply cord with Euro plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |

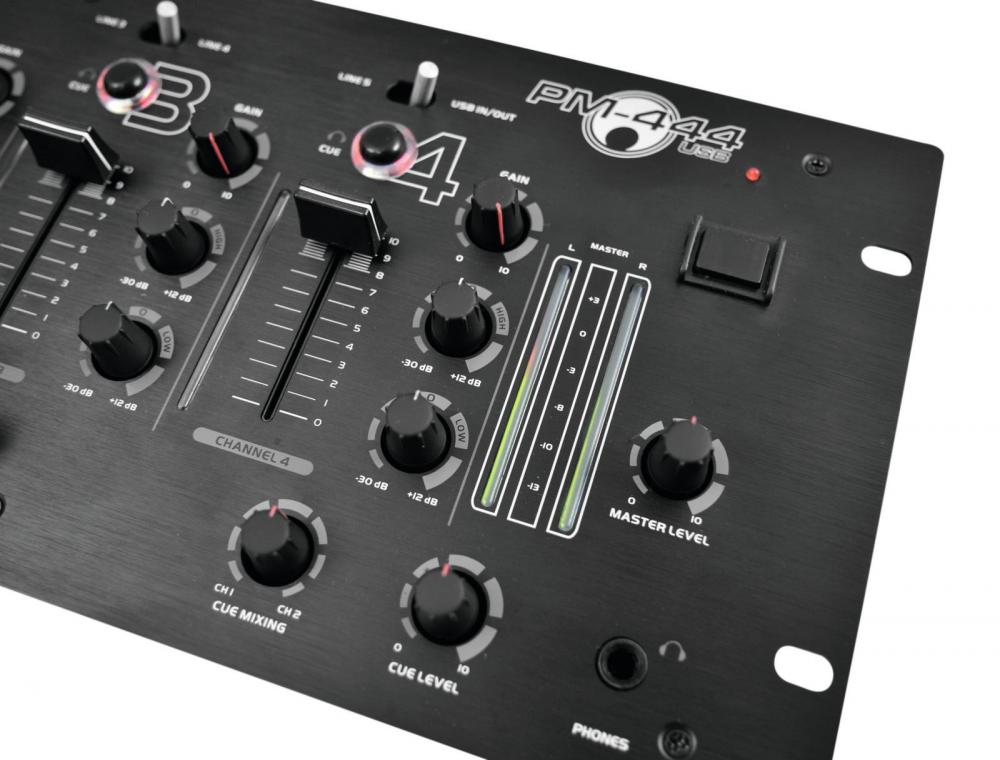

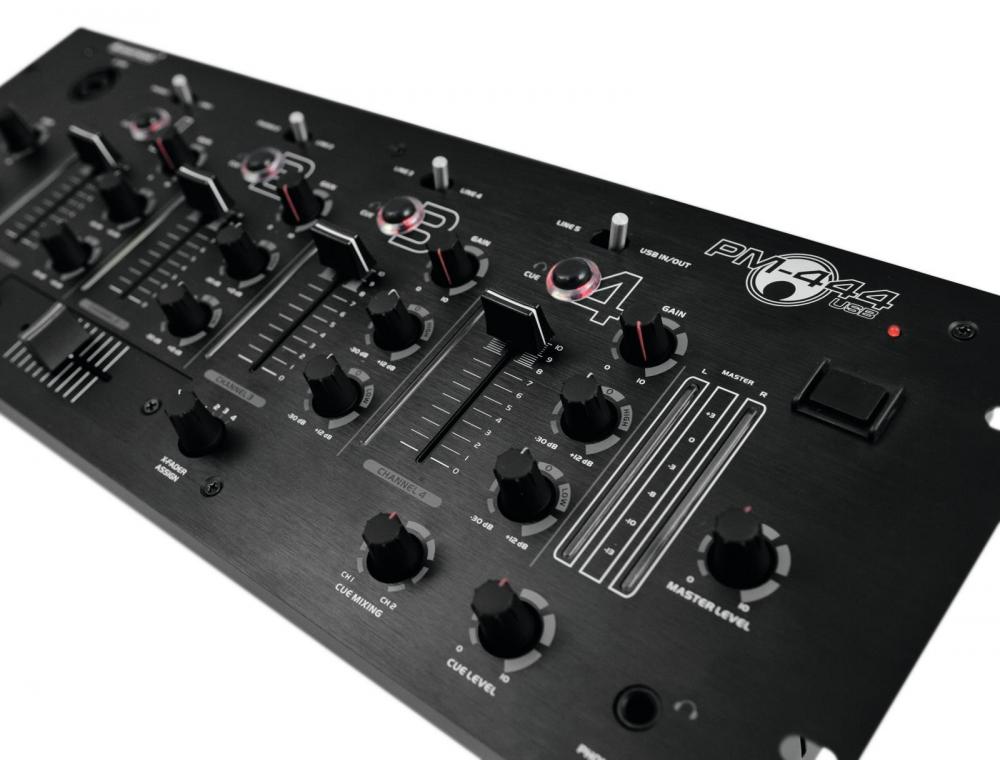

4-channel DJ mixer with USB interface -Integrated USB audio interface for digital mixing of audio files from PC and Mac -Full duplex USB port allows simultaneous recording and playback -4 channels with gain control, 2-band equalizer, cue button and channel fader -1 DJ microphone channel with talkover selector and 2-band equalizer -Pre-fader listening to all stereo input channels and the master output via adjustable stereo headphones output -Replaceable crossfader for crossfading between input channels with assignment switches -Master channel with level control and 6-digit stereo LED level meter -Inputs: 1 x USB, 5 x line (stereo RCA), 2 x phono (stereo RCA), 1 x microphone (XLR/jack) -Outputs: master (stereo XLR/RCA), record (stereo RCA), headphones (6.3 mm jack) -Rack installation, 4 U -Housing design: (19") 48,3 cm rack installation -Height unit: 4 U -Power connection: Mains Input Socket (M) Euro plug (M) mounting version Power supply cord with Euro plug (M) (provided) |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Signal to Noise Ratio |
60.00 dB
|
Connectors | |
Audio output > RCA / Cinch Stereo-Set (L/R) |
yes
|
Audio output > XLR 3P |
yes
|
Electrical | |
power consumption watt, max |
25.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
power input connector |
Europlug
|
Mechanical | |
weight |
2.90 kg
|
width |
483.00 mm
|
height |
177.00 mm
|
length |
178.00 mm
|
