| Info | |
|---|---|
| order code |
10006880
|
| product link | |
| EAN |
4026397514094
|
| Product Name |

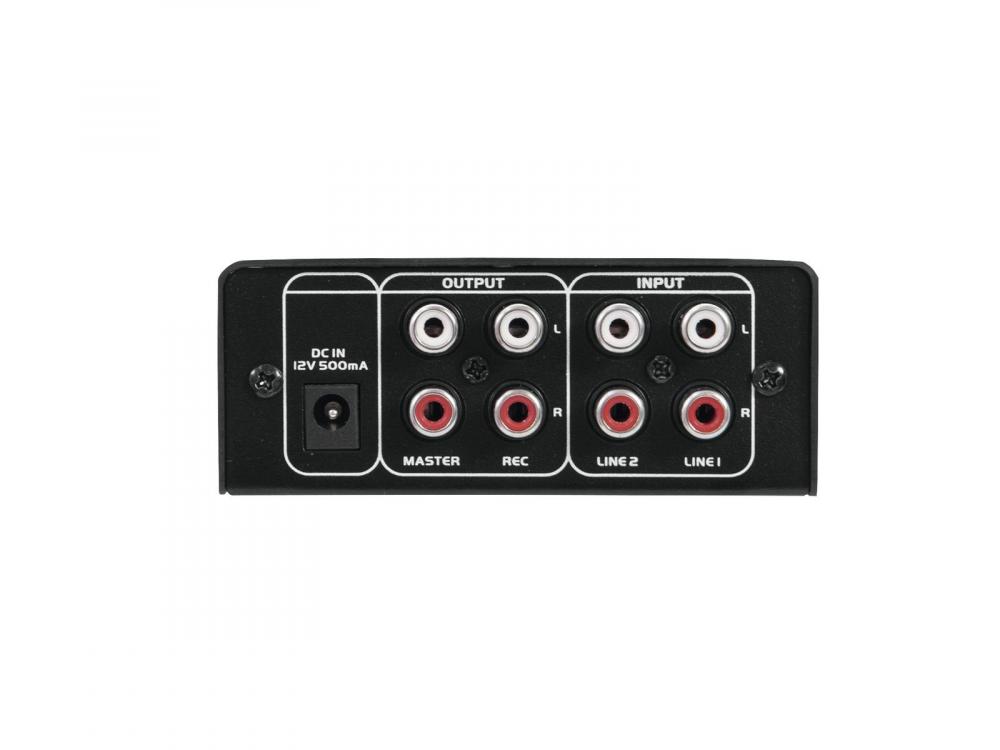

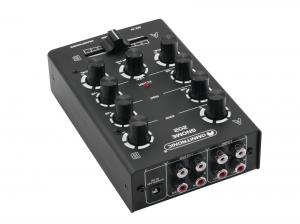

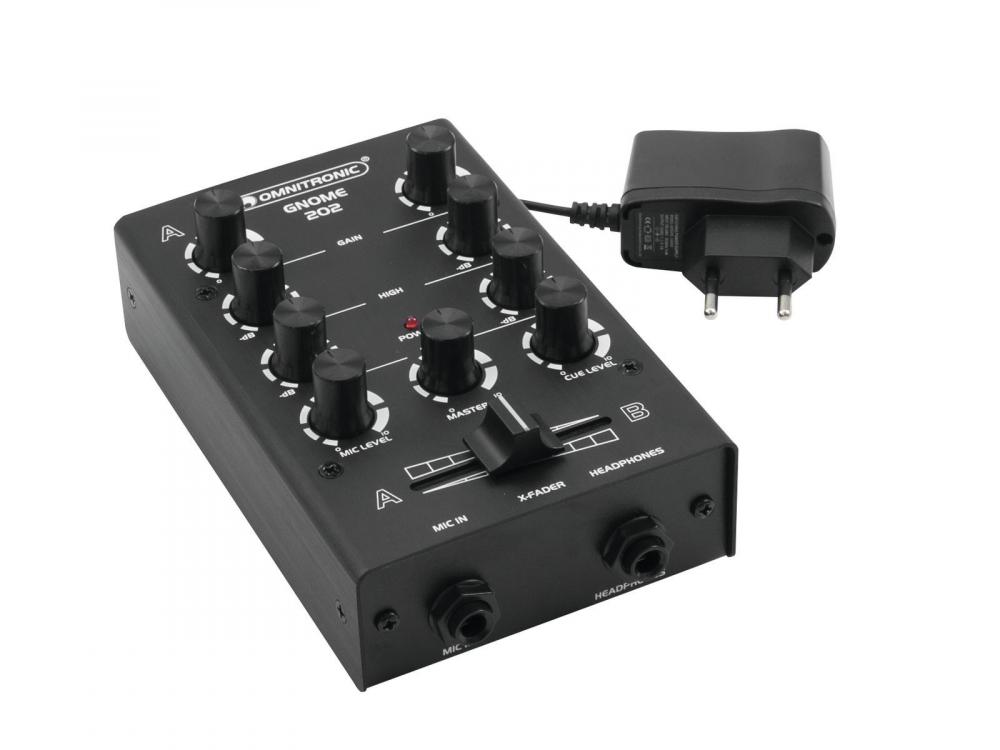

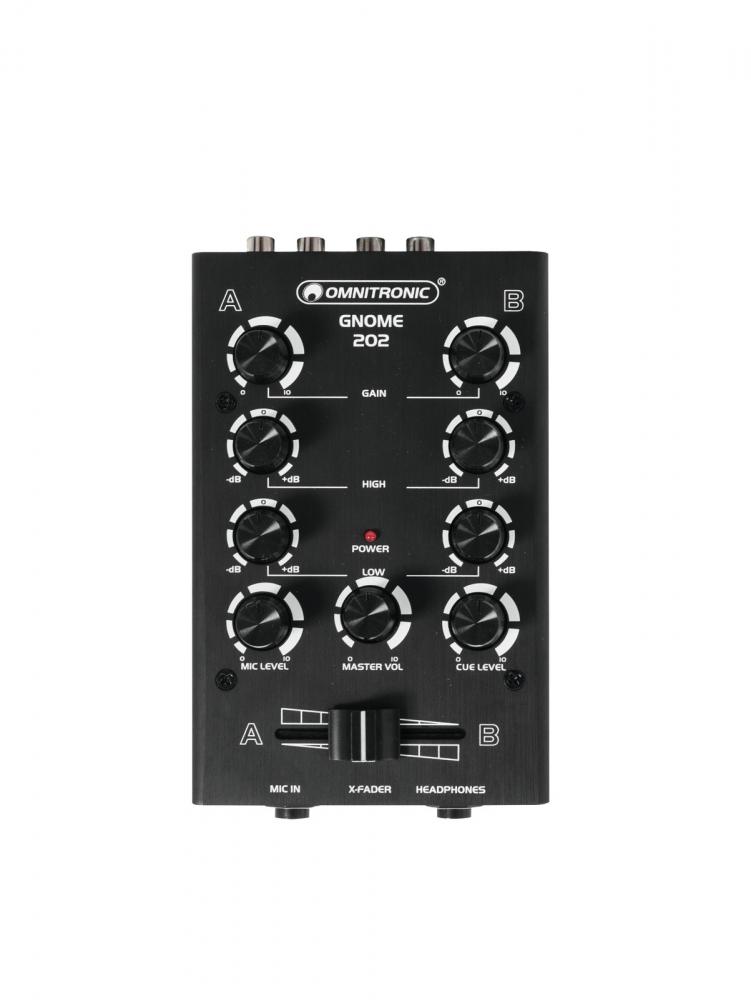

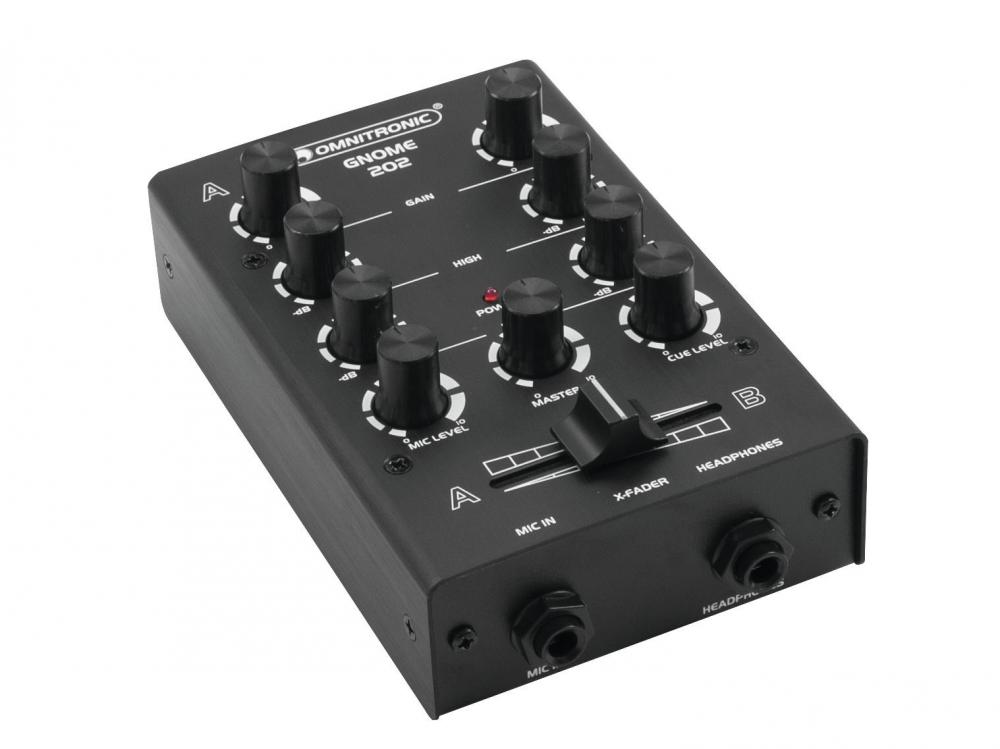

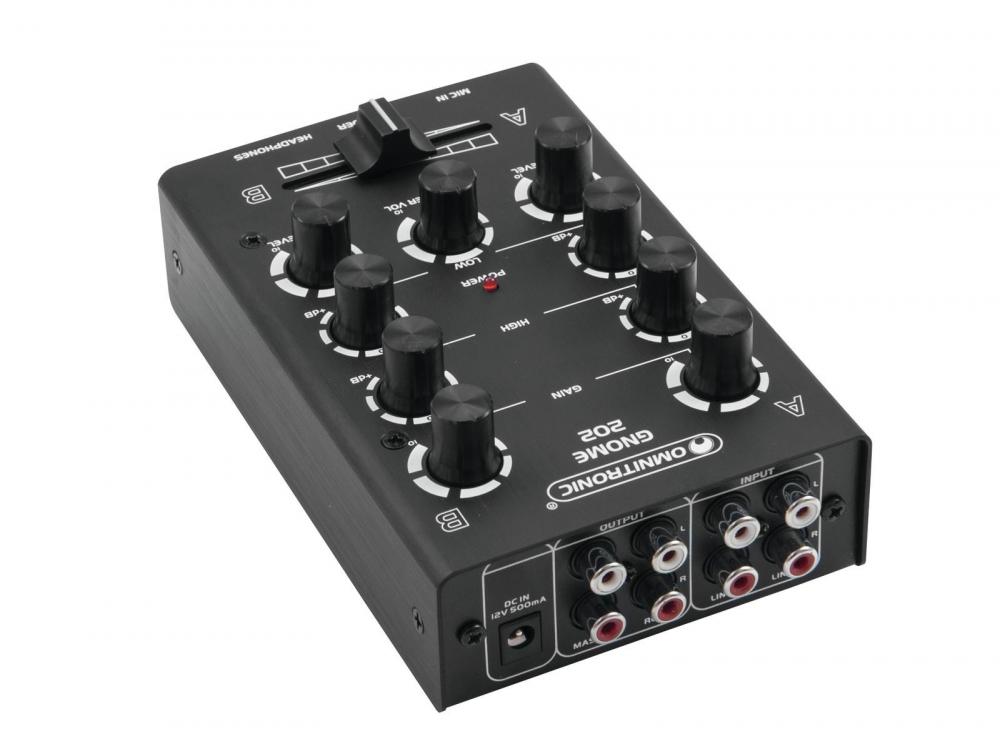

OMNITRONIC GNOME-202 Mini Mixer black
|
| technical overview |
Power supply: 230 V AC, 50 Hz via supplied power unit Line input: 2 x stereo RCA Microphone input: 6.3 mm jack, unbal. Master output: stereo RCA Record output: stereo RCA Headphones output: 6.3 mm stereo jack S/N ratio: >85 dB Distortion: Dimensions (L x W x H): 165 x 100 x 60 mm Power consumption: 6,00 W Weight: 0,5 kg Frequency range: 20 - 20000 Hz Height: 6 cm Depth: 16,5 cm Width: 10 cm Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) Power supply: 230 V AC, 50 Hz |
| main features |
2-channel DJ mixer in miniature design -Super portable and lightweight DJ mixer -2 stereo channels with gain control and 2-band EQ, RCA connectors -Adjustable microphone input via 6.3 mm jack -Adjustable headphones output via 6.3 mm jack -Adjustable master output and record output via RCA connectors -Crossfader -Anodized metal housing -Operation via supplied power unit -Various colors available -Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) |
| Audio | |
| Frequency response, from |
20 Hz
|
| Frequency response, to |
20000 Hz
|
| Signal to Noise Ratio |
85.00 dB
|
| Electrical | |
| power consumption watt, max |
6.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| external PSU |
yes
|
| Mechanical | |
| weight |
0.50 kg
|
| width |
100.00 mm
|
| height |
60.00 mm
|
| length |
165.00 mm
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00082020.pdf |
