OMNITRONIC GNOME-202 Mini Mixer green

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC GNOME-202 Mini Mixer green

Info
order code
10006884
product link
EAN
4026397514131
Product Name
OMNITRONIC GNOME-202 Mini Mixer green
technical overview
Power supply: 230 V AC, 50 Hz
via supplied power unit

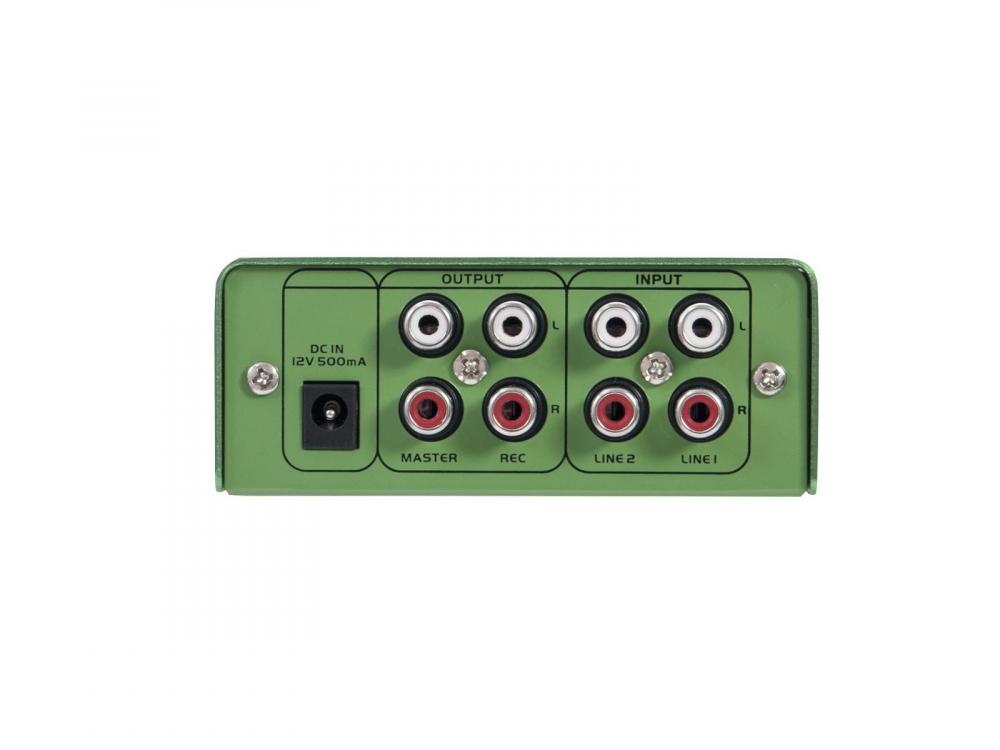

Line input: 2 x stereo RCA
Microphone input: 6.3 mm jack, unbal.
Master output: stereo RCA
Record output: stereo RCA
Headphones output: 6.3 mm stereo jack
S/N ratio: >85 dB
Distortion:
Dimensions (L x W x H): 165 x 100 x 60 mm
Power consumption: 6,00 W
Weight: 0,5 kg
Frequency range: 20 - 20000 Hz
Height: 6 cm
Depth: 16,5 cm
Width: 10 cm
Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m)
Power supply: 230 V AC, 50 Hz
main features

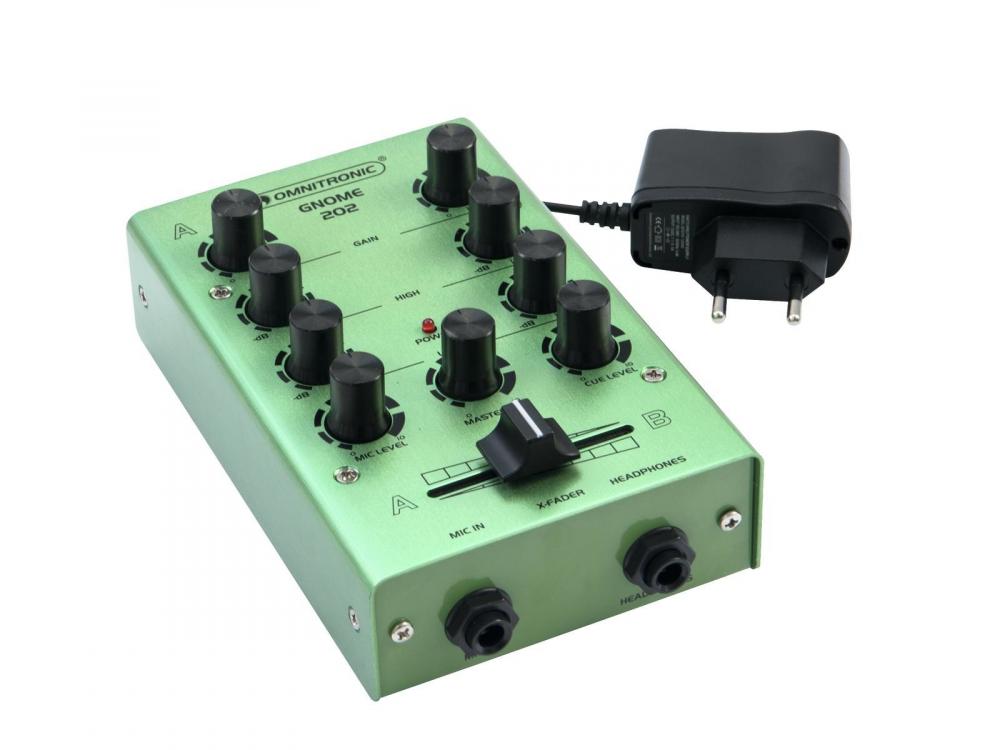

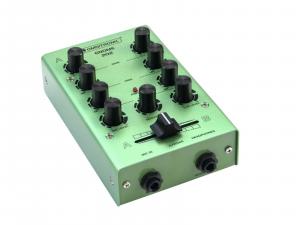

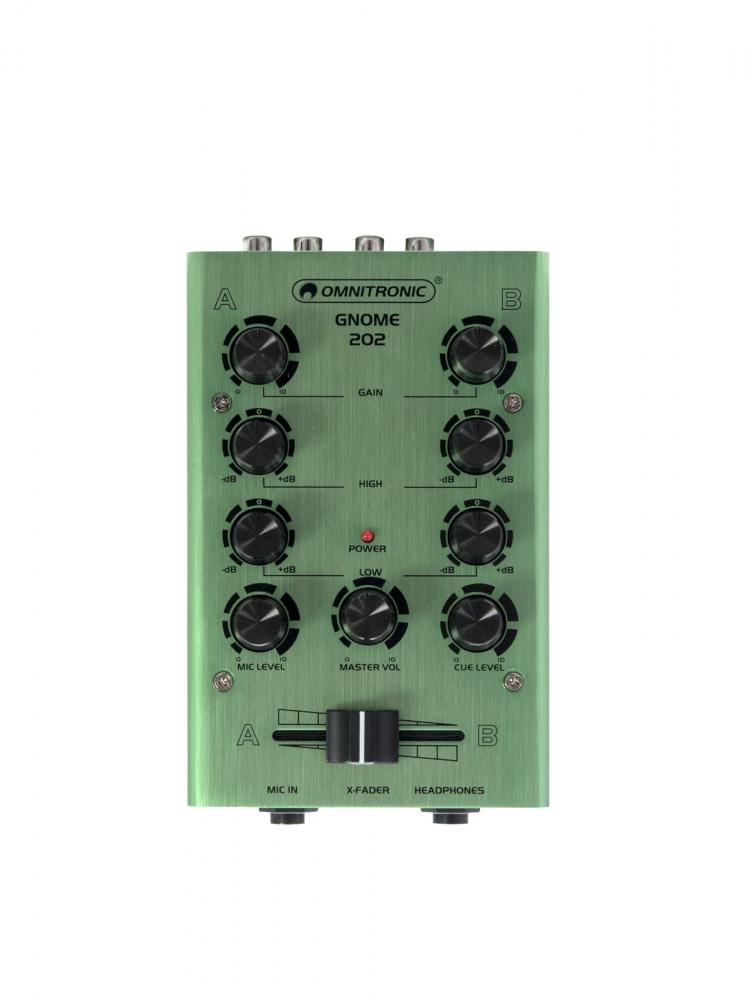

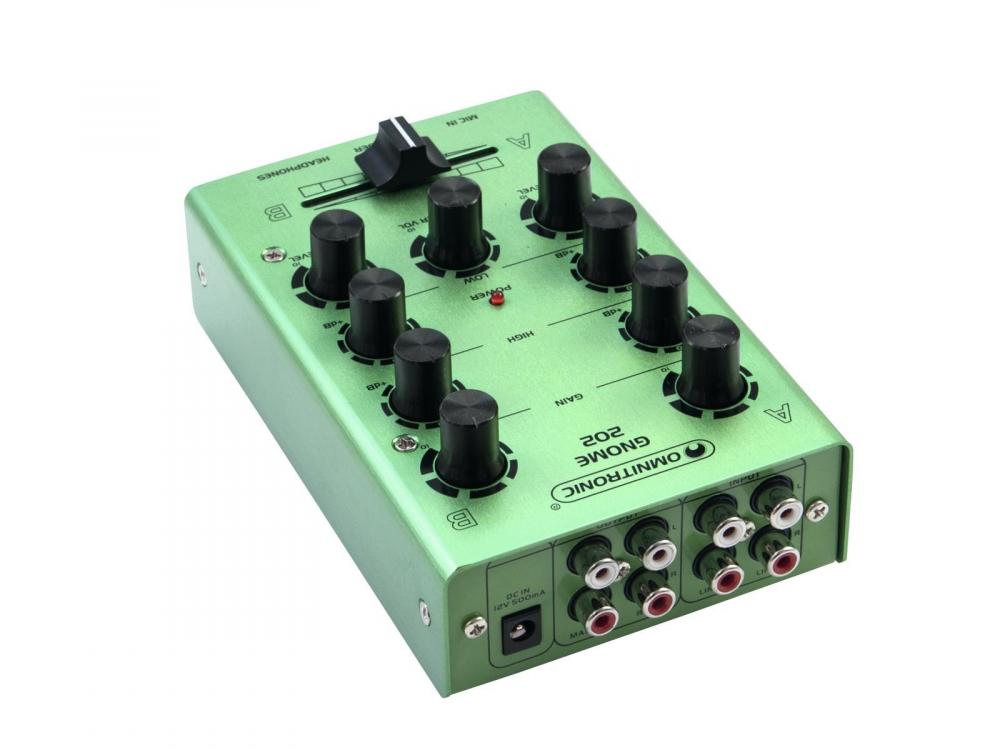

2-channel DJ mixer in miniature design
-Super portable and lightweight DJ mixer
-2 stereo channels with gain control and 2-band EQ, RCA connectors
-Adjustable microphone input via 6.3 mm jack
-Adjustable headphones output via 6.3 mm jack
-Adjustable master output and record output via RCA connectors
-Crossfader
-Anodized metal housing
-Operation via supplied power unit
-Various colors available
-Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
Audio
Frequency response, from
20 Hz
Frequency response, to
20000 Hz
Signal to Noise Ratio
85.00 dB
Electrical
power consumption watt, max
6.00 W
AC Volts, min
230 V
AC Volts, max
230 V
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
external PSU
yes
Mechanical
weight
0.50 kg
width
100.00 mm
height
60.00 mm
length
165.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00082020.pdf
