Info | |
---|---|
order code |
10007105
|
product link | |
EAN |
4026397419146
|
Product Name |

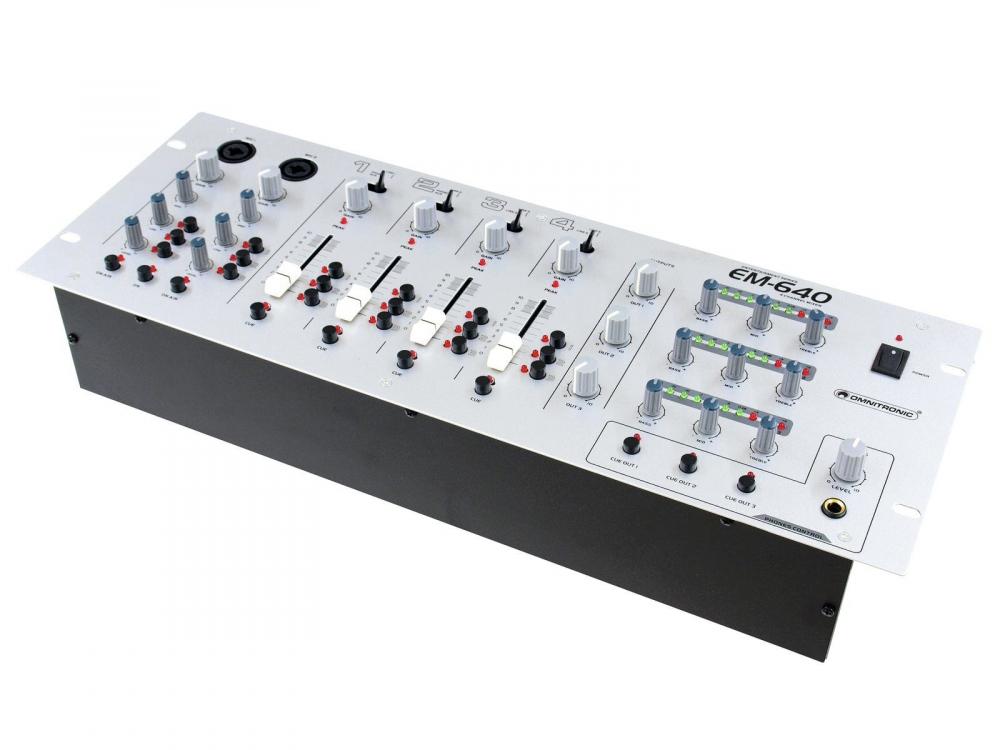

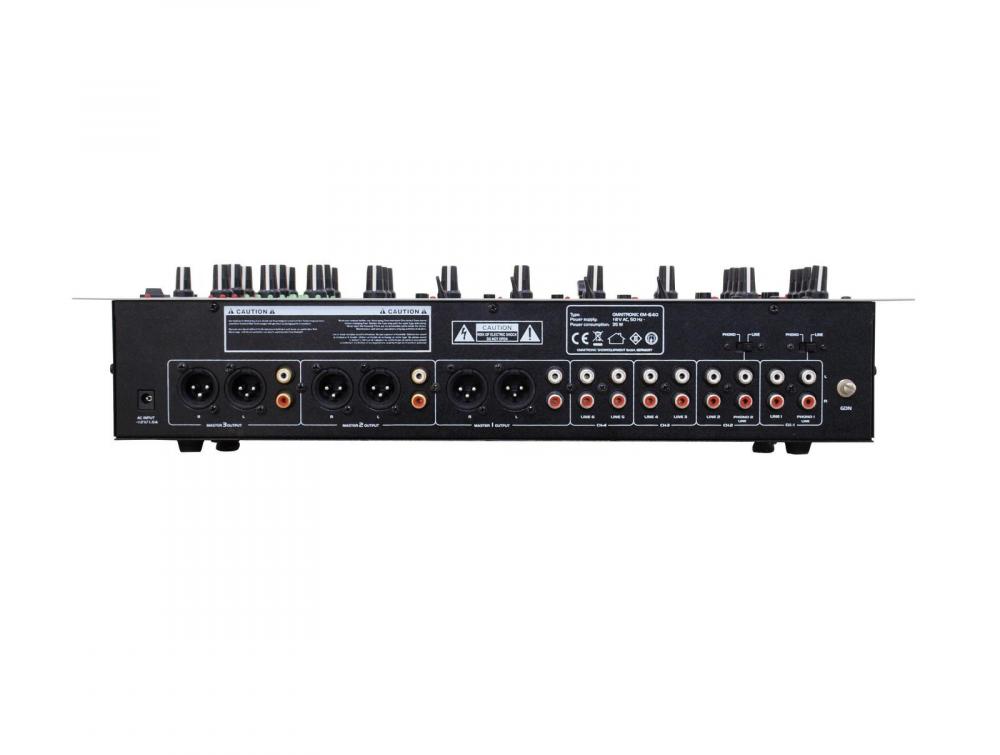

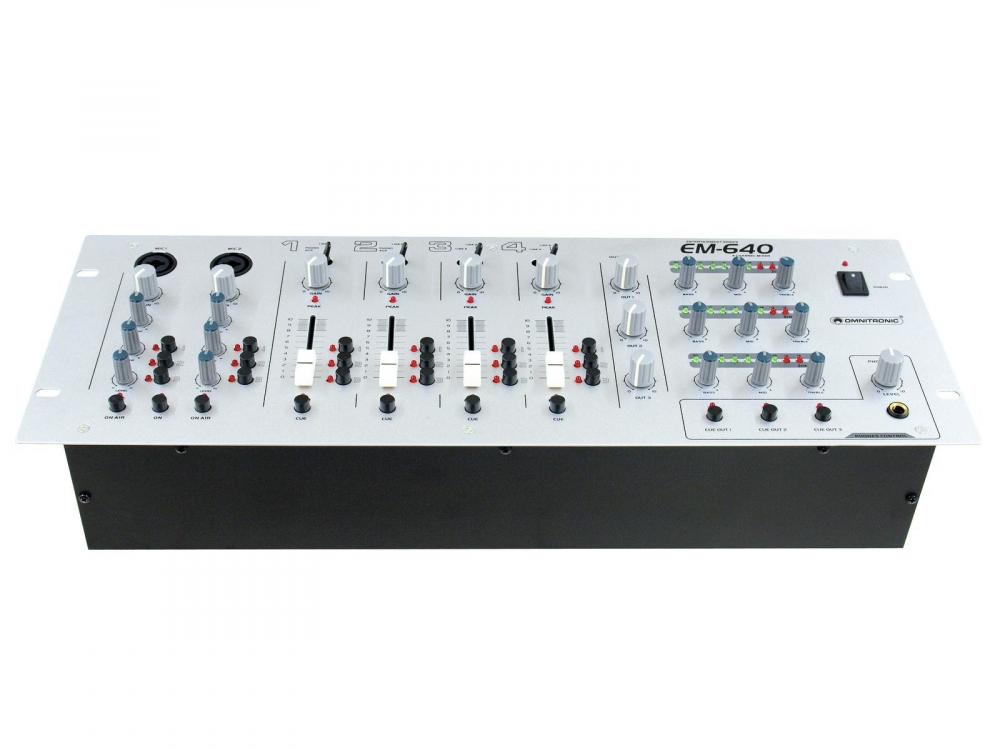

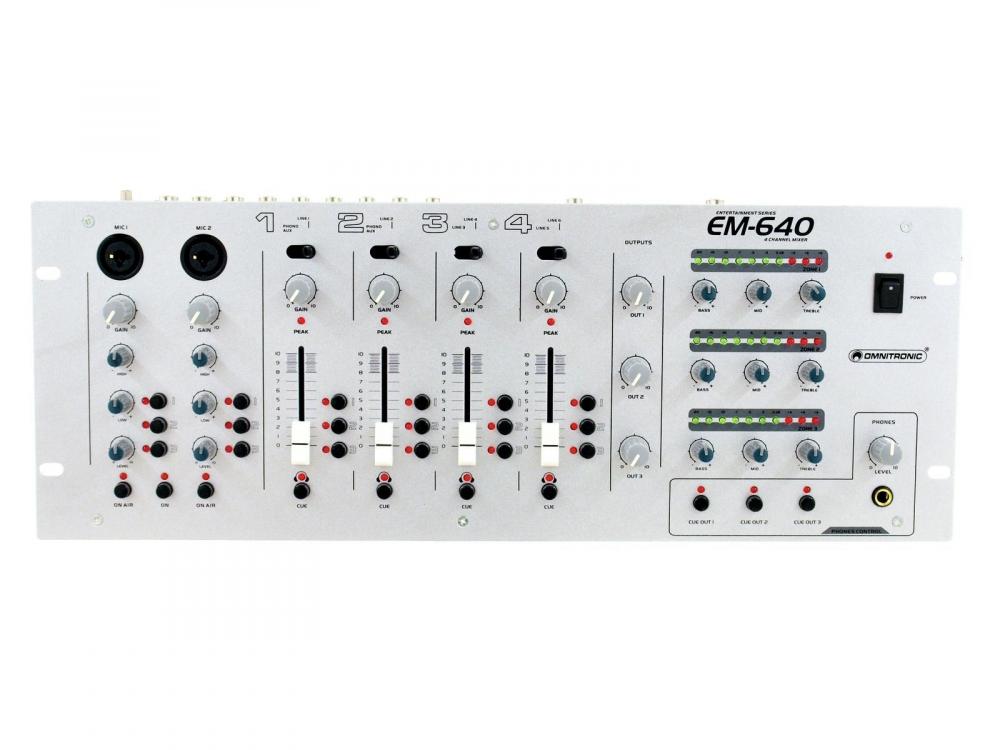

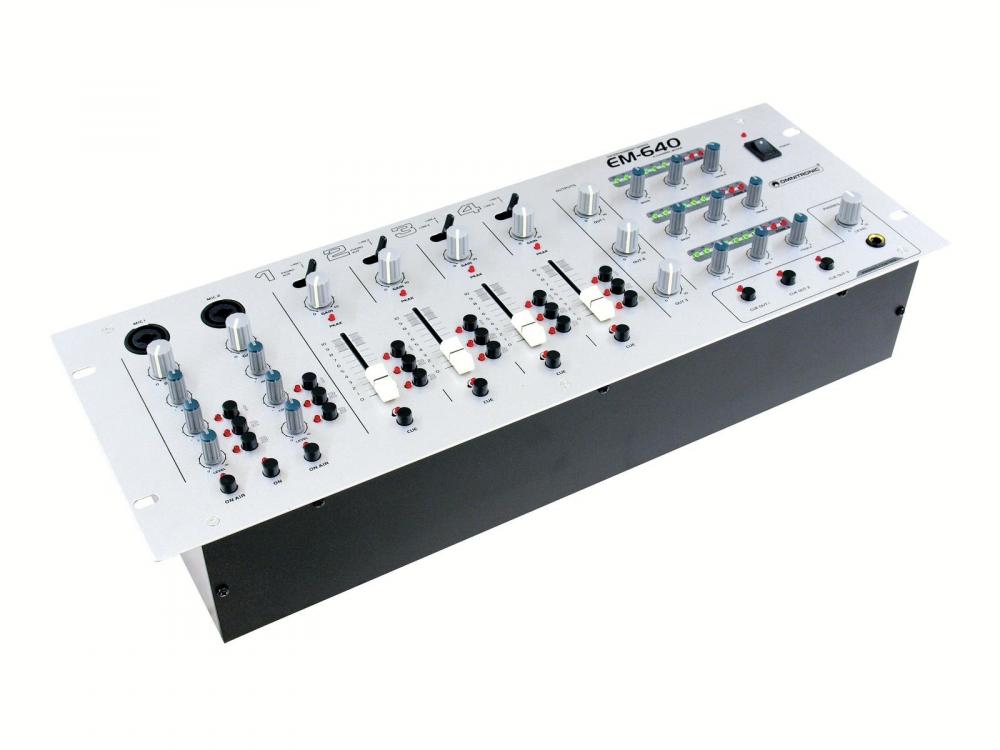

OMNITRONIC EM-640 Entertainment Mixer
|
technical overview |
Power supply: 230 V AC, 50 Hz via supplied power unit Inputs: Microphone 1, 2: combined 3-pin XLR/6.3 mm jack (bal.) Minimum input voltage: 1 mV RMS Line 1 to 6: stereo RCA Minimum input voltage: 150 mV RMS PHONO 1, 2: stereo RCA Minimum input voltage: 3 mV RMS Outputs: Master 1 to 3: stereo RCA, stereo XLR (3-pin) Output voltage: 0.75 V RMS Headphones output: 6.3 mm stereo jack (= 8 ohms) Microphone tone control: 2 x high: -12 dB to +12 dB/ 10 kHz 2 x low: -12 dB to +12 dB/ 100 Hz Master tone control: 3 x high: -12 dB to +12 dB/ 10 kHz 3 x mid: -12 dB to +12 dB/ 1 kHz 3 x low: -12 dB to +12 dB/ 100 Hz Talkover attenuation: -15 dB S/N ratio: >65 dB Distortion: 0.03 % Dimensions (WxHxD): 483 x 178 x 110 mm (19", 4 U) Weight: 3,2 kg Power consumption: 35,00 W Frequency range: 20 - 20000 Hz Height: 17,8 cm Depth: 11 cm Width: 48,3 cm Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) Power supply: 230 V AC, 50 Hz |
main features |
3-zone installation mixer, Silver -3 zones with routing facility of all input channels as desired -4 input channels with gain controls, peak LED and smooth dual-rail channel faders -2 microphone channels with level control, 2-way equalizer, talkover and on/off button -Prefader listening (cue) to stereo input channels and zone outputs via adjustable headphones output -Zone outputs with level control, 3-way equalizer and 10-digit LED level meter -Inputs: 6 x line (stereo RCA); 2 x line/phono (stereo RCA), switchable; 2 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack) -Outputs: 3 x master (optionally 3-pin XLR or stereo RCA) -Operation via supplied power unit -Rack installation, 4 U -Housing design: (19") 48,3 cm rack installation -Master equalizer: 3 x 3 band tone control Stereo -Height unit: 4 U -Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Signal to Noise Ratio |
65.00 dB
|
Electrical | |
power consumption watt, max |
35.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
external PSU |
yes
|
Mechanical | |
weight |
3.20 kg
|
width |
483.00 mm
|
height |
178.00 mm
|
length |
110.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00057016.pdf |
