Info | |
---|---|
order code |
10355930
|
product link | |
EAN |
4026397628319
|
Product Name |

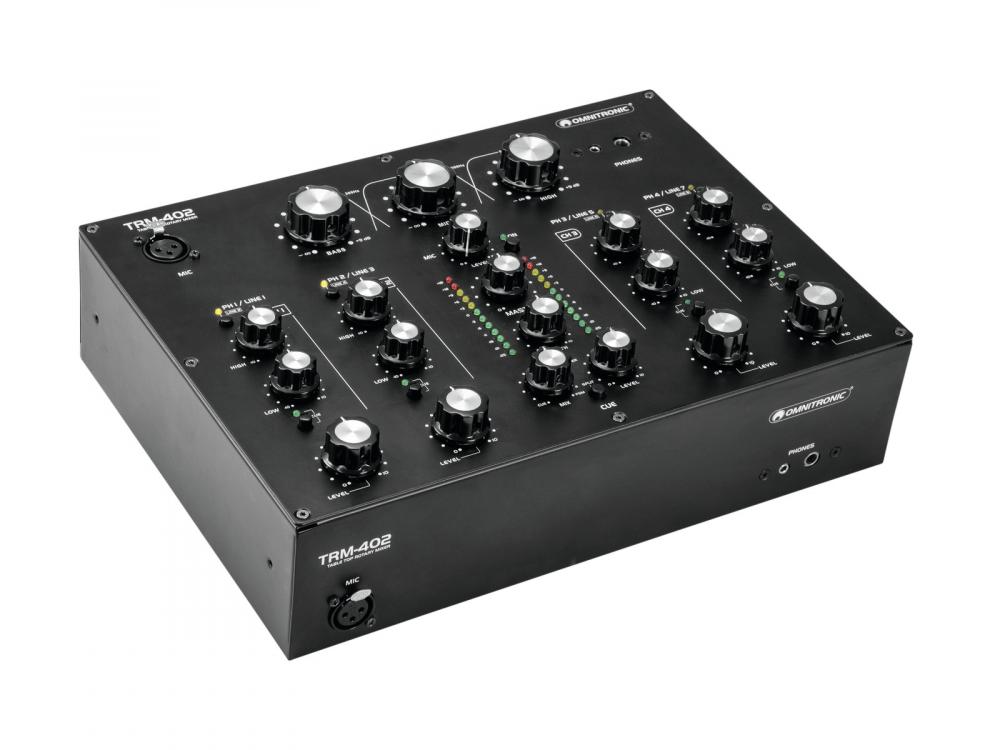

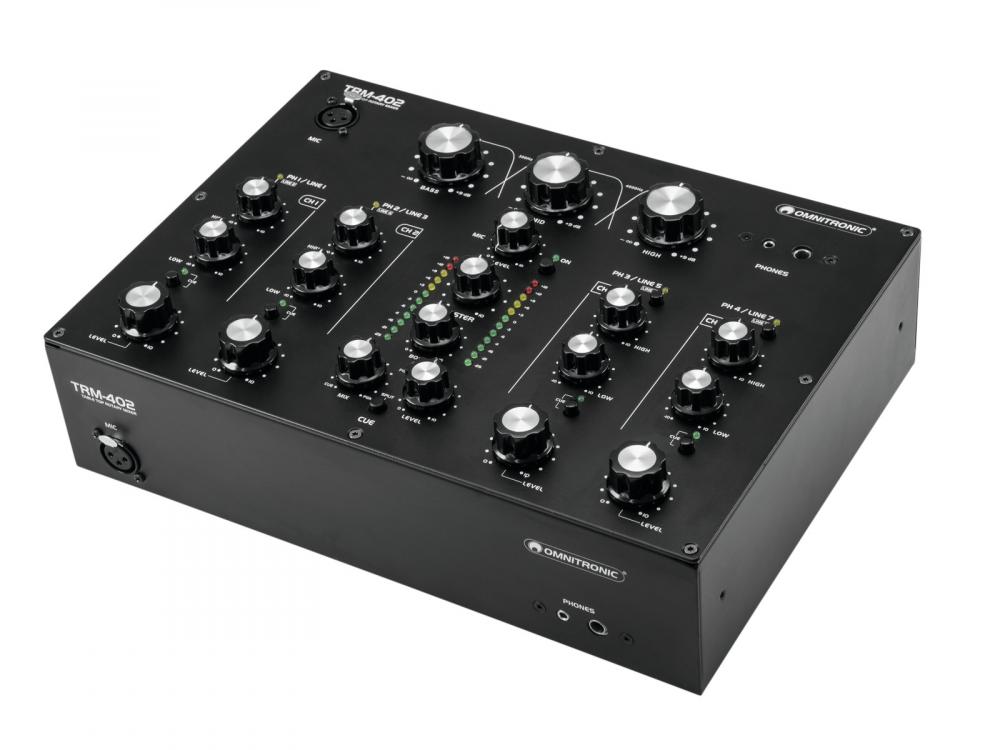

OMNITRONIC TRM-402 4-Channel Rotary Mixer
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Gain: Line: 20 dB Phono: 60-75 dB Mic: 44 dB Max. output level: 22 dBu Frequency range: Line: 20-20000 Hz Phono: 40-18000 Hz Mic: 20-20000 Hz S/R ratio: Line: 85 dB Phono: 77 dB Mic: 80 dB THD: Line: Phono: Frequency isolator: -~ to +9 dB Lows: 20 Hz to 300 Hz Mids: 300 Hz to 4 kHz Highs: 4 kHz to 20 kHz Inputs: LINE: RCA L/R PHONO: RCA L/R DJ microphone: XLR Outputs: MASTER: XLR/RCA L/R BOOTH: XLR/RCA L/R REC: RCA L/R Headphones output: 3.5 mm jack and 6.3 mm jack (min. 32 ohms) Dimensions (W x D x H): 247 x 330 x 107 mm Weight: 4 kg Power consumption: 7,2 W Height: 10,7 cm Depth: 24,7 cm Width: 33 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |
4-channel rotary mixer with 3-band frequency isolator for DJs -Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs -Gain control, 2-way equalizer (Highs/Lows) and phono/line switching per channel -Dedicated boost and kill cut -Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing -Vintage ALPS potentiometers (Blue Velvet RK27) -High-grade components ensure long life and excellent sound quality -DJ microphone input with separate level control -Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function -12-digit stereo LED level meter and master level control -Booth output with separate level control -Dual inputs for DJ microphone and headphones on the top and front panel -Inputs: 8 x line and 4 x phono (RCA L/R) -Outputs: master and booth (XLR/RCA L/R) and record (RCA L/R) -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
Maximum Output Level |
22.00 dBu
|
Connectors | |
Audio output > RCA / Cinch Stereo-Set (L/R) |
yes
|
Audio output > XLR 3P |
yes
|
Electrical | |
power consumption watt, max |
7.20 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
4.00 kg
|
width |
247.00 mm
|
height |
107.00 mm
|
length |
330.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
