Info | |
---|---|
order code |
10007100
|
product link | |
EAN |
4026397377125
|
Product Name |

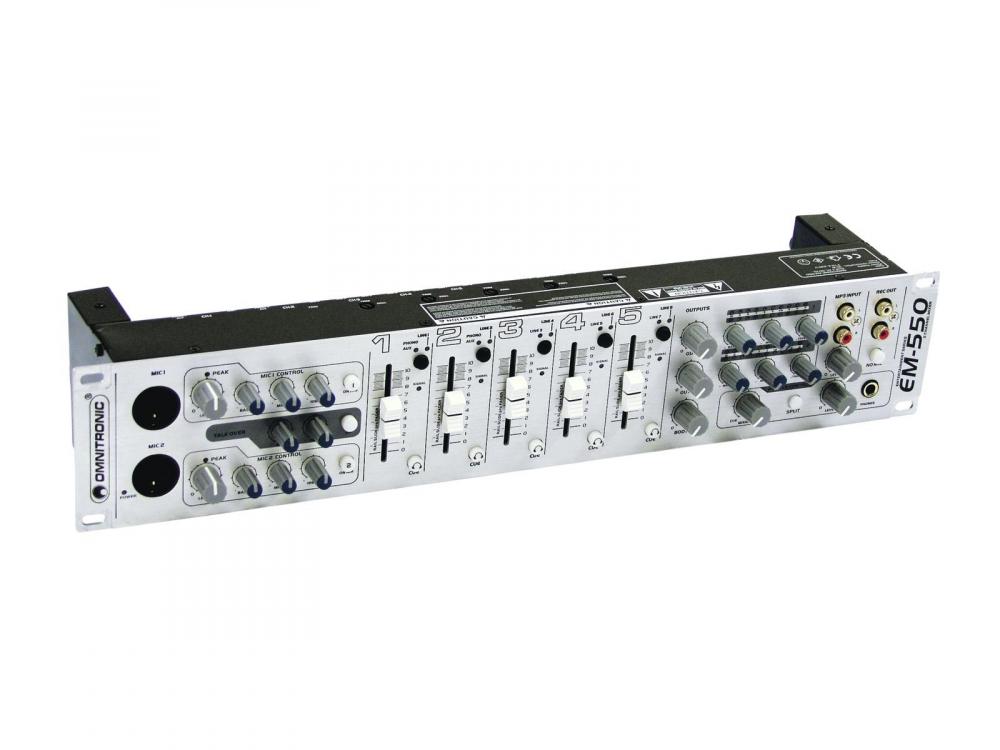

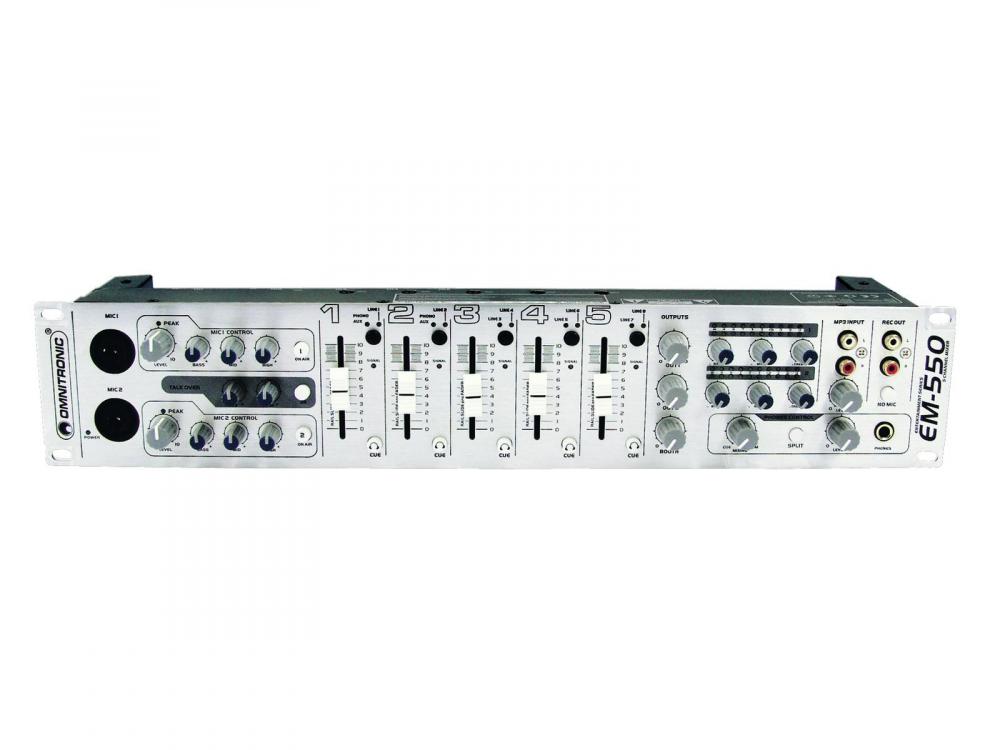

OMNITRONIC EM-550 Entertainment Mixer
|
technical overview |
Power supply: 230 V AC, 50 Hz, via supplied power unit Inputs: Microphone 1.2 combined XLR/6.3 mm jack (1/4") (bal.) Minimum input voltage: 1 mV RMS Line 1-8, Aux 1.2: stereo RCA Minimum input voltage: 150 mV RMS Phono 1.2: stereo RCA Minimum input voltage: 3 mV RMS Outputs: Master 1.2: stereo RCA, stereo XLR Output voltage: 0.75 V/1.5 V RMS (switchable) Booth: stereo RCA (switchable to mono operation) Output voltage: 0.75 V RMS Record: stereo RCA Output voltage: 0.75 V RMS Headphones output: 6.3 mm stereo jack (min. 8 ohms) Tone control (microphone 1.2; output 1.2): 4 x High: -12 dB to +12 dB/ 10 kHz 4 x Mid: -12 dB to +12 dB/ 1 kHz 4 x Low: -12 dB to +12 dB/ 100 Hz Talkover attenuation: -15 dB S/N ratio: >65 dB Distortion: 0.03 % Dimensions (WxHxD): 483 x 115 x 90 mm (19", 2 U) Weight: 4 kg Power consumption: 35,00 W Frequency range: 20 - 20000 Hz Height: 8,9 cm Depth: 11,5 cm Width: 48,3 cm Power connection: Mains Input Socket (M) 3-pin screw plug connector (m) mounting version Power supply cord with Euro plug (M) |
main features |
Multifunctional 5+2-channel installation mixer, Silver -5 input channels with recessed gain controls on the rear panel, signal LED and super smooth dual-rail channel faders -2 separate microphone channels with level control, 3-way equalizer and talkover button -Talkover level and response time adjustable -Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output -Color illuminated rotary controls and rubber buttons -1 additional line input with level control on the front panel -2 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter -1 adjustable booth output with mono/stereo selector switch -2 record outputs (independent of the master channels) with on/off switch for microphone signals -Inputs: 9 x line (stereo RCA), 2 x line/phono (stereo RCA), switchable; 2 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack) -Outputs: 2 x master (optionally 3-pin XLR or stereo RCA), 1 x booth (stereo RCA) and 2 x record (stereo RCA) -Operation via supplied power unit -Rack installation, 2 U -Ideal for restaurants, bars, theme parks, hotels and all applications where microphones need to be mixed with music (e.g. karaoke) -Master equalizer: 2 x 3 band tone control Stereo -Housing design: (19") 48,3 cm rack installation -Height unit: 2 U -Power connection: Mains Input Socket (M) 3-pin screw plug connector (m) mounting version Power supply cord with Euro plug (M) (provided) |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Signal to Noise Ratio |
65.00 dB
|
Electrical | |
power consumption watt, max |
35.00 W
|
power input connector |
Europlug
|
Mechanical | |
weight |
4.00 kg
|
width |
483.00 mm
|
height |
115.00 mm
|
length |
90.00 mm
|
