Info | |
---|---|
order code |
10007110
|
product link | |
EAN |
4026397355826
|
Product Name |

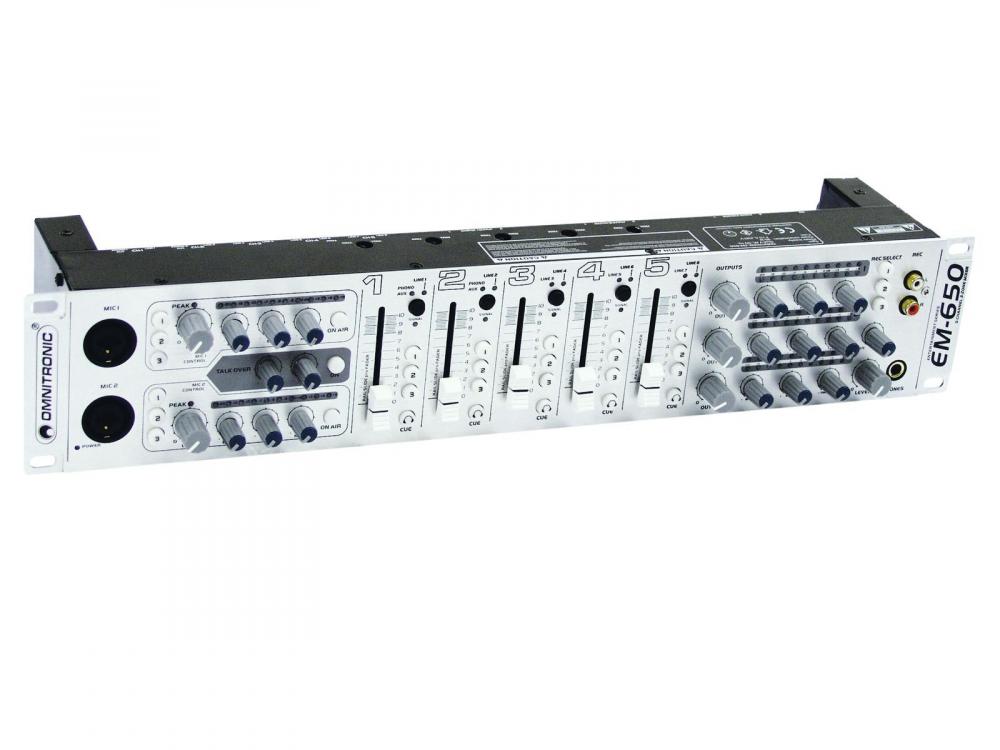

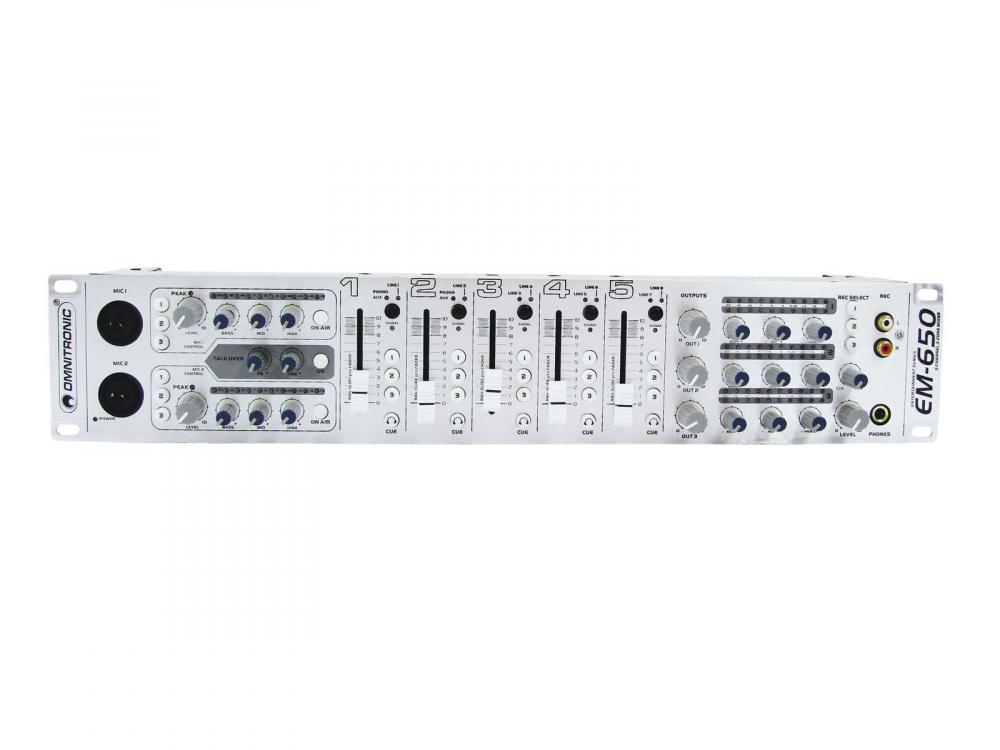

OMNITRONIC EM-650 Entertainment Mixer
|
technical overview |
Power supply: 230 V AC, 50 Hz, via supplied power unit Inputs: Microphone 1.2: combined XLR/6.3 mm jack (1/4") (bal.) Minimum input voltage: 1 mV RMS Line 1-8, Aux 1.2: stereo RCA Minimum input voltage: 150 mV RMS Phono 1.2: stereo RCA Minimum input voltage: 3 mV RMS Outputs: Master 1-3: stereo RCA, stereo XLR Output voltage: 0.75 V/1.5 V RMS (switchable) Record: stereo RCA Output voltage: 0.75 V RMS Headphones output: 6.3 mm stereo jack (min. 8 ohms) Tone control (microphone 1.2; zone 1-3): 5 x High: -12 dB to +12 dB/ 10 kHz 5 x Mid: -12 dB to +12 dB/ 1 kHz 5 x Low: -12 dB to +12 dB/ 100 Hz Talkover attenuation: variable S/N ratio: |
main features |
Multifunctional 5+2-channel mixer with 3 zones, Silver -3 zones with routing facility of all input channels as desired -5 input channels with recessed gain controls on the rear panel, signal LED and super smooth dual-rail channel faders -2 microphone channels with level control, LED level meter, 3-way equalizer and talkover button -Talkover level and response time adjustable -Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output -Color illuminated rotary controls and rubber buttons -Zone outputs with level control, 3-way equalizer and 10-digit stereo LED level meter -2 record outputs (independent of the master channels) with routing facility of all zone outputs as desired -Inputs: 8 x line (stereo RCA), 2 x line/phono (stereo RCA), switchable; 2 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack) -Outputs: 3 x master (optionally 3-pin XLR or stereo RCA) and 2 x record (stereo RCA) -Operation via supplied power unit -Rack installation, 2 U -Ideal for restaurants, bars, theme parks, hotels and all applications where microphones need to be mixed with music (e.g. karaoke) -Housing design: (19") 48,3 cm rack installation -Master equalizer: 3 x 3 band tone control Stereo -Height unit: 2 U -Power connection: Mains Input Socket (M) 3-pin screw plug connector (m) mounting version Power supply cord with Euro plug (M) (provided) |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Signal to Noise Ratio |
65.00 dB
|
Electrical | |
power consumption watt, max |
35.00 W
|
power input connector |
Europlug
|
Mechanical | |
weight |
4.00 kg
|
width |
483.00 mm
|
height |
117.00 mm
|
length |
117.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00039534.pdf |
