Info | |
---|---|
order code |
10040280
|
product link | |
EAN |
4026397565515
|
Product Name |

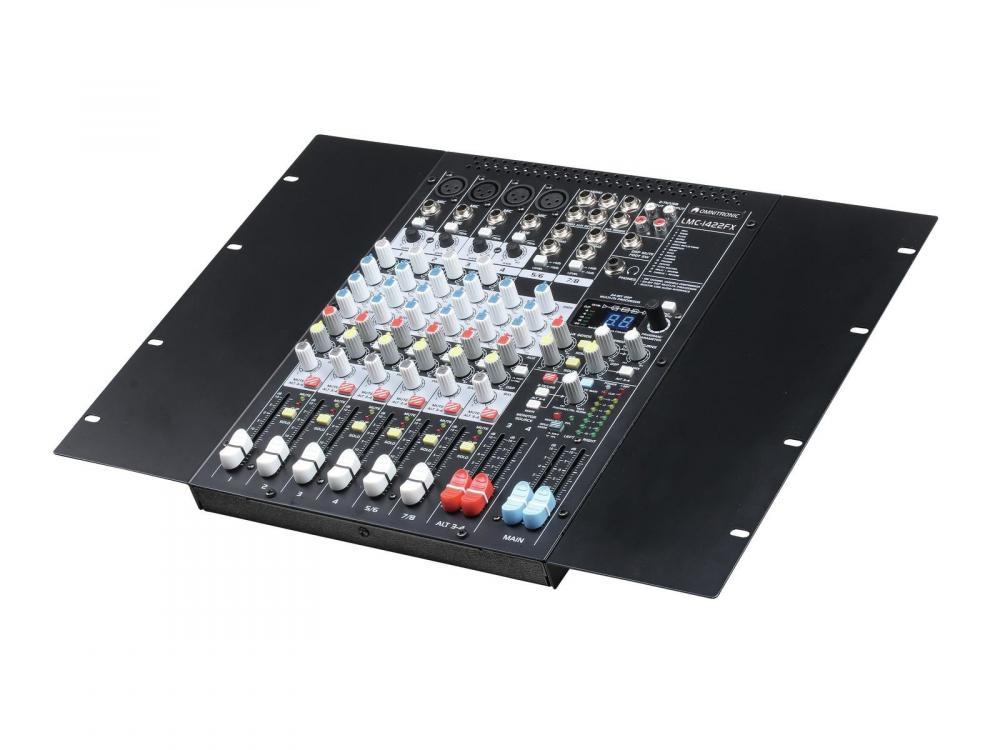

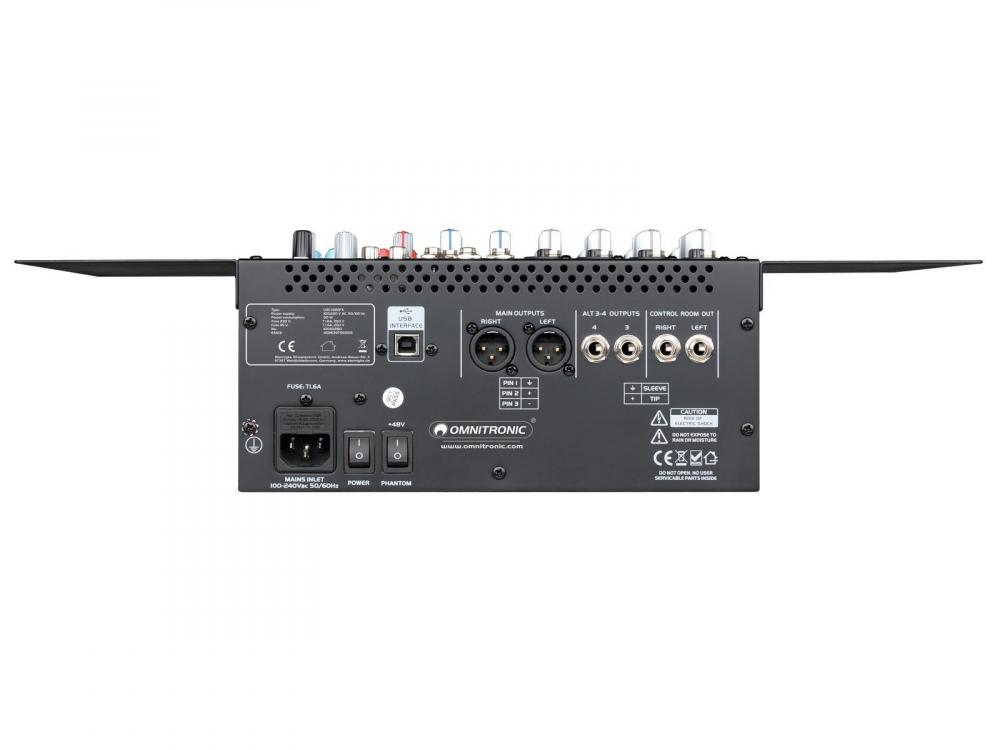

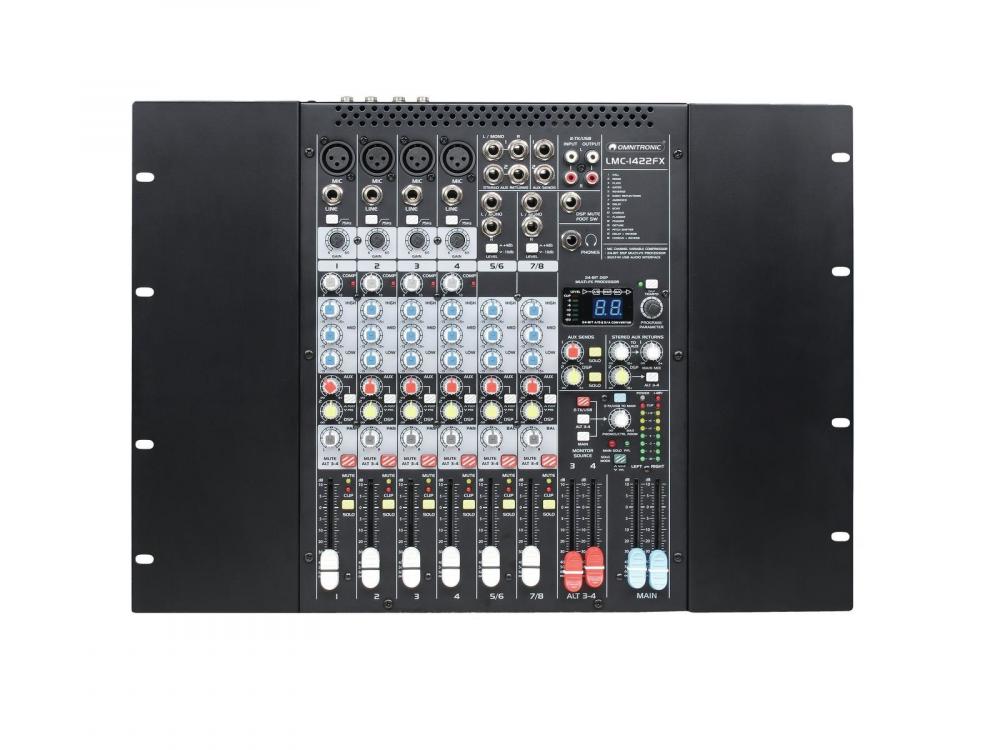

OMNITRONIC LMC-1422FX USB Mixing Console
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Inputs: Mic: XLR balanced; 2.6 kohms Line (mono): 6.3 mm jack balanced; 10 kohms, Line (stereo): 6.3 mm jack L/R balanced; 20 kohms 2-Track: RCA L/R; 10 kohms Aux Return: 6.3 mm jack L/R balanced; 10 kohms Outputs: Master: XLR L/R balanced; max. +28 dBu ALT 3-4: 6.3 mm jack balanced; max. +22 dBu Control Room: 6.3 mm jack L/R unbalanced; max. +22 dBu Aux Send: 6.3 mm jack L/R unbalanced; max. +22 dBu Tape Out: RCA L/R; max. +22 dBu Headphones output: 6.3 mm jack unbalanced; max. +19 dBu Headphones impedance: >8 ohms USB interface: type B, 16 bit/48 kHz Distortion: 0.05 % S/N ratio: 110 dB Crosstalk: 89 dB Low Cut: 75 Hz, 18 dB/octave Phantom power: +48 V Tone control mono channels: Treble: ±15 dB at 12 kHz Middle: ±15 dB at 100-800 Hz Bass: ±15 dB at 80 Hz Tone control stereo channels: Treble: ±15 dB at 12 kHz Low middle: ±15 dB at 3 kHz High middle: ±15 dB at 500 Hz Bass: ±15 dB at 80 Hz Dimensions (L x W x H): 450 x 480 x 140 mm (incl. rack brackets) Weight: 4,5 kg Power consumption: 50 W Frequency range: 20 - 20000 Hz Height: 12,7 cm Depth: 40 cm Width: 48,3 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |
Professional audio mixer with British-style EQ, compressor, effect unit and USB interface -4 mono input channels with gain control, 3-way EQ, low cut and pan control -2 stereo input channels with 3-way EQ, level selection and balance control -State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom -Exceptional British EQs for warm and musical sound -Studio-grade compressors with easy one-knob functionality and control LED on each mono channel |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Signal to Noise Ratio |
110.00 dB
|
Crosstalk |
89.00 dB
|
Connectors | |
Audio output > XLR 3P |
yes
|
Electrical | |
power consumption watt, max |
50.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
4.50 kg
|
width |
480.00 mm
|
height |
140.00 mm
|
length |
400.00 mm
|
