Power supply: 100-240 V AC, 50/60 Hz
Inputs:
Mic: XLR balanced; 2.6 kohms
Line (mono): 6.3 mm jack balanced; 10 kohms,
Line (stereo): 6.3 mm jack L/R balanced; 20 kohms
2-Track: RCA L/R; 10 kohms
Aux Return: 6.3 mm jack L/R balanced; 10 kohms
Inserts: 6.3 mm jack unbalanced; 10 kohms

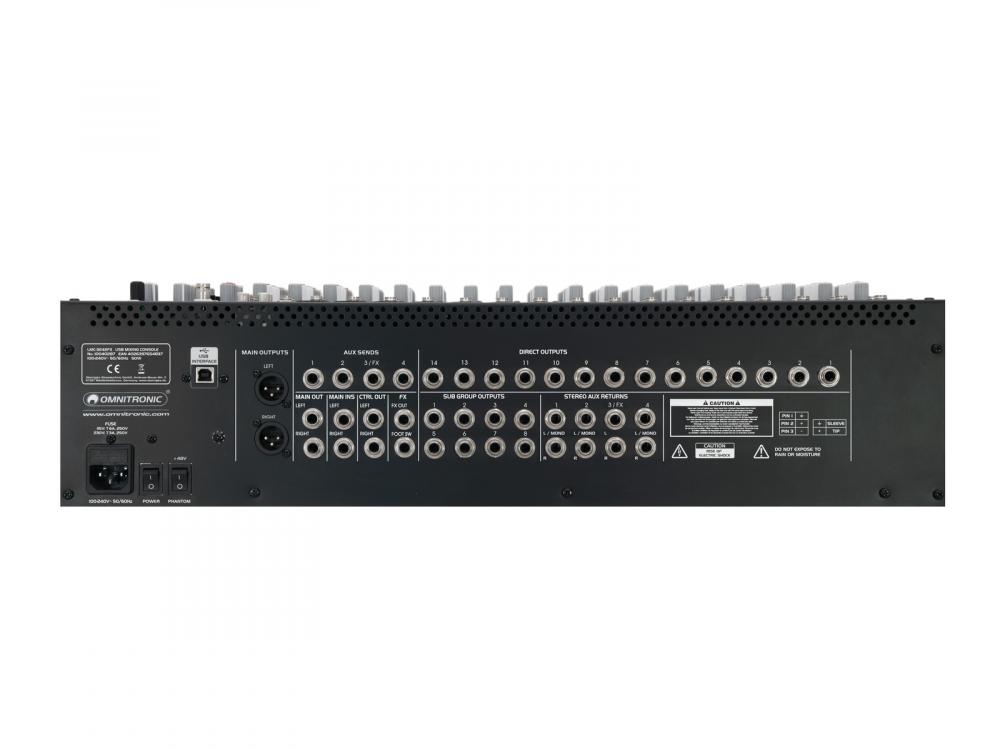

Outputs:
Master: XLR and 6.3 mm jack L/R balanced; max. +28 dBu
ALT 3-4: 6.3 mm jack balanced; max. +22 dBu
Control Room: 6.3 mm jack L/R unbalanced; max. +22 dBu
Aux Send: 6.3 mm jack L/R unbalanced; max. +22 dBu
Tape Out: RCA L/R; max. +22 dBu
Direct Out: 6.3 mm jack L/R unbalanced; max. +22 dBu
Headphones output: 6.3 mm jack unbalanced; max. +19 dBu
Headphones impedance: >8 ohms
USB interface: type B, 16 bit/48 kHz
Distortion: 0.05 %
S/N ratio: 110 dB
Crosstalk: 89 dB
Low Cut: 75 Hz, 18 dB/octave
Phantom power: +48 V
Tone control mono channels:
Treble: ±15 dB at 12 kHz
Middle: ±15 dB at 100-800 Hz
Bass: ±15 dB at 80 Hz
Tone control stereo channels:
Treble: ±15 dB at 12 kHz
Low middle: ±15 dB at 3 kHz
High middle: ±15 dB at 500 Hz
Bass: ±15 dB at 80 Hz
Dimensions (L x W x H): 450 x 592 x 137 mm (incl. rack brackets)
Weight: 9,30 kg
Power consumption: 50 W
Frequency range: 20 - 20000 Hz
Height: 13,7 cm
Depth: 45 cm
Width: 59,2 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply: 110-240 V AC, 50/60 Hz

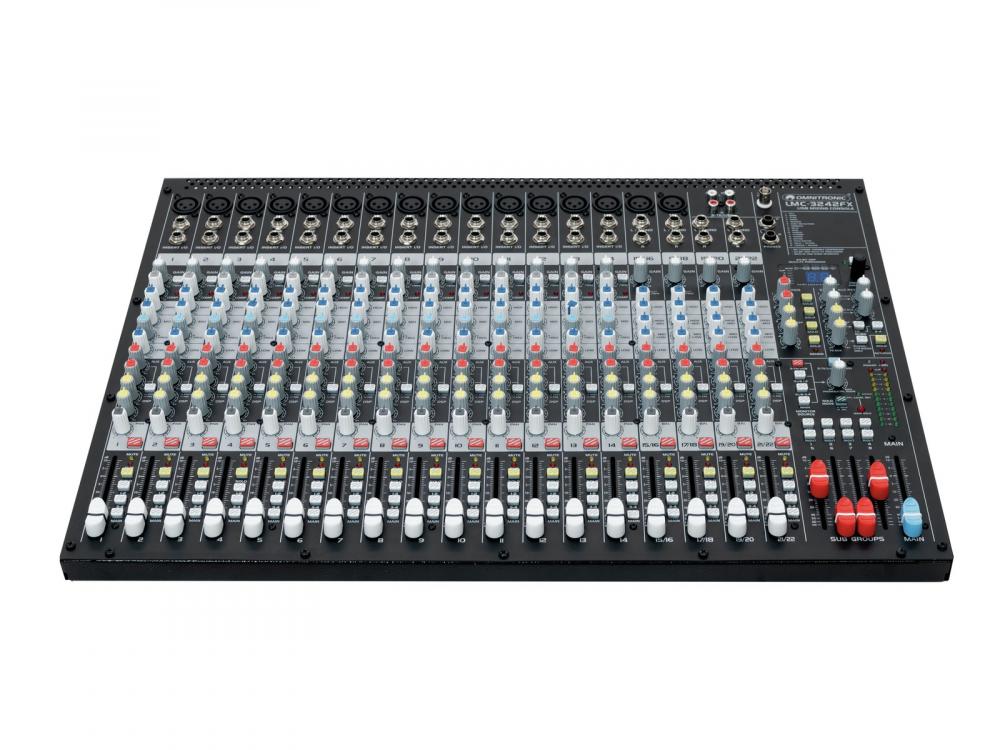

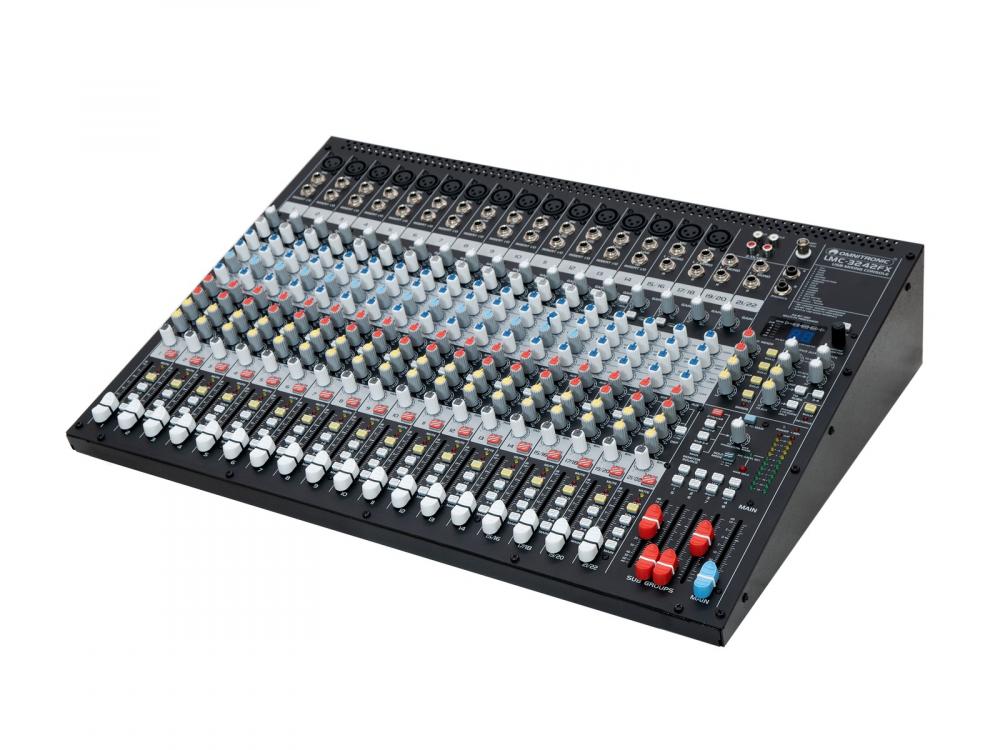

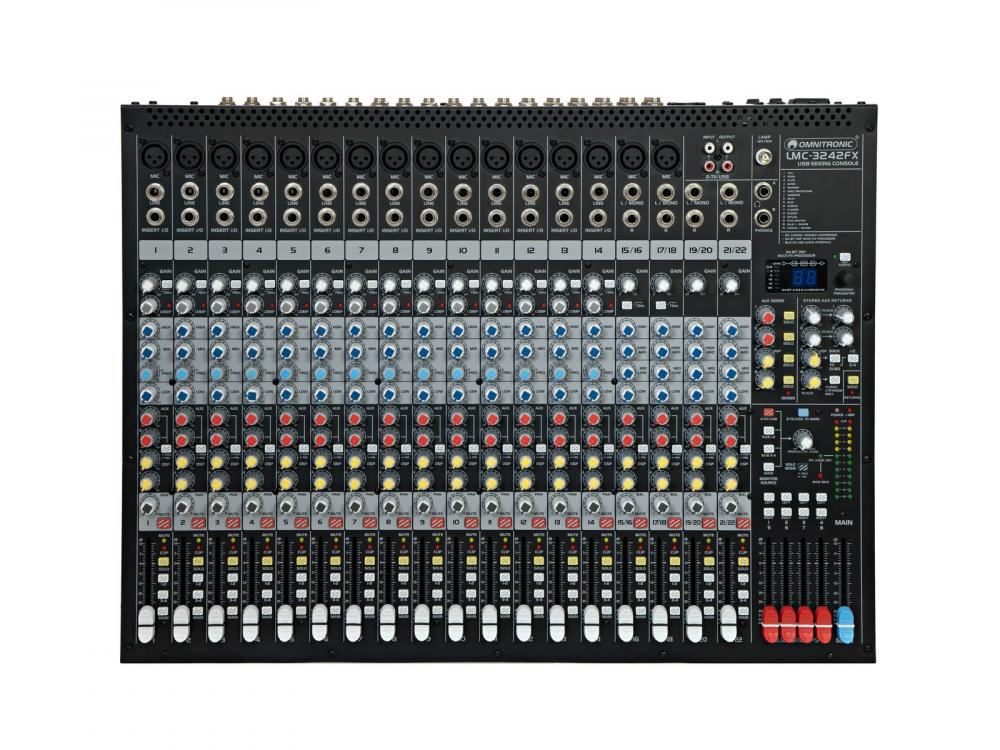

Professional audio mixer with British-style EQ, compressor, effect unit and USB interface
-14 mono input channels with gain control, 3-way EQ with semi-parametric mid band, low cut and pan control
-14 inserts for flexible connection of outboard equipment on each mono channel
-4 stereo input channels with gain control, 4-way EQ, low cut (ch. 15-18) and balance control
-State-of-the-art, low-noise mic preamps with 130 dB dynamic range and high headroom
-Exceptional British EQs for warm and musical sound
-Studio-grade compressors with easy one-knob functionality and control LED on each mono channel
