Info | |
---|---|
order code |
10355050
|
Product Name |

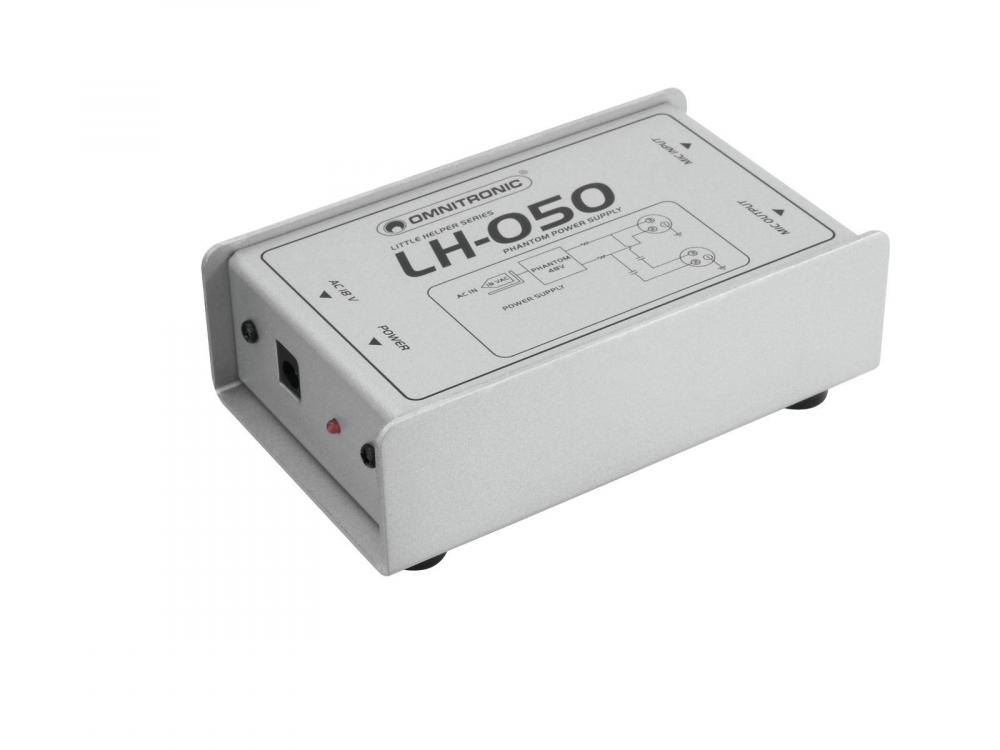

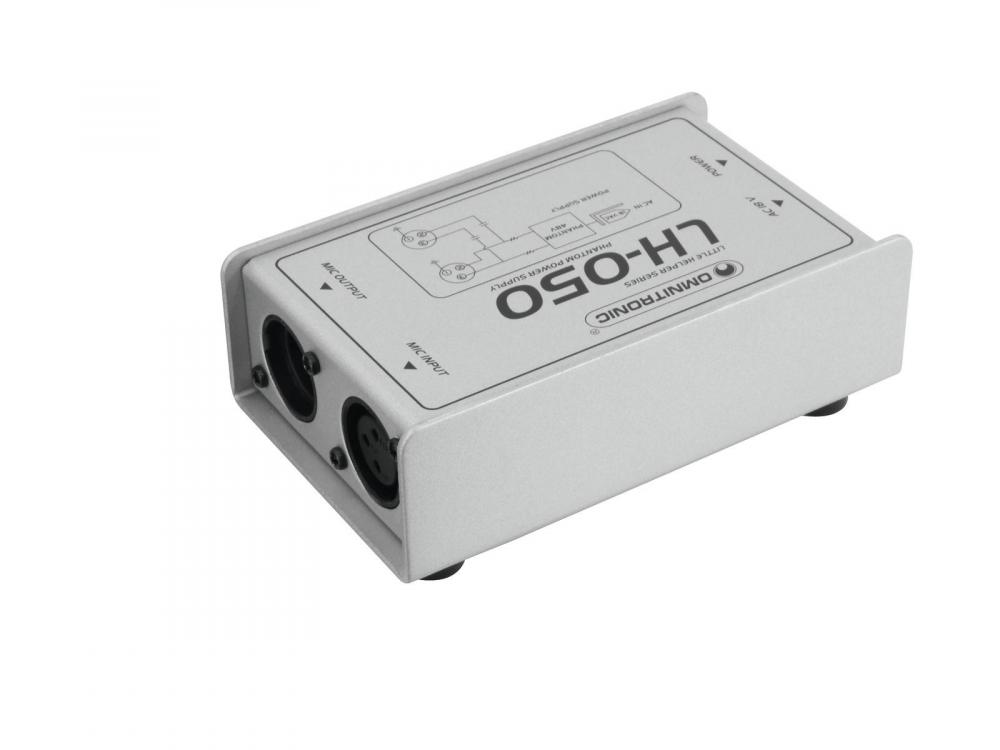

OMNITRONIC LH-050 Phantom Power Adapter
|
product link | |
EAN |
4026397169096
|
technical overview |
Power supply: 18 V AC Phantom power output: 48 V DC, ±2 V DC Input impedance: 600 ohms Output impedance: 600 ohms S/N ratio: >95 dB Dimensions: 74 x 45 x 130 mm Weight: 0,75 kg Frequency range: 10 - 25000 Hz Height: 4,5 cm Depth: 7,4 cm Width: 13 cm Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) |
main features |

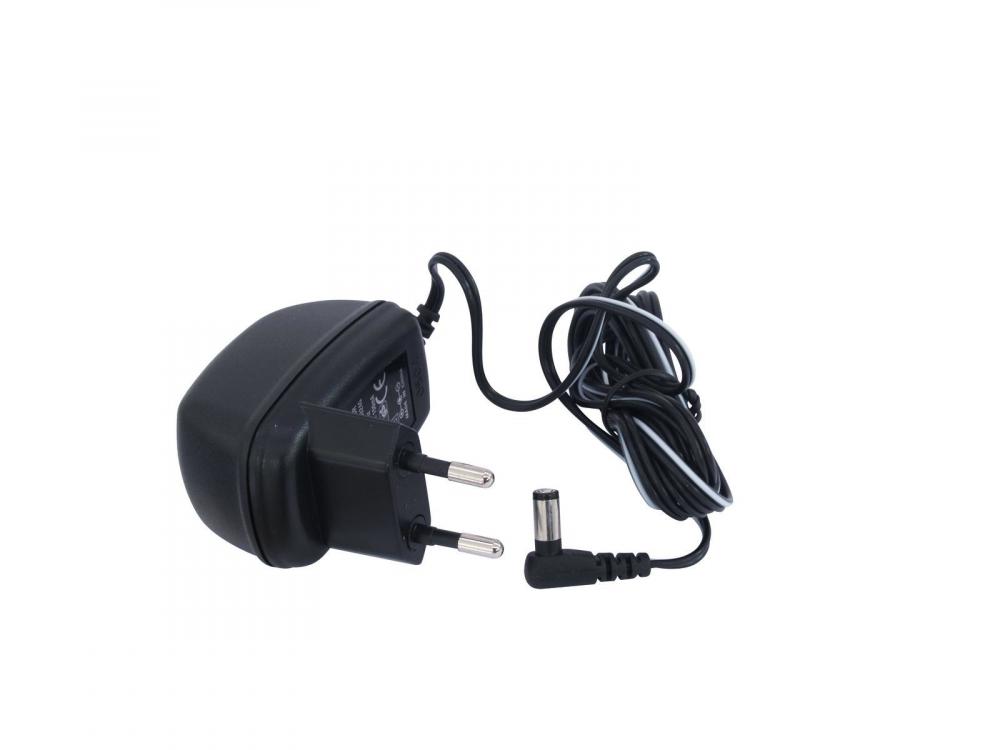

Phantom power for microphones -+48 V phantom power for condenser or electret microphones -Ideal accessory for mixers without phantom power -1 microphone input, XLR (bal.) -1 line output, XLR (bal.) -Operation via supplied power unit -Rugged gray metal housing -Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) |
Audio | |
Frequency response, from |
10 Hz
|
Frequency response, to |
25000 Hz
|
impedance |
600 ohm
|
Signal to Noise Ratio |
95.00 dB
|
Output impedance |
600 ohm
|
Electrical | |
external PSU |
yes
|
Mechanical | |
weight |
0.75 kg
|
width |
130.00 mm
|
height |
45.00 mm
|
length |
74.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00040876.pdf |
