Info | |
---|---|
order code |
10050050
|
product link | |
EAN |
4026397183283
|
Product Name |

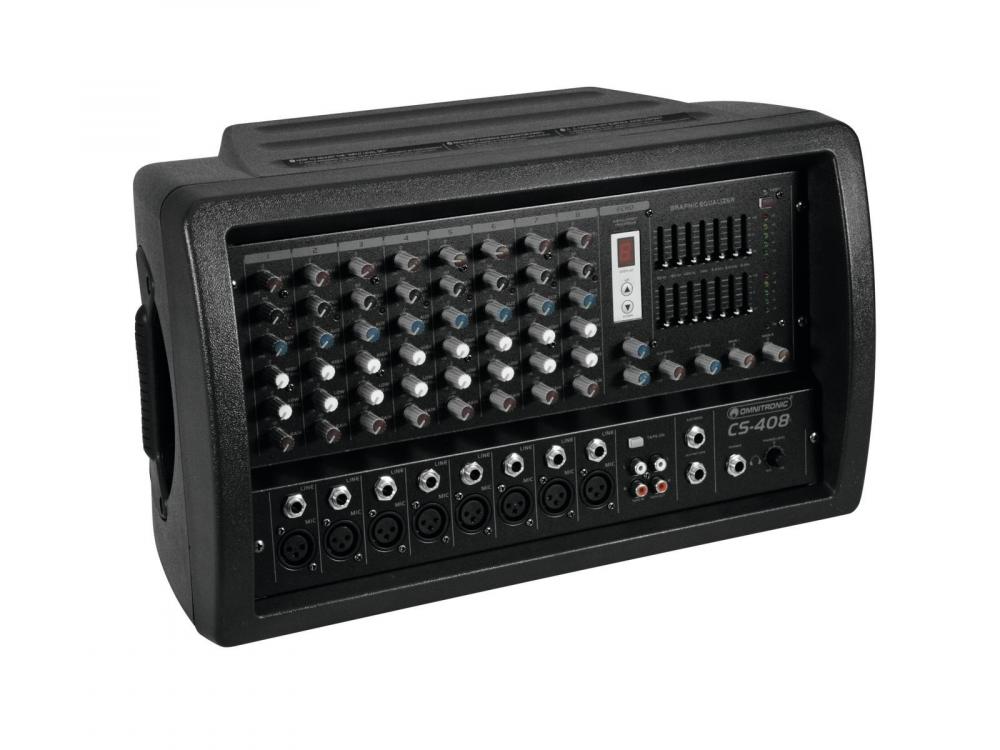

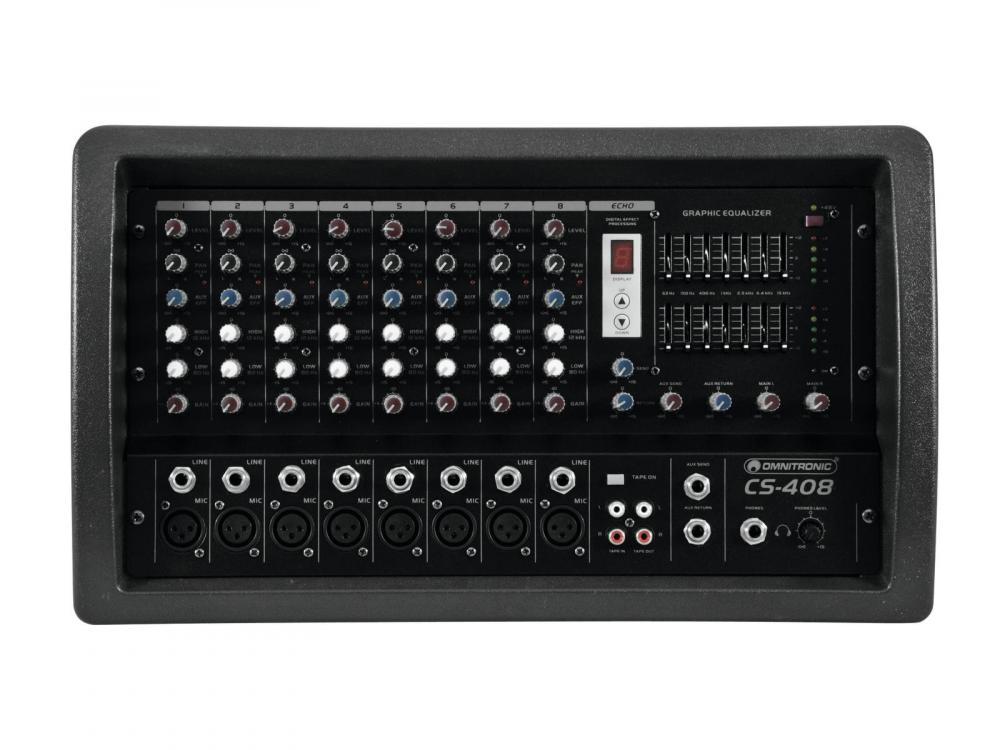

OMNITRONIC CS-408 Powered Mixer
|
technical overview |
Power supply: 115/230 V AC, 50/60 Hz Inputs: 8 mono XLR or balanced 6.3 mm jacks 1 Aux Return: balanced 6.3 mm jack 1 Tape In stereo RCA Outputs: 1 Main Out: Speaker sockets 1 Headphones balanced 6.3 mm jack 1 Aux Send: balanced 6.3 mm jack 1 Tape Out RCA Frequency range: Microphone: 10-60000 Hz, ±3 dB Mono: 10-60000 Hz, ±3 dB Stereo: 10-55000 Hz, ±3 dB Distortion: 0.01 % S/N ratio: 112 dB Tone control/channel: Treble: ±15 dB at 12 kHz Middle: ±15 dB at 2.5 kHz Bass: ±15 dB at 80 Hz Power output sine: Stereo 4 ohms 2 x 200 W Weight: 9 kg Power consumption: 800,00 W Power/channel (4 Ohm): 200 W Height: 27,5 cm Depth: 26 cm Width: 44 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 115/230 V AC, 50/60 Hz |
main features |
Universal stage power mixer with 8 channels, 2 x 200 W/4 ohms -Low-noise 8-channel mic/line mixer and amplifier with 2 x 200 W/4 ohms output power -Adjustable digital reverb -8 mono input channels (XLR and 6.3 mm jack) with gain control, 2-band EQ, pan and effect control -Insert or direct out (6.3 mm jack) per input channel -Aux send per channel for controlling external effectors -Adjustable effect way for controlling external effect units (aux send/return) -Tape input and output, switchable (stereo RCA) -Adjustable headphones output (6.3 mm jack) -+48V phantom power, can be switched centrally -2 x 7-band graphic equalizer for fine-tuned sound -Precise 5-fold stereo LED meter -2 Speaker outputs -Master equalizer: 2 x Graphic equalizer 7-band -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
Signal to Noise Ratio |
112.00 dB
|
No. of channels |
2 pcs
|
Electrical | |
power consumption watt, max |
800.00 W
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
power input connector |
IEC-60320 C13/C14
|
Power per channels at 4 Ω |
200 W
|
Mechanical | |
weight |
9.00 kg
|
width |
440.00 mm
|
height |
275.00 mm
|
length |
260.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00023764.pdf |
