OMNITRONIC ZD-1120 Zone Distributor
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC ZD-1120 Zone Distributor
| Info | |
|---|---|
| order code |
10304102
|
| product link | |
| EAN |
4026397303650
|
| Product Name |
OMNITRONIC ZD-1120 Zone Distributor
|
| technical overview |
Power supply: 230 V AC, 50 Hz Input impedance: 47 kohms Output level: 1 V RMS Output impedance: 50 ohms Distortion: 0,02 % S/N ratio: 100 dB Dimensions (W x D x H): 483 x 150 x 44 mm Weight: 2,5 kg Power consumption: 7,00 W Height: 4,45 cm Depth: 15 cm Width: 48,3 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
| main features |

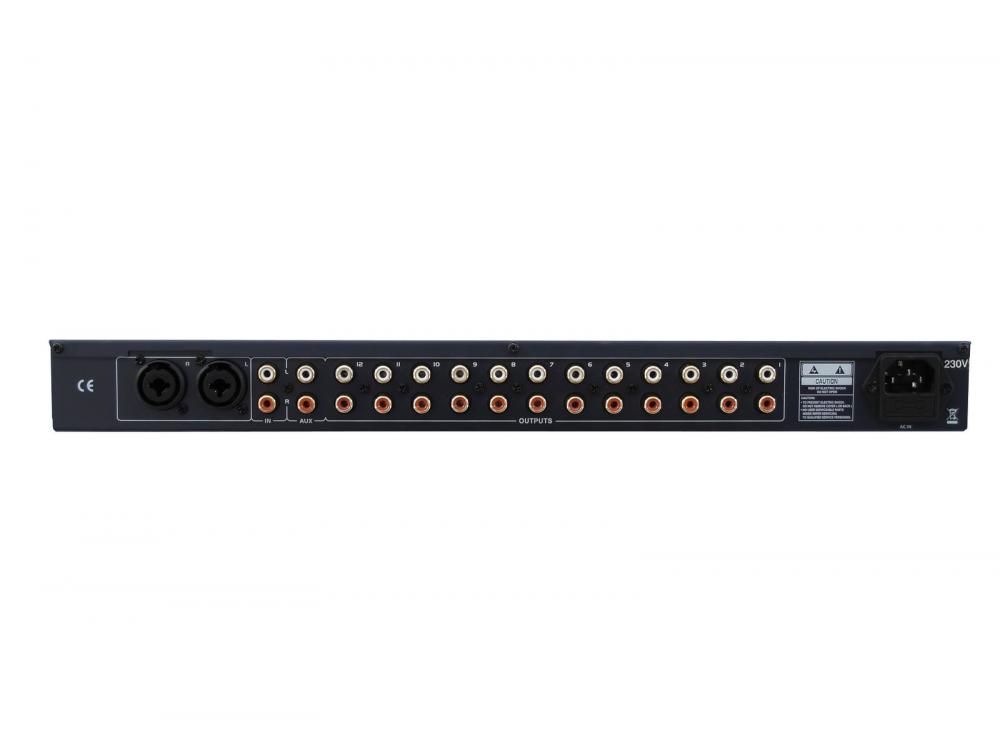

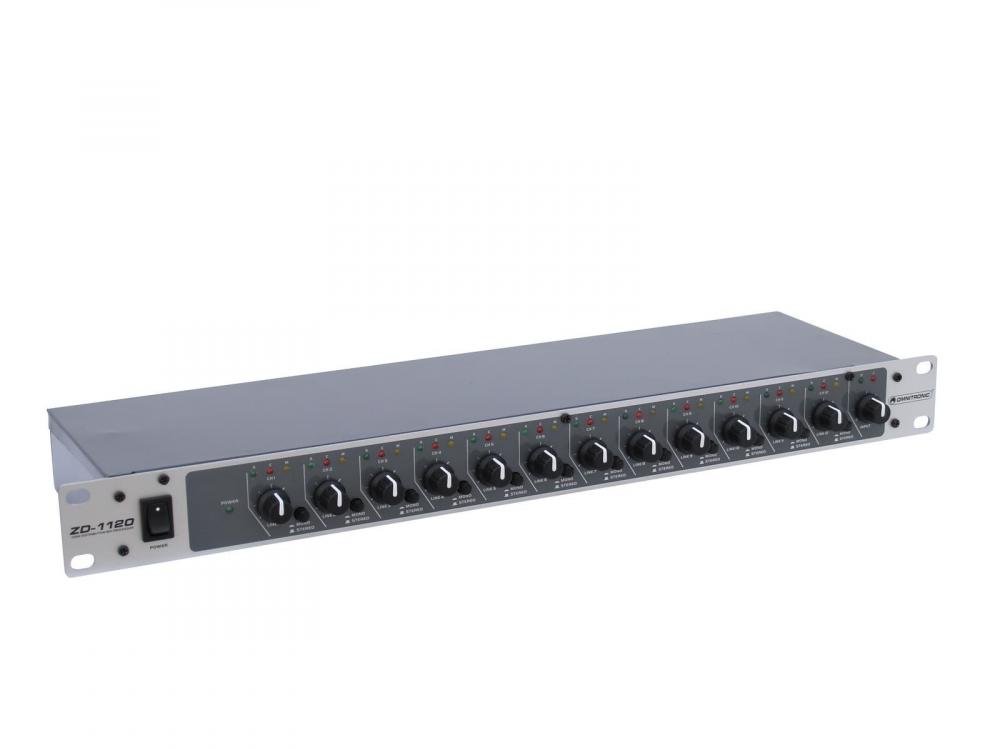

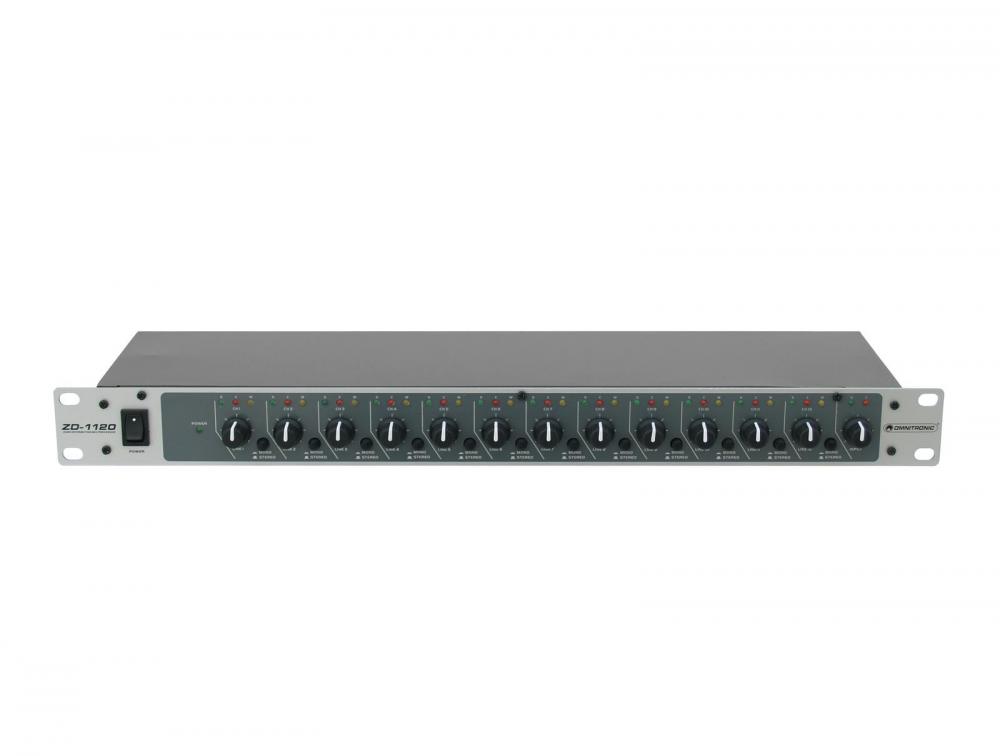

Practical distributor -Extends every mixer with additional outputs -1 stereo XLR input -12 stereo zone outputs (RCA) -Each zone with level control and mono switch -LED display of signal input and mono/stereo mode -Rack installation with 1 U -Housing design: (19") 48,3 cm rack installation -Height unit: 1 U -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
| Audio | |
| Output impedance |
50 ohm
|
| impedance |
47000 ohm
|
| Signal to Noise Ratio |
100.00 dB
|
| Electrical | |
| power consumption watt, max |
7.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| power input connector |
IEC-60320 C13/C14
|
| Mechanical | |
| weight |
2.50 kg
|
| width |
483.00 mm
|
| height |
44.00 mm
|
| length |
150.00 mm
|
