Power supply: 115/230 V, 50/60 Hz
Dynamic range: 100 dB
Max. input level: +21 dBU
Input impedance: 10 kohms
Max. gain: +12 dB, per channel
Dimensions (W x D x H): 482 x 195 x 89 mm
Weight: 3,5 kg
Power consumption: 10,00 W
Frequency range: 20 - 20000 Hz
Height: 8,9 cm
Depth: 19,5 cm
Width: 48,3 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)

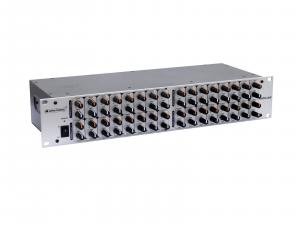

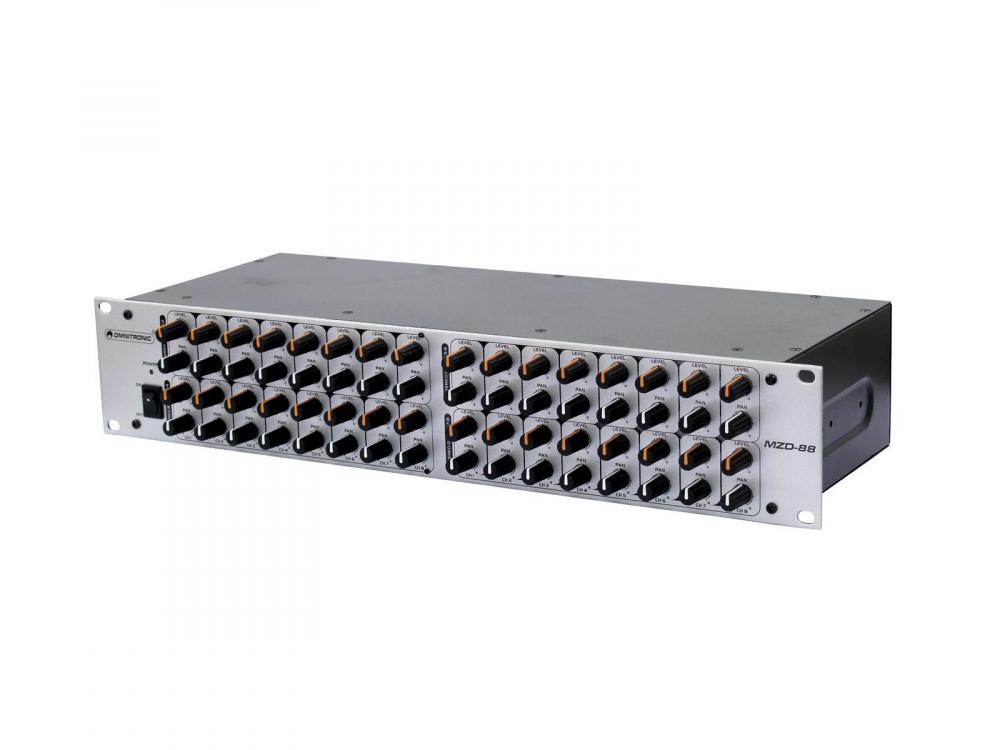

8-channel audio mixer with 8 outputs and matrix
-Matrix input assignment: 8 audio inputs are freely assignable to each of the 8 outputs
-Division of the 8 outputs into 4 groups; each with separate level and pan control per channel
-Ultra flexible configuration modes; distributes the signal of up to 8 audio sources to e.g. 8 mono zones or 4 stereo zones, each with a different output signal

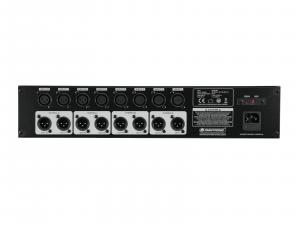

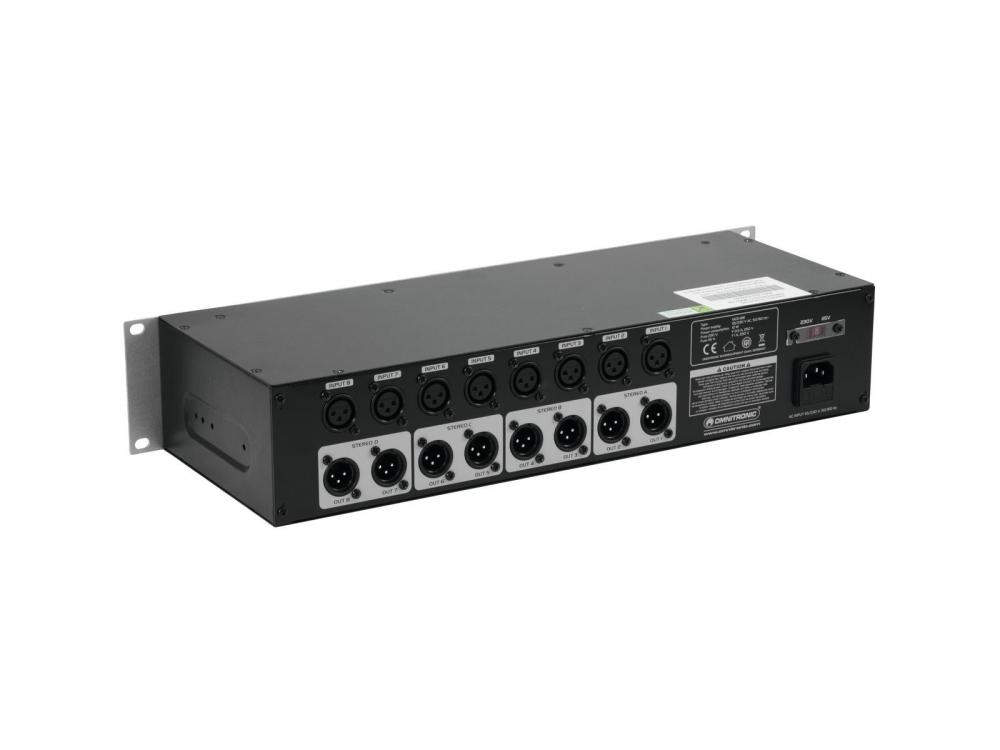

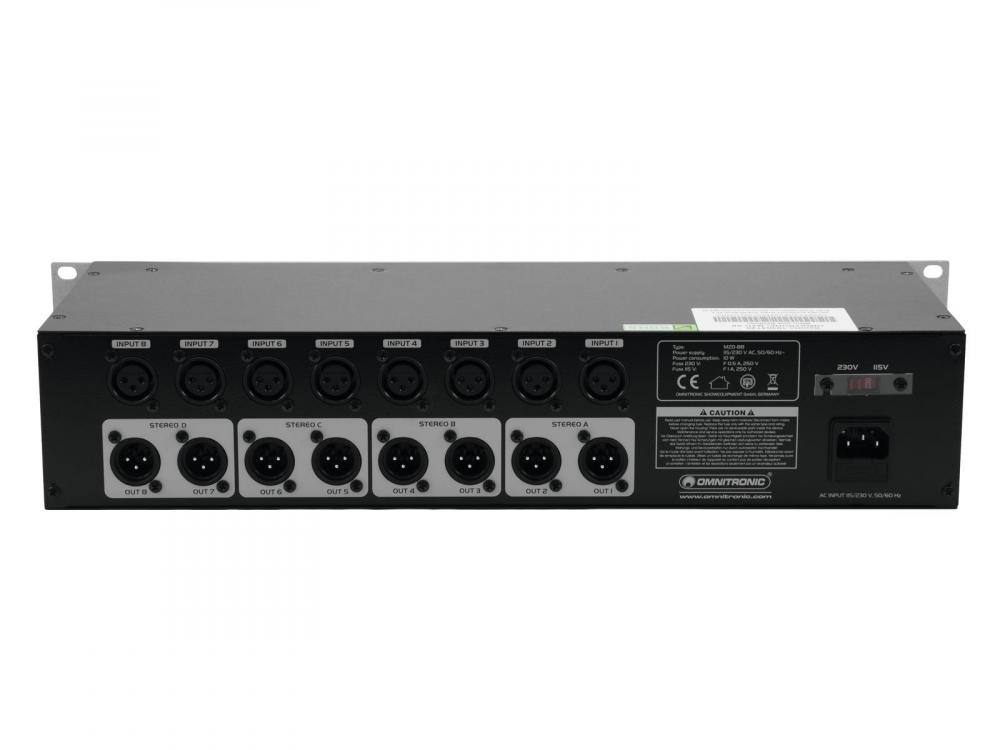

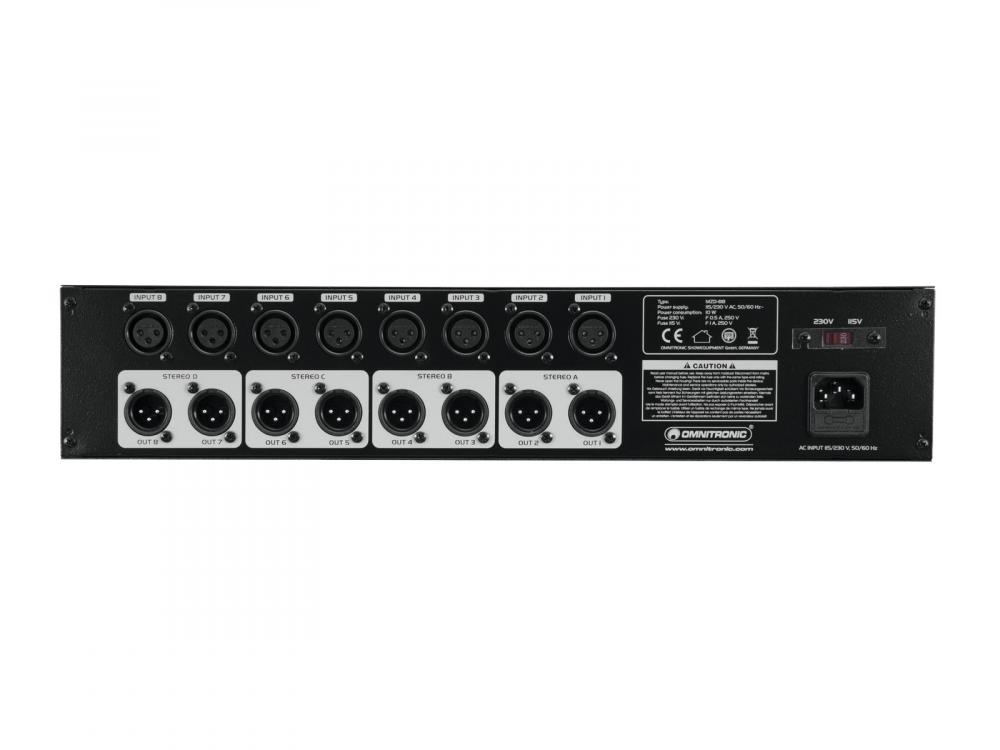

-Inputs and outputs via balanced XLR jacks
-Frequency range 20-20000 Hz
-Rack installation, 2 U
-Housing design: (19") 48,3 cm rack installation
-Height unit: 2 U
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
