OMNITRONIC WS-1T 2.4GHz Transmitter

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC WS-1T 2.4GHz Transmitter

Info
order code
13072210
product link
EAN
4026397512045
Product Name
OMNITRONIC WS-1T 2.4GHz Transmitter
technical overview
Power supply: 5 V DC, 500 mA
via USB port or supplied PSU
Carrier frequency: 2406-2472 MHz (ISM), 32 channels
Modulation: GFSK
Coverage: 30 m (in buildings), 50 m (in the open air)
S/N ratio: 96 dB
THD: -70 dB
Crosstalk: -96 dB
USB port: 2.0, type mini B
Line input: RCA L/R
Converter: 16 bits
Sample rate: 48 kHz
Dimensions (LxWxD): 110 x 65 x 63 mm
Frequency band: 2.4 GHz
Weight: 0,117 kg
Frequency range: 20 - 20000 Hz
Height: 6,3 cm
Depth: 6,5 cm
Width: 11 cm
Power connection: Mains Input Socket (M) USB, type B Power supply cord with AC adapter (m)
Material: Metal
main features
Digital audio transmission system 2.4 GHz, with USB
-Digital transmitter for wireless transmission of stereo audio signals with 2.4 GHz
-Transmit music via radio from your PC or MP3 player to your stereo with outstanding audio quality
-Connects USB devices (PC, smartphone, tablet PC) or audio devices with line level (e.g. CD player)
-Digital transmission in the 2.4 GHz range provides for high resistance to interference and unique sound quality (16 bits/48 kHz)
-Operating range up to 30 m indoors and up to 50 m outdoors

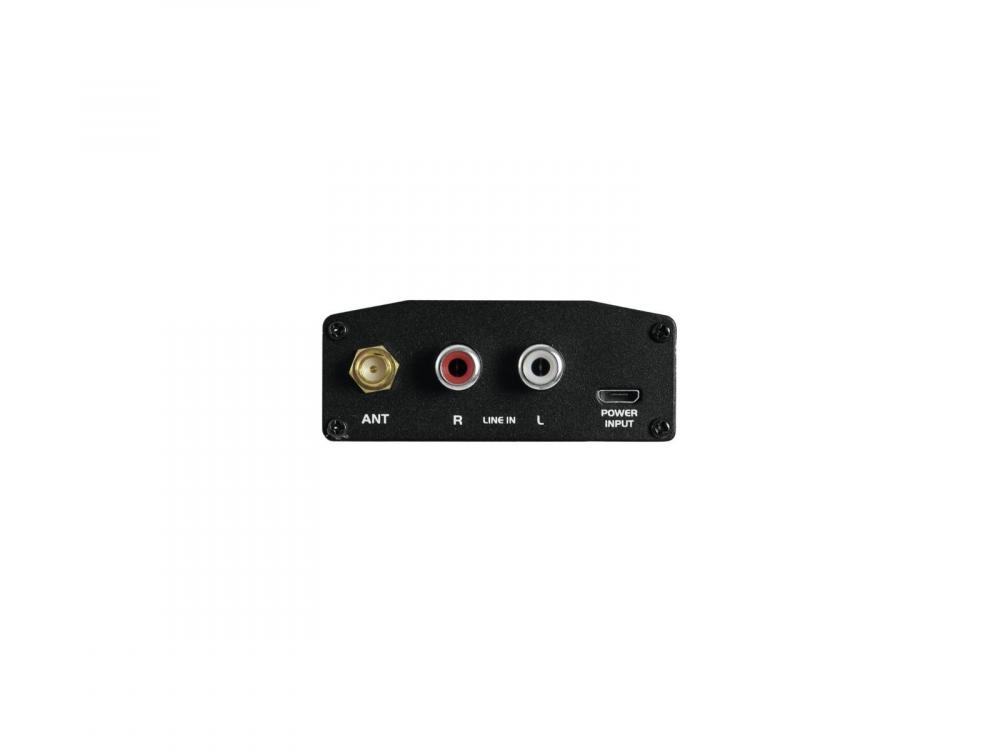

-Stereo audio input: mini USB 2.0 port or RCA L/R

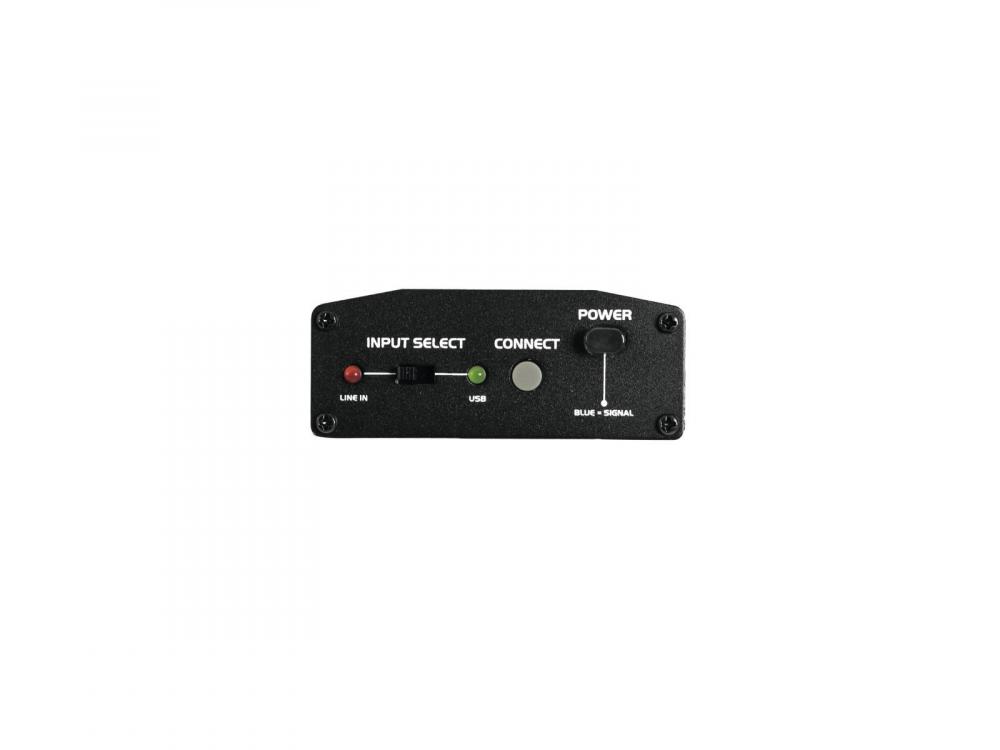

-Push button for pairing with the receiver

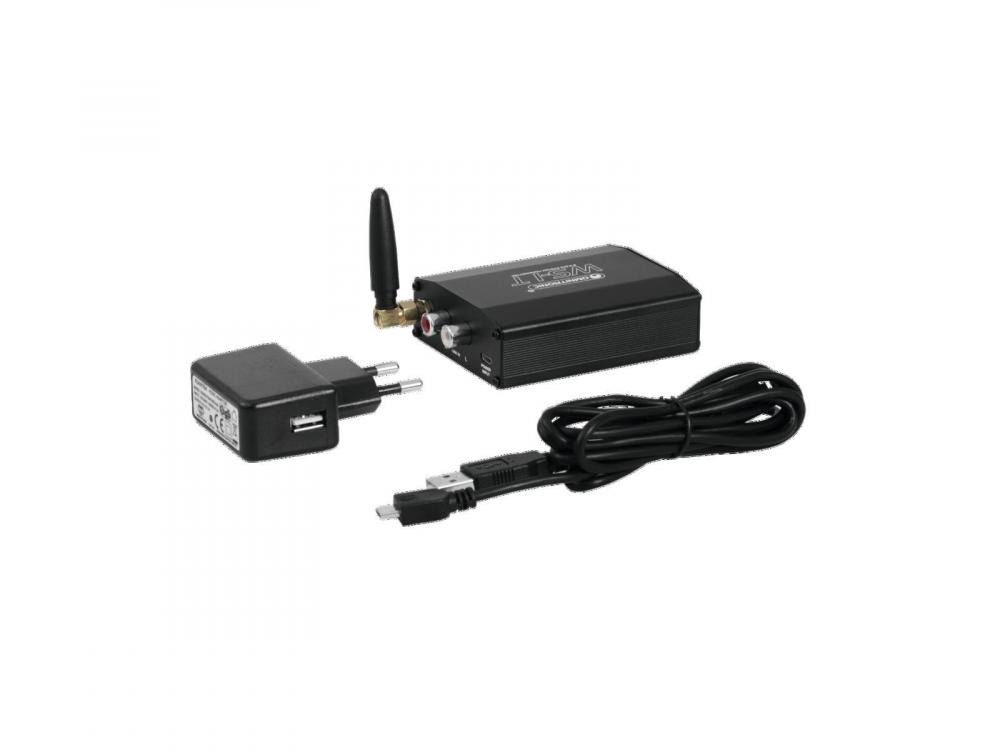

-Removable rod antenna
-Operation via supplied power unit or USB port
-Rugged, compact metal housing
-Incl. USB cable
-2.4 GHz ISM band - license-free worldwide
-PC connect: USB
-Power connection: Mains Input Socket (M) USB, type B Power supply cord with AC adapter (m) (provided)
-Control: W-Lan
Audio
Frequency response, from
20 Hz
Frequency response, to
20000 Hz
Signal to Noise Ratio
96.00 dB
Crosstalk
96.00 dB
Electrical
external PSU
yes
DC Volts, min
5 V
DC Volts, max
5 V
Mechanical
weight
0.12 kg
width
110.00 mm
height
63.00 mm
length
65.00 mm
enclosure material
Metal
