| Info | |
|---|---|
| order code |
13072231
|
| product link | |
| EAN |
4026397593938
|
| Product Name |

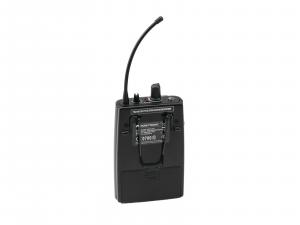

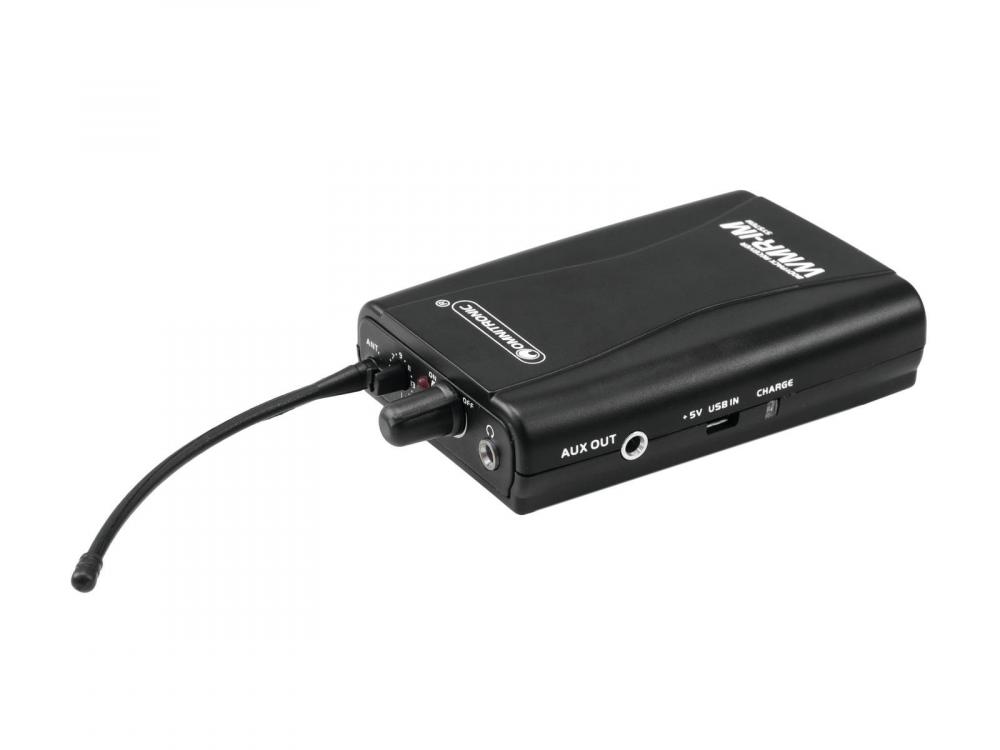

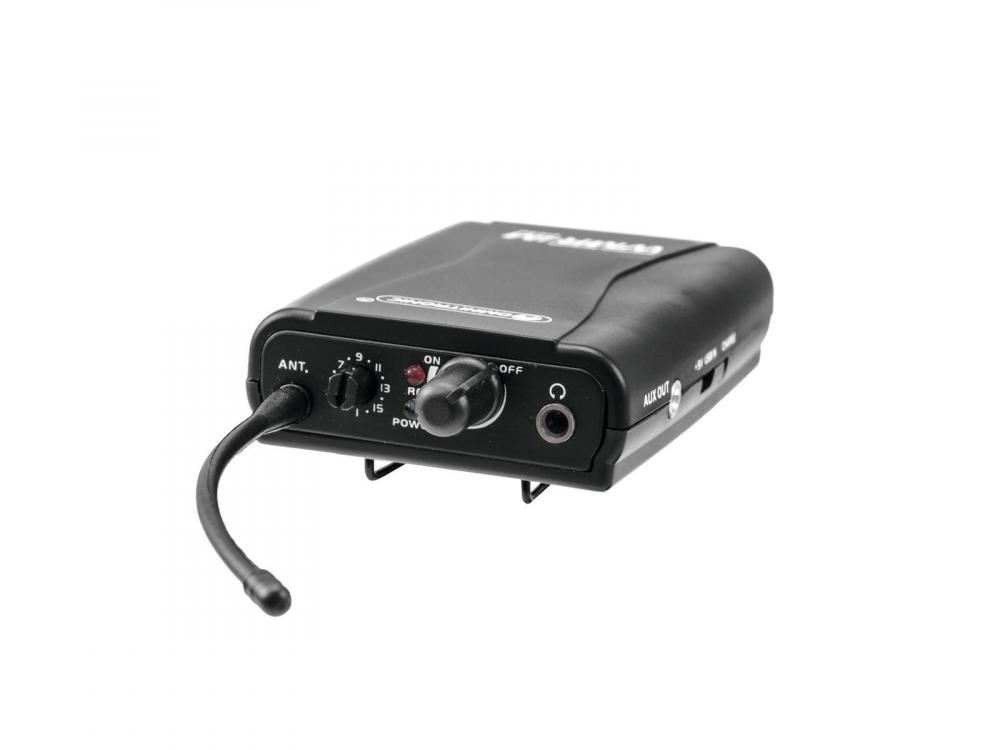

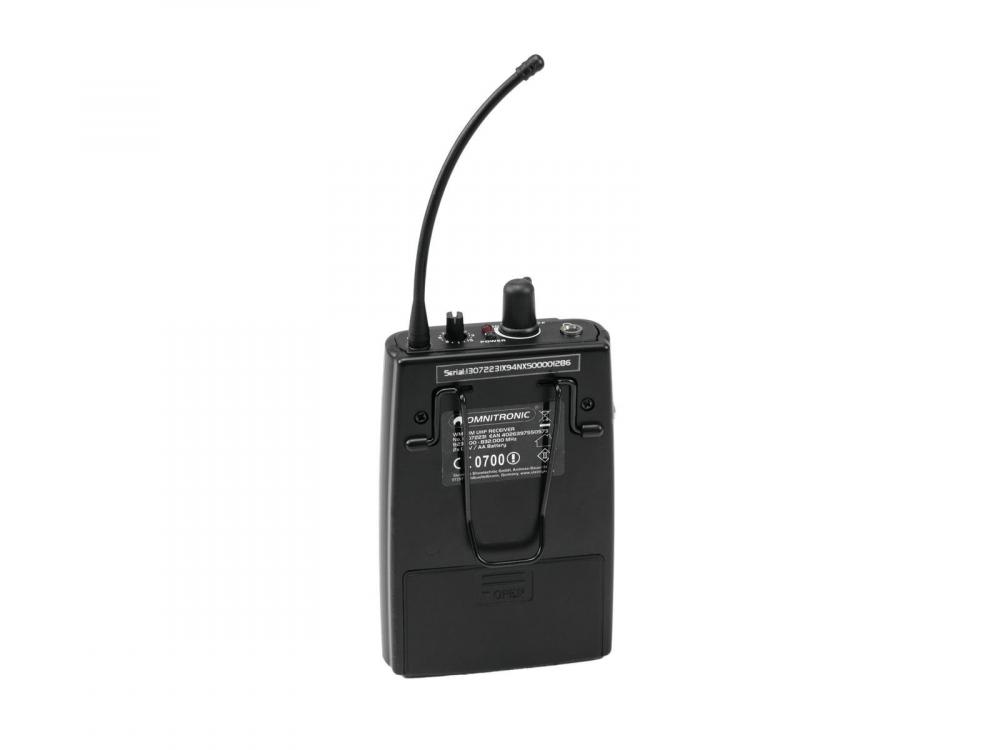

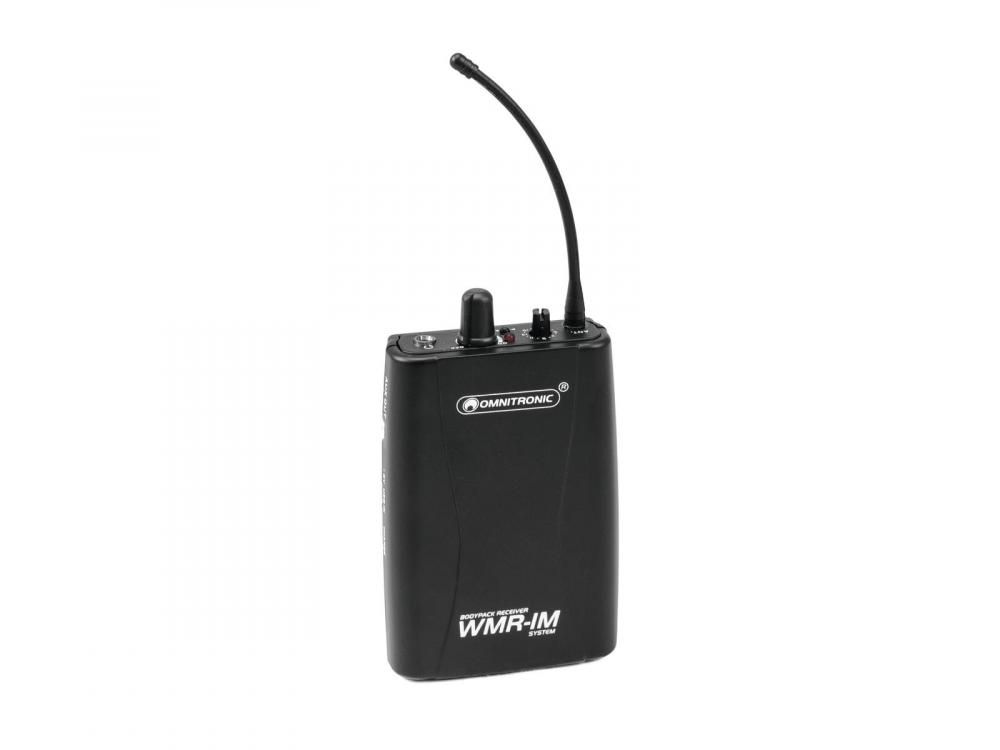

OMNITRONIC WMR-1M UHF-Receiver, mono
|
| technical overview |
Type: 16-channel PLL audio receiver Frequency range: 823-832 MHz Range: min. 50 m Modulation: FM Frequency stability: 10 ppm Pilot frequency: 32,768 kHz S/N ratio: >80 dB Line/earphone input: 3.5 mm mono jack Max. output voltage: 500 mV Power supply: 2 x 1.2 V rechargeable NiMH battery or 2 x 1.5-V battery (type AA) Battery operation: approx. 6 hours Charging time: approx. 3 hours Dimensions: 110 x 65 x 27 mm (w/o antenna) Frequency band: UHF 823 - 832 MHz Weight: 0,093 kg Height: 11 cm Depth: 2,7 cm Width: 6,5 cm Power connection: Battery/battery pack Material: Plastic |
| main features |
Wireless mono audio transmission system, 823-832 MHz -Wireless audio transmission system with UHF PLL technology -For wireless transmission of audio line and microphone signals (mono) with one transmitter and one or more receivers -Duplex gap 823-832 MHz -Parallel use of up to 4 transmitters possible -Operating range up to 50 m -Audio line output and earphone connection via 3.5 mm mono jack -16 channels selectable -Volume level control -RF reception indicator -LED battery indicator -Robust metal fixing clip -Power supply via 2 x 1.2 V NiMH rech. battery AA size (not included) -Micro USB charging port -License-free in large parts of the EU -Mute function: On/off/mute switch -Power connection: Battery/battery pack |
| Audio | |
| Signal to Noise Ratio |
80.00 dB
|
| Electrical | |
| Battery runtime (max) |
6.00 h
|
| Mechanical | |
| weight |
0.09 kg
|
| width |
65.00 mm
|
| height |
27.00 mm
|
| length |
27.00 mm
|
| enclosure material |
Plastic
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00095827.pdf |
