Info | |
---|---|
order code |
10304150
|
Product Name |

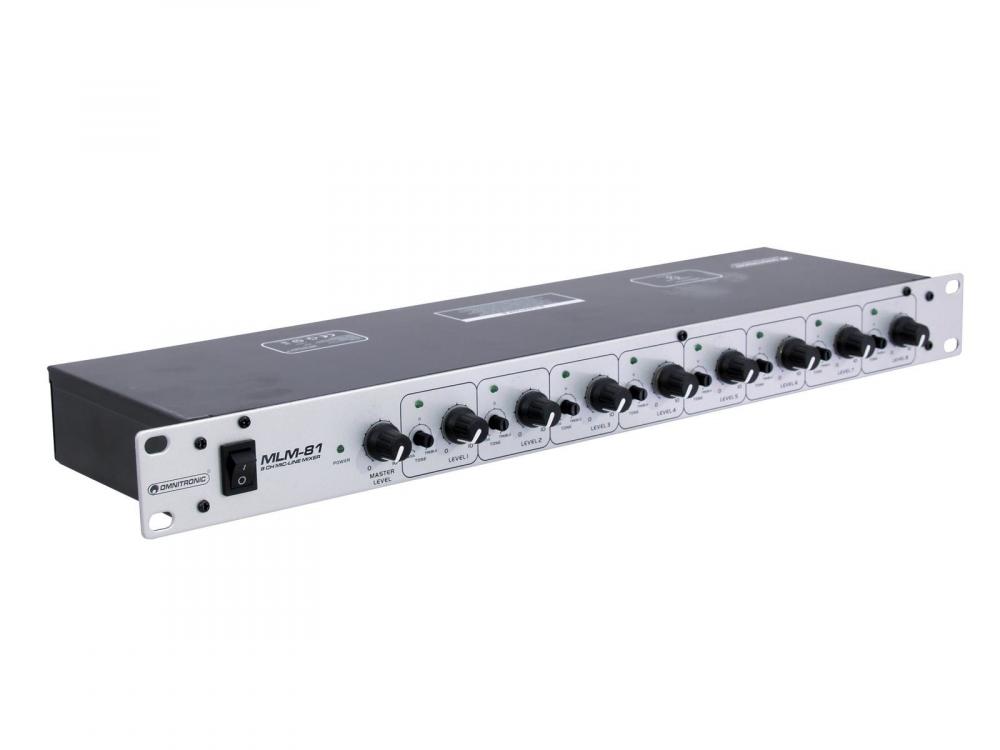

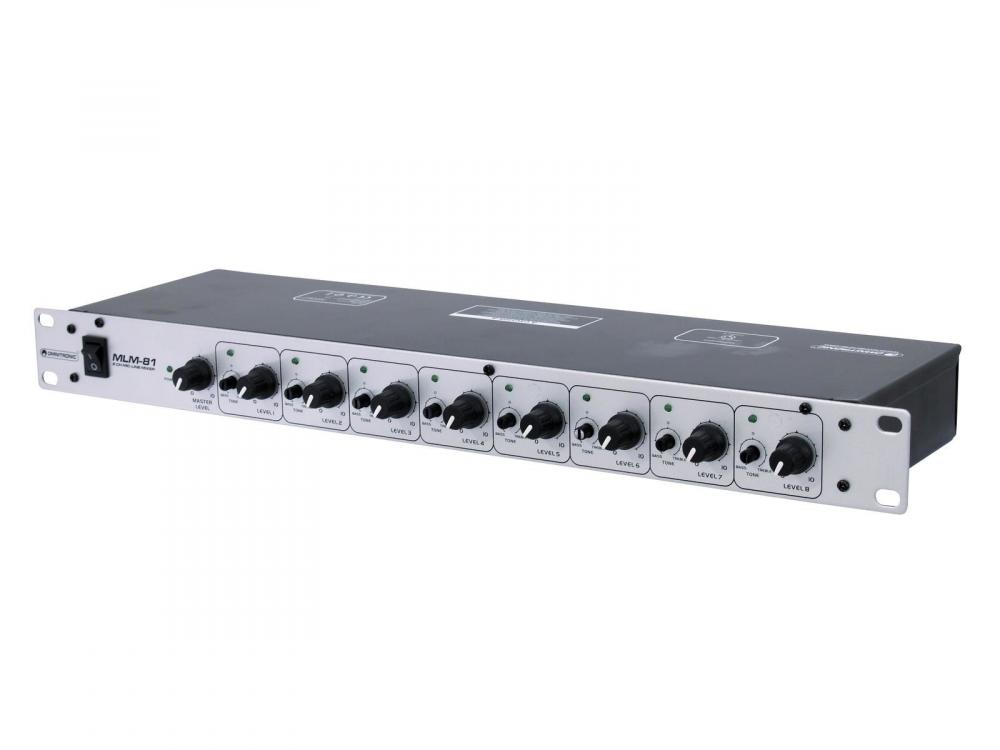

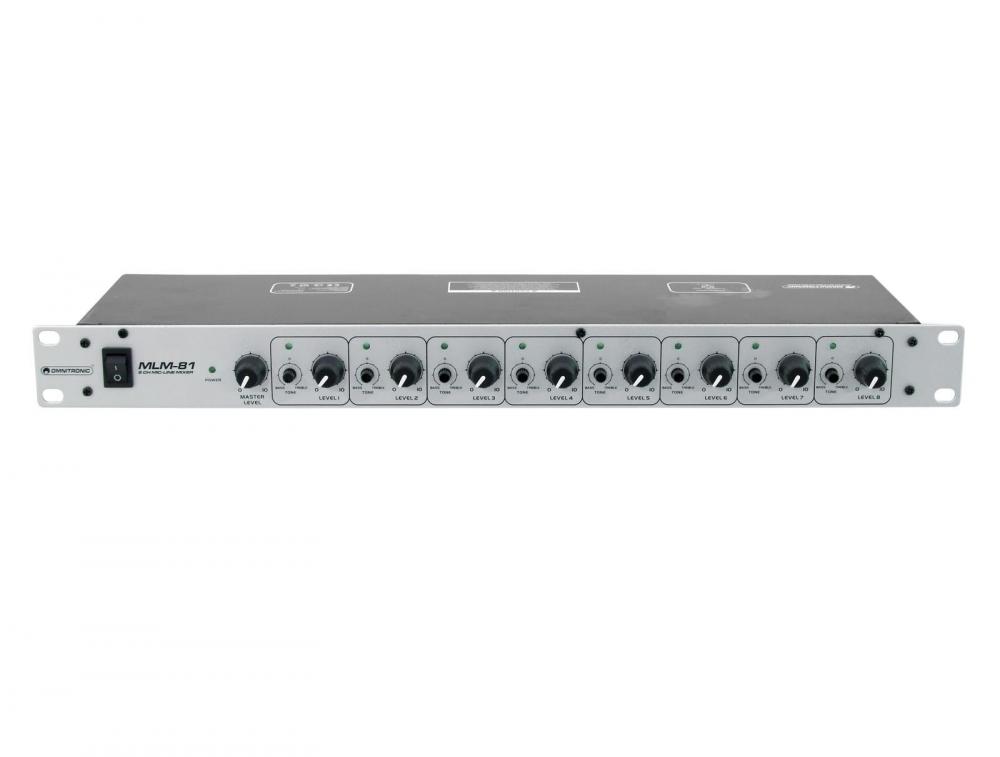

OMNITRONIC MLM-81 Microphone/Line Mixer
|
product link | |
EAN |
4026397295085
|
technical overview |
Power supply: 230 V AC, 50 Hz Input impedance: 600 ohms (Mic), 18 kohms (Line), 10 kohms (Aux Bus) Max. input level: -23 dBV (Mic), +22 dBV (Line) Phantom power: 12 V Max. output level: +17 dBV Output impedance: 51 ohms Max. gain: 69 dB (Mic), 26 dB (Line) Distortion: S/N ratio: 106 dB Dimensions (W x D x H): 482 x 152 x 44 mm Weight: 3 kg Power consumption: 10,00 W Height: 4,45 cm Depth: 15,2 cm Width: 48,3 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
main features |

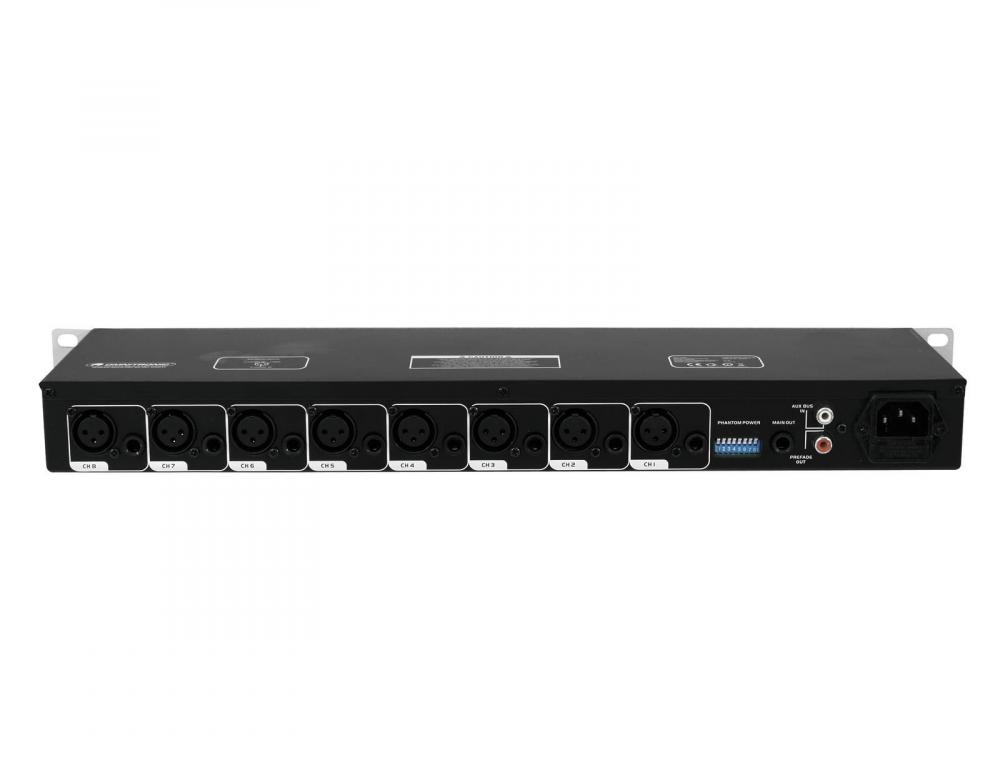

Microphone line mixer, 8 channels -For mixing up to 8 mono input signals to 1 mono output -8 mic/line channels with separate level and tone controls and signal LEDs -Each channel with balanced XLR mic input and unbalanced 6.3 mm jack (1/4") input -Each mic input with optional 12 V phantom power via DIP switches -Master level control; master out via balanced 6.3 mm jack (1/4") -Feed-through output (independent of master control) for connecting a further MLM-81 -Each 6.3 mm line input can be separately converted to a line output via internal jumpers -Rack installation, 1 U -Housing design: (19") 48,3 cm rack installation -Height unit: 1 U -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
impedance |
18000 ohm
|
Signal to Noise Ratio |
106.00 dB
|
Output impedance |
51 ohm
|
Electrical | |
power consumption watt, max |
10.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Mechanical | |
weight |
3.00 kg
|
width |
483.00 mm
|
height |
44.50 mm
|
length |
152.00 mm
|
