Info | |
---|---|
order code |
10304151
|
Product Name |
OMNITRONIC TS-8 Isolator/Splitter
|
product link | |
EAN |
4026397295092
|
technical overview |
Frequency range: 10-50000 Hz, ±5 dB @ +4 dBu THD: 0.01% typical @ 0.1 kHz, + 18 dBu, Channel separation: 90 dB typical CMRR: 60 dB typical Phase error: Insertation loss: 0.4 dB @ 100 kohms 5.5 dB @ 600 ohms Connection: XLR, balanced 6.3 mm jack (1/4"), balanced RCA stereo Dimensions: 483 x 115 x 45 mm Weight: 2 kg Height: 4,45 cm Depth: 11,5 cm Width: 48,3 cm |
main features |

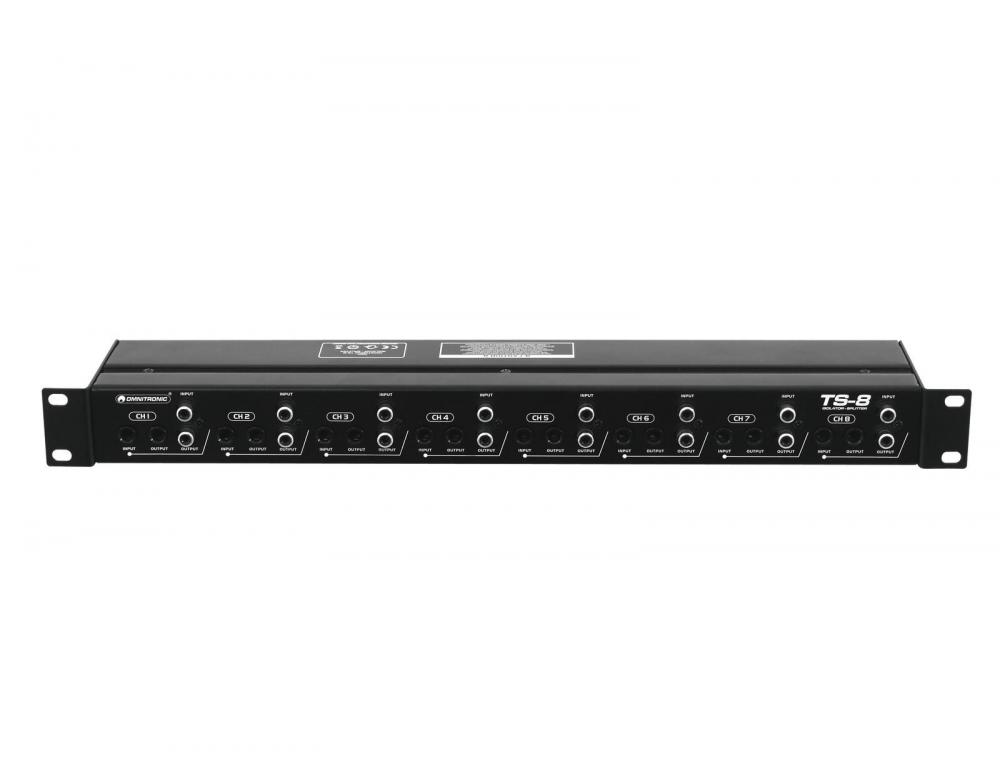

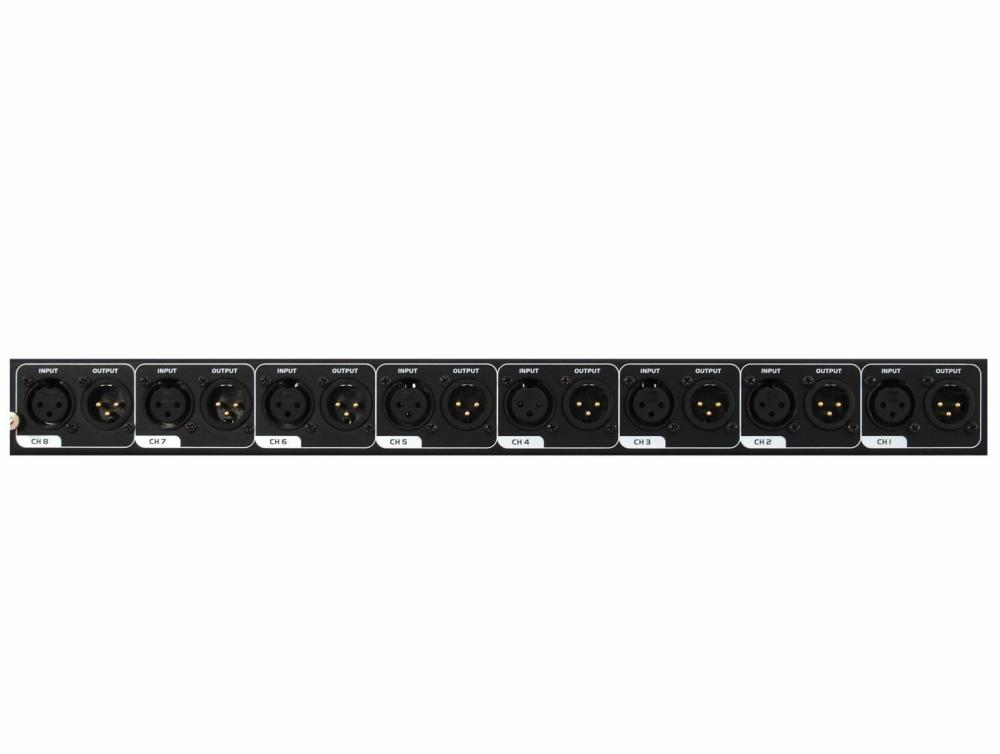

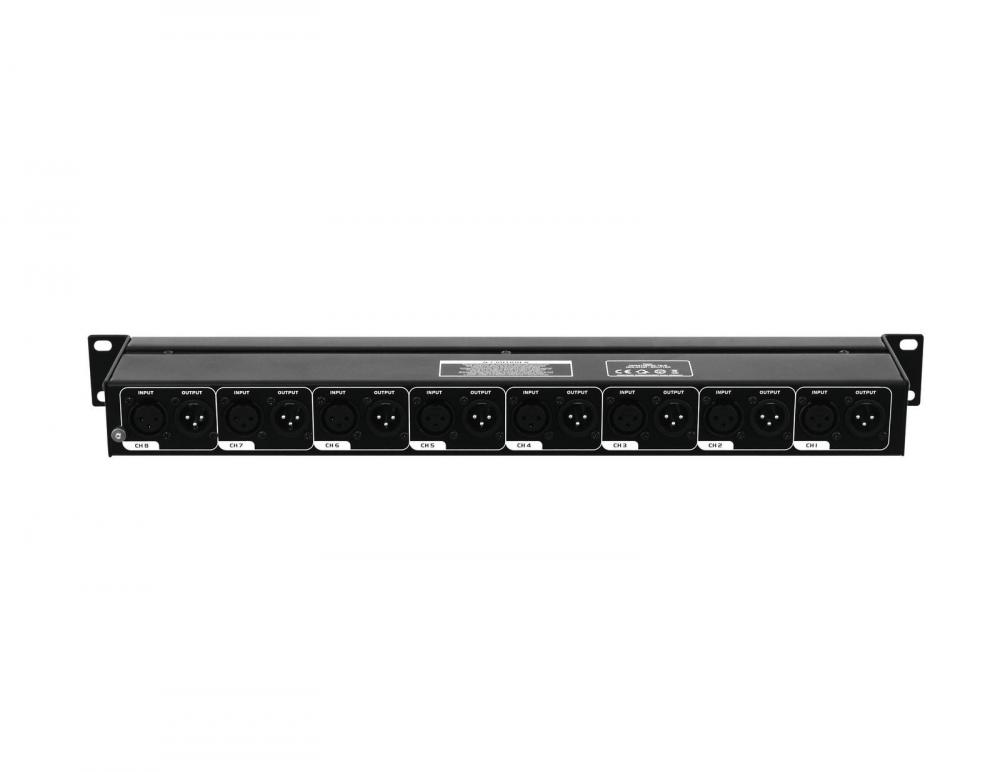

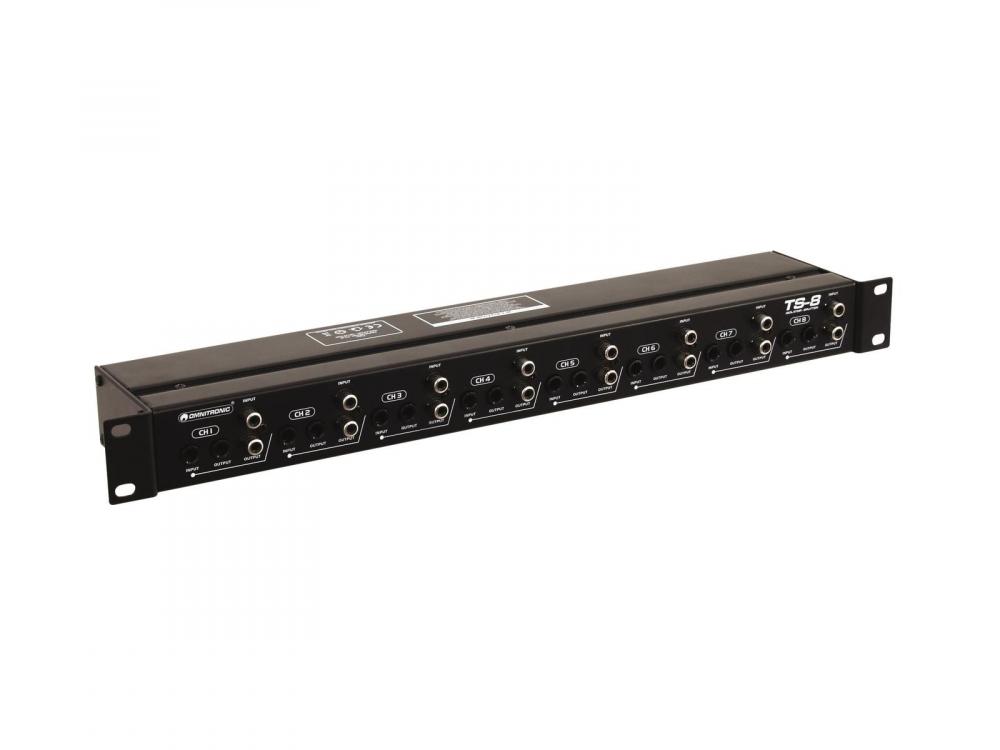

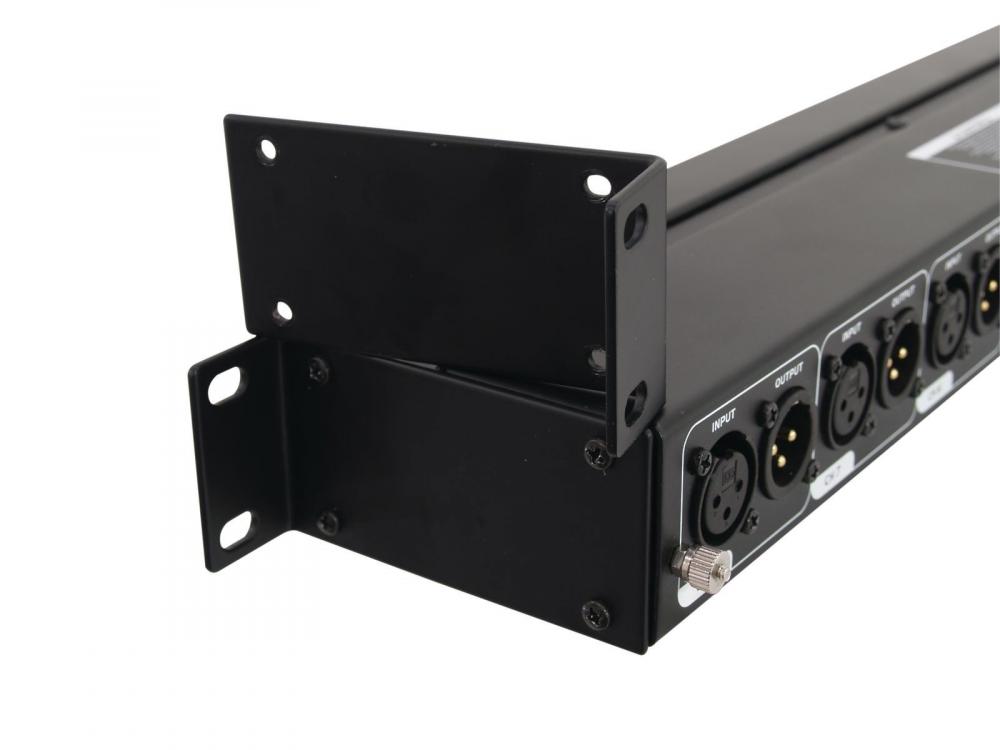

8-channel line isolator/splitter -Passive audio isolator/splitter for converting 6.3 mm jack (1/4") and RCA signals into balanced XLR signals or vice versa -Front inputs and outputs via RCA and 6.3 mm jacks (1/4") per channel -Rear inputs and outputs via balanced XLR jacks per channel -Eight high-performance audio transformers -Separate input and output signal grounds reduce hum -Frequency range 10-50000 Hz -Very clean and neutral sound -Incl. reversible mounting brackets for 483 mm rack installation (1 U) -Housing design: (19") 48,3 cm rack installation -Height unit: 1 U |
Audio | |
Frequency response, from |
10 Hz
|
Frequency response, to |
50000 Hz
|
Mechanical | |
weight |
2.00 kg
|
width |
483.00 mm
|
height |
44.50 mm
|
length |
115.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00030235.pdf |
