Info | |
---|---|
order code |
10304153
|
Product Name |

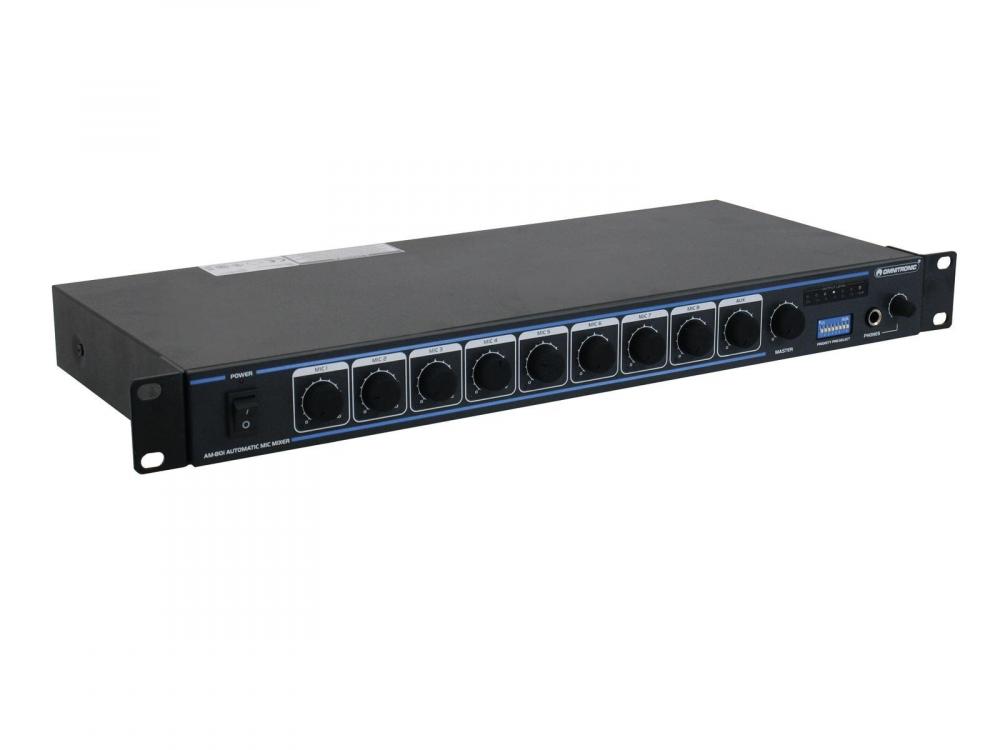

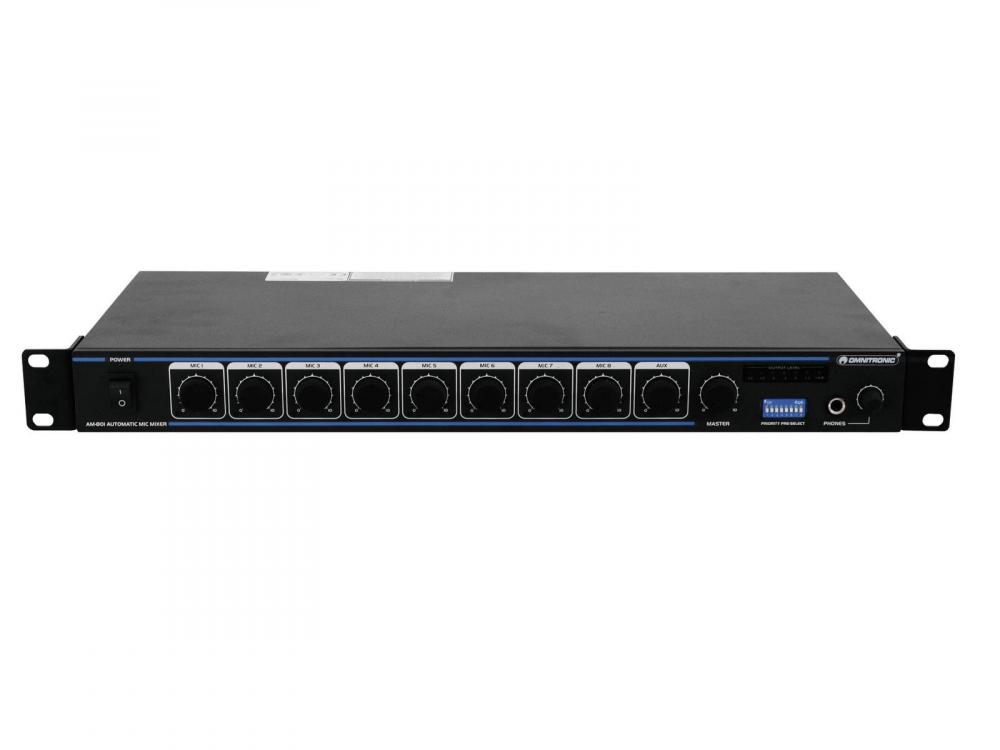

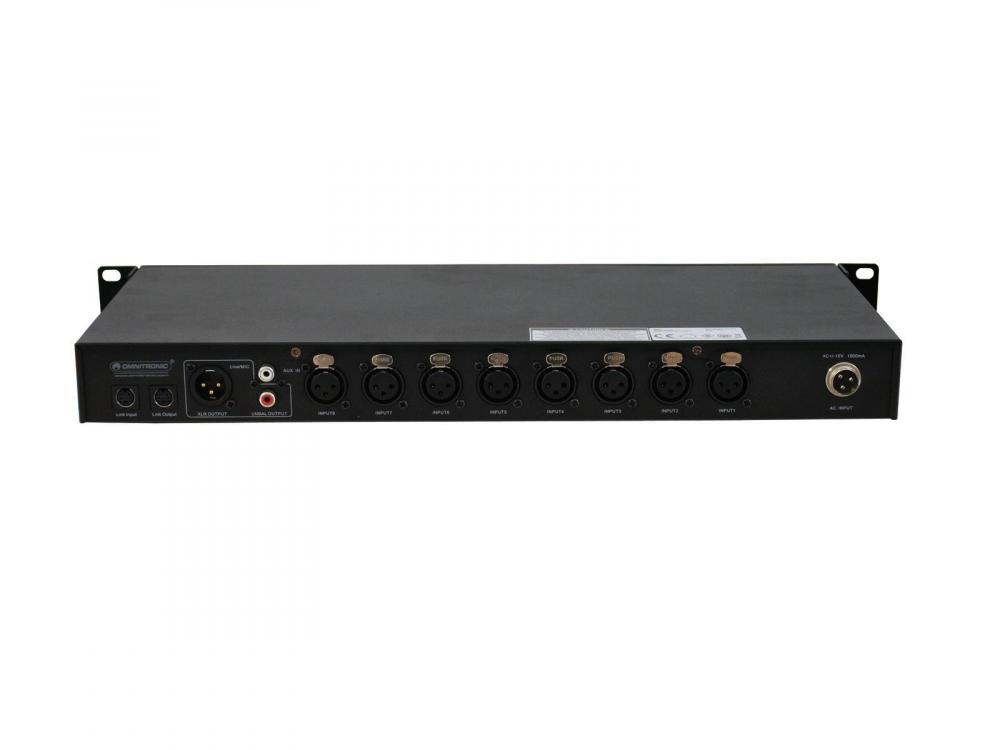

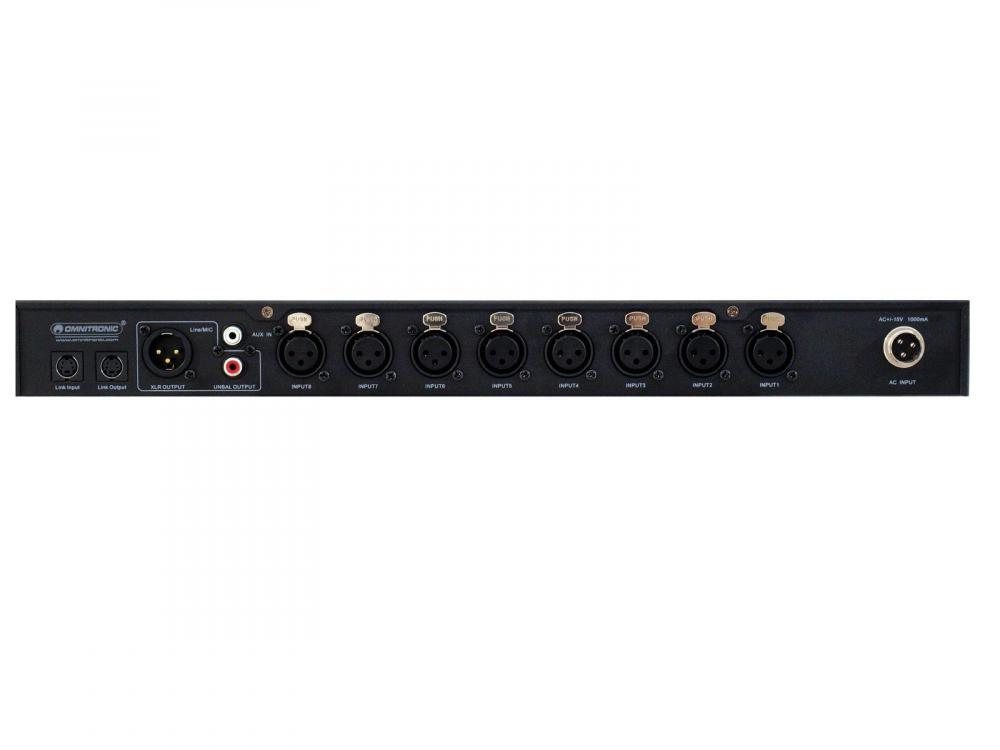

OMNITRONIC AM-801 Automatic Mixer
|
product link | |
EAN |
4026397325324
|
technical overview |
Power supply: 13-18 V AC, 1000 mA (mixer) 230 V AC, 50 Hz (power supply unit) Frequency range: 60-18000 Hz (±3 dB) S/N ratio: 80 dB Phantom power: 48 V Audio output level: 6 dBV/ 3000 ohms (XLR) 6 dBV/ 600 ohms (6.3 mm jack) Output impedance: 200 ohms (XLR) 1 kohms (6.3 mm jack) Max. input level: -6 dBV (MIC) 12 dBV (LINE) Input impedance: 3 kohms (MIC) 10 kohms (LINE) Dimensions (H x W x D): 430 x 180 x 44 mm Weight: 0,34 kg Power consumption: 5,00 W Height: 4,45 cm Depth: 18 cm Width: 48,3 cm |
main features |
Processor-controlled automatic mixer -8 microphone input channels (XLR, bal.) and 1 master output (XLR, bal./6.3 mm jack, unbal.) -Algorithm automatically allocates gain among the microphones -Automatic mixing technology activates only those microphones being addressed -Skewing function eliminates background noise and feedback -Last microphone remains on to maintain ambient sound -Each channel with +48 V phantom power, separate level control and singal LED -Priority pre-select feature allows priority of each microphone to be independently assigned -Aux In (6.3 mm jack) with non-automatic level control -Monitor headphone output with level control -Master level control -Precise 7-digit LED meter for output level -Expansion outputs for up to 16 units (max. 128 channels), connection cable supplied -Operation via supplied power unit -Incl. mounting brackets for 483 mm rack installation (1 U) -Housing design: (19") 48,3 cm rack installation -Height unit: 1 U |
Audio | |
Frequency response, from |
60 Hz
|
Frequency response, to |
18000 Hz
|
impedance |
3000 ohm
|
Signal to Noise Ratio |
80.00 dB
|
Output impedance |
200 ohm
|
Electrical | |
power consumption watt, max |
5.00 W
|
AC Volts, min |
13 V
|
AC Volts, max |
18 V
|
Mechanical | |
weight |
0.34 kg
|
width |
483.00 mm
|
height |
44.50 mm
|
length |
180.00 mm
|
