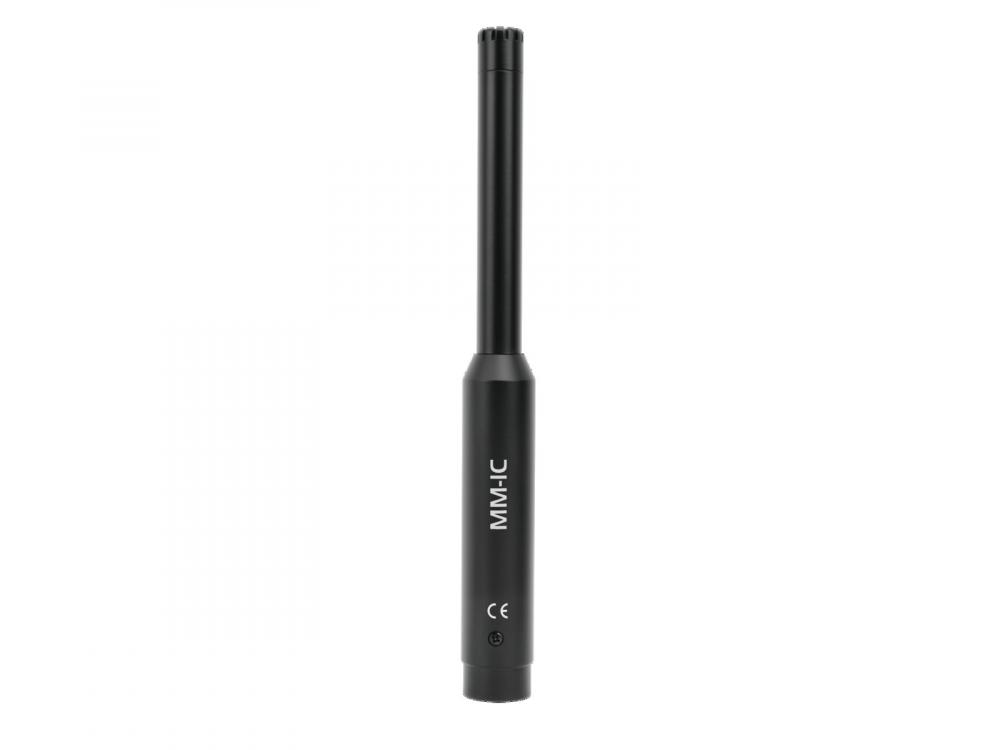

OMNITRONIC MIC MM-1C Condenser Measurement Mic

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC MIC MM-1C Condenser Measurement Mic

Info
order code
13030919
product link
main features
Precise measuring microphone with flat frequency response
-Electret measuring microphone for measuring systems and audio recordings
-Designed for measuring PA systems, speakers and room acoustics
-Perfect complement to any real-time analyzer
-Flat frequency response for high precision
-True omnidirectional pattern
-Sturdy all-metal construction and narrow design
-Incl. microphone clip, thread adapter (9 mm/3/8") and windscreen
-Mute function: No
-Polar pattern: Omnidirectional
technical overview
Type: Condenser (back electret)
Operating principle: Pressure gradient, FET preamp
Polar pattern: omnidirectional
Sensitivity: -37 dB (±3 dB)
Nominal impedance: 200 ohms
Load impedance: 1000 ohms
Maximum SPL: 134 dB (THD
S/N ratio: 76 dB
Phantom power: 9-52 V DC
Current consumption: 3 mA
Connection: 3-pin XLR
Dimensions: Ø 13/21 x 192 mm
Phantom power: 9 V - 52 V DC
Weight: 0,066 kg
Polar pattern: Omnidirectional
Frequency range: 20 - 20000 Hz
Diameter: 13 cm
Length: 19,2 cm
EAN
4026397556810
Product Name
OMNITRONIC MIC MM-1C Condenser Measurement Mic
Audio
Frequency response, from
20 Hz
Frequency response, to
20000 Hz
Mechanical
weight
0.07 kg
length
20.00 mm
outer diameter
130 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00094068.pdf
