Info | |
---|---|
order code |
10453010
|
product link | |
EAN |
4026397355789
|
Product Name |

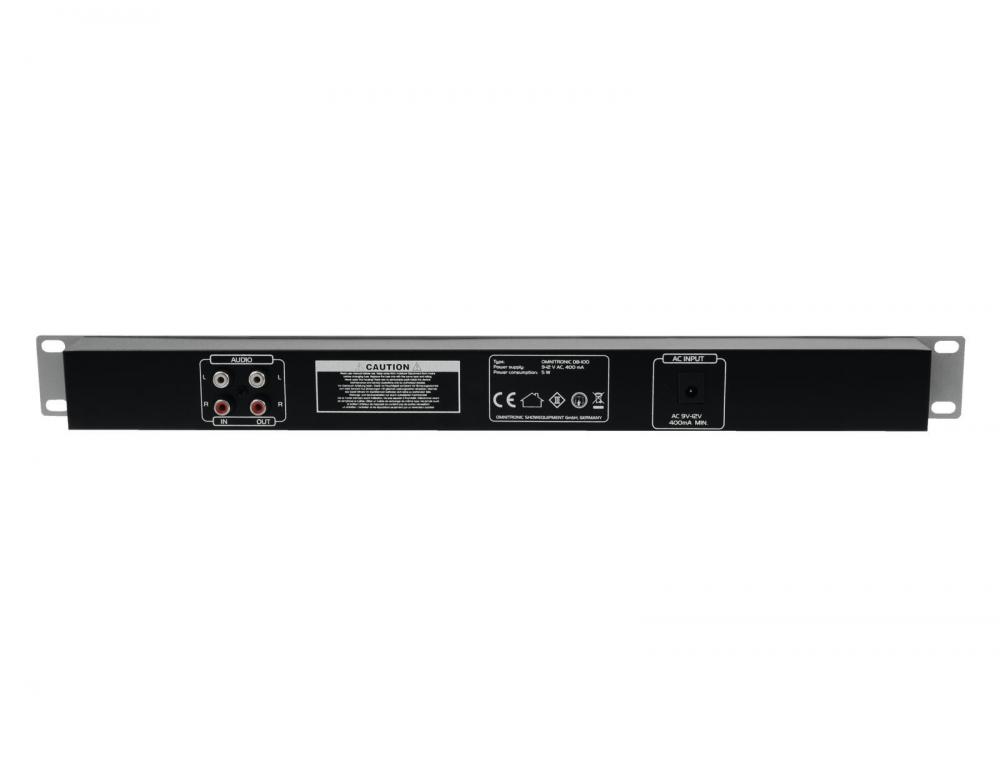

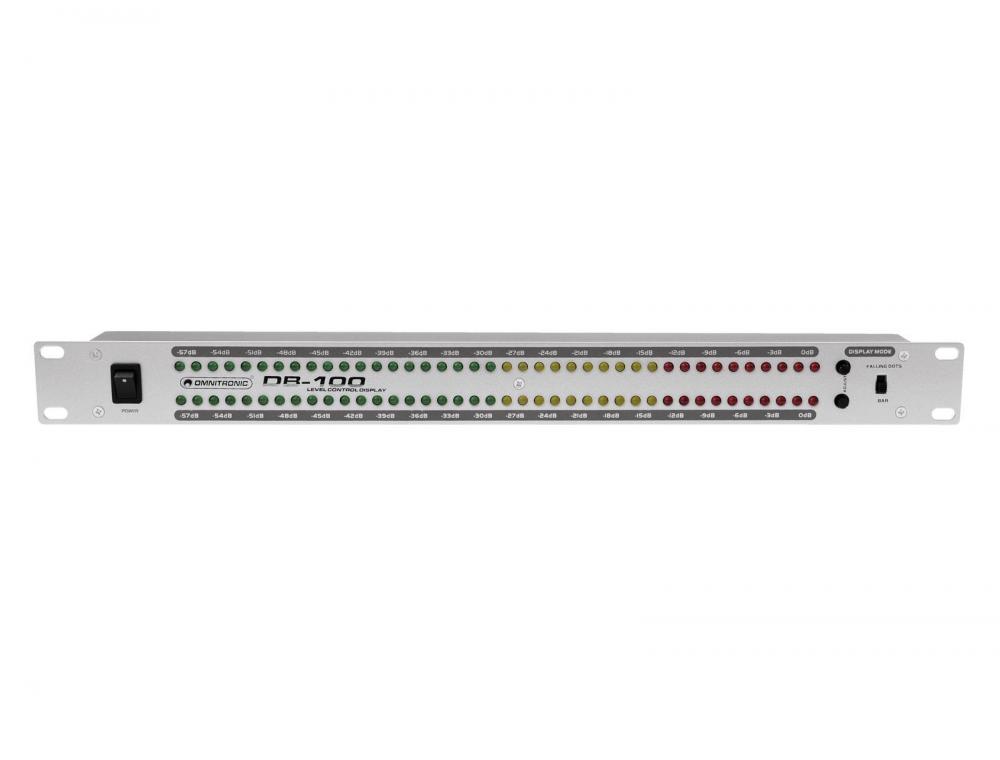

OMNITRONIC DB-100 Decibel Level Meter
|
technical overview |
Power supply: 230 V AC, 50 Hz, via supplied power unit Input sensitivity: approx. 350 mV - 7 V Display range: -57 dB - 0 dB (in 3 dB steps) Audio inputs: stereo RCA Dimensions (WxHxD): 482 x 52 x 44 mm (19", 1 U) Weight: 0,78 kg Power consumption: 5 W Height: 4,45 cm Depth: 5,2 cm Width: 48,3 cm Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) Power supply: 230 V AC, 50 Hz |
main features |
Level display for audio signals with stereo cinch in and output -3-color LED display with 40 LEDs per channel -Switchable display mode (dot display or bargraph display) -Display range: -57 dB to 0 dB -Operation via supplied power unit -Rack installation, 1 U -Height unit: 1 U -Housing design: (19") 48,3 cm rack installation -Power connection: Mains Input Socket (M) Coaxial power connector (M) Power supply cord with AC adapter (m) (provided) |
Electrical | |
power consumption watt, max |
5.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
external PSU |
yes
|
Mechanical | |
weight |
0.78 kg
|
width |
483.00 mm
|
height |
44.50 mm
|
length |
44.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00038986.pdf |
