Info | |
---|---|
order code |
10451034
|
product link | |
EAN |
4026397593907
|
Product Name |

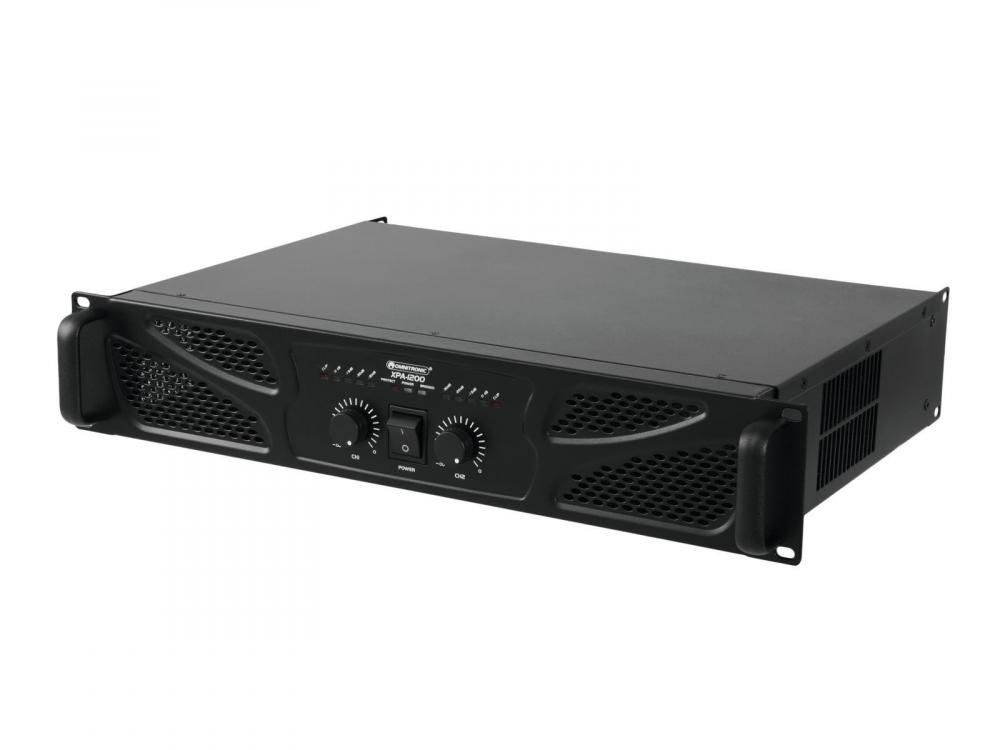

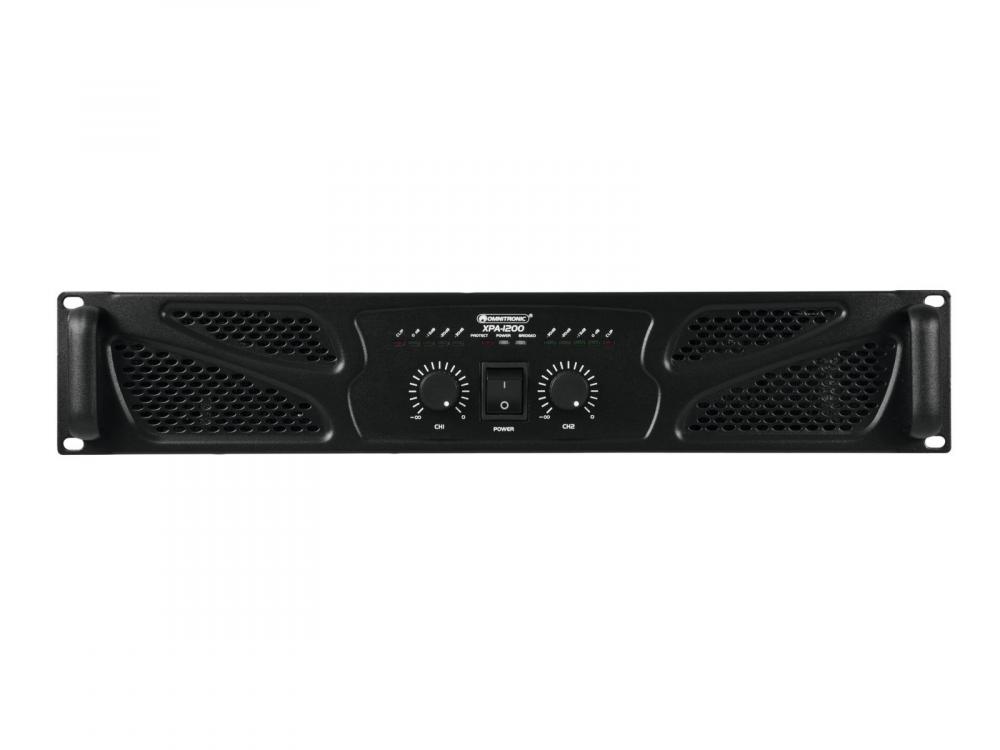

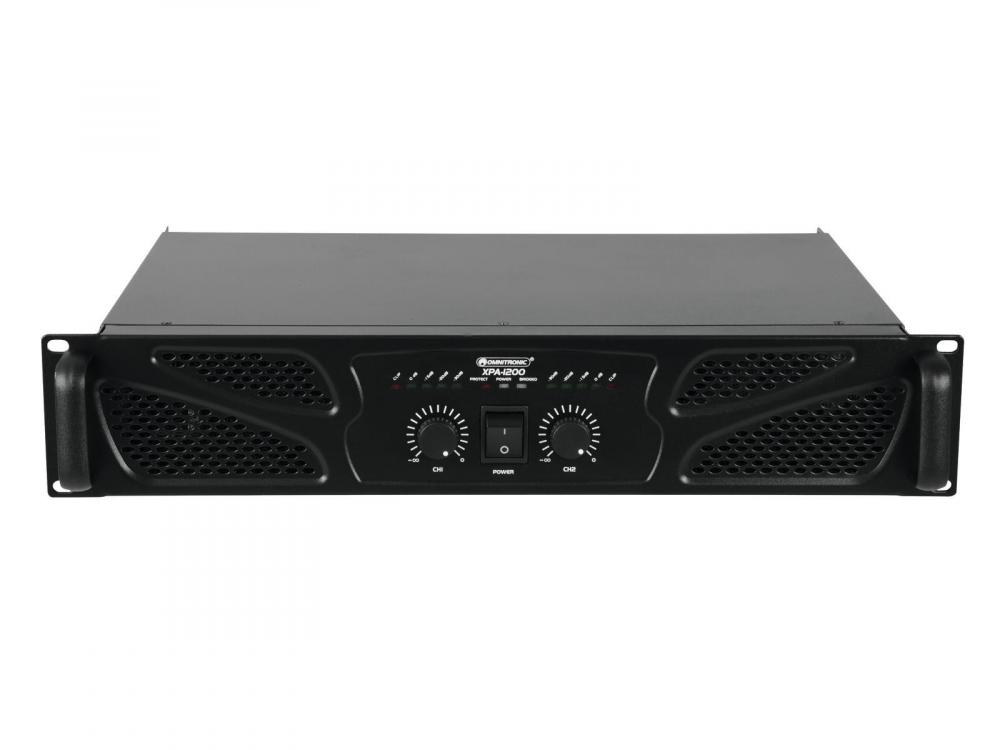

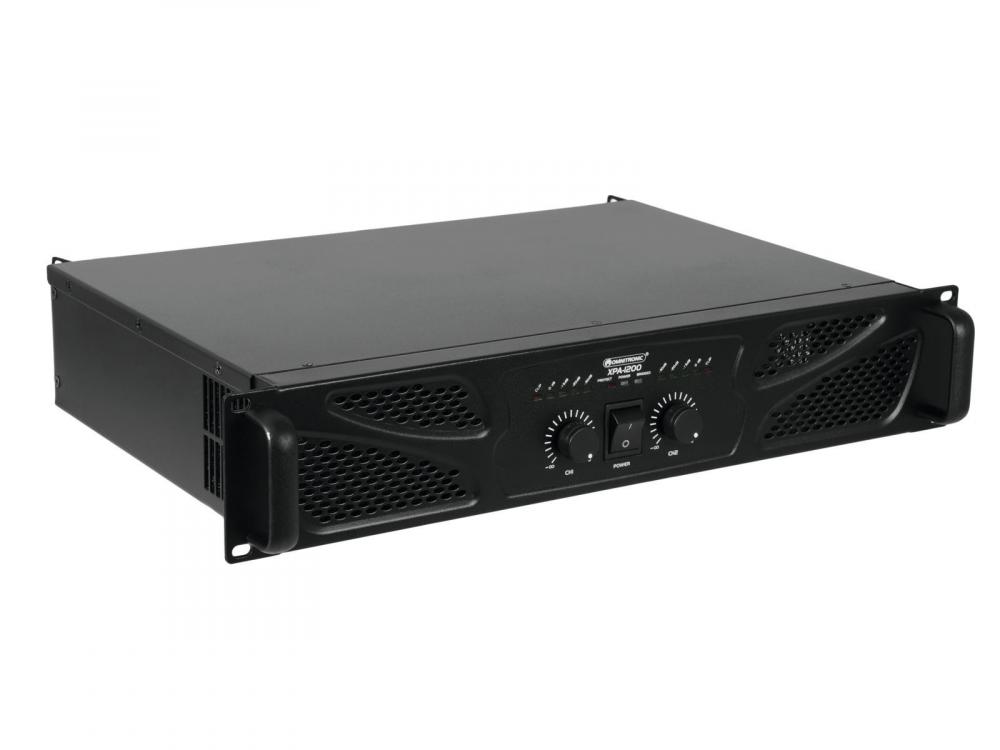

OMNITRONIC XPA-1200 Amplifier
|
technical overview |

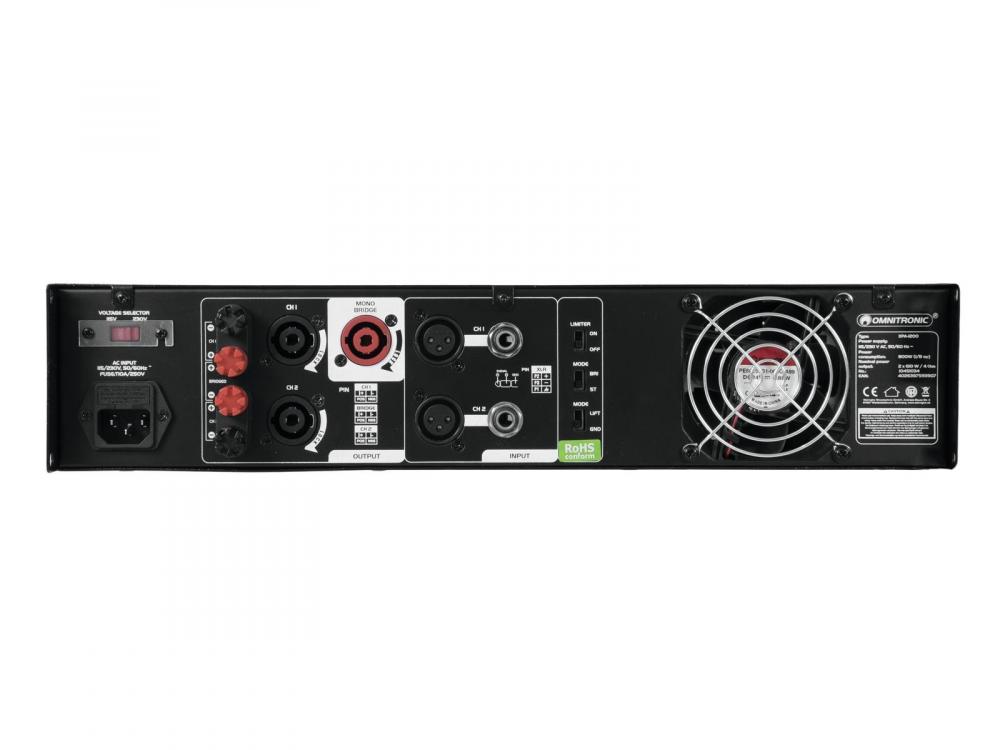

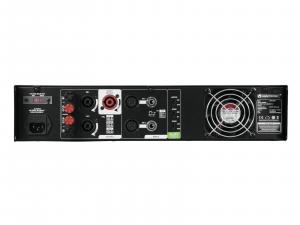

Power supply: 115/230 V AC, 50/60 Hz Power output sine: Stereo 4 ohms 2 x 610 W Stereo 8 ohms 2 x 420 W 8 ohms bridged 1 x 1200 W Frequency range: 20-20000 Hz, ±1 dB Damping factor: >350 Distortion factor: 0.5 % Slew rate: 20 V/µsec S/N ratio: >95 dB Input sensitivity: 1.4 V Input impedance: 20 kohms (balanced), 10 kohms (unbalanced) Input voltage: max. 21 dBV/9V Input connectors: 2 x XLR, 2 x 6.3 mm jack Output connectors: 2 x speaker, 1 x speaker (bridge), 2 x pairs of screw terminals Control elements: power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector LED indicators: bridged, protect, and 5-fold output meter with clip LED (per channel) Protection circuits: short-circuit, overheat, DC voltage, power on/off transients, softstart Construction: steel chassis with steel front panel Dimensions (DxWxH): 354 x 483 x 103 mm (19", 2 U) Weight: 12,4 kg Power consumption: 800 W 1/8 power Power/channel (8 Ohm): 420 W Power/channel (4 Ohm): 610 W Height: 8,9 cm Depth: 35,4 cm Width: 48,3 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 115/230 V AC, 50/60 Hz |
main features |
PA amplifier with integrated limiter, 2 x 600 W / 4 ohms, 2 x 420 W / 8 ohms -2 operating modes can be selected (stereo or bridged) -Limiter, switchable -Speaker switch-on delay -2 level controls -Each channel with LED for activated protective circuit (protect) and output meter with clip LED -Complete protection set against short-circuit, overheat, DC voltage, power on/off transients -Groundlift switch against humming -Fan cooling -Signal inputs via XLR or 6.3mm jack connectors -Speaker outputs via lockable speaker jacks and pairs of screw terminals -Additional Speaker plug for 8-ohm bridge operation -Class AB circuitry -Rack installation with 2 units -Housing design: (19") 48,3 cm rack installation -Height unit: 2 U -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
No. of channels |
2 pcs
|
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
impedance |
20000 ohm
|
Signal to Noise Ratio |
95.00 dB
|
Connectors | |
Input XLR |
2 pcs
|
Electrical | |
power consumption watt, max |
800.00 W
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
Power per channels at 4 Ω |
610 W
|
Power per channels at 8 Ω |
420 W
|
Power per channels at 8 Ω on bridge mode |
1200 W
|
power input connector |
IEC-60320 C13/C14
|
Mechanical | |
weight |
12.40 kg
|
width |
483.00 mm
|
height |
89.00 mm
|
length |
354.00 mm
|
enclosure material |
steel chassis with steel front panel
|
