Info | |
---|---|
order code |
10451038
|
product link | |
EAN |
4026397594959
|
Product Name |

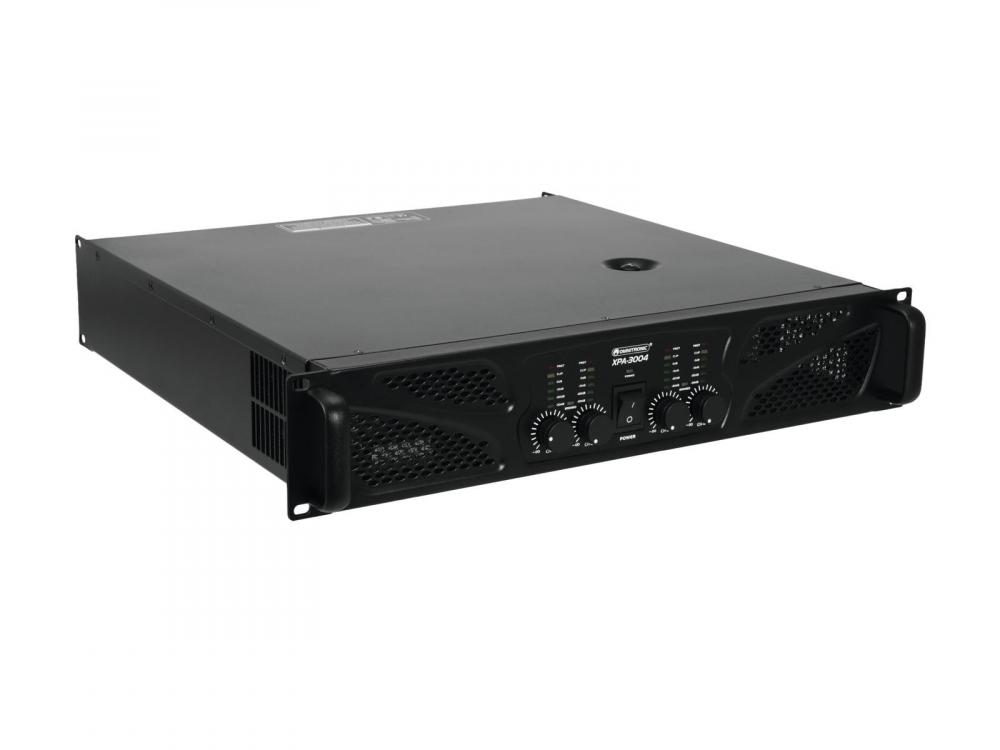

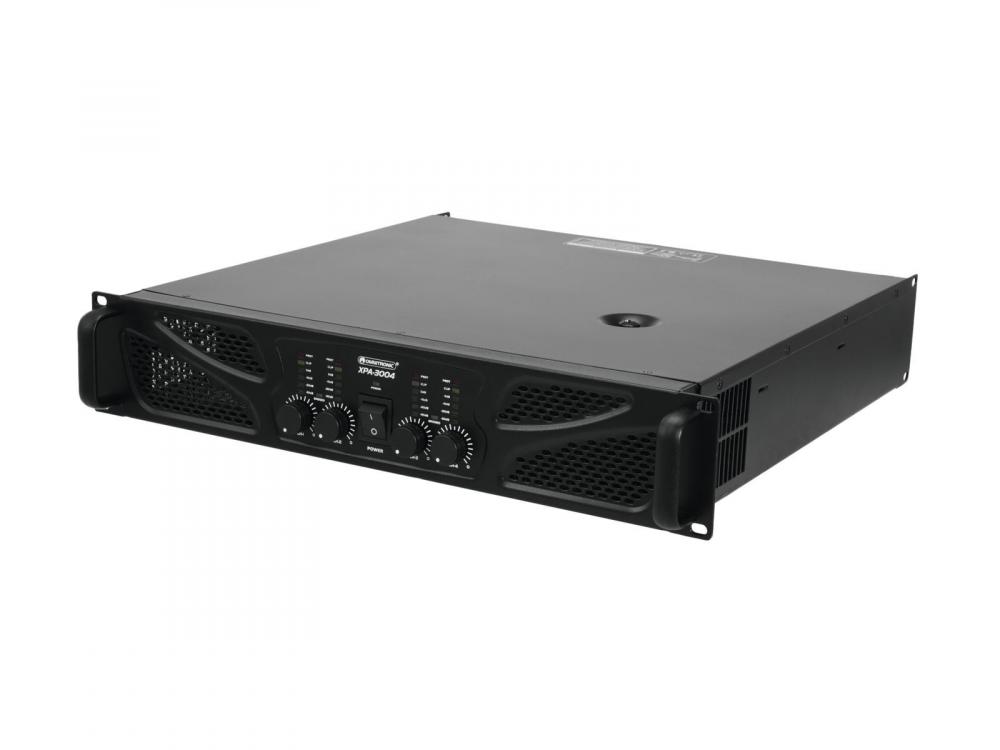

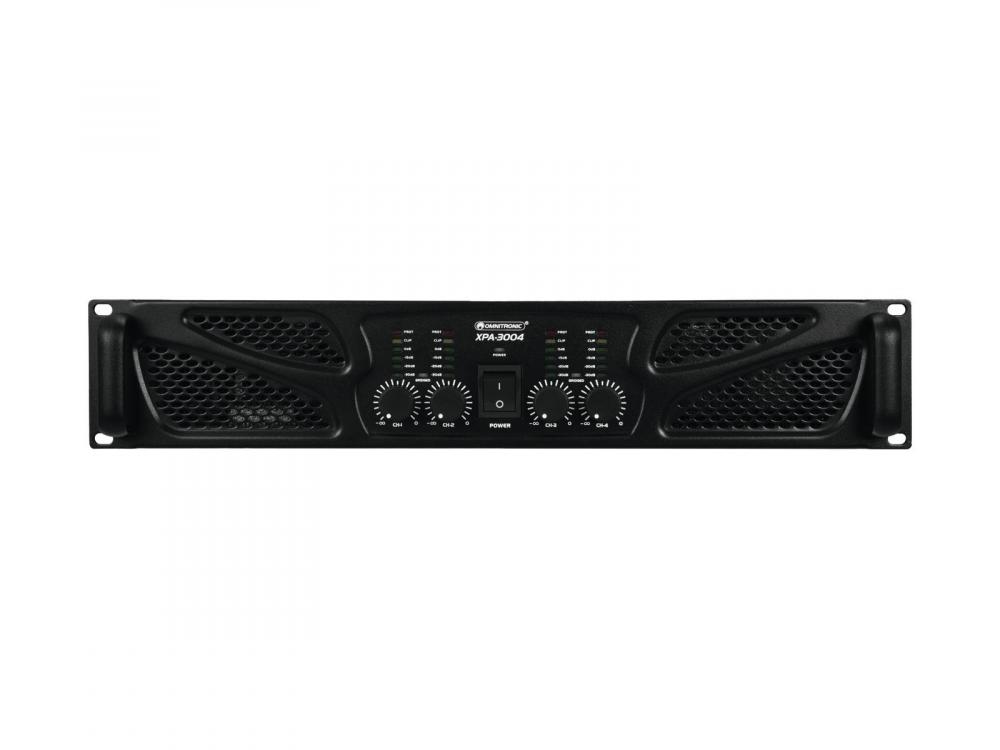

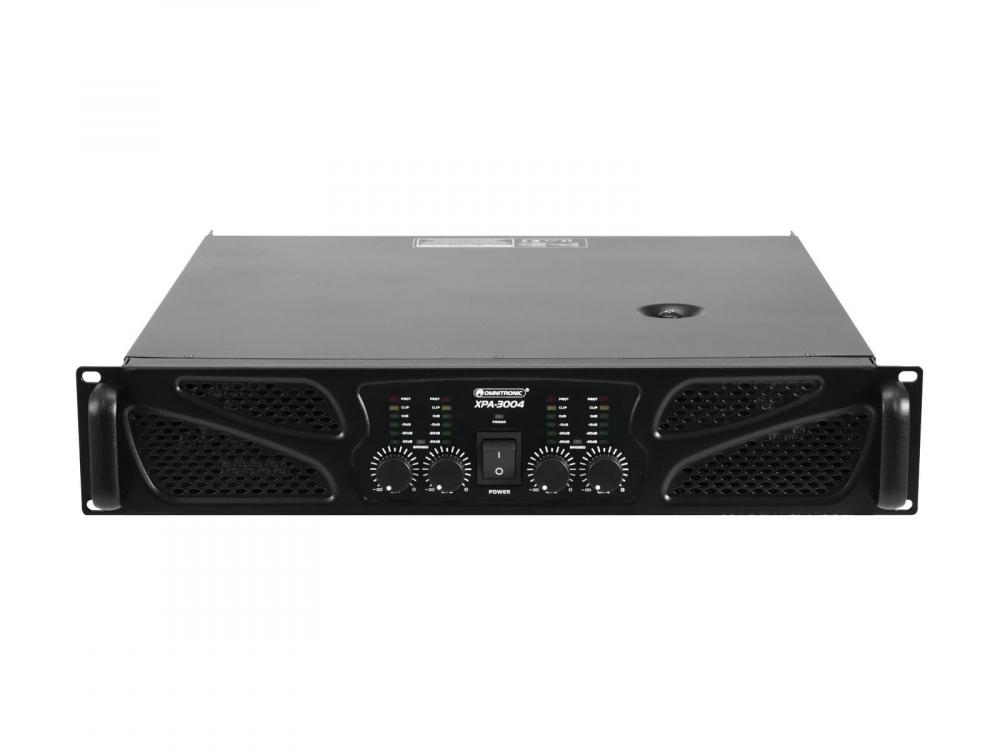

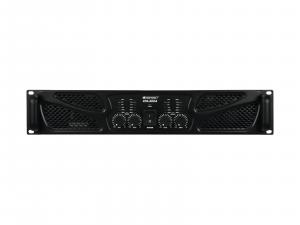

OMNITRONIC XPA-3004 Amplifier
|
main features |
4-channel PA amplifier with integrated limiter, 4 x 750 W / 4 ohms, 4 x 500 W / 8 ohms -3 operating modes can be selected (stereo, parallel or bridged) -Input sensitivity adjustable -Speaker switch-on delay -4 level controls -Each channel with LED for activated protective circuit (protect) and output meter with clip LED -Complete protection set against short-circuit, overheat, DC voltage, power on/off transients -Fan cooling -Signal inputs via XLR connectors -Speaker outputs via lockable speaker jacks -Class H circuitry -P-Con power input -Rack installation with 2 units -Housing design: (19") 48,3 cm rack installation -Height unit: 2 U -Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided) |
technical overview |

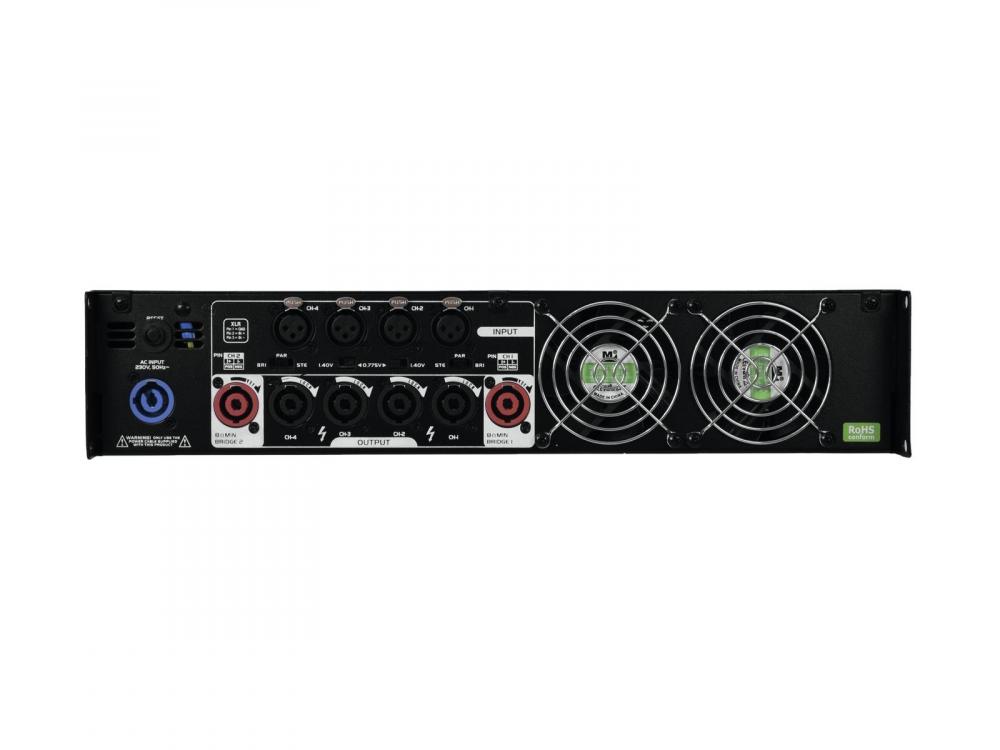

Power supply: 230 V AC, 50 Hz Power output sine: 4 ohms 4 x 750 W 8 ohms 4 x 500 W 8 ohms bridged 2 x 1500 W Frequency range: 20-20000 Hz, ±1 dB Damping factor: >200 Distortion factor: 0.5 % Slew rate: >10 V/µsec S/N ratio: >100 dB Input sensitivity: 0.775 V / 1.4 V, switchable Input impedance: 20 kohms (balanced), 10 kohms (unbalanced) Input connectors: 4 x XLR Output connectors: 4 x speaker Control elements: power switch, level control per channel, mode switch (stereo/bridged), limiter selector, groundlift selector LED indicators: bridged, protect, and 5-fold output meter with clip LED (per channel) Protection circuits: short-circuit, overheat, DC voltage, power on/off transients, softstart Construction: steel chassis with steel front panel Dimensions (DxWxH): 415 x 483 x 103 mm (19", 2 U) Weight: 18,85 kg Power consumption: 700 W 1/8 power Power/channel (8 Ohm): 500 W Power/channel (4 Ohm): 750 W Height: 8,9 cm Depth: 41,5 cm Width: 48,3 cm Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
Audio | |
No. of channels |
4 pcs
|
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
impedance |
20000 ohm
|
Signal to Noise Ratio |
100.00 dB
|
Connectors | |
Input XLR |
4 pcs
|
Electrical | |
power consumption watt, max |
700.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Power per channels at 4 Ω |
750 W
|
Power per channels at 8 Ω |
500 W
|
Power per channels at 8 Ω on bridge mode |
1500 W
|
power input connector |
Powercon
|
Mechanical | |
weight |
18.85 kg
|
width |
483.00 mm
|
height |
89.00 mm
|
length |
415.00 mm
|
enclosure material |
steel chassis with steel front panel
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00102596.pdf |
