Info | |
---|---|
order code |
10451086
|
product link | |
EAN |
4026397374124
|
Product Name |

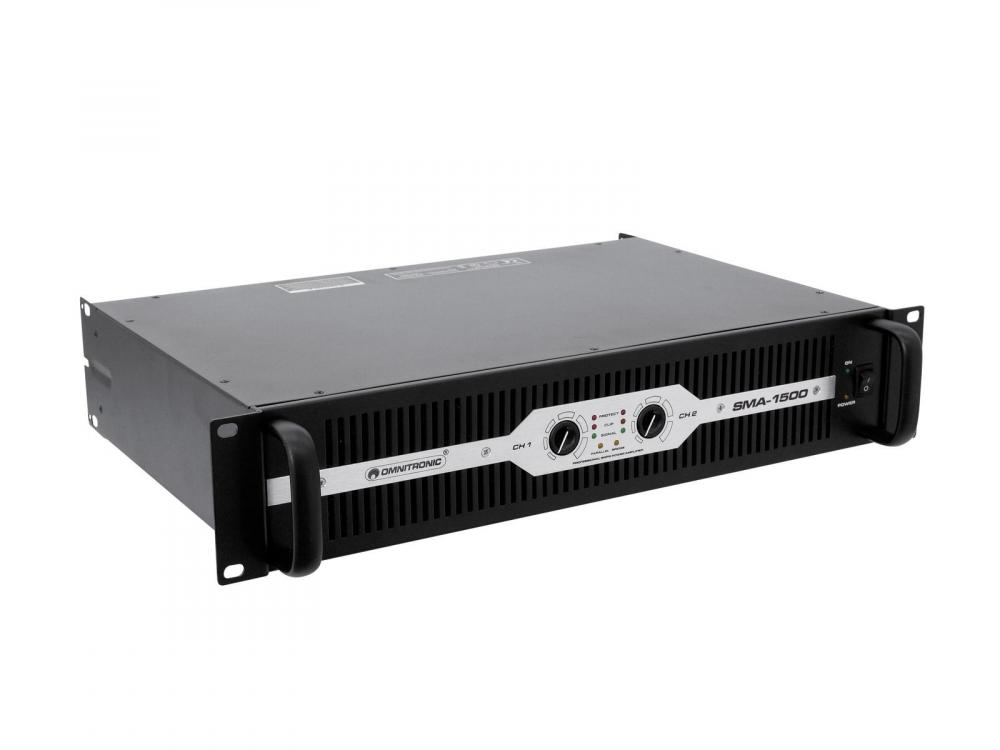

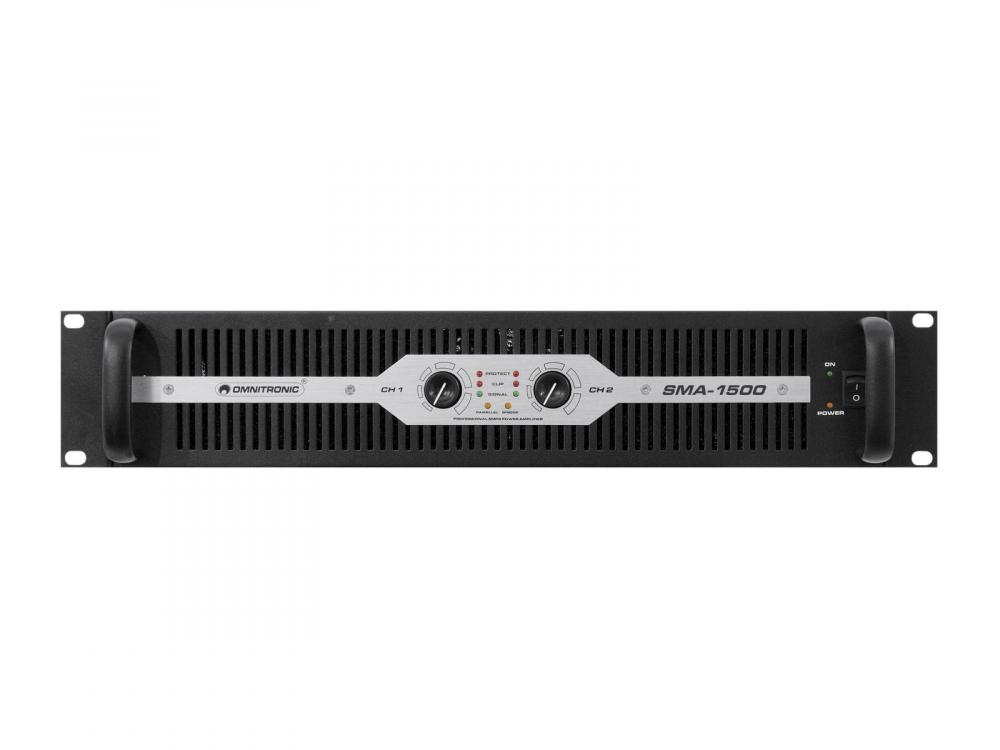

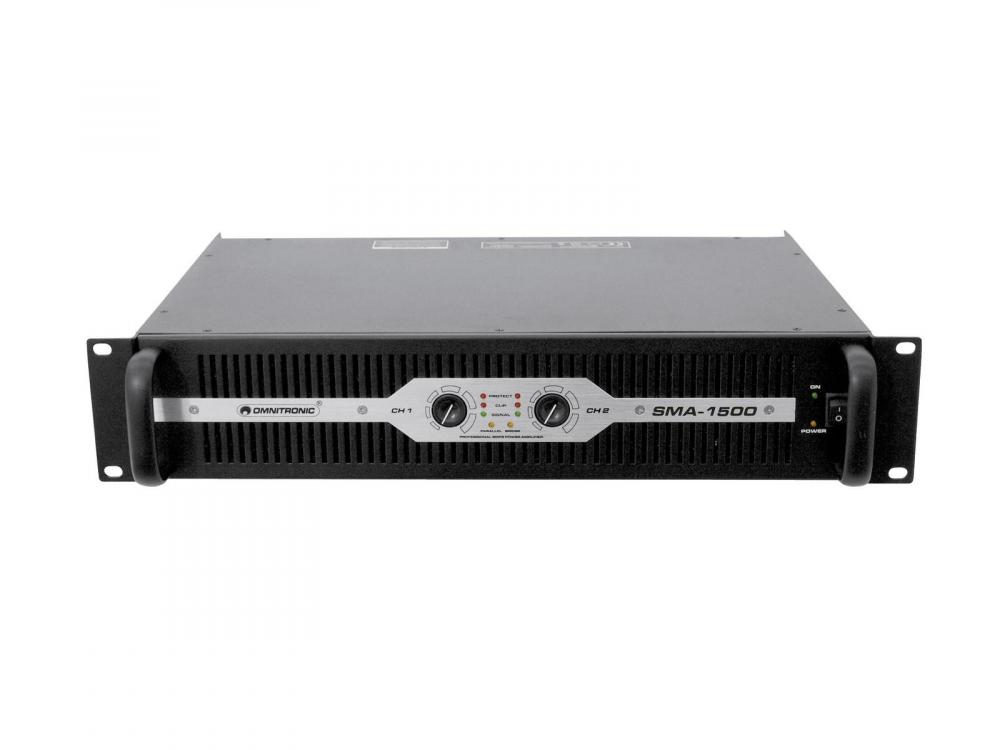

OMNITRONIC SMA-1500 Amplifier
|
technical overview |
Power supply: 230 V AC, 50 Hz Power output sine: stereo 4 ohms 2 x 743 W stereo 8 ohms 2 x 480 W 8 ohms bridged 1 x 1500 W Frequency range: 20-20000 Hz, ±0.5 dB Damping factor: >150 Distortion factor: 0.05 % Slew rate: >20 V/µsec S/N ratio: >90 dB Channel seperation: >70 dB/ 1 kHz Input sensitivity: 26 dB/32 dB (3.1 V/1.55 V), switchable Voltage gain: 26 dB/32 dB Input impedance: 20 kohms (balanced), 10 kohms (unbalanced) Input connectors: stereo XLR Output connectors: stereo Speaker, 2 pairs of screw terminals, feed-through output (stereo RCA, stereo 6.3 mm jack) Circuitry: class 2 H Control elements: power switch, level control per channel, mode switch (stereo/parallel/bridged), sensitivity selector, peak filter selector LED indicators: parallel, bridge (globally), protect, clip, signal (per channel) Protection circuits: short-circuit, overheat, DC voltage, VHF signals, softstart Construction: steel chassis Dimensions (DxWxH): 390 x 483 x 92 mm (19", 2 U) Weight: 9 kg Power consumption: 522,00 W Power/channel (4 Ohm): 743 W Height: 8,9 cm Depth: 39 cm Width: 48,3 cm Power/channel (8 Ohm): 480 W Power connection: Fix Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
main features |

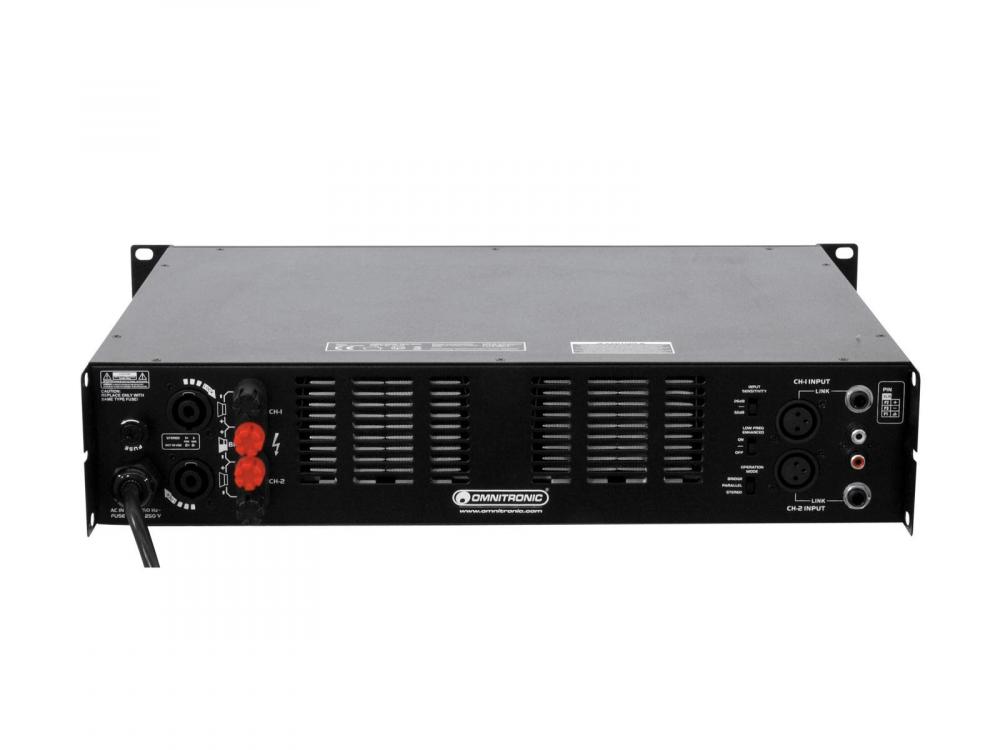

Stereo PA amplifier with integrated limiter and SMPS 2 x 750 W/4 ohms -Low weight and height due to integrated switch-mode power supply -Temperature-controlled fan, particularly quiet during operation -Limiter and speaker switch-on delay -Switchable bass-boost at 80 Hz with 6 dB level increase -3 operating modes can be selected (stereo, parallel or bridged) -Selectable input sensitivity -2 level controls -3 LEDs for each channel for activated protective circuit (protect) overload (clip) and signal -2 LEDs for parallel and bridge operation -Complete protection set against short-circuit, overheat, DC voltage and VHF signals -Electronically balanced inputs via XLR mounting jacks, with feed-through output (stereo RCA/6.3 mm jack) -Speaker outputs via lockable Speaker plugs -SMA-1500 and SMA-2000 with additional pairs of screw terminals for 8 ohms bridge operation -Class 2 H circuitry -Robust steel chassis -Rack installation with 2 units -Housing design: (19") 48,3 cm rack installation -Height unit: 2 U -Power connection: Fix Power supply cord with safety plug (M) |
Audio | |
No. of channels |
2 pcs
|
Voltage Gain, from |
32.00 dB
|
Voltage Gain, to |
26.00 dB
|
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
impedance |
20000 ohm
|
Signal to Noise Ratio |
90.00 dB
|
Electrical | |
power consumption watt, max |
522.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Power per channels at 4 Ω |
743 W
|
Power per channels at 8 Ω |
480 W
|
Power per channels at 8 Ω on bridge mode |
1500 W
|
power input connector |
fixed
|
Mechanical | |
weight |
9.00 kg
|
width |
483.00 mm
|
height |
89.00 mm
|
length |
390.00 mm
|
enclosure material |
steel chassis
|
