Info | |
---|---|
order code |
10451603
|
product link | |
EAN |
4026397641110
|
Product Name |

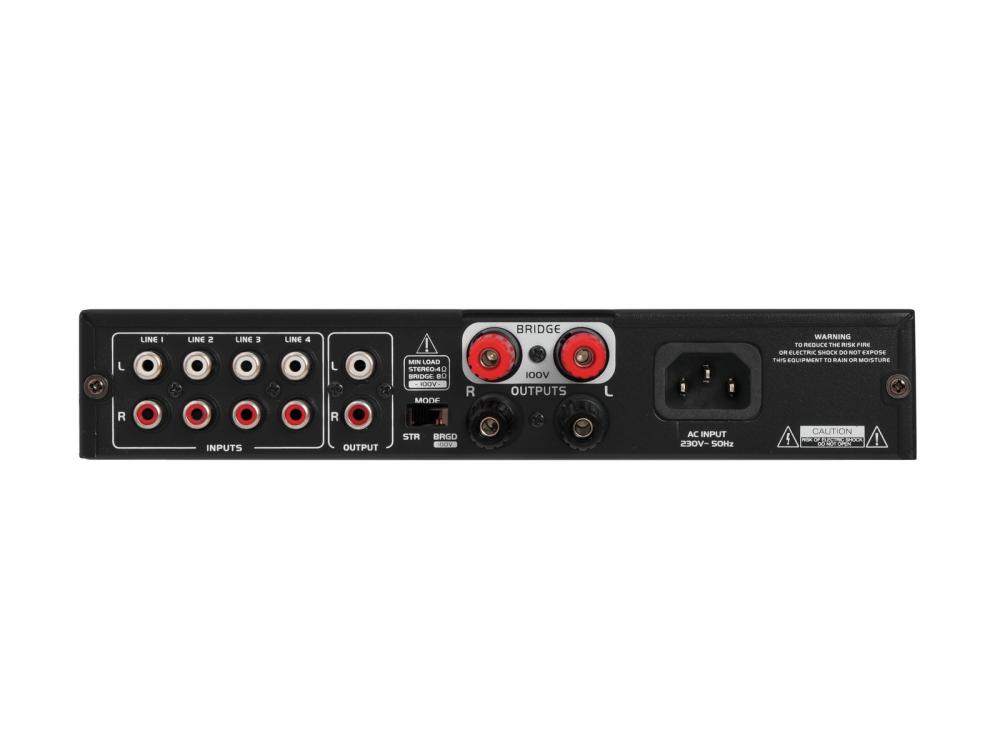

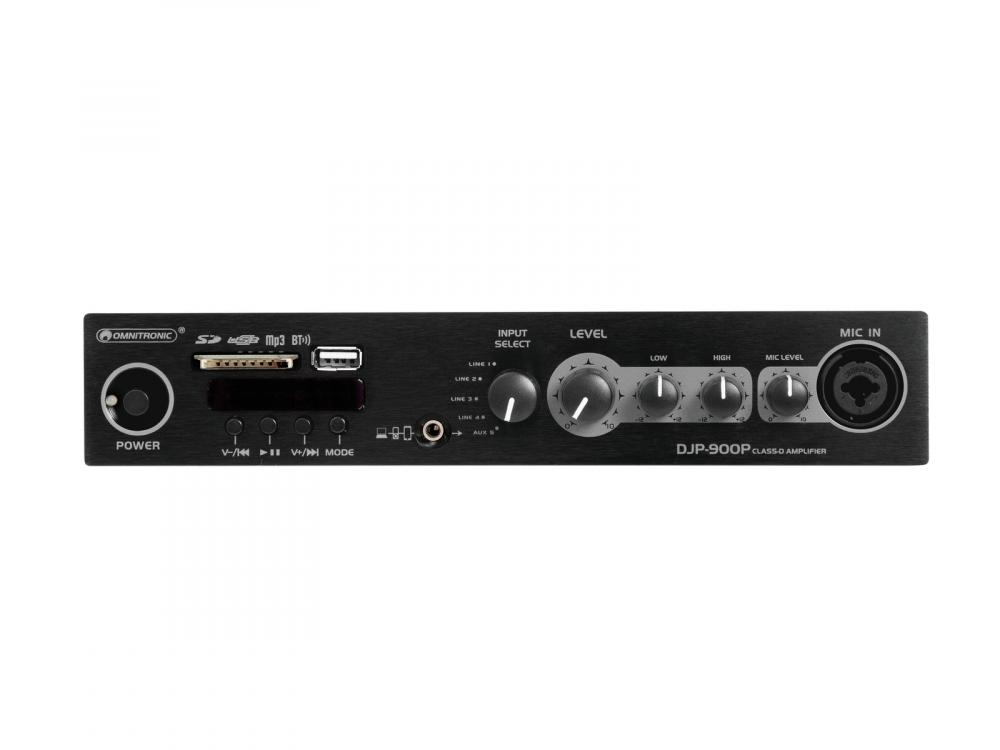

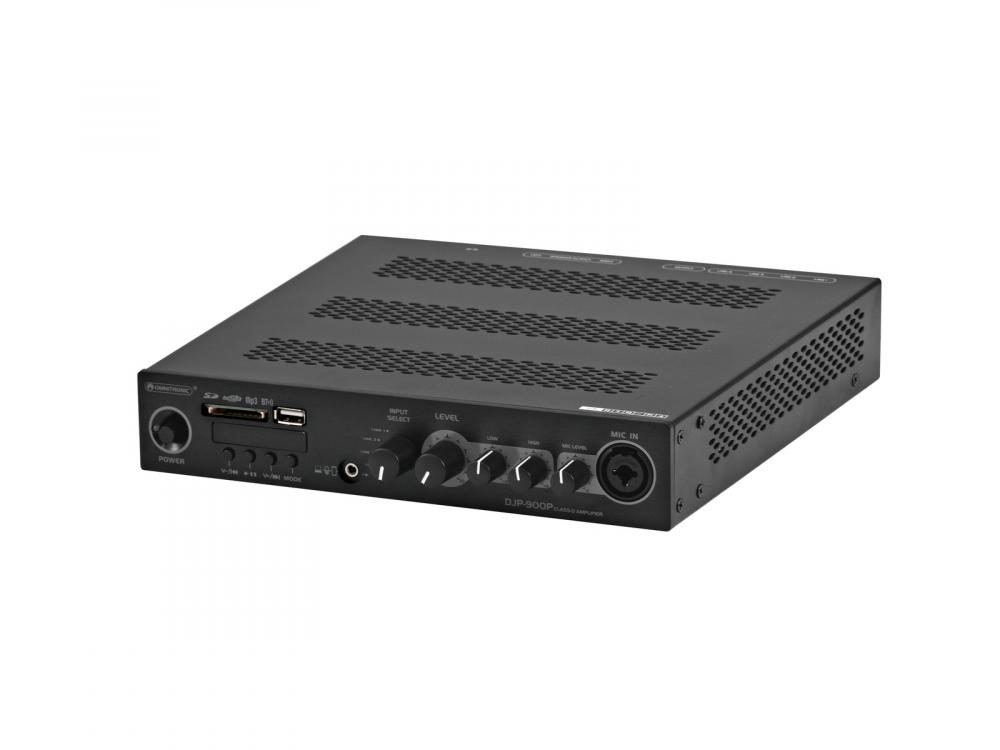

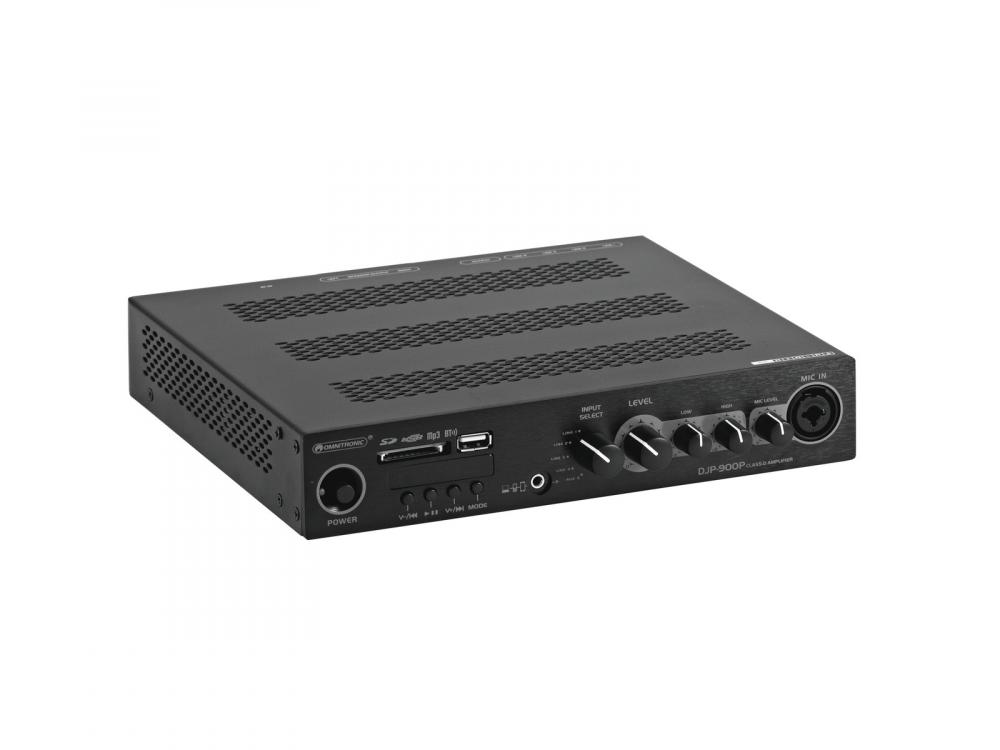

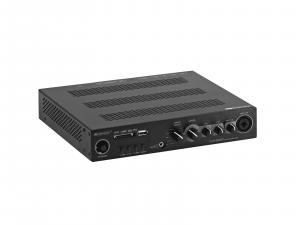

OMNITRONIC DJP-900P Class D Amplifier
|
technical overview |
Power supply: 230 V AC, 50 Hz Power consumption: 140 W (1/8 power) Power output sine: stereo 4 ohms 2 x 460 W stereo 8 ohms 2 x 240 W 8 ohms bridged 1 x 900 W 100 V bridged 1 x 260 W Frequency range: 20-20000 Hz, ±0.5 dB Damping factor: >300 Distortion factor: 0.05 % Slew rate: 14 V/µsec S/N ratio: 100 dB Input impedance: 20 kohms (balanced), 10 kohms (unbalanced) Input sensitivity: 1 V Input connectors: Line 1-4: RCA L/R Mic: combination XLR/6.3 mm jack, balanced Aux: 3.5 mm stereo jack Output connectors: Master: RCA L/R Speaker: screw terminals Circuitry: class D Control elements: power switch, source selector, level/EQ controls, mode switch (stereo - bridged/100V) LED indicators: power Protection circuits: softstart, short-circuit, overheat, clipping, overload, VHF signals, DC voltage Construction: steel chassis, aluminum front Dimensions (DxWxH): 256 x 241 x 44 mm Audio player: Playback format: MP3, WMA, WAV Available storage media: USB devices and SD(HC) cards up to 32 GB File system: FAT16/32 Bluetooth: Carrier frequency: 2.4 GHz Range: approx. 10 m Weight: 2,18 kg Audio player: USB + SD + Bluetooth Impedance: 4 Ohm 8 Ohm 16 Ohm 100 V ELA Cooling fan: No, cooling by convection Power/channel (8 Ohm): 240 W Power/channel (4 Ohm): 460 W Width: 24,1 cm Depth: 25,6 cm Height: 4,45 cm Frequency range: 20 - 20,000 Hz Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
main features |
Compact stereo mixing amplifier with player + Bluetooth, 2 x 460 W / 4 ohms -Compact stereo mixing amplifier 2 x 460 watts -For quick-access music playback control in restaurants, fitness studios and retail locations -Built-in audio player with Bluetooth receiver -Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth -USB 2.0 input and SD card slot -Efficient class D circuitry -Silent operation due to fanless cooling concept -Extremely low weight and height due to integrated switch mode power supply -2 operating modes can be selected (stereo or bridge/100V) -Speaker switch-on delay and auto limiters -5 stereo line inputs -4 RCA L/R connectors on the back panel and 3.5 mm connector on the front panel -1 mono microphone input with volume control on the front panel -Audio source selector -Controls for volume, bass and treble -Stereo record output RCA L/R -PA outputs for low-impedance speakers (4-16 ohms) and 100 V PA speakers -Extensive protective circuits -Robust steel chassis with aluminum front panel -Master equalizer: 1 x 2 band tone control Stereo -Control: Bluetooth -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
No. of channels |
2 pcs
|
impedance |
4 ohm
|
Signal to Noise Ratio |
100.00 dB
|
Connectors | |
Audio output > RCA / Cinch Stereo-Set (L/R) |
yes
|
Electrical | |
power consumption watt, max |
140.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Power per channels at 4 Ω |
460 W
|
Power per channels at 8 Ω |
240 W
|
Power per channels at 8 Ω on bridge mode |
900 W
|
power input connector |
IEC-60320 C13/C14
|
cooling |
passive
|
Mechanical | |
weight |
2.18 kg
|
width |
241.00 mm
|
height |
44.50 mm
|
length |
256.00 mm
|
enclosure material |
steel chassis, aluminum front
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
