Info | |
---|---|
order code |
10452370
|
product link | |
EAN |
4026397629811
|
Product Name |

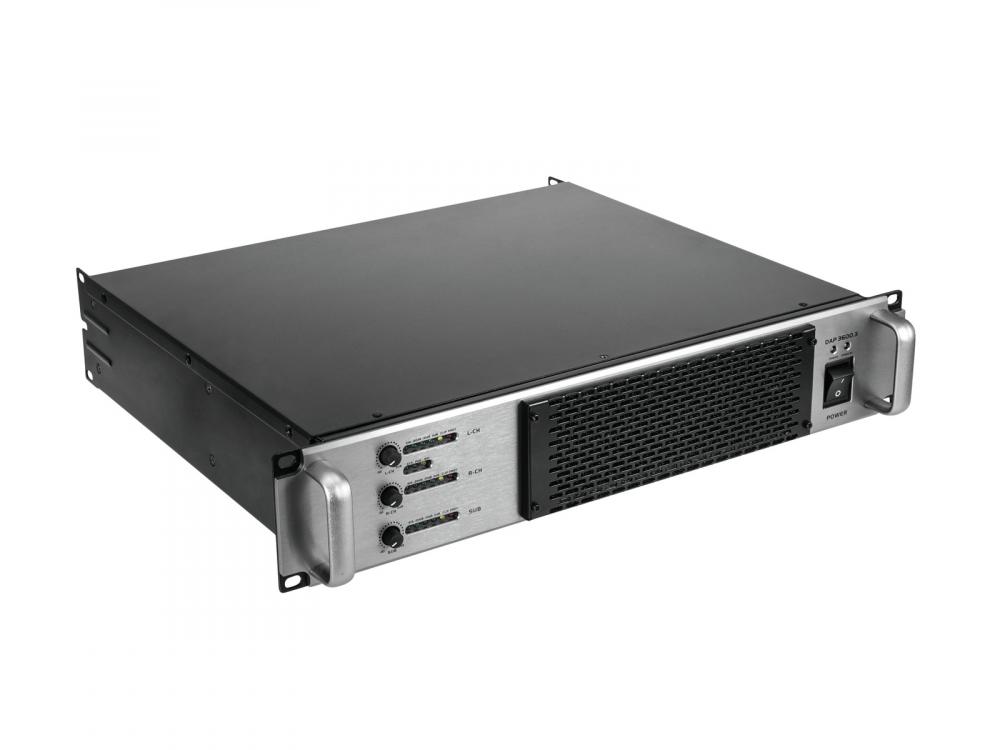

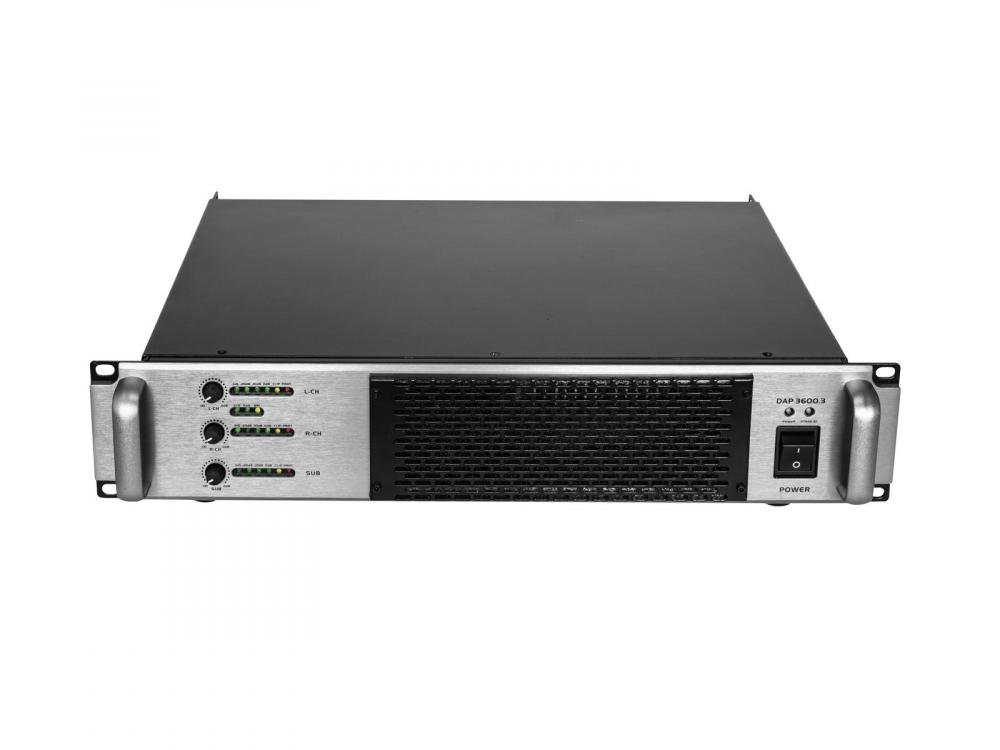

OMNITRONIC A-3603 Class-D 2.1 Amplifier
|
technical overview |
Power supply: 230 V AC, 50 Hz Power output (RMS): 4 ohms: 1 x 2000 W, 2 x 800 W 8 ohms: 1 x 1000 W, 2 x 400 W Signal-to-Noise ratio: >100 dB Total harmonic distortion: Damping factor: >500 Voltage gain: 41.2 dB Slew rate: >10 V/µsec Input impedance: 20 kohms (balanced), 10 kohms (unbalanced) Input connectors: 3 x XLR Output connectors: 3 x Speaker, 3 x XLR feed-through output Circuitry: Class D Controls: Power switch, input attenuators, mode switch 2/3 channels, X-over frequency LED indicators: protect, clip, 0 dB, - 10 dB, - 20 dB (per channel) Construction: steel chassis, aluminum front Dimensions: 483 x 410 x 100 mm Rack installation with 2 U Weight: 9,10 kg Power consumption: 685 W 1/8 power Frequency range: 20 - 20000 Hz Height: 8,9 cm Depth: 41 cm Width: 48,3 cm Power/channel (8 Ohm): 800 W Power/channel (4 Ohm): 2000 W Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |

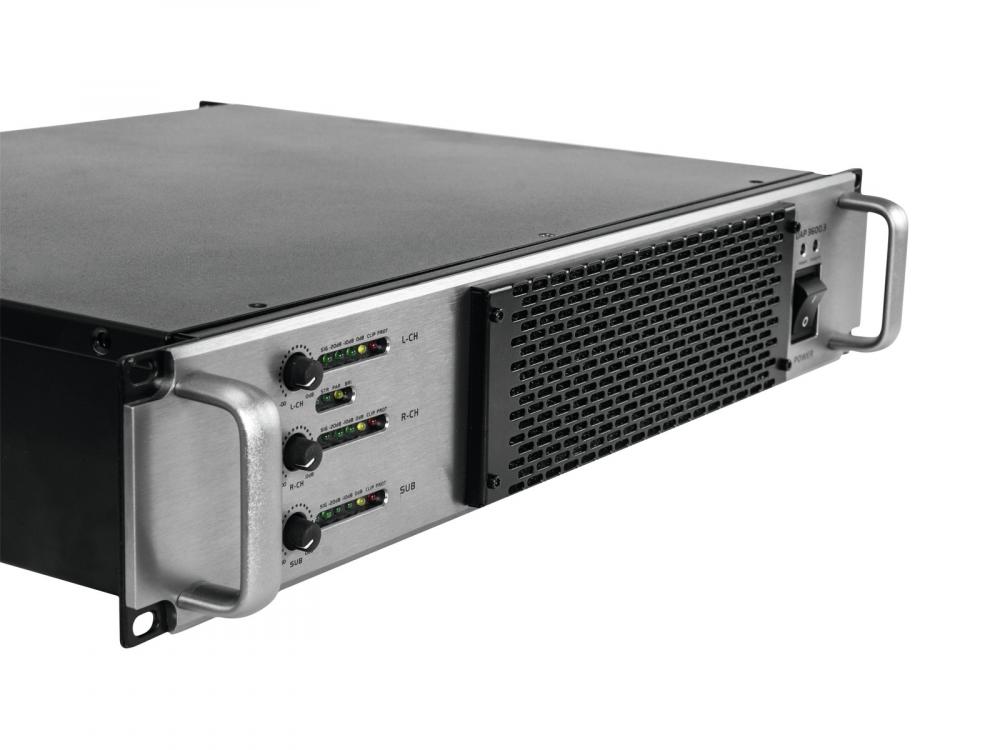

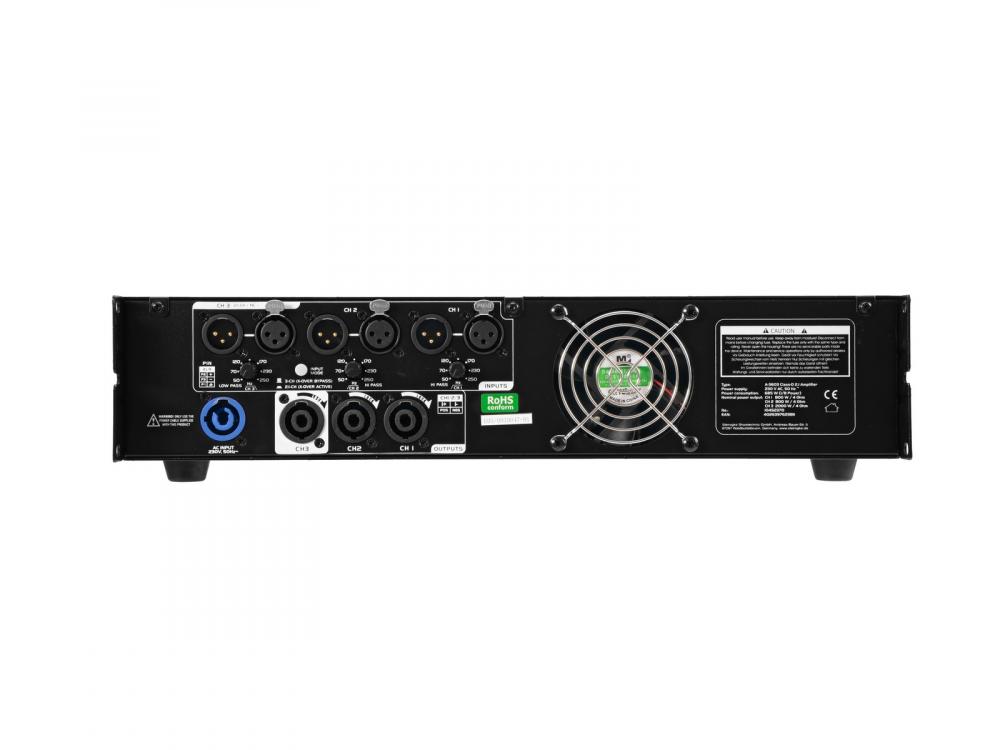

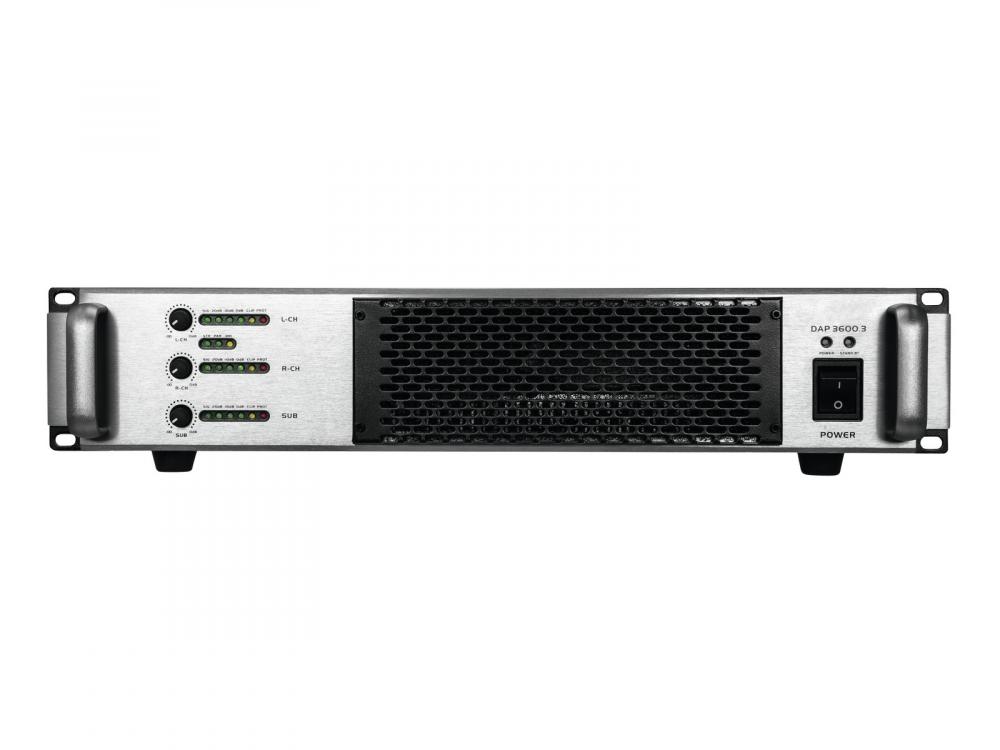

3-channel PA amplifier with crossover network - 4 ohms: 1 x 2000 W, 2 x 800 W -3-channel PA amplifier with class D circuitry and switch mode power supply -Adjustable crossover frequency for satellites and subwoofer -2.1 operation or 3-channel operation selectable -3 level controls -LED VU meter and LEDs for activated protective circuit (protect) and overload (clip) per channel -Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs -Speaker outputs via lockable Speaker plugs -Rugged steel chassis with aluminum front panel -Rack installation with 2 units -Housing design: (19") 48,3 cm rack installation -Height unit: 2 U -Power connection: Mains Input Socket (M) P-Con (Power-In) Power supply cord with safety plug (M) (provided) |
Audio | |
No. of channels |
1 pcs
|
Voltage Gain, to |
41.20 dB
|
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
impedance |
20000 ohm
|
Signal to Noise Ratio |
100.00 dB
|
THD (Total Harmonic Distortion) |
0.00 %
|
Connectors | |
Input XLR |
3 pcs
|
Electrical | |
power consumption watt, max |
685.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
Power per channels at 4 Ω |
2000 W
|
Power per channels at 8 Ω |
1000 W
|
power input connector |
Powercon
|
Mechanical | |
weight |
9.10 kg
|
width |
483.00 mm
|
height |
89.00 mm
|
length |
410.00 mm
|
height in rack-units |
2 U
|
enclosure material |
steel chassis, aluminum front
|
