Info | |
---|---|
order code |
10602409
|
Product Name |

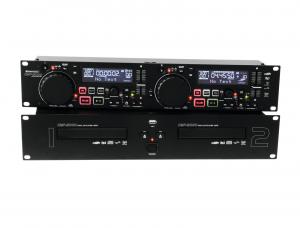

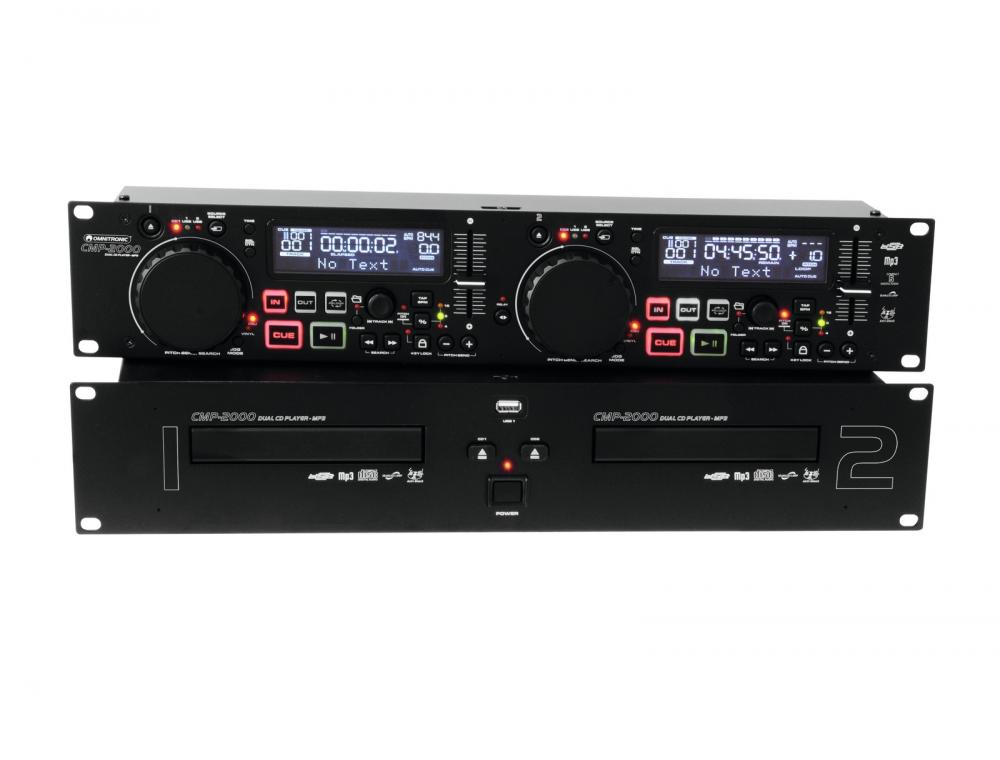

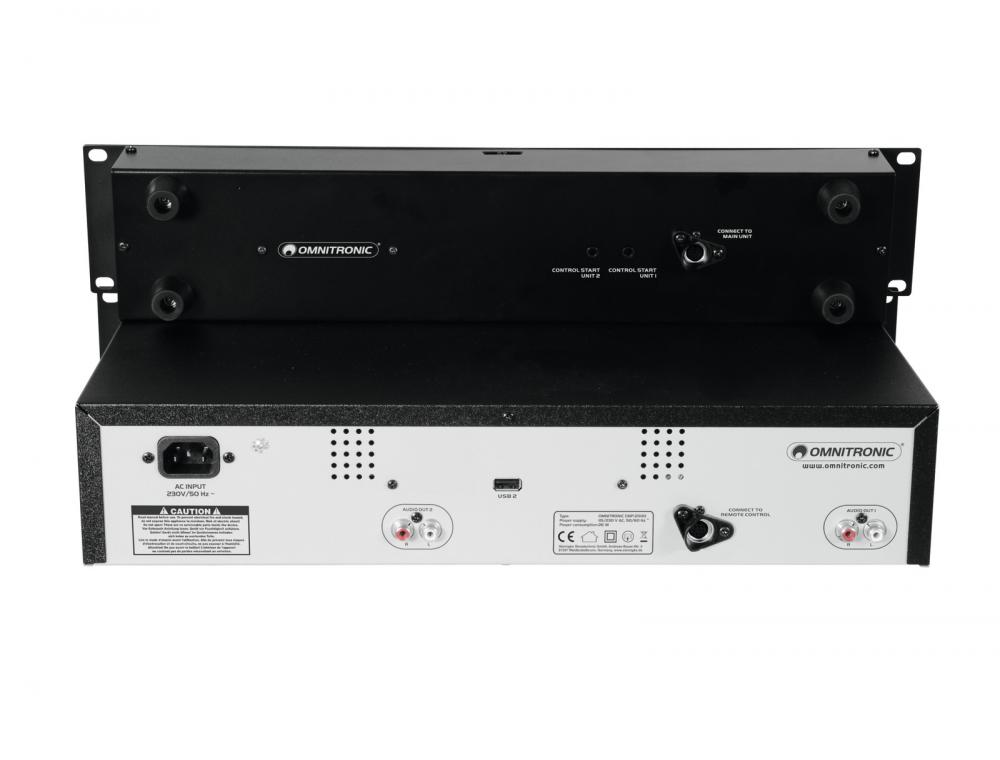

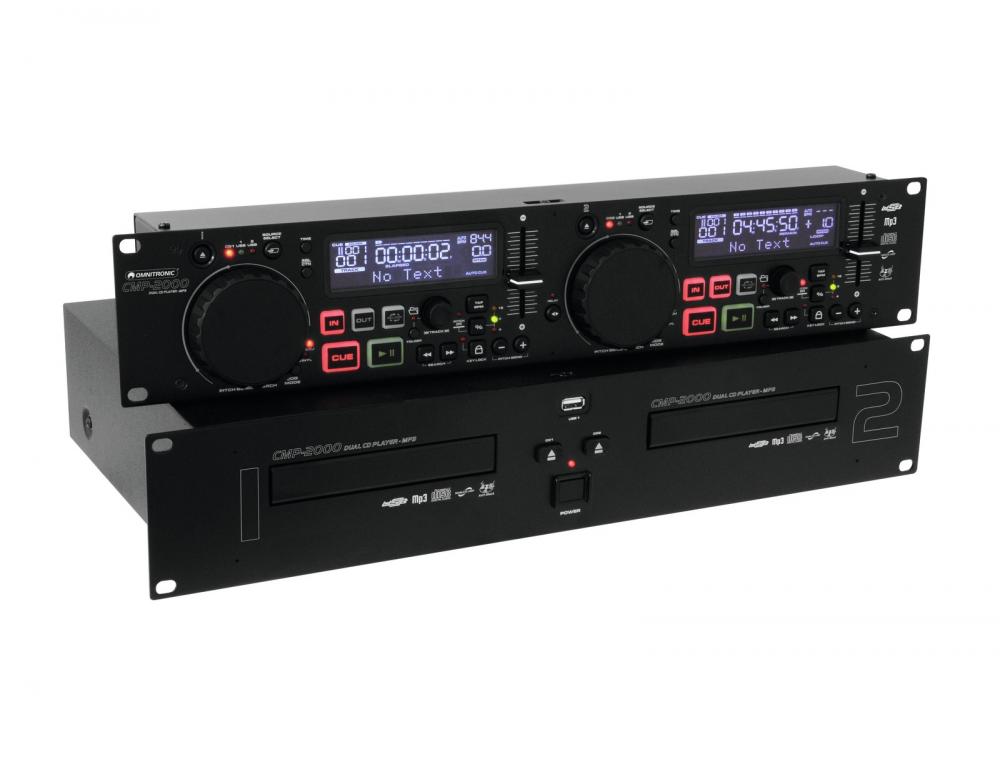

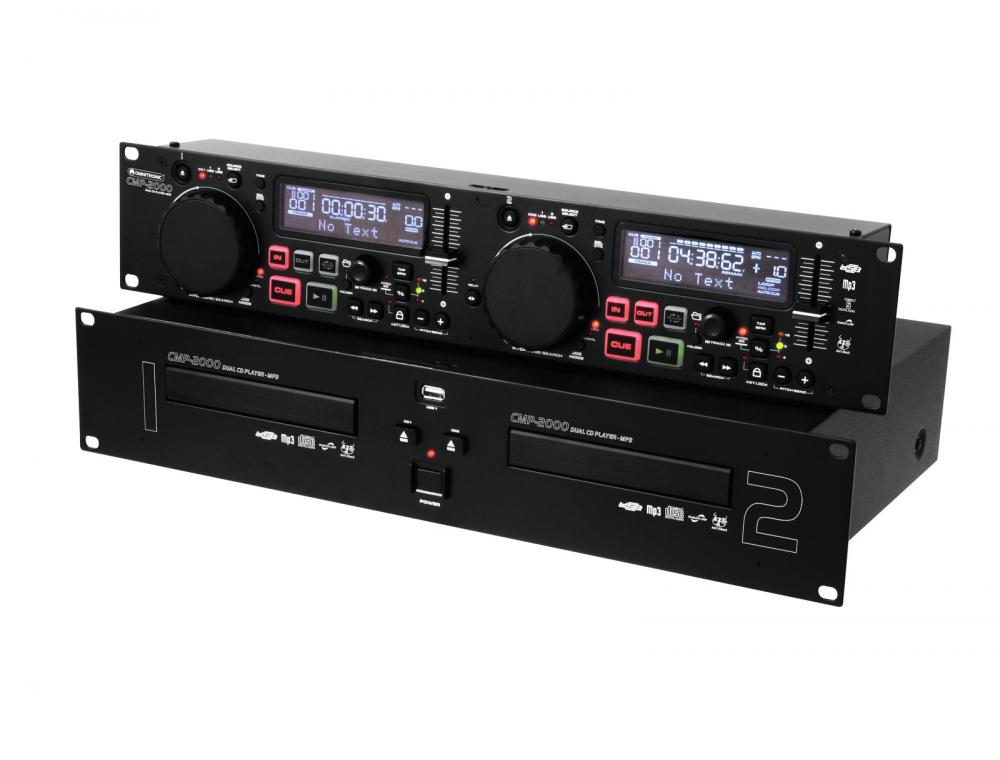

OMNITRONIC CMP-2000 Dual CD/MP3 Player
|
product link | |
EAN |
4026397478457
|
technical overview |
Power supply: 100-240 V AC, 50/60 Hz Type: dual CD/MP3 player Available disc: CD/-R/-RW in CD-DA and MP3 format (8 and 12 cm) Available storage media: USB devices up to 32 GB (FAT32) D/A converter: 8-fold/ 1 bit Sampler frequency: 44.1 kHz Frame accuracy: 1/75 sec Pitch adjustment: ±4 %, ±8 %, ±16 % (MP3 CD), ±100 % (audio CD) Display: ID3 tags, elapsed time, remain time, total remain time Distortion: 0.008 % S/N ratio: 126 dB Audio output: 2 x stereo RCA/ 2 V Dimensions (L x W x H): 482 x 265 x 89 mm (player units), 482 x 91 x 94 mm (control unit), Rack installation with 2 U each Power consumption: 16,00 W Weight: 6,4 kg Audio player: USB + CD player (ID3 tag) Anti-shock Seamless loop Frequency range: 17 - 20000 Hz Height: 8,9 cm Depth: 26,5 cm Width: 48,3 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |

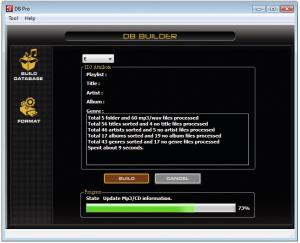

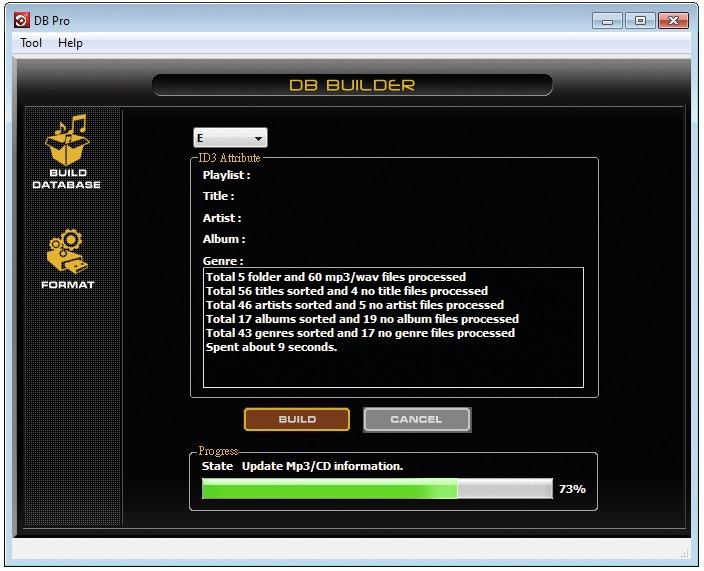

Dual CD/MP3 player for DJs -Audio CD/CD-R/CD-RW/MP3 CD -2 USB ports for storage media and portable players (FAT 32) -Easy Source Select: route USB sources to both drives as desired -Combined Device Access: both drives can access the same USB medium simultaneously -Access music files more easily and quickly via smart music database management with free PC software Database Builder -Sort USB devices lightning-fast by title, artist, album and genre -System menu for user-defined settings -2 x 20 seconds anti-shock protection -Outstanding reading time of the files (instant start within 10 ms) -Automatic beat counter (switchable to manual operation) -Master tempo (tonal pitch remains constant when speed is changed) -2 alphanumeric LCDs with ID3 tag indication -Touch-sensitive jog dials with adjustable sensitivity and mode selector: scratch or pitch bend -Pitch adjustment ±4 %, ±8 %, ±16 %, ±100 % (MP3 CD ±16 %) -Fader start -Relay function -Folder navigation -Pitch bend buttons -Cue/auto cue function -Seamless loop/reloop -Single or continuous play -Indication of elapsed time, remain time (MP3 files) or total remain time (audio CD) -Bargraph display -Pitch adjustment is displayed in % -Extra large play/pause and cue buttons with color illumination -Drives are locked in play mode -Rack installation -The Database Builder software is available in the manufacturer's download section -DSP: Digital signal processor Master tempo -Housing design: (19") 48,3 cm rack installation -Height unit: 2 U -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
Frequency response, from |
17 Hz
|
Frequency response, to |
20000 Hz
|
Signal to Noise Ratio |
126.00 dB
|
Electrical | |
power consumption watt, max |
16.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
Mechanical | |
weight |
6.40 kg
|
width |
265.00 mm
|
height |
89.00 mm
|
length |
482.00 mm
|
height in rack-units |
2 U
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
