Info | |
---|---|
order code |
10603041
|
product link | |
EAN |
4026397356083
|
Product Name |

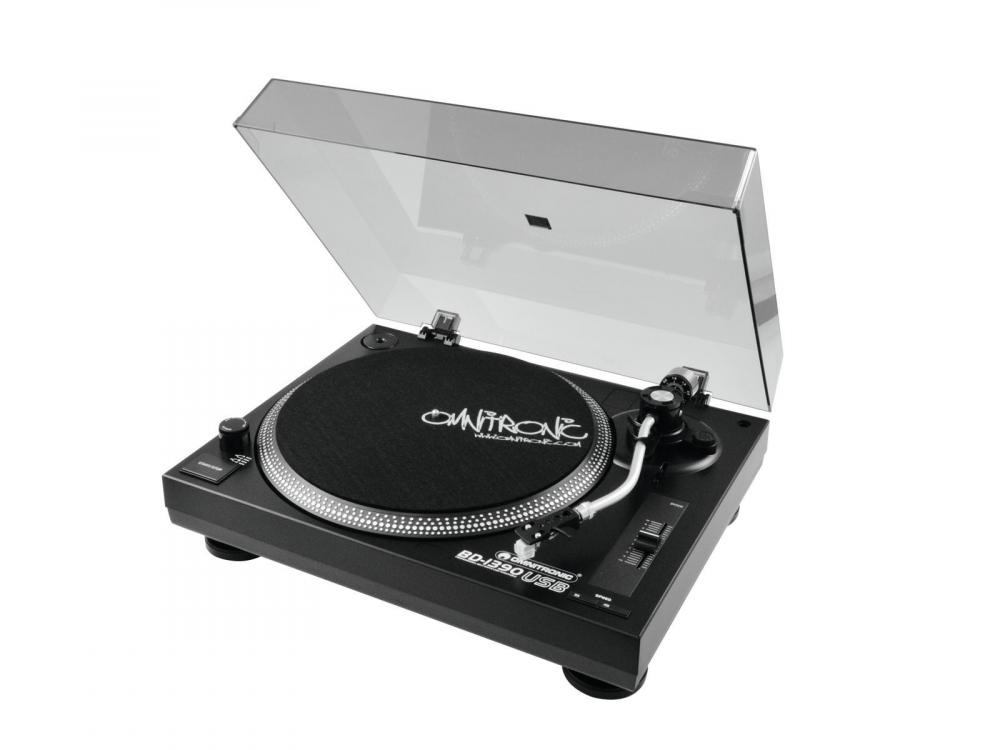

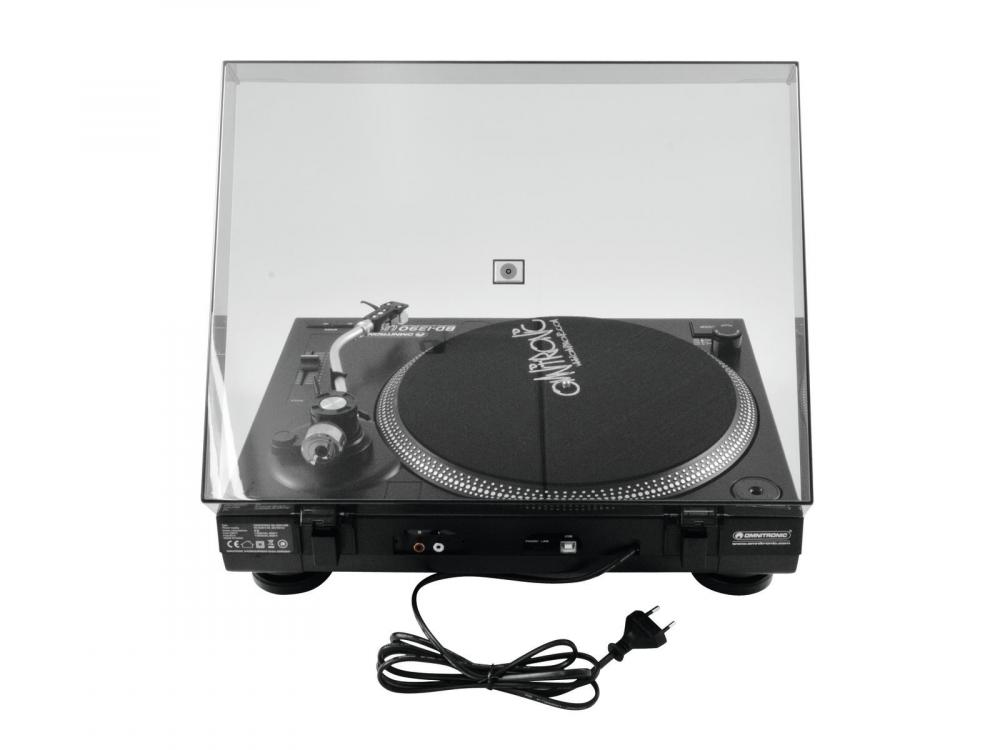

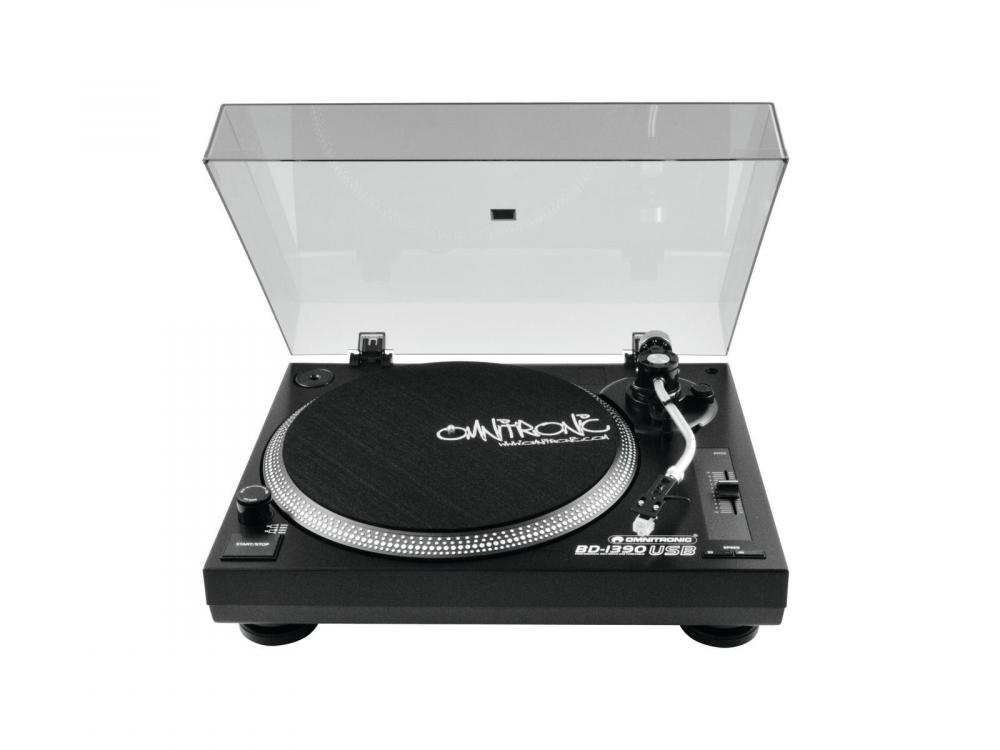

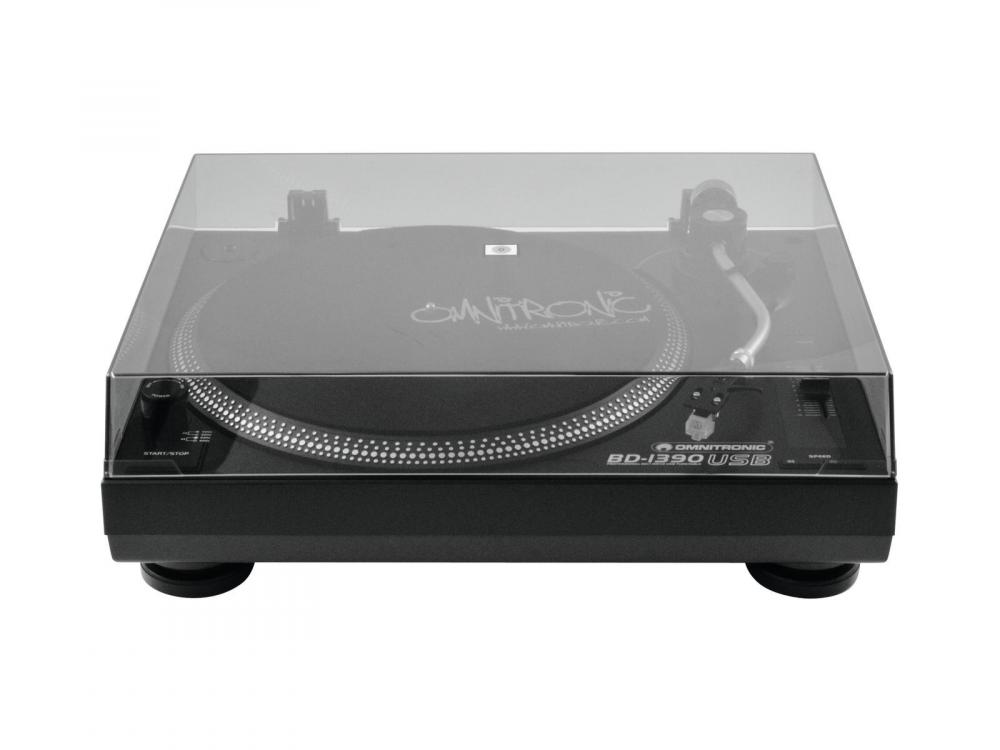

OMNITRONIC BD-1390 USB Turntable bk
|
technical overview |
Power supply: 115/230 V AC, 50/60 Hz Type: manual turntable Drive method: belt drive Motor: DC motor Platter: plastic, d=330 mm Speed: 33 1/3 RPM and 45 RPM Change time between speeds: Start time: Stop time: Pitch adjustment: ±10 % Wow and flutter: Rumble: >50 dB DIN B Tone arm: S-shape with Cardan's suspension Tone arm length: 220 mm Overhang: 10 mm Anti-skating range: 0-4 g Stylus pressure range: 3-4 g Applicable cartridge weight: 6-10 g Phono output level: 1.5-3.6 mV/ 1 kHz 5 cm/sec Line output level: 90-216 mV/ 1 kHz 5 cm/sec Channel separation: >15 dB Output connectors: RCA, USB type B Dimensions: 450 x 360 x 145 mm Weight: 4 kg Power consumption: 8,00 W Drive type: Belt Drive Frequency range: 20 - 20000 Hz Height: 14,5 cm Depth: 36 cm Width: 45 cm Power connection: Fix Power supply cord with Euro plug (M) Power supply: 110-240 V AC, 50/60 Hz |
main features |
Belt drive DJ turntable with USB interface and recording software, black -Built-in USB port and phono preamplifier, for a high-quality and convenient digitization of analog vinyl records -Plug & play: no driver installation required, unit is identified automatically -Sampling rates of 44.1 kHz and 48 kHz in stereo, resolution: 16 bits -Incl. software for recording and editing -2 speeds, pitch control ±10 % -Large start/stop button -Strobe lamp for exact speed adjustment -Adjustable anti-skating -Shock-absorbing feet -Switchable phono/line output -Delivery includes removable acryl dust cover, pick-up system, RCA and USB cable -USB 1.1 support -Suitable for Windows XP, Vista,7, 8, 10 and Mac OS X -Power connection: Fix Power supply cord with Euro plug (M) |
Audio | |
Frequency response, from |
20 Hz
|
Frequency response, to |
20000 Hz
|
Electrical | |
power consumption watt, max |
8.00 W
|
AC Volts, min |
110 V
|
AC Volts, max |
240 V
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
60 Hz
|
power input connector |
Europlug
|
Mechanical | |
weight |
4.00 kg
|
width |
450.00 mm
|
height |
145.00 mm
|
length |
450.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00042079.pdf |
