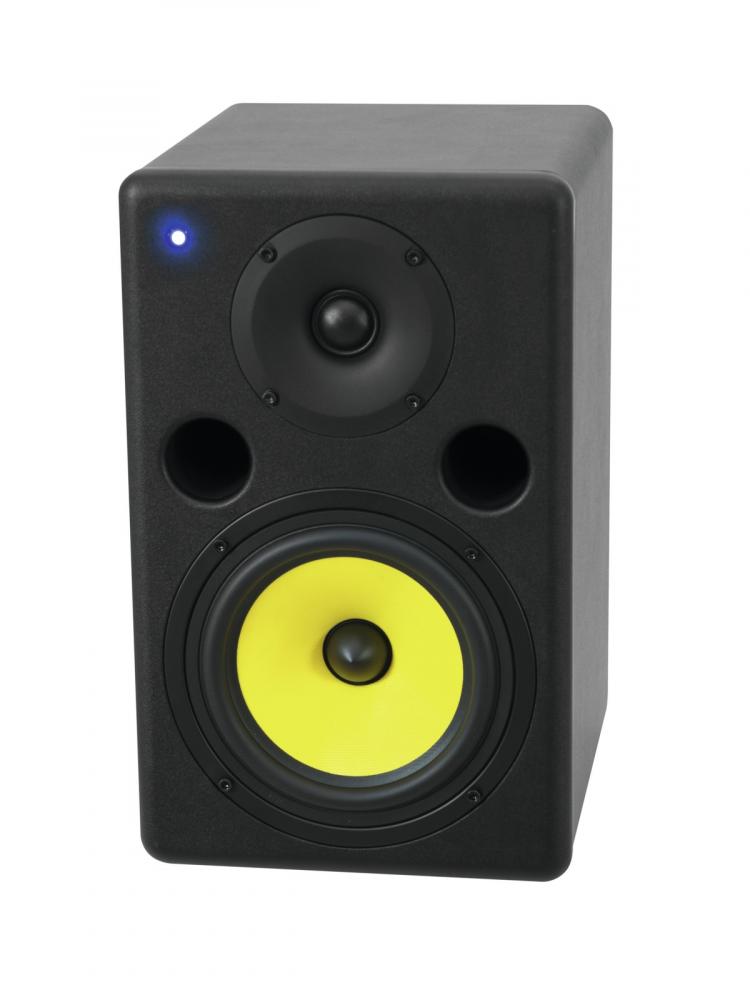

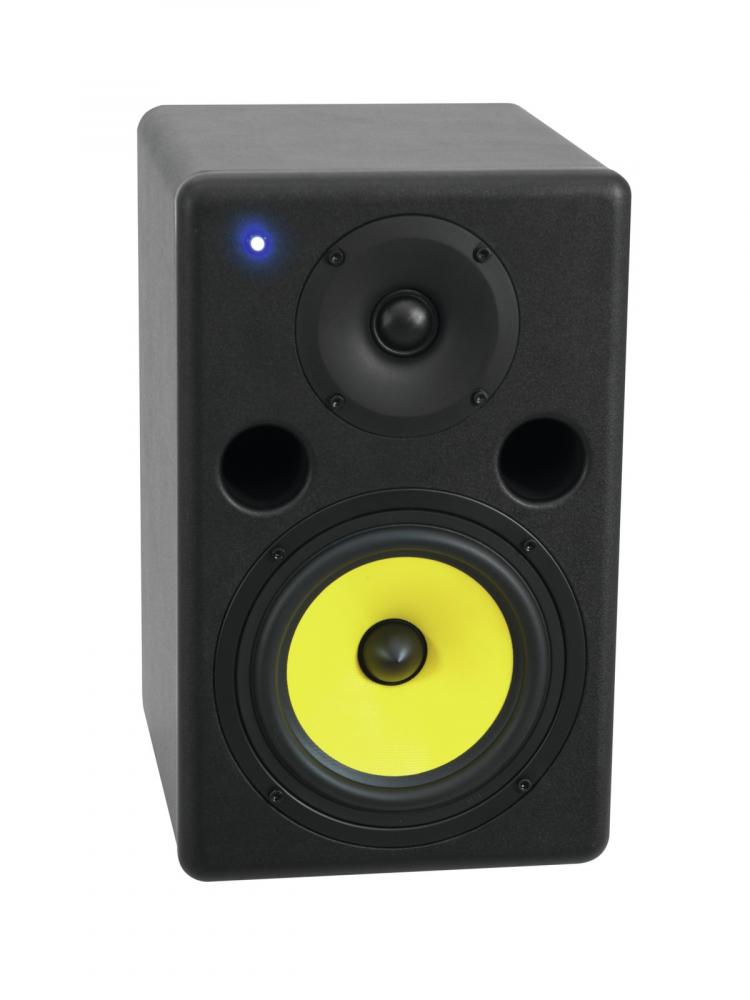

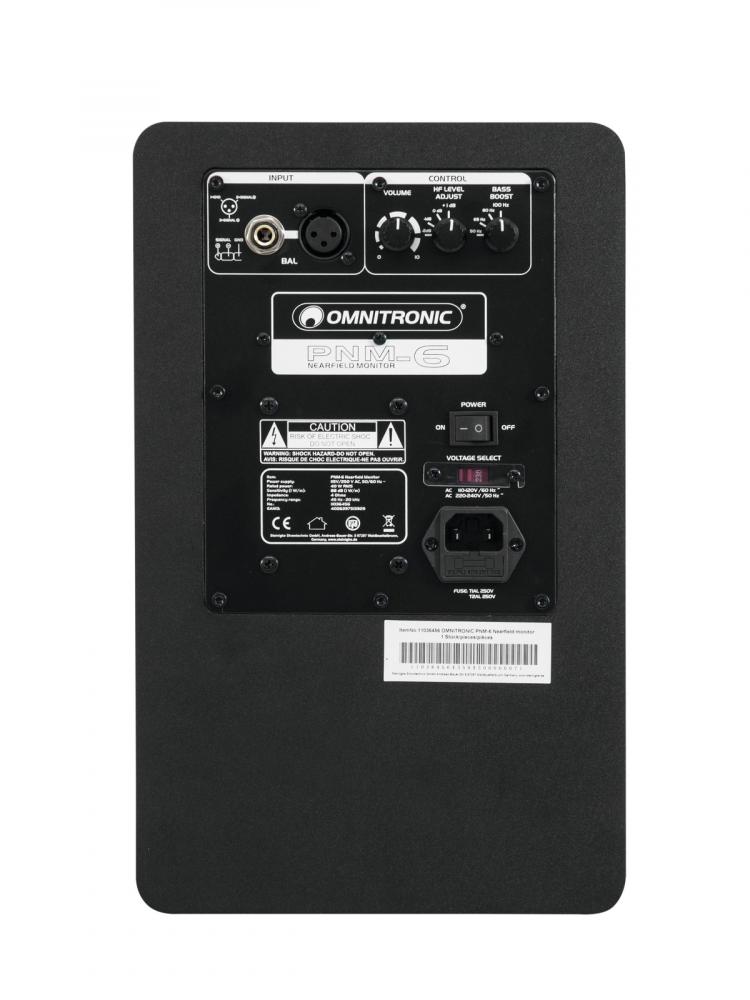

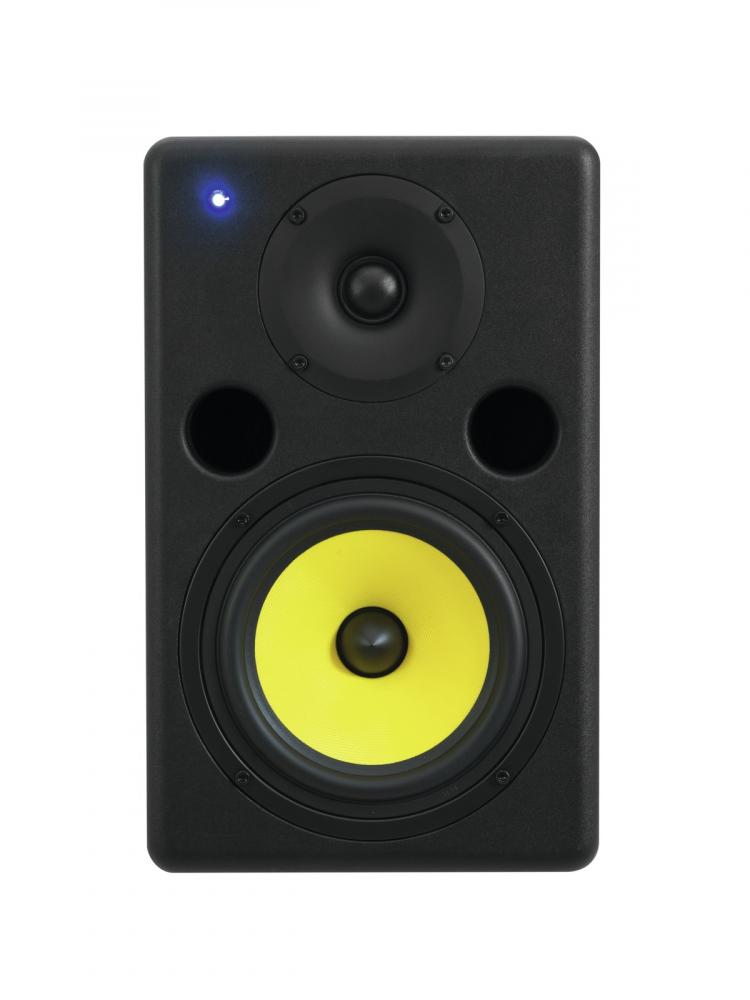

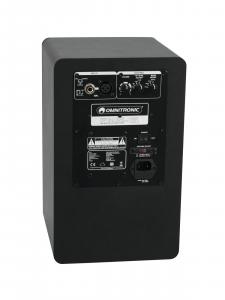

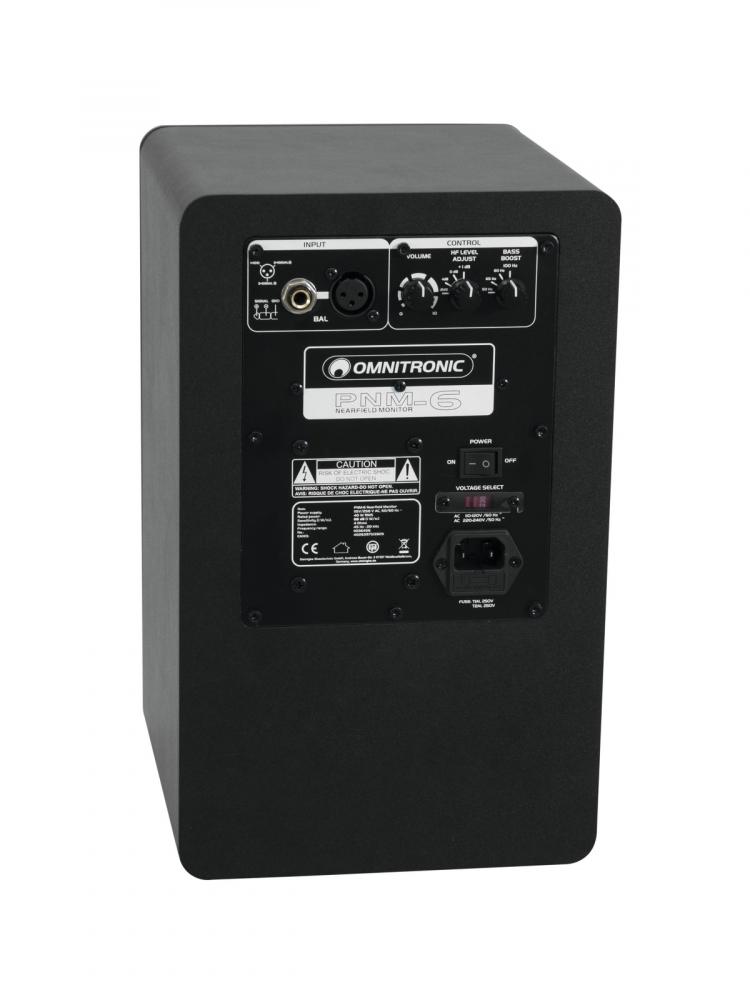

OMNITRONIC PNM-6 Nearfield Monitor

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC PNM-6 Nearfield Monitor

Info
order code
11036456
product link
EAN
4026397513929
Product Name
OMNITRONIC PNM-6 Nearfield Monitor
technical overview
Power supply: 115/250 V AC, 50/60 Hz
Components: 15 cm woofer, 2.5 cm tweeter with wave guide
Connection: 6.3 mm jack, 3-pin XLR, bal.
Sensitivity: 88 dB
Dimensions (L x W x H): 230 x 210 x 340 mm
Power consumption: 100,00 W
Weight: 7 kg
Size of woofer: (6,5") ca. 17 cm
Rated power: 40 W RMS
Program power: 80 W
Frequency range: 45 - 20000 Hz
Height: 34 cm
Depth: 21 cm
Width: 23 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with Euro plug (M)
Power supply: 115/230 V AC, 50/60 Hz
main features
Active 2-way speaker with 6" woofer and 80 watts power
-Active nearfield monitor for DJs and producers
-2-way bass-reflex system with biamp amplifier
-Separate controls for volume, high and low frequencies
-For home studio and multimedia use
-6.3 mm jack and 3-pin XLR input for connection the audio source
-17 cm bass-midrange speaker and 2.5 cm dome tweeter with wave guide
-Rugged black MDF cabinet
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with Euro plug (M) (provided)
Audio
Frequency response, from
45 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
40.00 W
power input connector
IEC-60320 C13/C14
AC Frequency, min
50 Hz
AC Frequency, max
60 Hz
Mechanical
weight
7.00 kg
width
230.00 mm
height
340.00 mm
length
230.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00082503.pdf
