OMNITRONIC M-1220 Monitor 600W

OMNITRONIC

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC M-1220 Monitor 600W

Info
order code
11038011
product link
EAN
4026397101188
Product Name
OMNITRONIC M-1220 Monitor 600W
technical overview
Components: 30 cm woofer (12"), horn

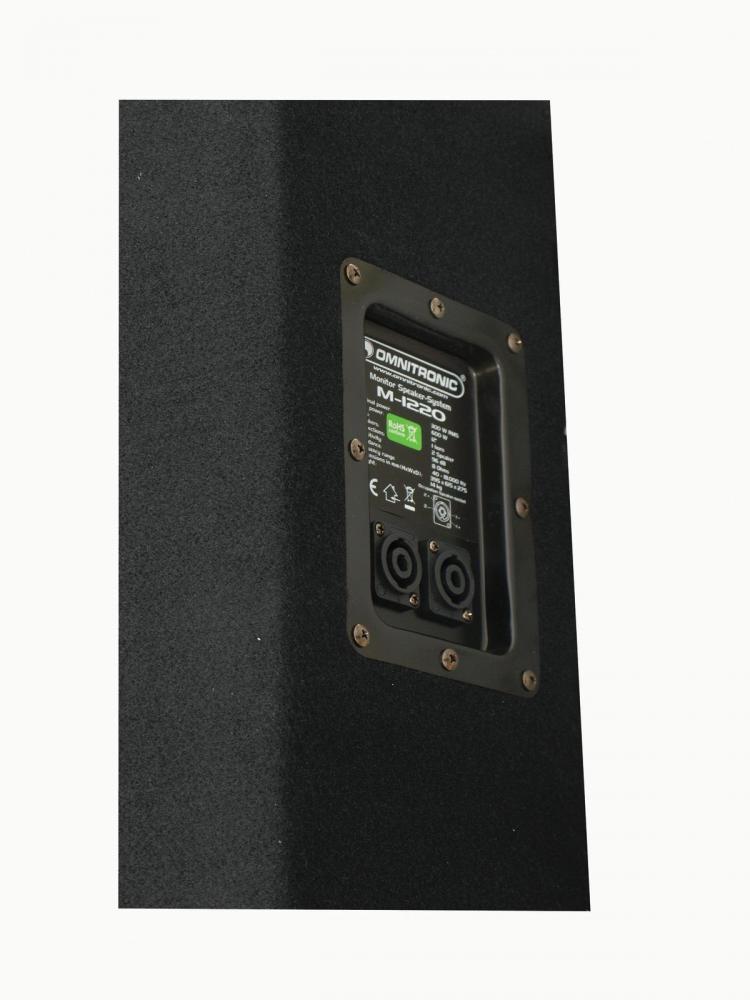

Connection: 2 Speaker sockets
Sensitivity: 96 dB
Impedance: 8 ohms
Dimensions (H x W x D): 395 x 615 x 275 mm
Weight: 11,65 kg
Size of woofer: (12") ca. 30 cm
Rated power: 300 W RMS
Program power: 600 W
Frequency range: 40 - 18000 Hz
Height: 39,5 cm
Depth: 27,5 cm
Width: 61,5 cm
Impedance: 8 Ohm
main features
2-way stage monitor with 12" woofers and 600 watts power
-Rugged 2-way speaker-system in a stable wooden housing
-Large mid-range horn with coil-driver for balanced mids
-With passive 2-way crossover
-Powerful, dry bass via voluminous housing and bass-reflex tubes
-Horizontal loudspeaker alignment
-Very high durability
-Scratch-resistant, black felt-covering
-Strong protective grille for perfect protection
-With stable protective steel corners
Audio
Frequency response, from
40 Hz
Frequency response, to
18000 Hz
impedance
8 ohm
Electrical
power consumption watt, max
300.00 W
Mechanical
weight
11.65 kg
width
615.00 mm
height
395.00 mm
length
275.00 mm
