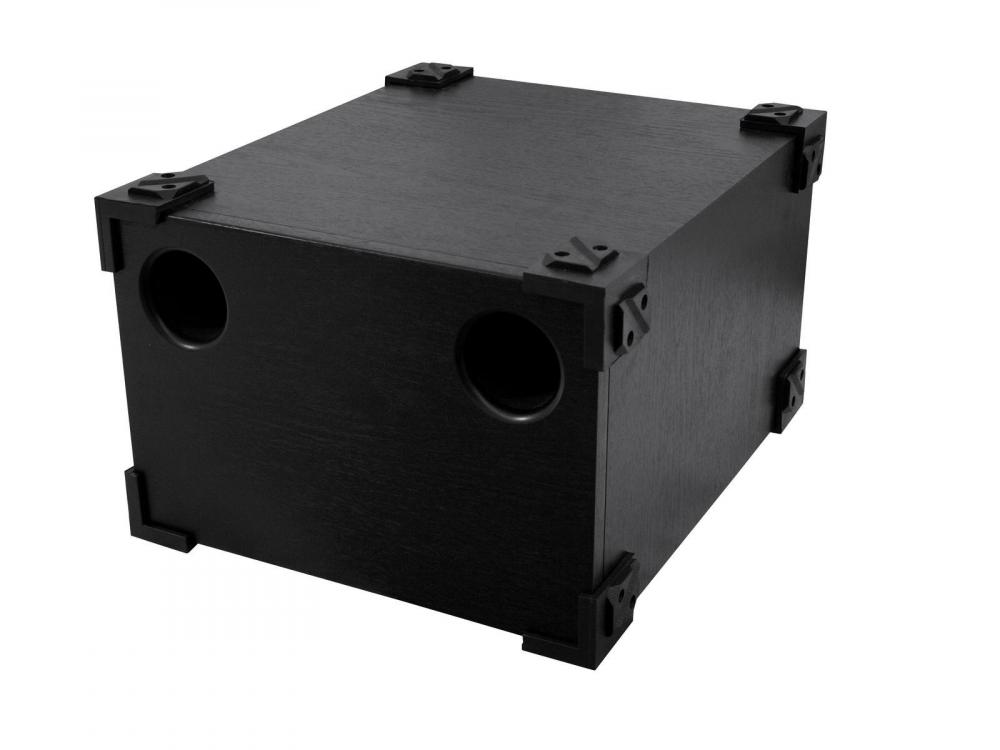

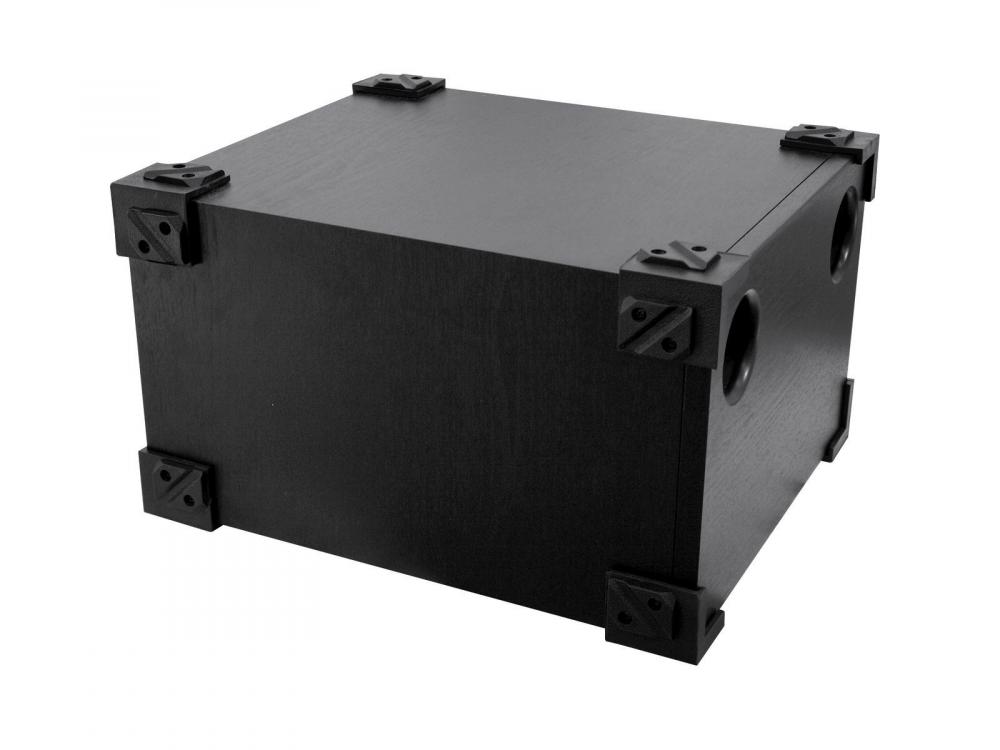

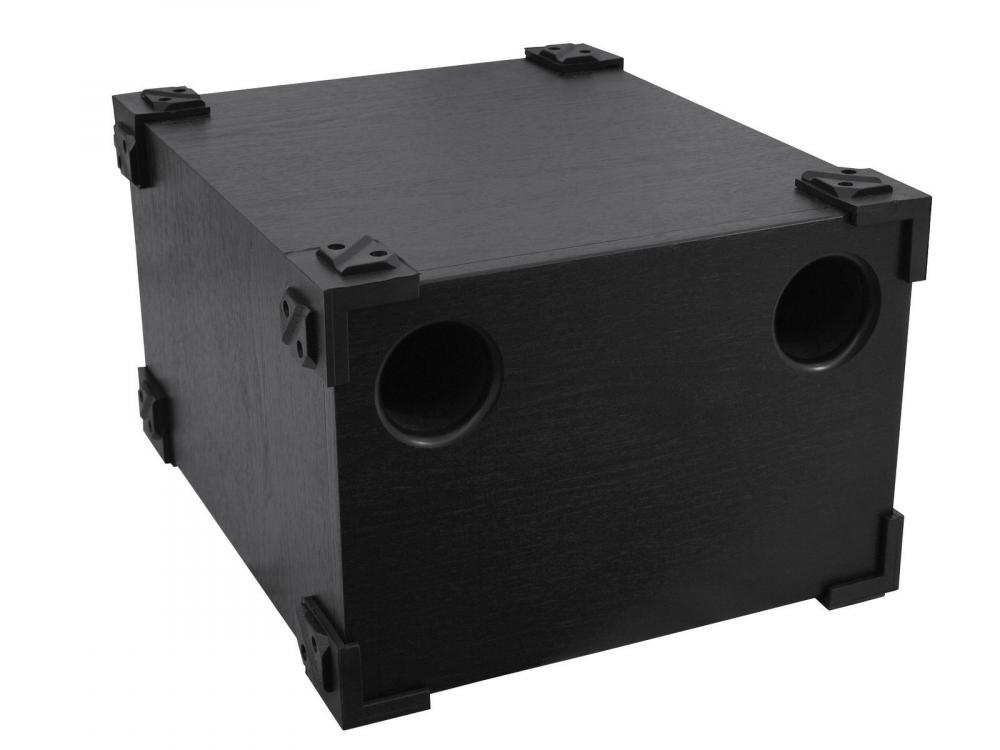

OMNITRONIC Subwoofer for Control Systems
OMNITRONIC
Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC Subwoofer for Control Systems
| Info | |
|---|---|
| order code |
11036580
|
| product link | |
| EAN |
4026397053517
|
| Product Name |
OMNITRONIC Subwoofer for Control Systems
|
| technical overview |
Components: 16.5 cm woofer (6.5") Connection: stereo / 2-pole terminals Sensitivity: 85 dB Maximum SPL: 91 dB Dimensions (H x W x D): 250 x 350 x 420 mm Weight: 9 kg Frequency range: 50 - 130 Hz Rated power: 50 W RMS Program power: 150 W Color: Black Size of woofer: (6,5") ca. 17 cm Number of bass-woofer: 1 Pc/Pcs Height: 25 cm Depth: 42 cm Width: 35 cm Power/channel (4 Ohm): 50 W |
| main features |
Passive subwoofer with crossover, 6,5" woofer, 50 W RMS / 4 ohms -The completion for your Control system -Can be used for Control 1, Control 5, Control 100 and Control 200 -Stereo connection via screw connector -Built-in crossover separates at 300 Hz -High efficiency -16.5 cm woofer (6.5") in bandpass enclosure -Bass-reflex tube with a diameter of 6 cm |
| Audio | |
| Frequency response, from |
50 Hz
|
| Frequency response, to |
130 Hz
|
| Electrical | |
| power consumption watt, max |
50.00 W
|
| Power per channels at 4 Ω |
50 W
|
| Mechanical | |
| weight |
9.00 kg
|
| width |
350.00 mm
|
| height |
250.00 mm
|
| length |
420.00 mm
|
add to list
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00006656.pdf |
