Info | |
---|---|
order code |
11037409
|
product link | |
EAN |
4026397582437
|
Product Name |

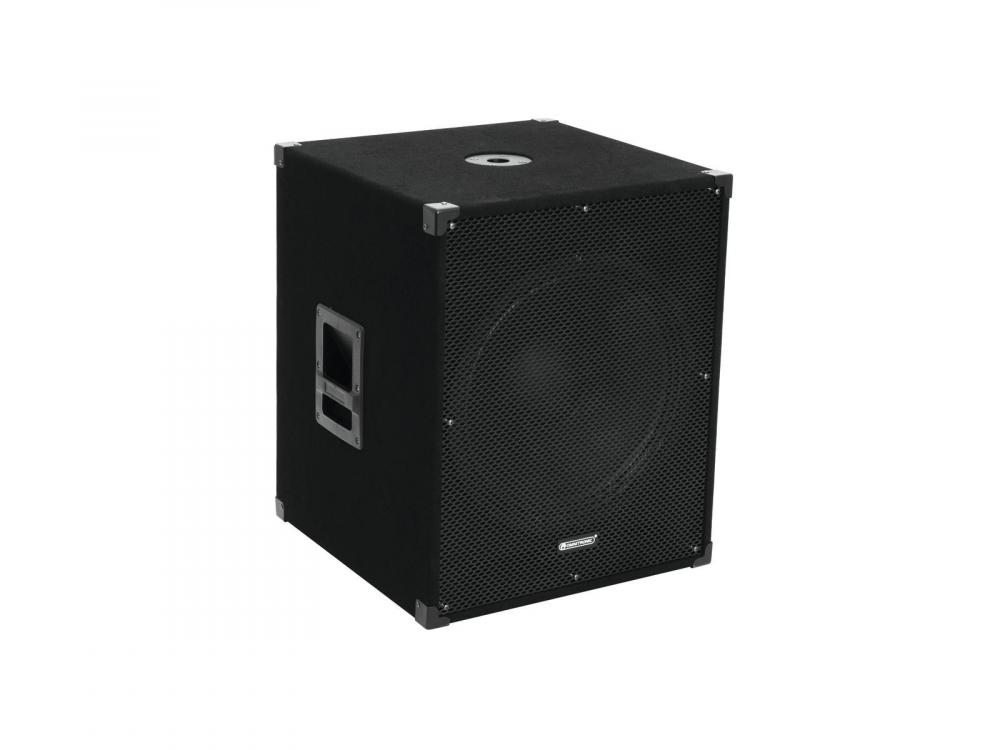

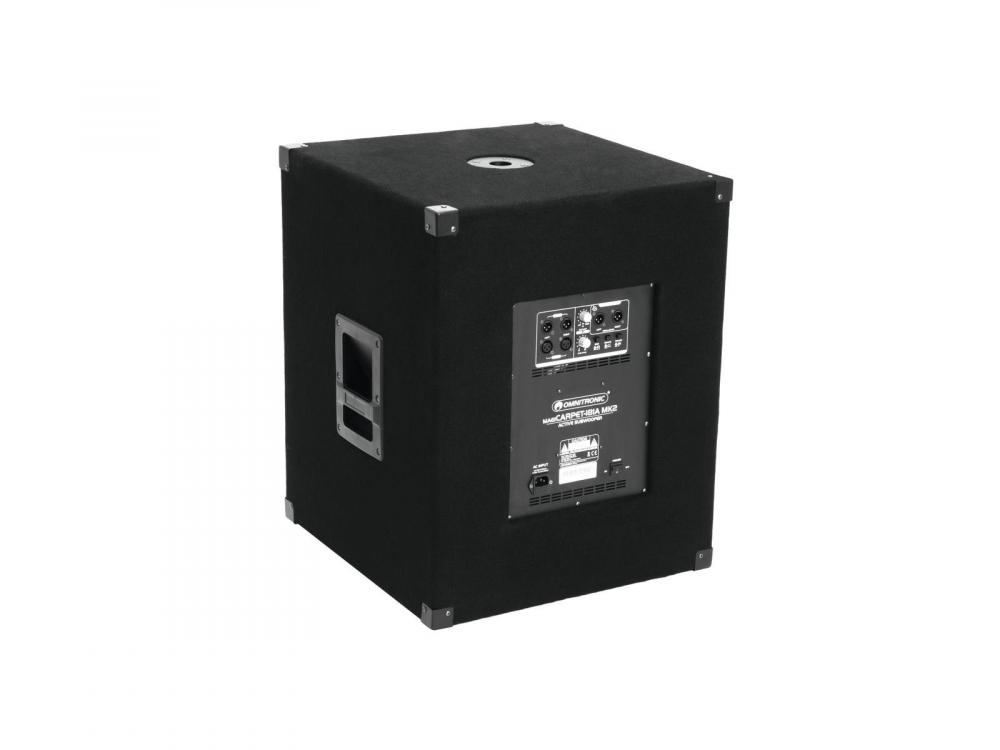

OMNITRONIC MagiCarpet-181A MK2 Active Subwoofer
|
technical overview |
Power supply: 230 V AC, 50 Hz Woofer: 46 cm (18") Signal input: XLR L/R Signal output: XLR L/R Maximum SPL: 126 dB Acoustic loading: Bassreflex Dimensions (W x D x H): 547 x 540 x 683 mm Weight: 33 kg Program power: 500 W Rated power: 250 W RMS Power consumption: 280 W Size of woofer: (18") ca. 46 cm Number of bass-woofer: 1 Pc/Pcs Frequency range: 33 - 250 Hz Height: 54,7 cm Depth: 68,3 cm Width: 54 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
main features |

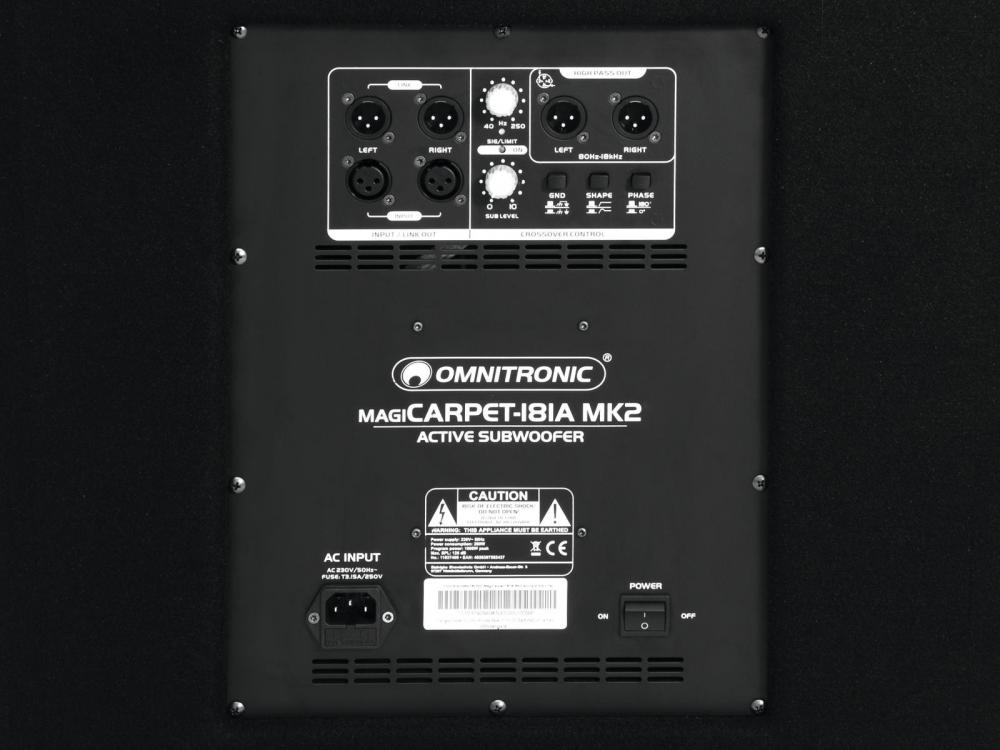

Active bassreflex subwoofer (18") with 250 watts power -Active bassreflex subwoofer with 250 W RMS power -45 cm bass speaker (18") with 100 mm voice coil -Adjustable XLR input with feed-through output -XLR output with high-pass filter for active top speakers -Adjustable crossover frequency from 40 to 250 Hz -Bass boost, ground lift and phase control -Power and signal/limit indicator -Rugged wooden housing with black felt cover -Metal flange for mounting top speakers -Bar handles for easy transport -Impact-resistant metal grille, steel corners and support feet -For mobile applications and permanent installations -Suitable for car transport -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
Frequency response, from |
33 Hz
|
Frequency response, to |
250 Hz
|
Electrical | |
power consumption watt, max |
250.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Mechanical | |
weight |
33.00 kg
|
width |
540.00 mm
|
height |
547.00 mm
|
length |
540.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00102662.pdf |
