Info | |
---|---|
order code |
11039038
|
product link | |
EAN |
4026397638899
|
Product Name |

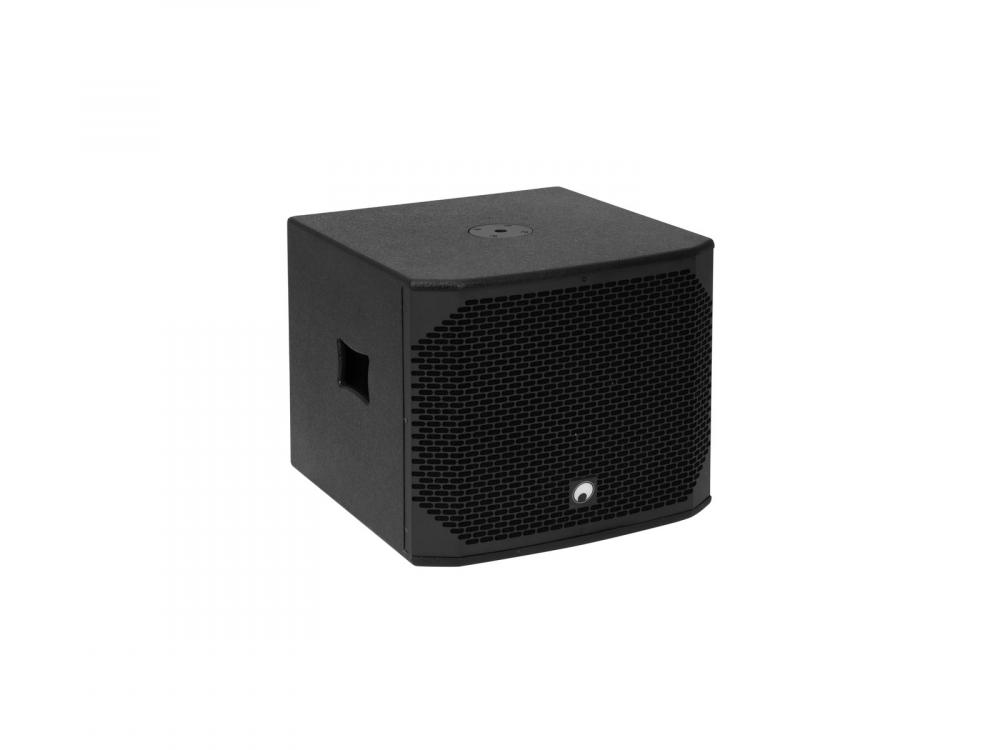

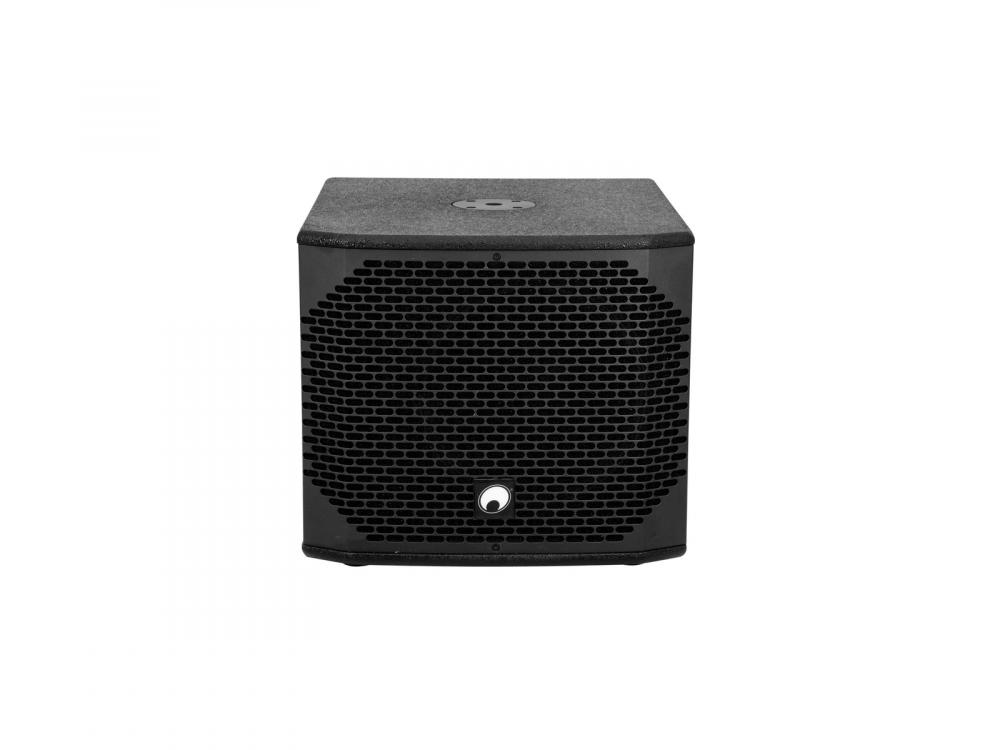

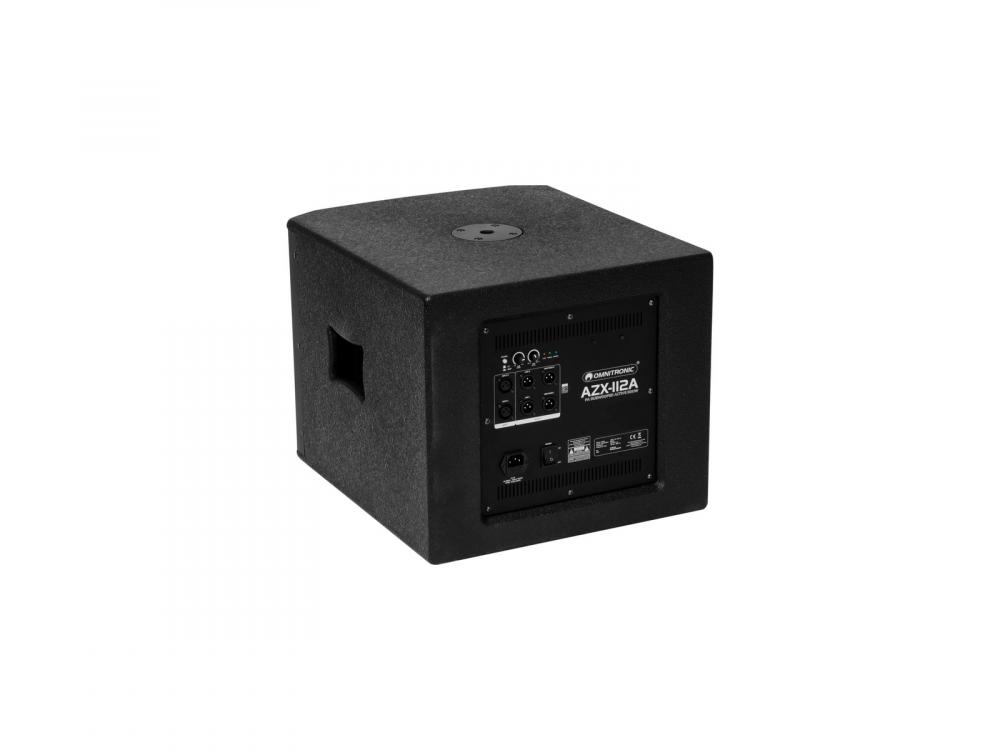

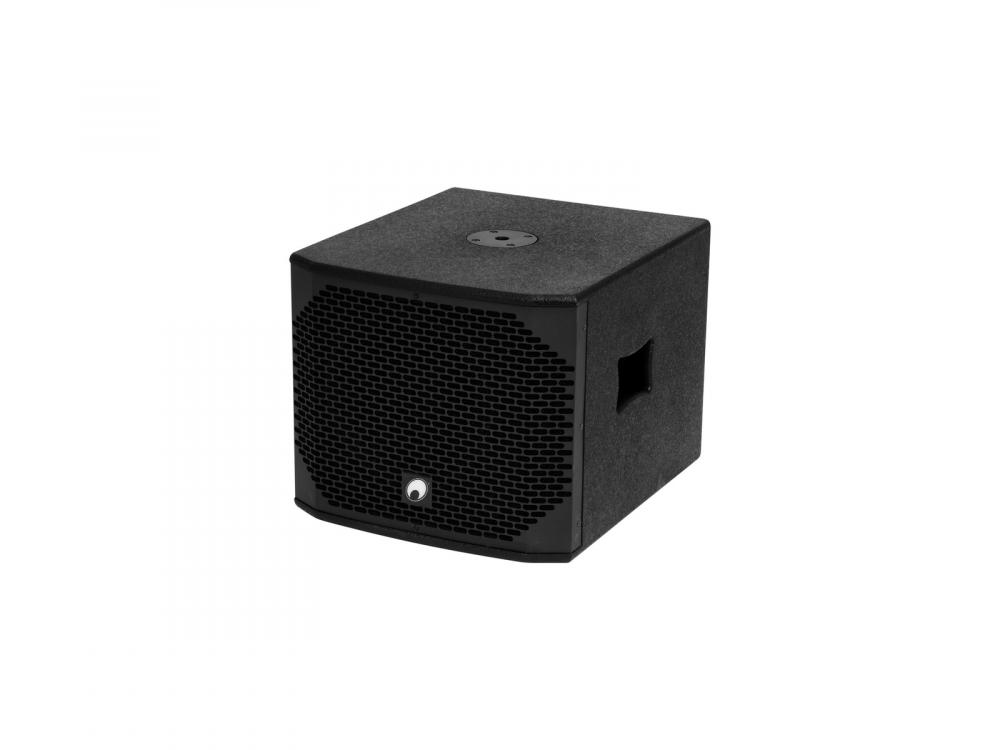

OMNITRONIC AZX-112A PA Subwoofer active 300W
|
technical overview |
Power supply: 230 V AC, 50 Hz Power consumption: 650 W Amplifier power: 300 W RMS Signal input: XLR L/R Parallel output: XLR L/R High-pass output: XLR L/R Sensitivity: 93 dB Crossover frequency: 80-200 Hz Acoustic loading: Bassreflex Amplifier: Class D Dimensions (W x D x H): 575 x 500 x 450 mm Size of woofer: (12") ca. 30 cm Number of bass-woofer: 1 Pc/Pcs Frequency range: 40 - 250 Hz Weight: 21,90 kg Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Width: 50 cm Depth: 57,5 cm Height: 45 cm Material: MDF (Medium-density fibreboard) Power supply: 230 V AC, 50 Hz |
main features |

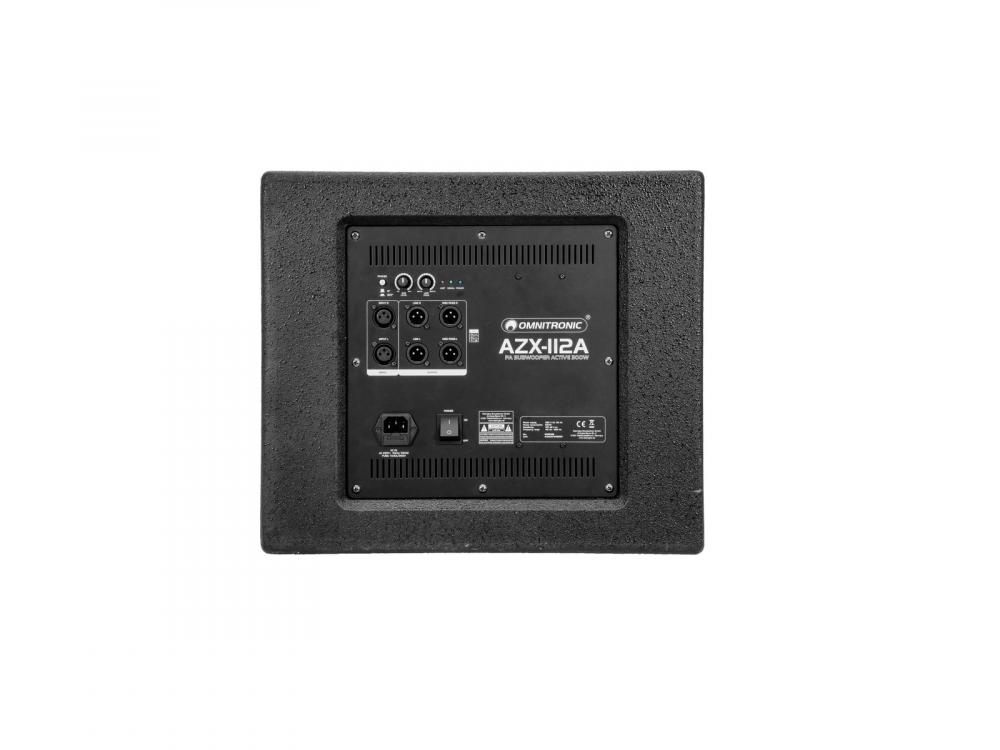

Active 12" PA bassreflex subwoofer, 300 W -30 cm (12") bass speaker with 63 mm voice coil -Class D amplifier with 300 W -XLR inputs and parallel outputs L/R -XLR output L/R with high-pass filter -Adjustable crossover frequency 80-200 Hz -Phase reversal switch -Limiter for overload protection -Limit, signal and power LED -M20 metal flange for top speakers -Carrying handles -Housing made of 15 mm MDF -Scratch-resistant lacquer surface -Impact-resistant steel grille with acoustic foam -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
Frequency response, from |
40 Hz
|
Frequency response, to |
250 Hz
|
Electrical | |
power consumption watt, max |
650.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Mechanical | |
weight |
21.90 kg
|
width |
575.00 mm
|
height |
450.00 mm
|
length |
500.00 mm
|
enclosure material |
MDF (Medium-density fibreboard)
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
