| Info | |
|---|---|
| order code |
11039046
|
| product link | |
| EAN |
4026397638936
|
| Product Name |

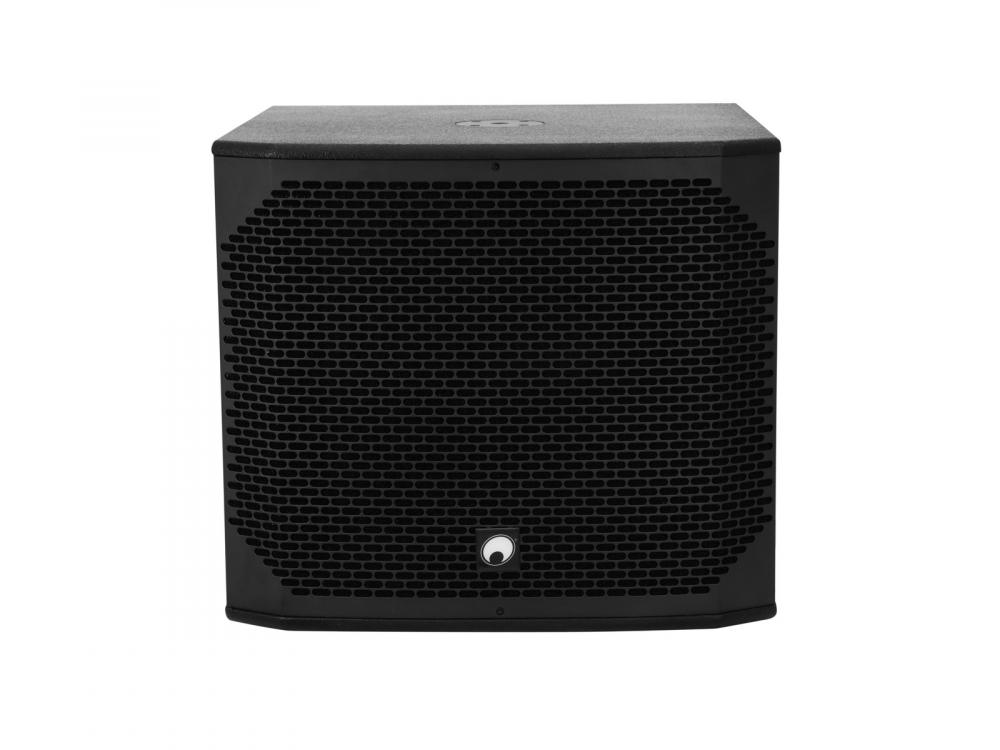

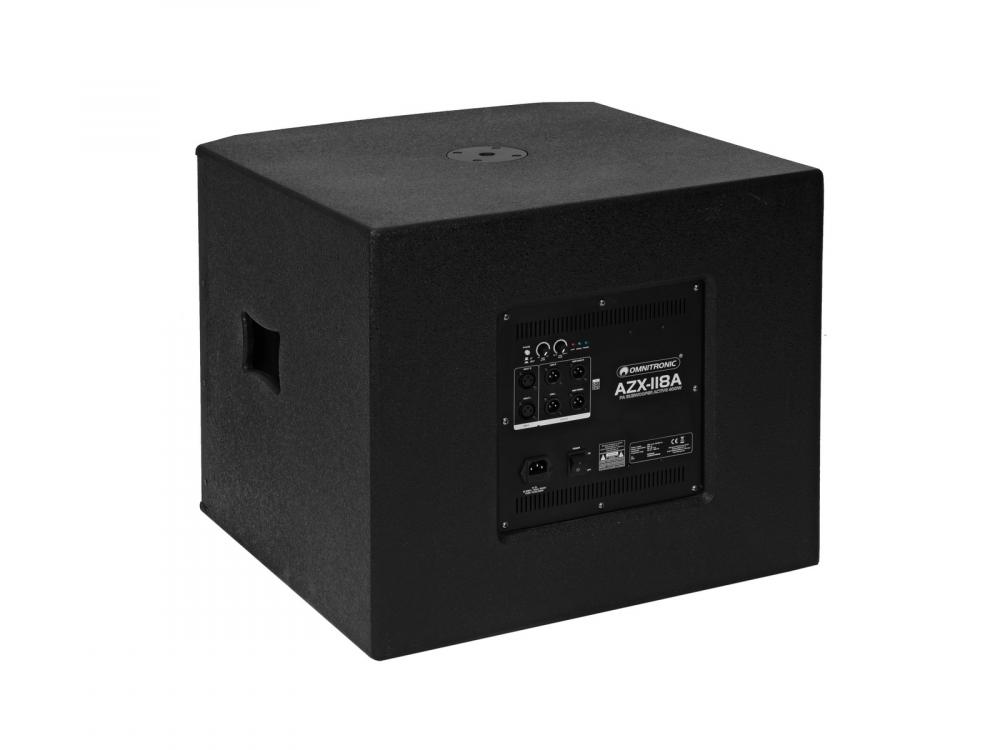

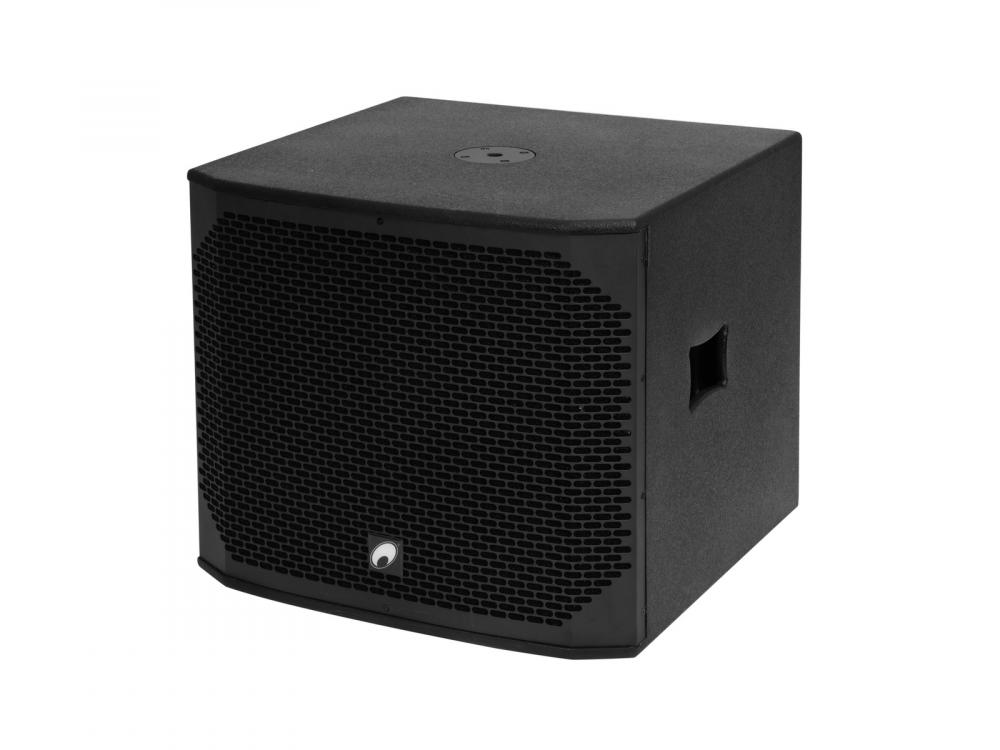

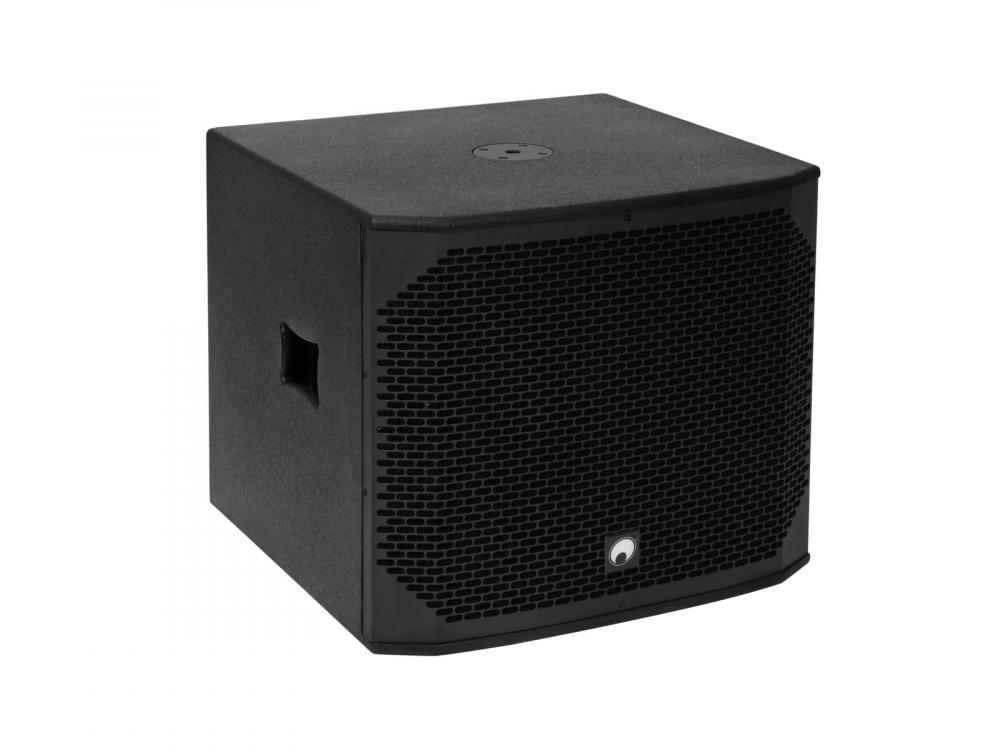

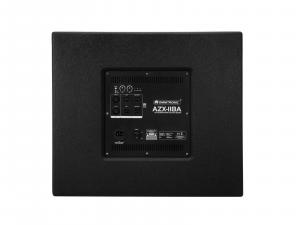

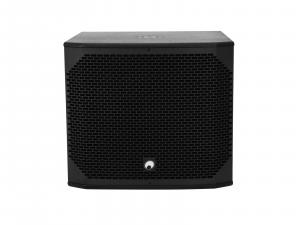

OMNITRONIC AZX-118A PA Subwoofer active 400W
|
| technical overview |
Power supply: 230 V AC, 50 Hz Power consumption: 650 W Amplifier power: 400 W RMS Signal input: XLR L/R Parallel output: XLR L/R High-pass output: XLR L/R Sensitivity: 95 dB Crossover frequency: 80-200 Hz Acoustic loading: Bassreflex Amplifier: Class D Dimensions (W x D x H): 665 x 665 x 590 mm Size of woofer: (18") ca. 46 cm Number of bass-woofer: 1 Pc/Pcs Frequency range: 40 - 250 Hz Weight: 33,65 kg Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Width: 66,5 cm Depth: 66,5 cm Material: MDF (Medium-density fibreboard) Power supply: 230 V AC, 50 Hz |
| main features |
Active 18" PA bassreflex subwoofer, 400 W -46 cm (18") bass speaker with 76 mm voice coil -Class D amplifier with 400 W -XLR inputs and parallel outputs L/R -XLR output L/R with high-pass filter -Adjustable crossover frequency 80-200 Hz -Phase reversal switch -Limiter for overload protection -Limit, signal and power LED -M20 metal flange for top speakers -Carrying handles -Housing made of 15 mm MDF -Scratch-resistant lacquer surface -Impact-resistant steel grille with acoustic foam -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
| Audio | |
| Frequency response, from |
40 Hz
|
| Frequency response, to |
250 Hz
|
| Electrical | |
| power consumption watt, max |
650.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| power input connector |
IEC-60320 C13/C14
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| Mechanical | |
| weight |
33.65 kg
|
| width |
665.00 mm
|
| height |
590.00 mm
|
| length |
665.00 mm
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| no files provided by the manufacturer |
