Info | |
---|---|
order code |
11036716
|
product link | |
EAN |
4026397356274
|
Product Name |

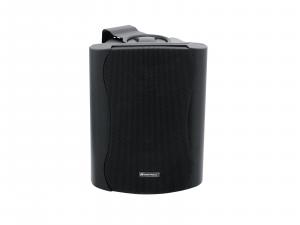

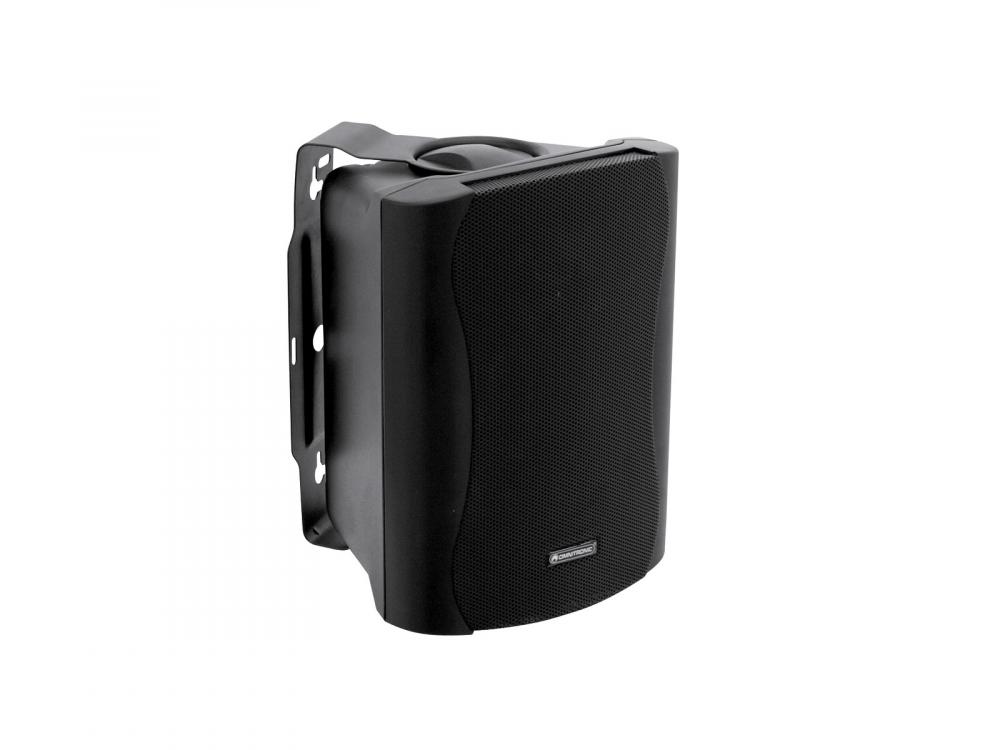

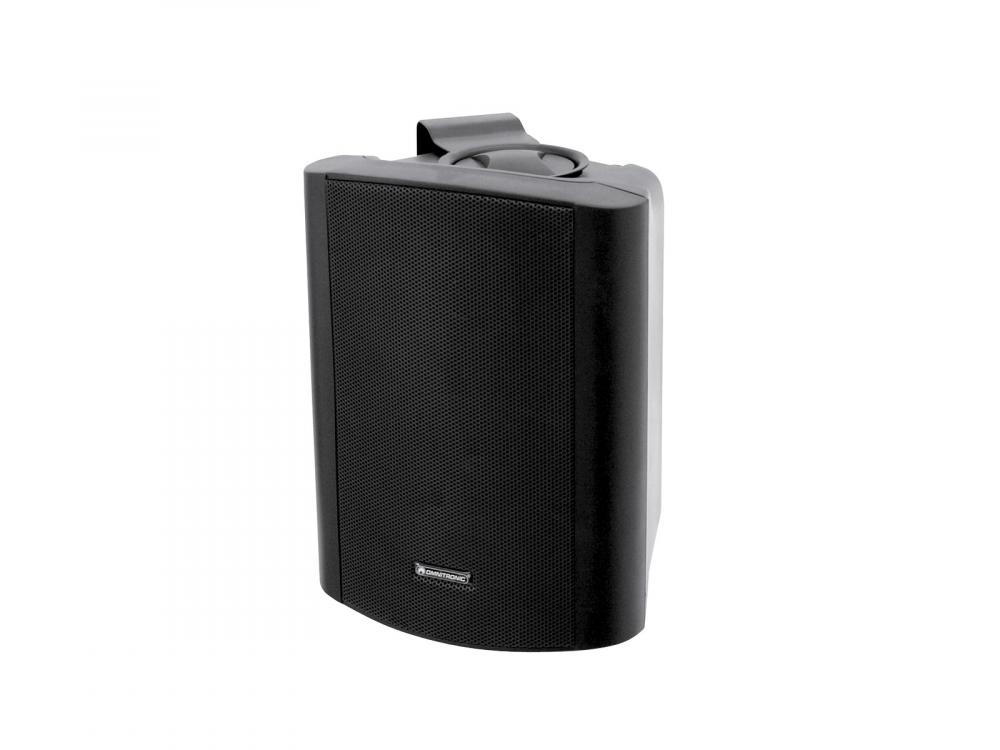

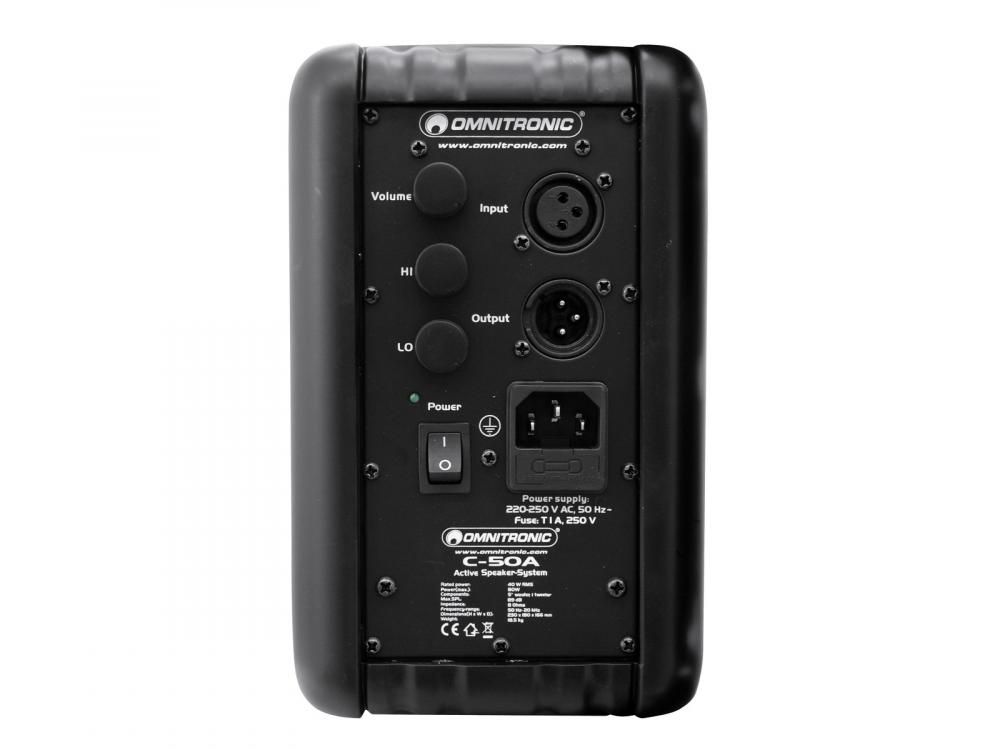

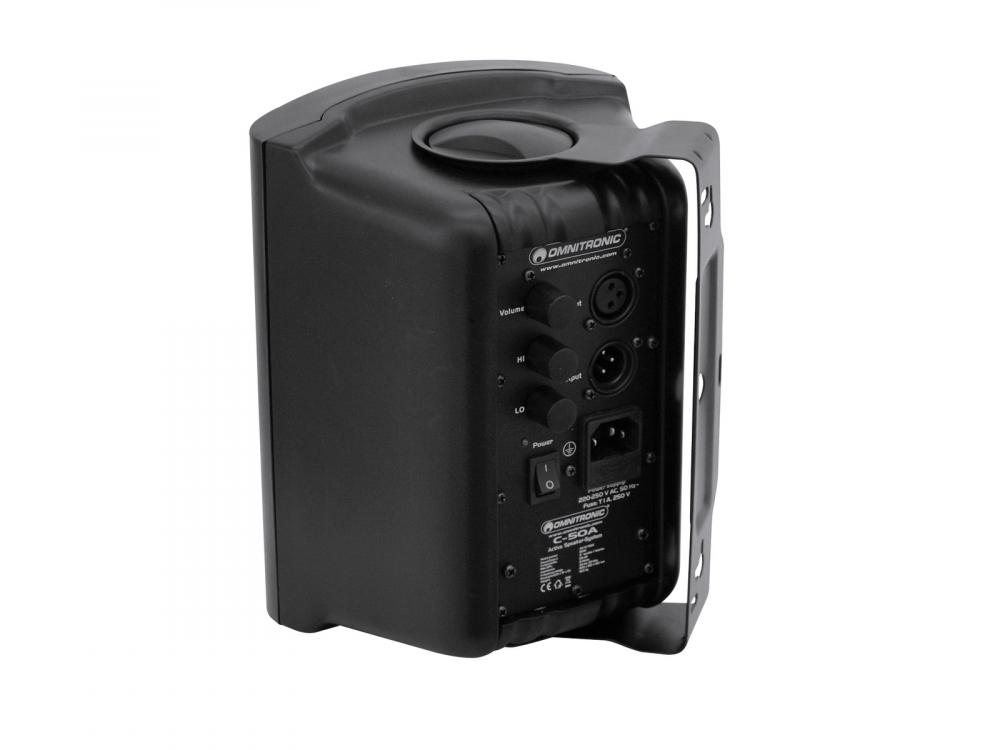

OMNITRONIC C-50A active black 2x
|
technical overview |
Power supply: 230 V AC, 50 Hz Components: 13 cm woofer (5"), 2.5 cm tweeter (1") Input: 3-pin XLR Output: 3-pin XLR Sensitivity: 89 dB Dimensions (H x W x D): 230 x 180 x 166 mm Weight: 6,30 kg Frequency range: 50 - 20000 Hz Rated power: 50 W RMS Program power: 80 W Color: Black Size of woofer: (5") ca. 13 cm Height: 23 cm Depth: 16,6 cm Width: 18 cm Attachment: Mounting incl. Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
main features |
Active 2-way speaker pair with mount, 5" woofers and 50 W RMS -Dedicated PA speaker system for fixed installations -2-way system with 13 cm woofer (5") and 2.5 cm dome tweeter (1") -Signal input and output via balanced XLR connectors -2-way tone control and level control -White or titanium plastic housing (ABS) with metal grille -Trapezoidal cabinet for corner installation -Movable mounting bracket for ceiling or wall installation -Ideal for PA applications in restaurants, bars, discos, shops, conferences, etc. -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
Audio | |
Frequency response, from |
50 Hz
|
Frequency response, to |
20000 Hz
|
Connectors | |
Input XLR |
1 pcs
|
Electrical | |
power consumption watt, max |
50.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Mechanical | |
weight |
6.30 kg
|
width |
180.00 mm
|
height |
230.00 mm
|
length |
166.00 mm
|
