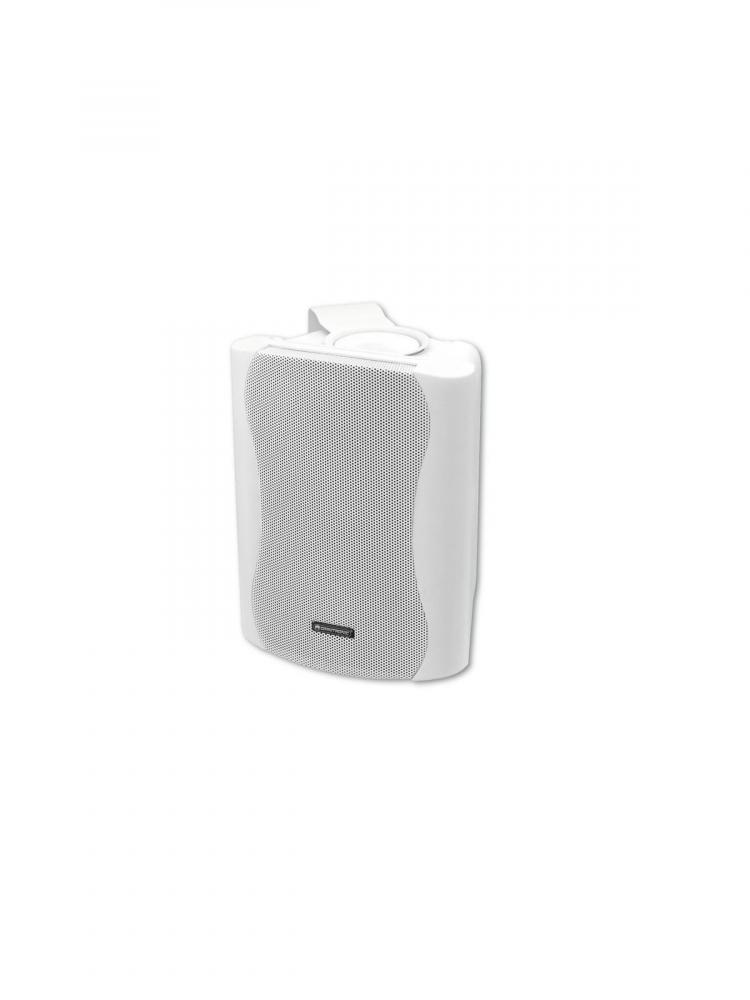

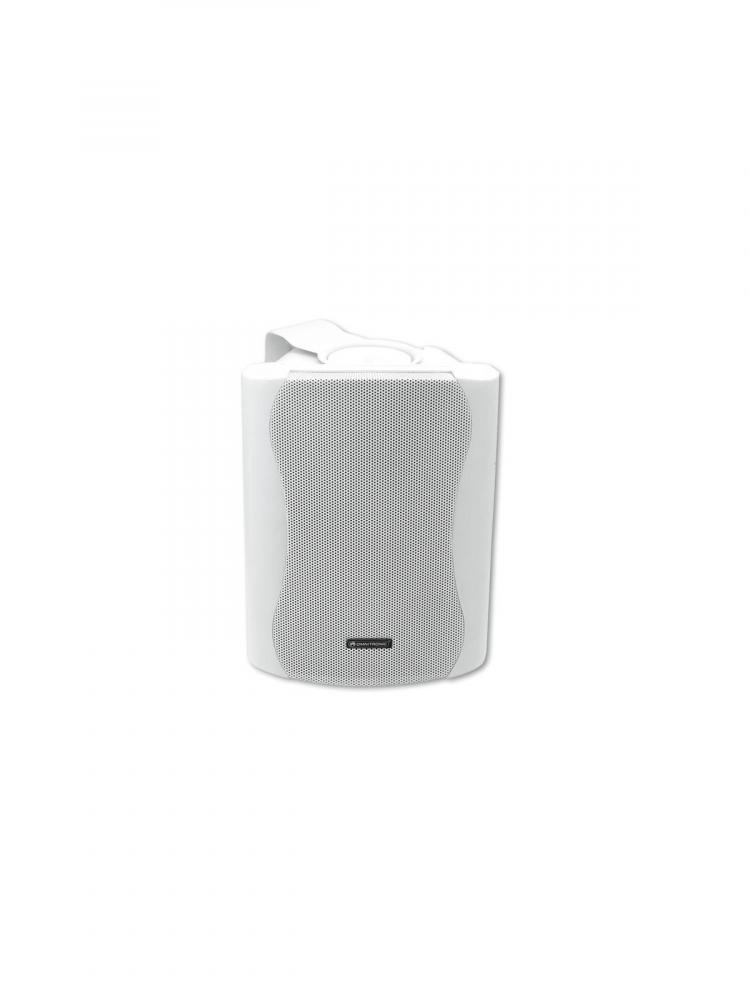

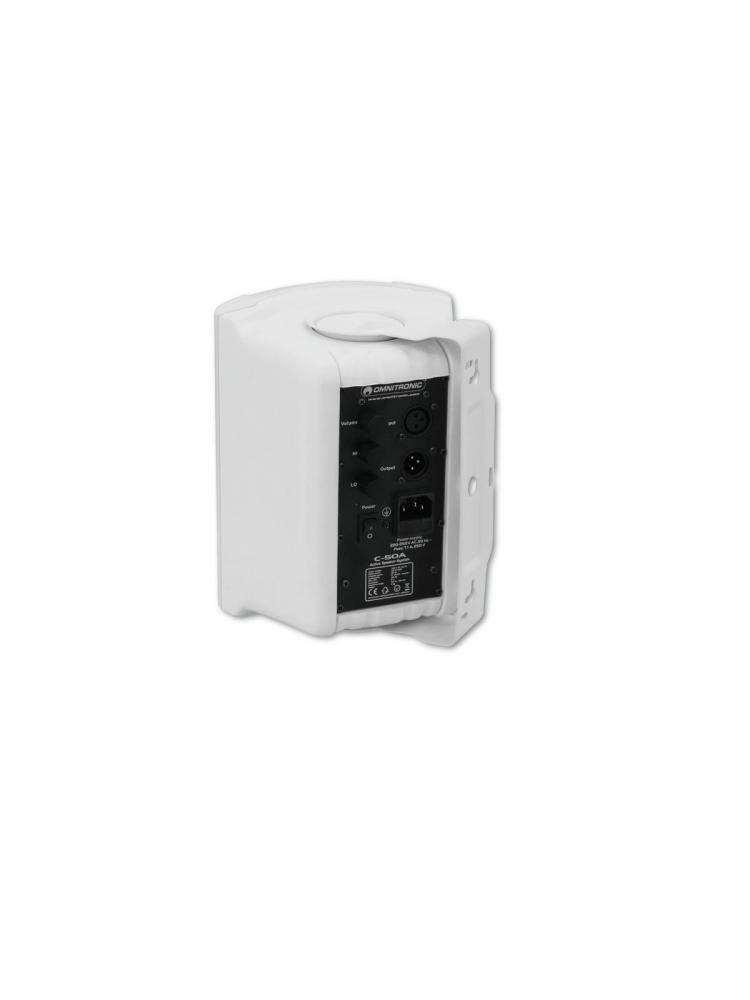

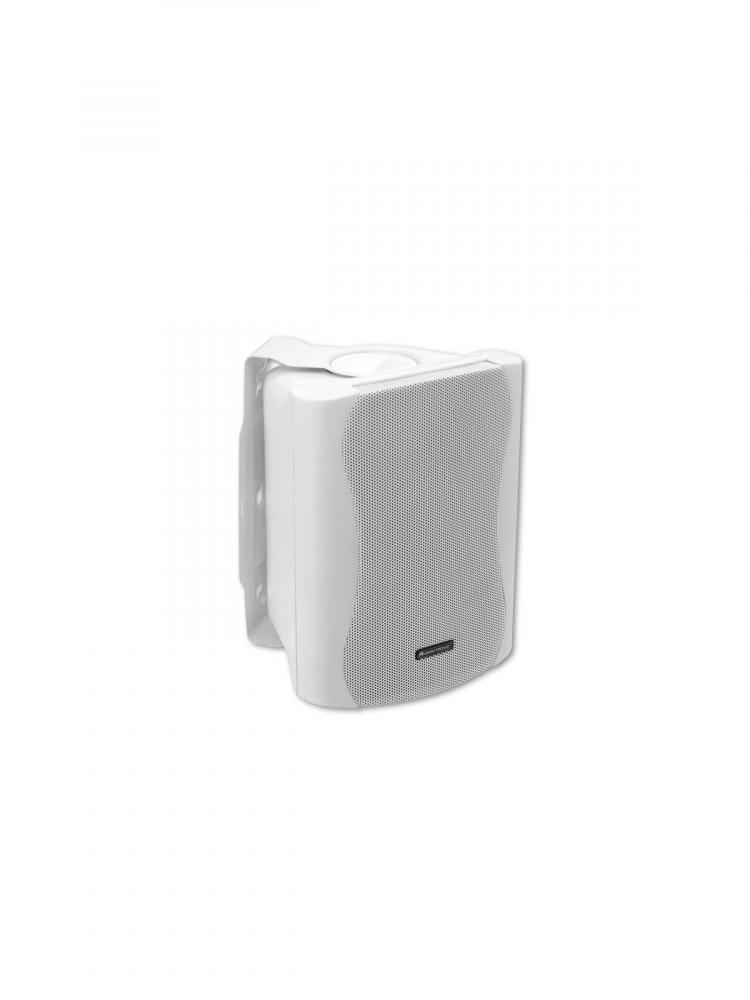

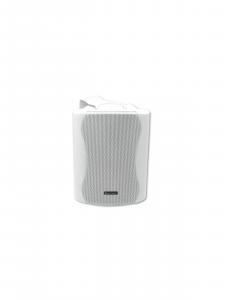

OMNITRONIC C-50A active white 2x

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC C-50A active white 2x

Info
order code
11036717
product link
EAN
4026397356298
Product Name
OMNITRONIC C-50A active white 2x
technical overview
Power supply: 230 V AC, 50 Hz
Components: 13 cm woofer (5"), 2.5 cm tweeter (1")
Input: 3-pin XLR
Output: 3-pin XLR
Sensitivity: 89 dB
Dimensions (H x W x D): 230 x 180 x 166 mm
Weight: 6,40 kg
Frequency range: 50 - 20000 Hz
Rated power: 50 W RMS
Program power: 80 W
Color: White
Size of woofer: (5") ca. 13 cm
Height: 23 cm
Depth: 16,6 cm
Width: 18 cm
Attachment: Mounting incl.
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Power supply: 230 V AC, 50 Hz
main features
Active 2-way speaker pair with mount, 5" woofers and 50 W RMS
-Dedicated PA speaker system for fixed installations
-2-way system with 13 cm woofer (5") and 2.5 cm dome tweeter (1")

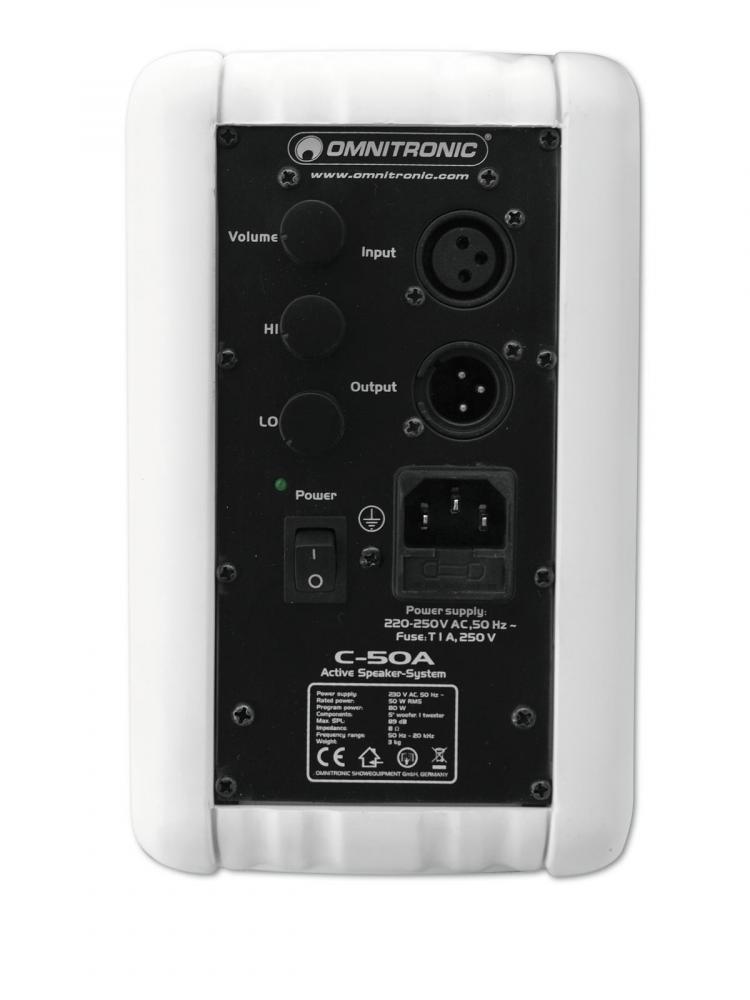

-2-way tone control and level control
-Signal input and output via balanced XLR connectors
-White or titanium plastic housing (ABS) with metal grille
-Trapezoidal cabinet for corner installation
-Movable mounting bracket for ceiling or wall installation
-Ideal for PA applications in restaurants, bars, discos, shops, conferences, etc.
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
Audio
Frequency response, from
50 Hz
Frequency response, to
20000 Hz
Connectors
Input XLR
1 pcs
Electrical
power consumption watt, max
50.00 W
AC Volts, min
230 V
AC Volts, max
230 V
power input connector
IEC-60320 C13/C14
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
Mechanical
weight
6.40 kg
width
180.00 mm
height
230.00 mm
length
166.00 mm
color
white

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00047341.pdf
