| Info | |
|---|---|
| order code |
11036720
|
| product link | |
| EAN |
4026397356359
|
| Product Name |

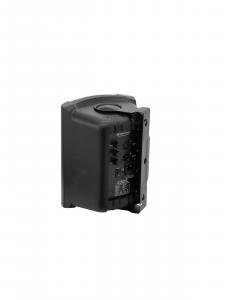

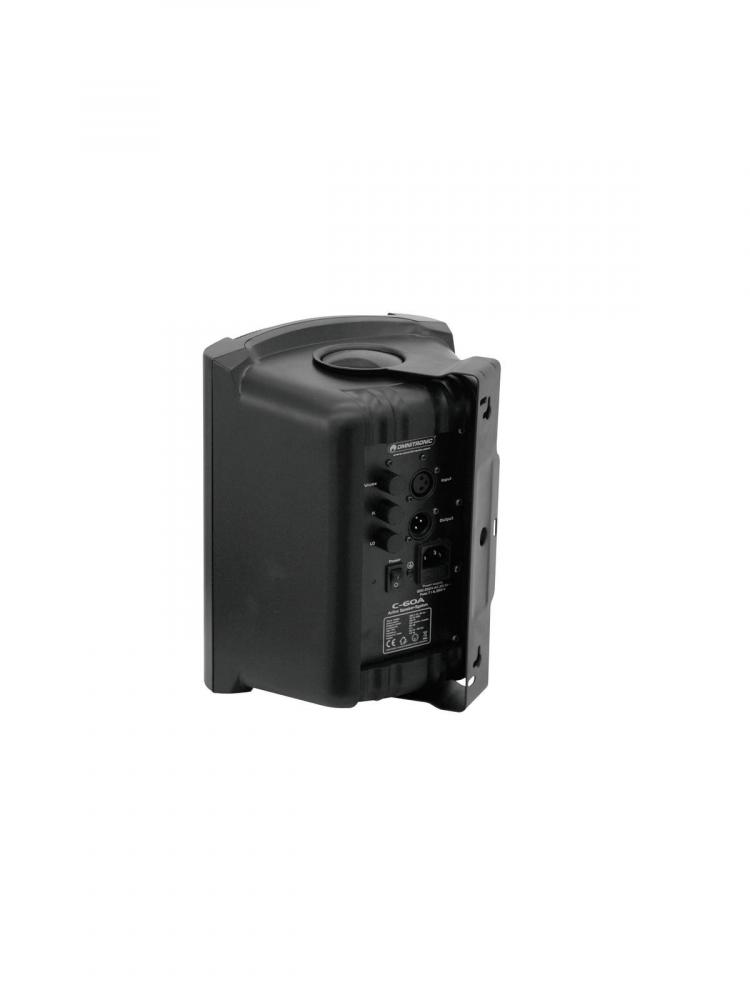

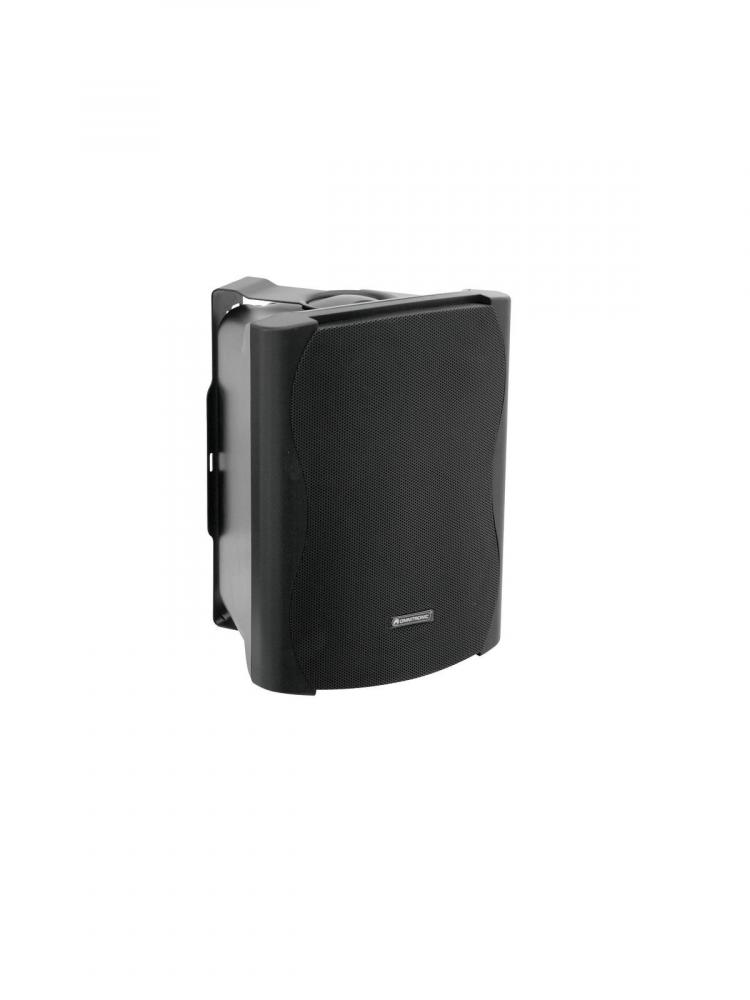

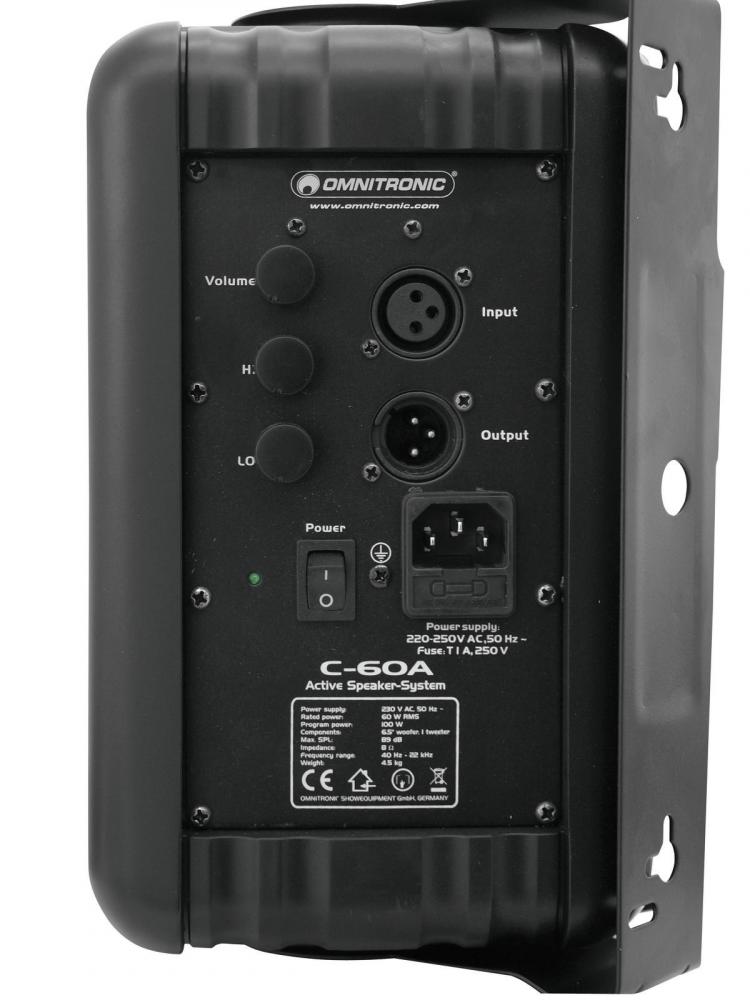

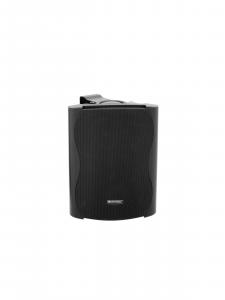

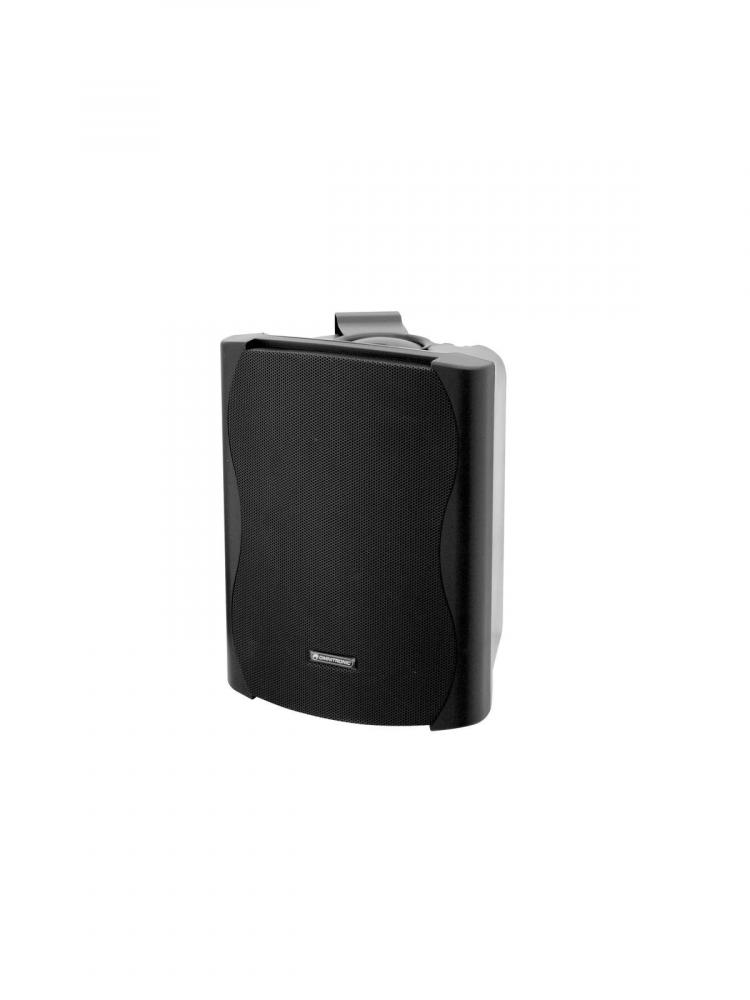

OMNITRONIC C-60A active black 2x
|
| technical overview |
Power supply: 230 V AC, 50 Hz Components: 16.5 cm woofer (6.5"), 2.5 cm tweeter (1") Input: 3-pin XLR Output: 3-pin XLR Sensitivity: 89 dB Dimensions (H x W x D): 285 x 205 x 180 mm Weight: 4,5 kg Frequency range: 50 - 20000 Hz Rated power: 60 W RMS Program power: 100 W Color: Black Size of woofer: (6,5") ca. 17 cm Height: 28,5 cm Depth: 18 cm Width: 20,5 cm Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) Power supply: 230 V AC, 50 Hz |
| main features |
Active 2-way speaker pair with mount, 6.5" woofers and 60 W RMS -Dedicated PA speaker system for fixed installations -2-way bass-reflex system for powerful bass -16.5 cm woofer (6.5") and 2.5 cm dome tweeter (1") -2-way tone control and level control -Signal input and output via balanced XLR connectors -White or titanium plastic housing (ABS) with metal grille -Trapezoidal cabinet for corner installation -Movable mounting bracket for ceiling or wall installation -Ideal for PA applications in restaurants, bars, discos, shops, conferences, etc. -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided) |
| Audio | |
| Frequency response, from |
50 Hz
|
| Frequency response, to |
20000 Hz
|
| Connectors | |
| Input XLR |
1 pcs
|
| Electrical | |
| power consumption watt, max |
60.00 W
|
| AC Volts, min |
230 V
|
| AC Volts, max |
230 V
|
| power input connector |
IEC-60320 C13/C14
|
| AC Frequency, min |
50 Hz
|
| AC Frequency, max |
50 Hz
|
| Mechanical | |
| weight |
4.50 kg
|
| width |
205.00 mm
|
| height |
285.00 mm
|
| length |
180.00 mm
|
Collect interesting products in a list and download tender specifications at once
| Downloads |
|---|
| Bedienungsanleitung |
|---|
| 00047341.pdf |
