OMNITRONIC C-80A active white 2x

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC C-80A active white 2x

Info
order code
11036725
product link
EAN
4026397356427
Product Name
OMNITRONIC C-80A active white 2x
technical overview
Power supply: 230 V AC, 50 Hz
Components: 20 cm woofer (8"), 2.5 cm tweeter (1")
Input: 3-pin XLR
Output: 3-pin XLR
Sensitivity: 90 dB
Dimensions (H x W x D): 360 x 270 x 240 mm
Weight: 8 kg
Frequency range: 50 - 20000 Hz
Rated power: 80 W RMS
Program power: 125 W
Color: White
Size of woofer: (8") ca. 20 cm
Height: 36 cm
Depth: 24 cm
Width: 27 cm
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M)
Attachment: Mounting incl.
Power supply: 230 V AC, 50 Hz
main features
Active 2-way speaker pair with mount, 8" woofers and 80 W RMS
-Dedicated PA speaker system for fixed installations
-2-way bass-reflex system for powerful bass
-20 cm woofer (8") and 2.5 cm dome tweeter (1")

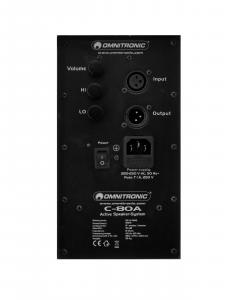

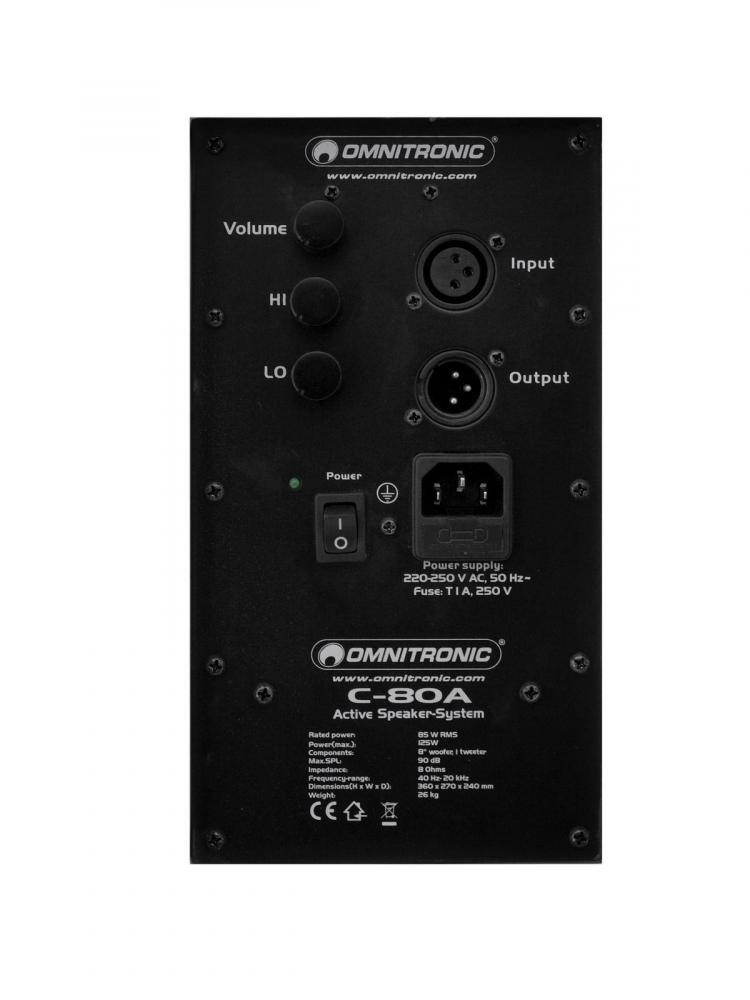

-2-way tone control and level control
-Signal input and output via balanced XLR connectors
-White or titanium plastic housing (ABS) with metal grille
-Trapezoidal cabinet for corner installation

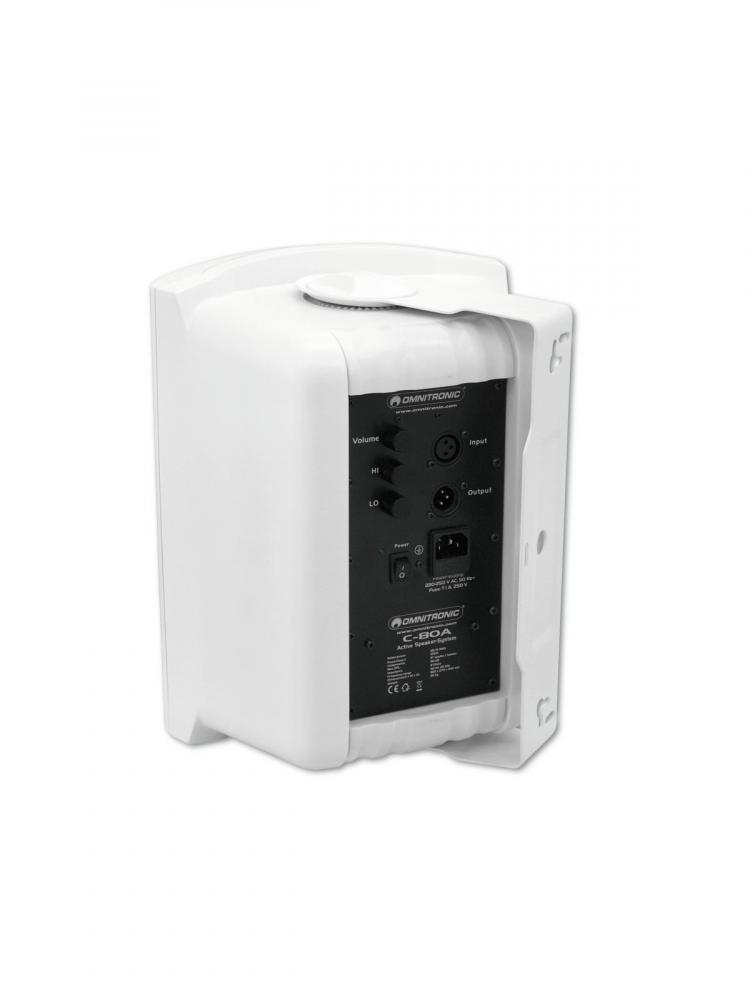

-Movable mounting bracket for ceiling or wall installation
-Ideal for PA applications in restaurants, bars, discos, shops, conferences, etc.
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
Audio
Frequency response, from
50 Hz
Frequency response, to
20000 Hz
Connectors
Input XLR
1 pcs
Electrical
power consumption watt, max
80.00 W
AC Volts, min
230 V
AC Volts, max
230 V
power input connector
IEC-60320 C13/C14
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
Mechanical
weight
8.00 kg
width
270.00 mm
height
360.00 mm
length
240.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00047341.pdf
