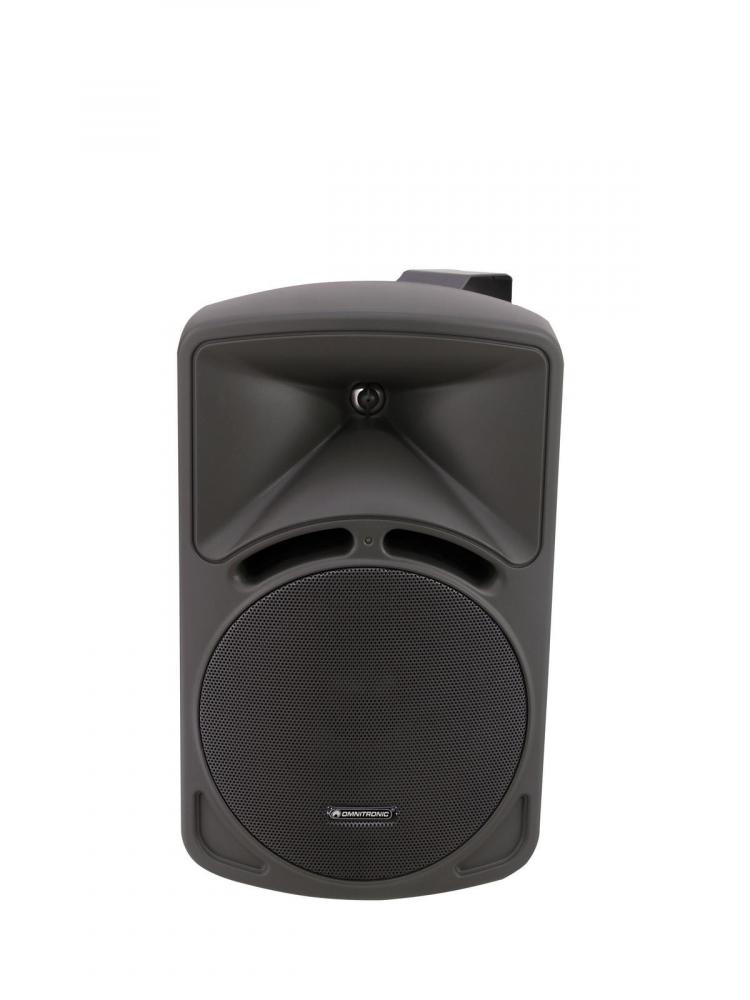

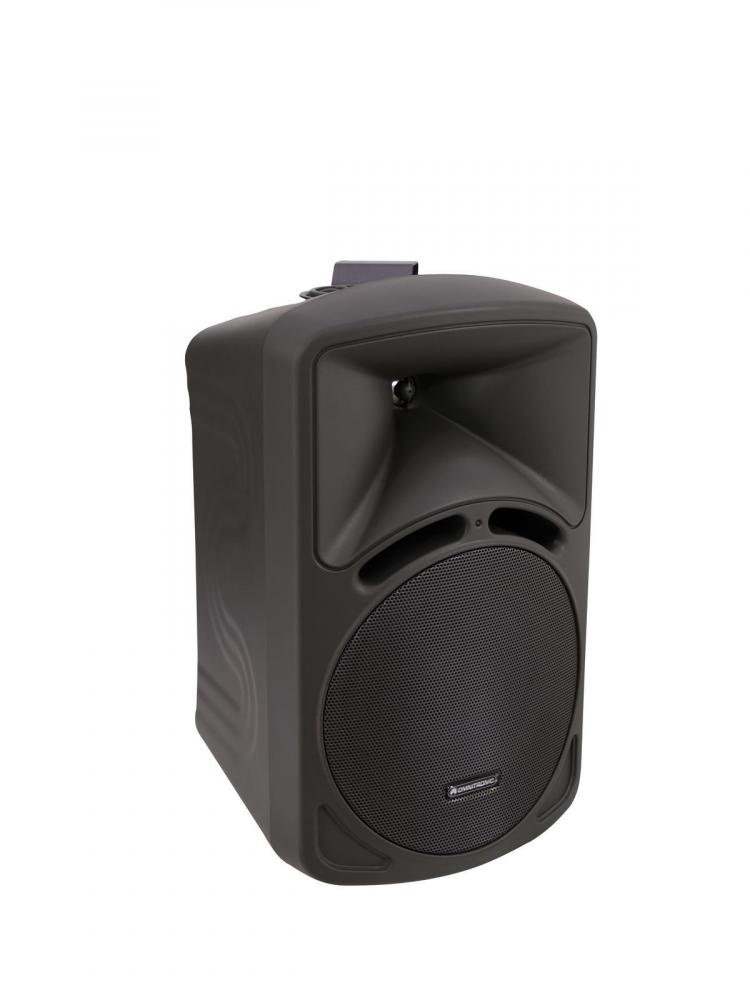

OMNITRONIC DH-60 titanium 2x

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC DH-60 titanium 2x

Info
order code
11036772
product link
EAN
4026397272215
Product Name
OMNITRONIC DH-60 titanium 2x
technical overview
Components: 16.5 cm woofer (6.5"), 2 cm horn (0.75")

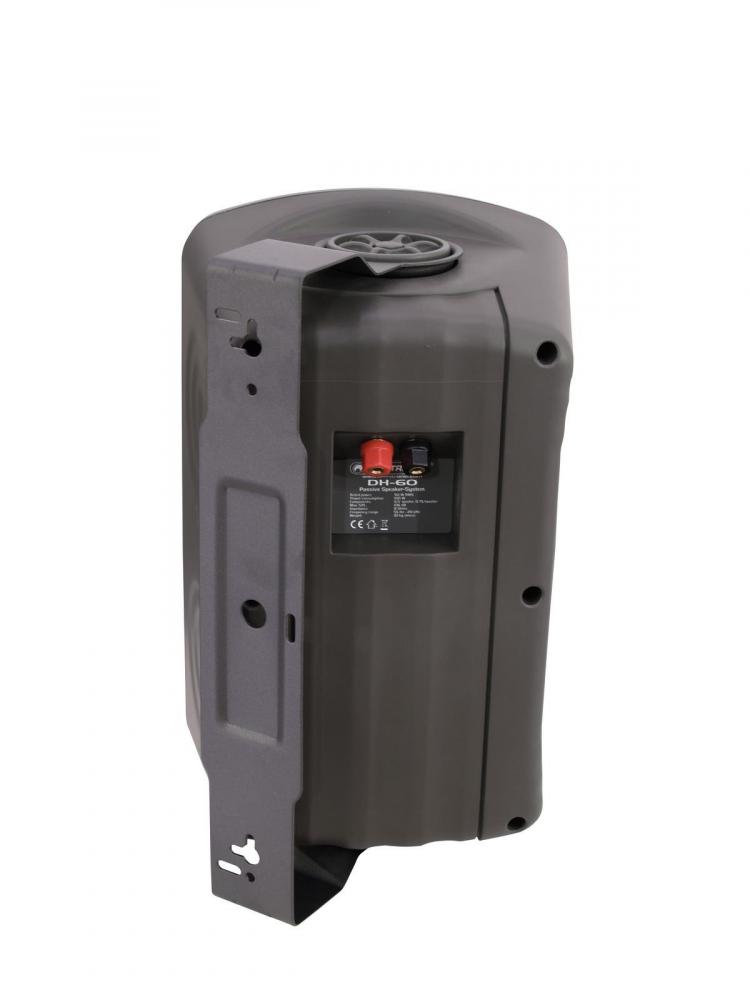

Connection: 2-pole terminal
Maximum SPL: 106 dB
Weight: 4 kg
Frequency range: 55 - 20000 Hz
Rated power: 50 W RMS
Program power: 100 W
Color: Titanium
Size of woofer: (6,5") ca. 17 cm
Height: 34,8 cm
Depth: 20,3 cm
Width: 20,8 cm
main features
Passive 2-way speaker pair with mount, 6.5" woofers and 50 W RMS
-Dedicated PA speaker system for fixed installations
-2-way speaker system with 16.5 cm polypropylene woofer (6,5") and 2 cm dome tweeter (0.75") with horn front attachment
-Highly efficient bass-reflex system
-Well-balanced and clear sound, capable of high volumes
-White or titanium plastic housing (ABS) with metal grille

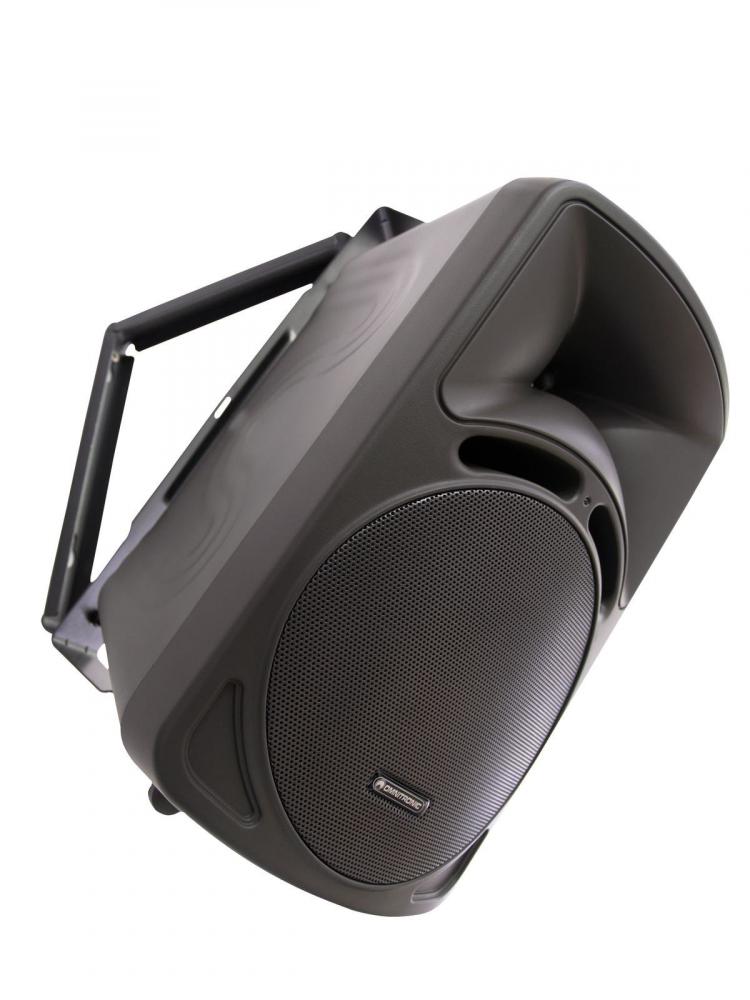

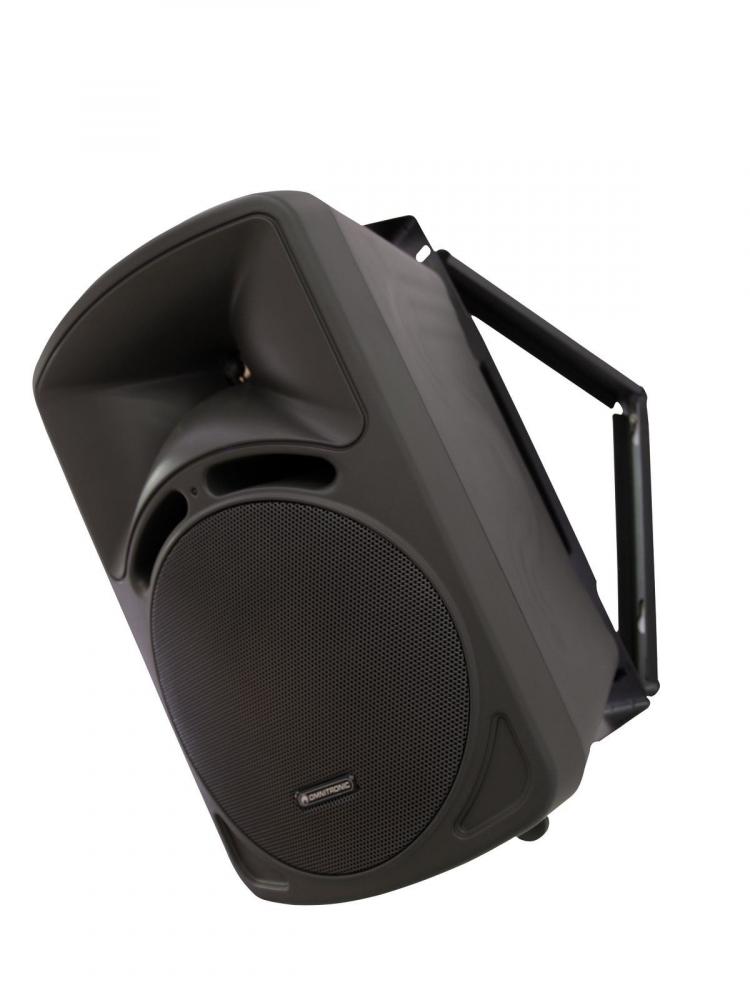

-Delivery includes movable mounting bracket for ceiling or wall installation
-Ideal for PA applications in restaurants, bars, discos, shops, conferences, etc.
Audio
Frequency response, from
55 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
50.00 W
Mechanical
weight
4.00 kg
width
208.00 mm
height
348.00 mm
length
203.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
no files provided by the manufacturer
