OMNITRONIC DH-80 titanium 2x

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC DH-80 titanium 2x

Info
order code
11036791
product link
EAN
4026397272284
Product Name
OMNITRONIC DH-80 titanium 2x
technical overview
Components: 20 cm woofer (8"), 2.5 cm horn (1")

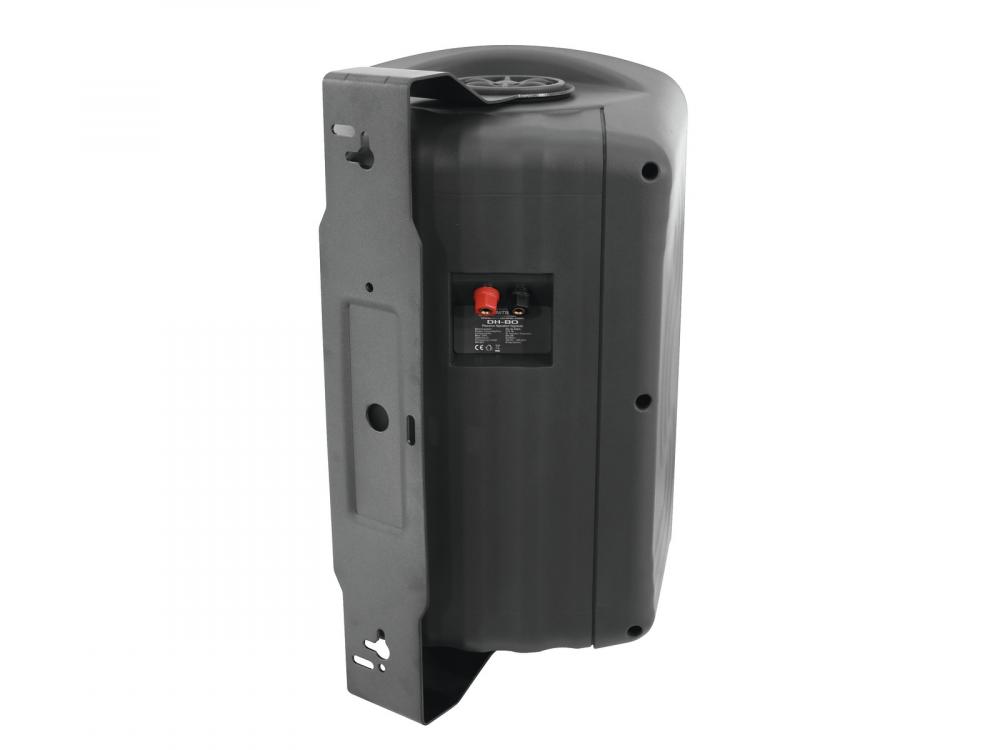

Connection: 2-pole terminal
Maximum SPL: 116 dB
Dimensions (H x W x D): 420 x 253 x 249 mm
Weight: 6 kg
Frequency range: 45 - 20000 Hz
Rated power: 85 W RMS
Program power: 170 W
Color: Titanium
Size of woofer: (8") ca. 20 cm
Height: 42 cm
Depth: 24,9 cm
Width: 25,3 cm
main features
Passive 2-way speaker pair with mount, 8" woofers and 85 W RMS
-Dedicated PA speaker system for fixed installations
-2-way speaker system with 20 cm polypropylene woofer (8") and 2.5 cm dome tweeter (1") with horn front attachment
-Highly efficient bass-reflex system
-Well-balanced and clear sound, capable of high volumes
-White or titanium plastic housing (ABS) with metal grille

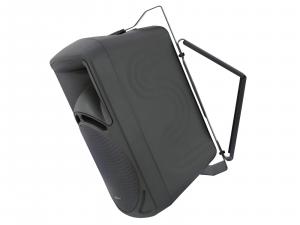

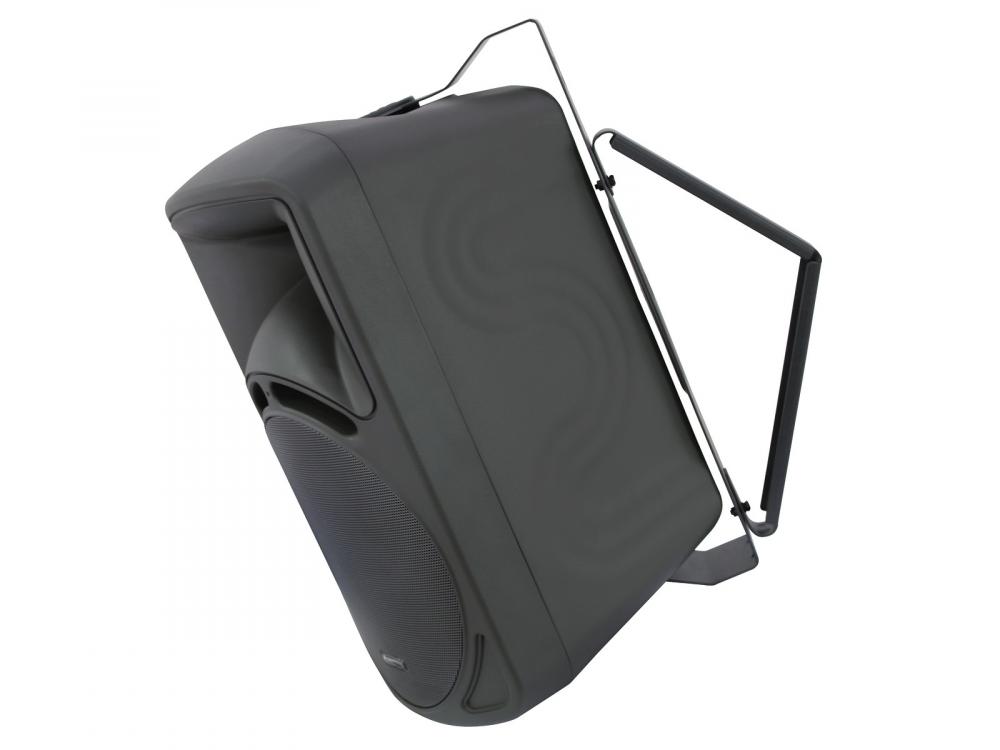

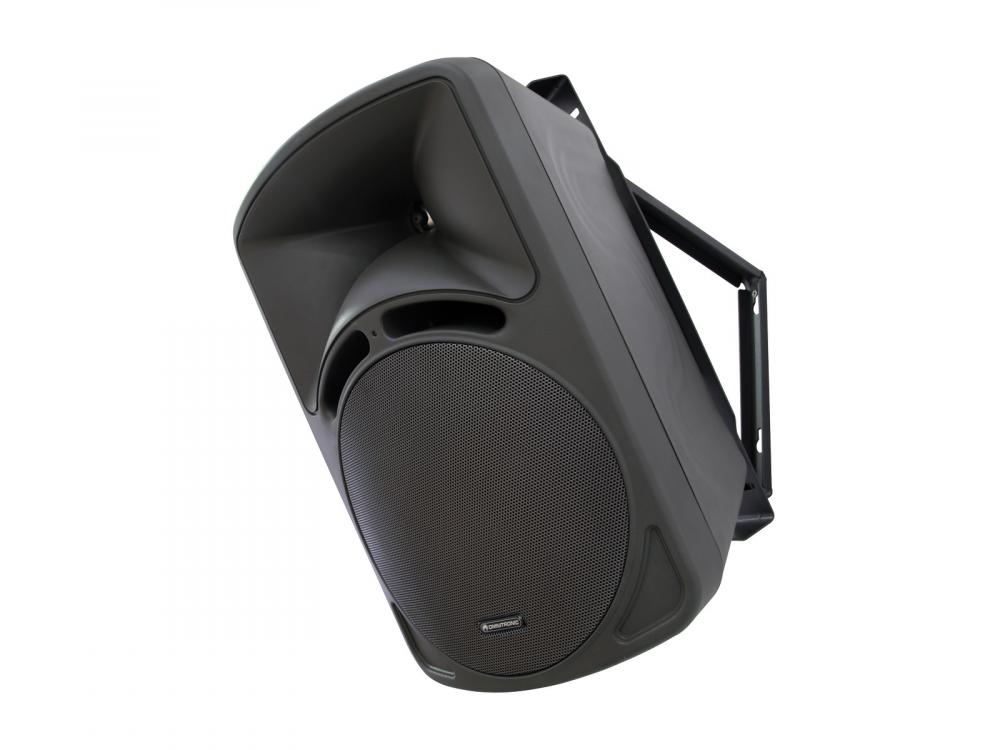

-Delivery includes movable mounting bracket for ceiling or wall installation
-Ideal for PA applications in restaurants, bars, discos, shops, conferences, etc.
Audio
Frequency response, from
45 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
85.00 W
Mechanical
weight
6.00 kg
width
253.00 mm
height
420.00 mm
length
249.00 mm
