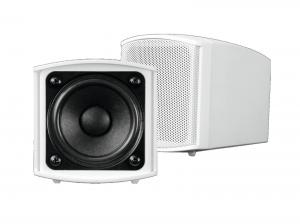

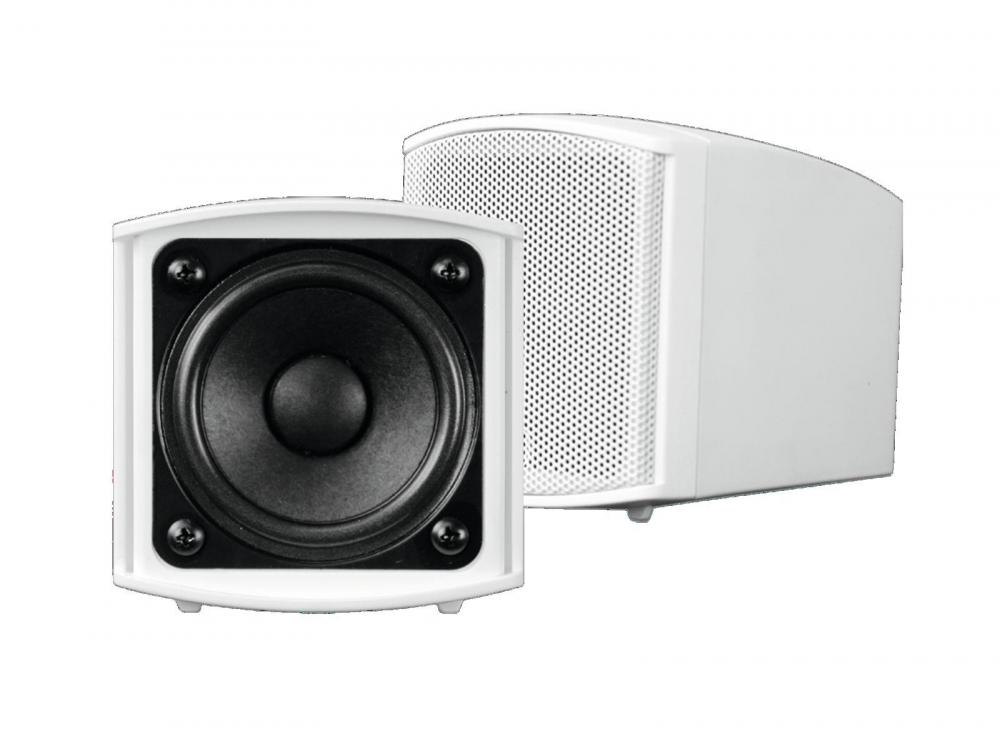

OMNITRONIC OD-2 Wall Speaker 8Ohms white 2x

OMNITRONIC

1
2
3

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC OD-2 Wall Speaker 8Ohms white 2x

Info
order code
11036901
product link
EAN
4026397543476
Product Name
OMNITRONIC OD-2 Wall Speaker 8Ohms white 2x
technical overview
Components: 6.5 cm speaker (2.5")
Connection: Spring clamps
Sensitivity: 88 dB
Maximum SPL: 92 dB
Dispersion angle: 60° x 60°
Dimensions (L x W x H): 111 x 87 x 90 mm
Weight: 0,5 kg
Color: White
Size of woofer: (2,5") ca. 6 cm
Rated power: 15 W RMS
Program power: 30 W
Frequency range: 150 - 22000 Hz
Height: 9 cm
Depth: 11,1 cm
Width: 8,7 cm
IP classification: IP44
Attachment: Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
main features
Speaker pair with mount, 2.5" full-range speakers and 15 W RMS
-8-ohm PA speaker system for general applications
-1-way system with 30 W power
-6.5 cm full-range speaker (2.5")
-Attractive ABS plastic cabinet (scratch-resistant) with metal grille

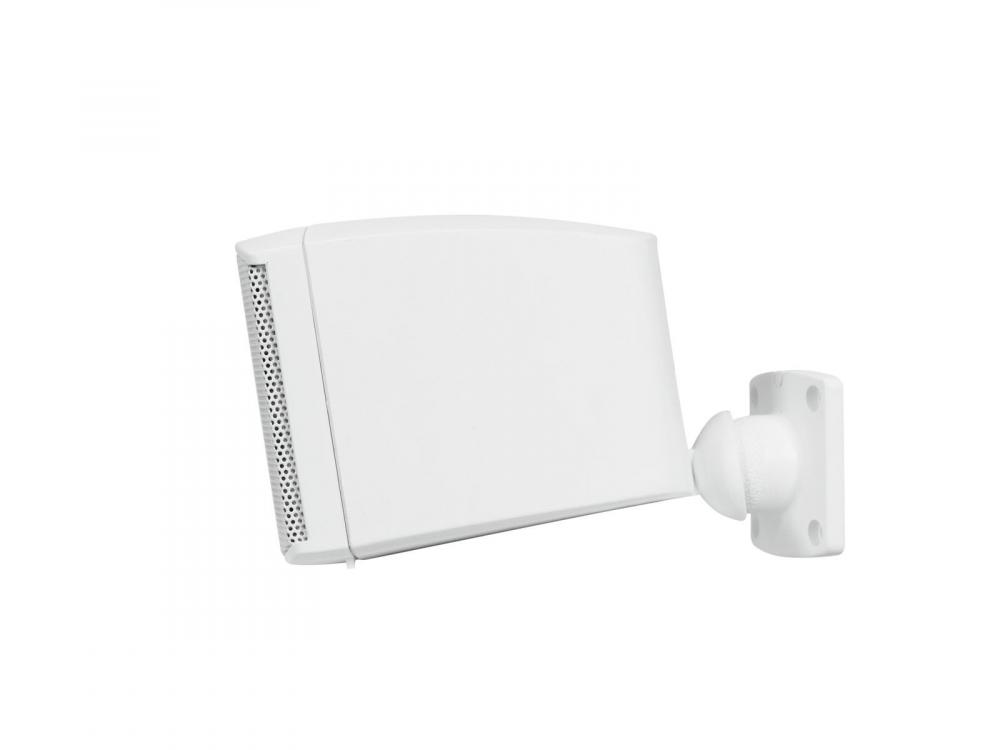

-Durable mounting plate with joint for panning and tilting allows ceiling or wall installation in most varying angles

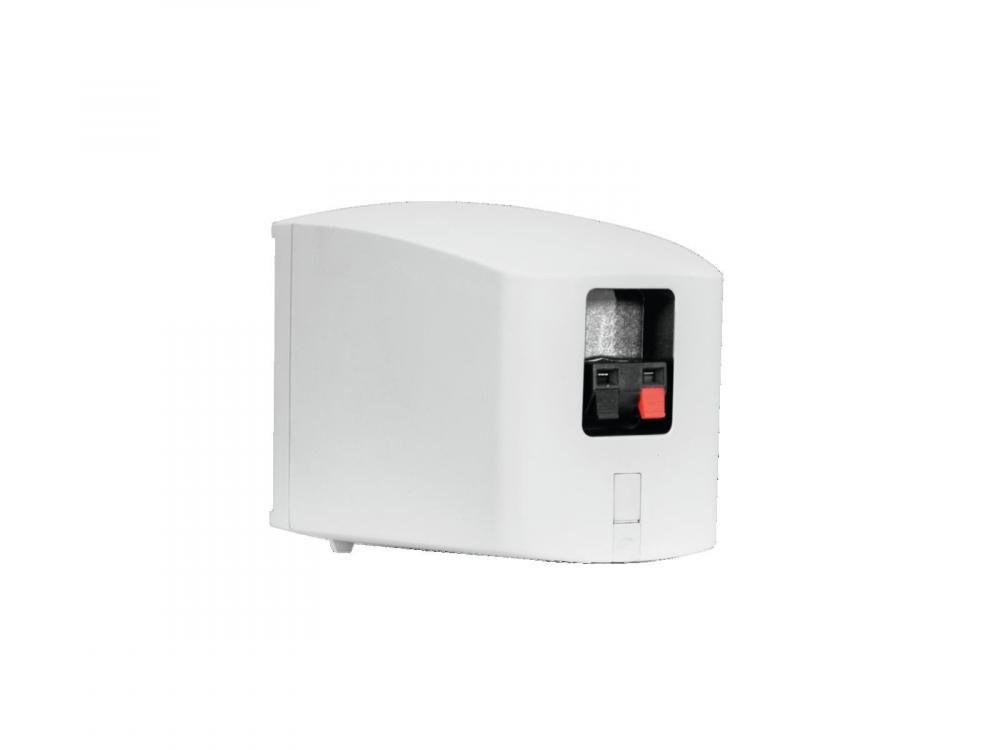

-Spring clamps
-Packed as a pair
-Ideal for PA applications in restaurants, bars, shops or conferences
Audio
Frequency response, from
150 Hz
Frequency response, to
22000 Hz
Electrical
IP rating
44
power consumption watt, max
15.00 W
Mechanical
weight
0.50 kg
width
87.00 mm
height
90.00 mm
length
111.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00090593.pdf
