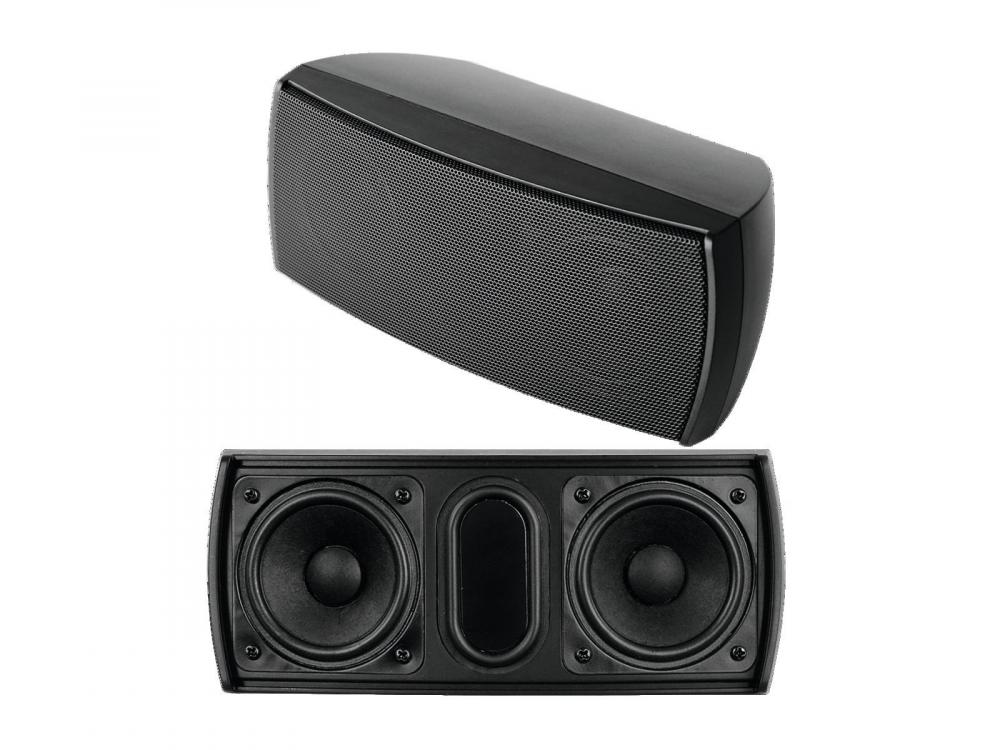

OMNITRONIC OD-22 Wall Speaker 8Ohms black

OMNITRONIC

1
2
3

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC OD-22 Wall Speaker 8Ohms black

Info
order code
11036906
product link
EAN
4026397543506
Product Name
OMNITRONIC OD-22 Wall Speaker 8Ohms black
technical overview
Speaker: 2 x 6 cm (2 x 2.5")

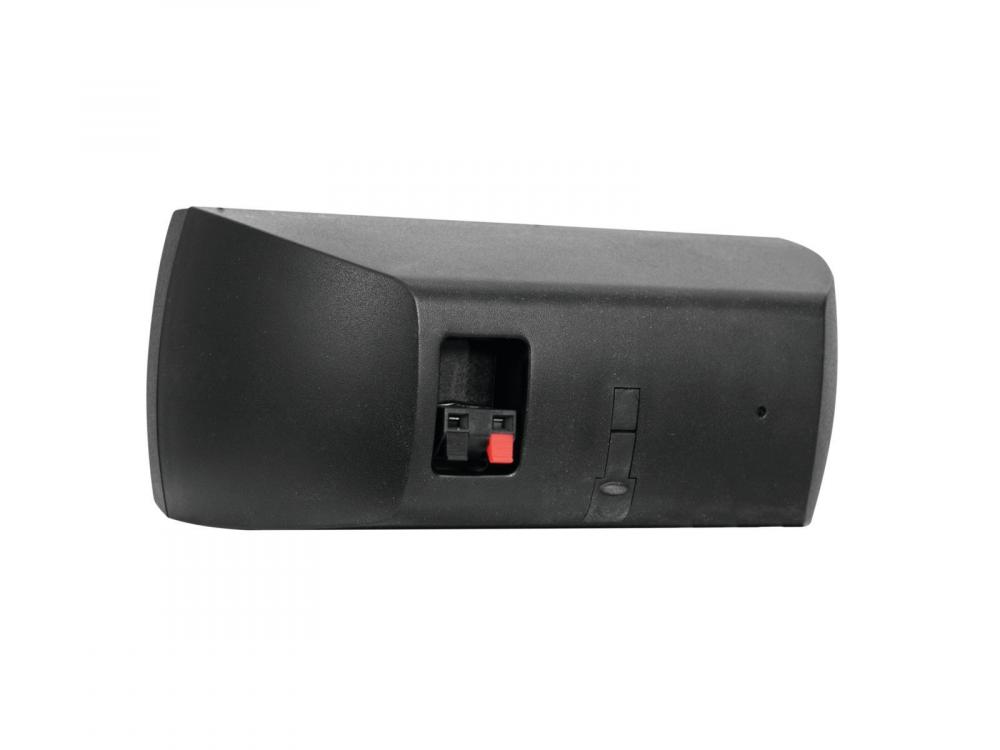

Connection: spring clamps
Sensitivity: 88 dB
Maximum SPL: 95 dB
Dispersion angle: 60° x 60°
Dimensions (H x W x D): 110 x 209 x 109 mm
Weight: 0,9 kg
Color: Black
Size of woofer: (2,5") ca. 6 cm
Rated power: 15 W RMS
Program power: 30 W
Frequency range: 120 - 22000 Hz
Height: 11 cm
Depth: 10,9 cm
Width: 20,9 cm
IP classification: IP44

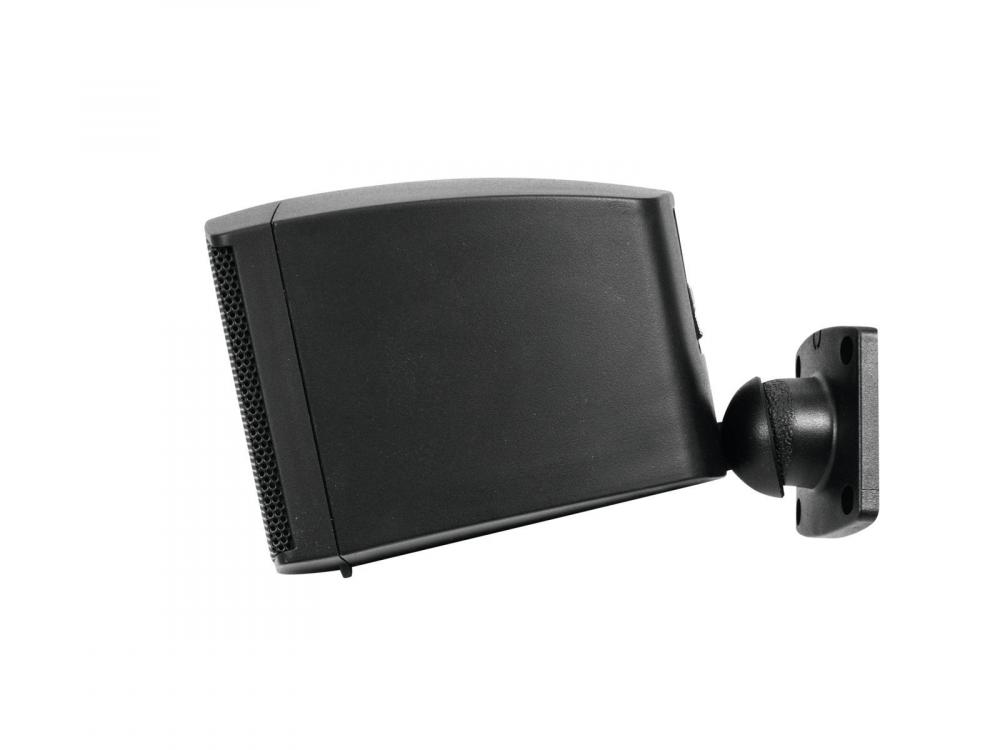

Attachment: Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
main features
2 speakers with mount, 2.5" full-range speakers and 15 W RMS
-8-ohm PA speaker system for general applications
-2 x 6 cm full-range speaker (2 x 2.5")
-3.5 x 6 cm passive membrane
-Attractive ABS plastic cabinet (scratch-resistant) with metal grille
-Durable mounting plate with joint for panning and tilting allows ceiling or wall installation in most varying angles
-Spring clamps
-Ideal for PA applications in restaurants, bars, shops or conferences
Audio
Frequency response, from
120 Hz
Frequency response, to
22000 Hz
Electrical
IP rating
44
power consumption watt, max
15.00 W
Mechanical
weight
0.90 kg
width
209.00 mm
height
110.00 mm
length
109.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
Bedienungsanleitung
00090593.pdf
