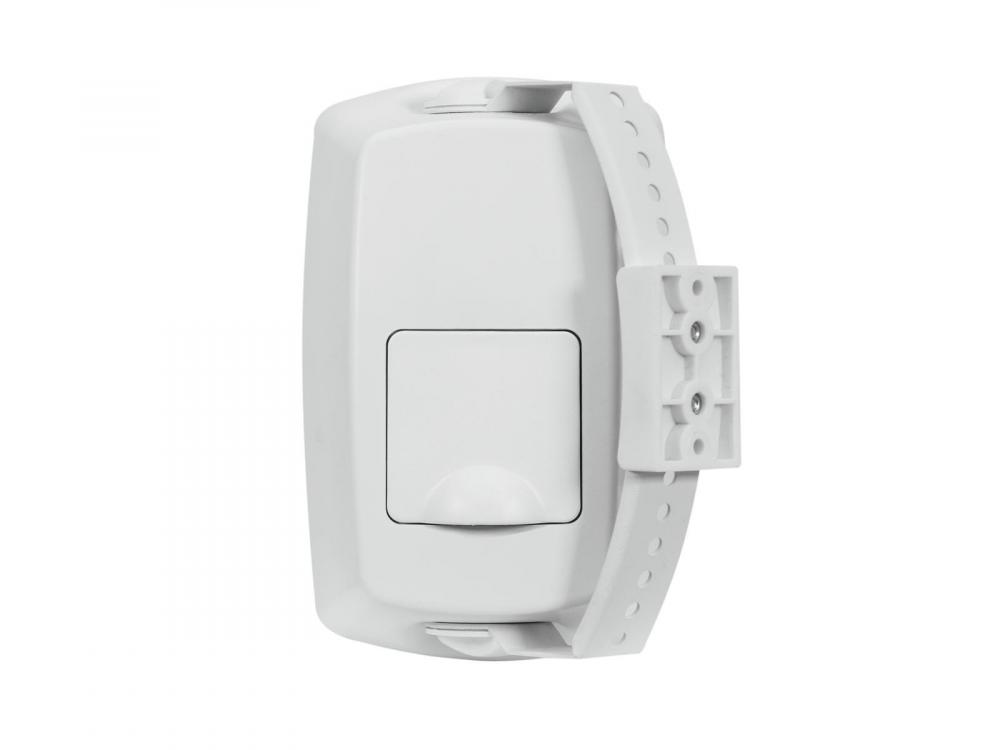

OMNITRONIC OD-5 Wall Speaker 8Ohms white 2x

OMNITRONIC

1
2
3
4
5

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC OD-5 Wall Speaker 8Ohms white 2x

Info
order code
11036919
product link
EAN
4026397543599
Product Name
OMNITRONIC OD-5 Wall Speaker 8Ohms white 2x
technical overview
Components: 13.5 cm woofer (5.25"), 1.5 cm tweeter (0.5")
Connection: pole terminals
Sensitivity: 89 dB
Maximum SPL: 92 dB
Dispersion angle: 170° x 170°
Dimensions (L x W x H): 163 x 160 x 255 mm
IP classification: IP65
Weight: 2,2 kg
Color: White
Size of woofer: (5") ca. 13 cm
Rated power: 35 W RMS
Program power: 75 W
Frequency range: 80 - 20000 Hz
Height: 25,5 cm
Depth: 16,3 cm
Width: 16 cm
Attachment: Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
main features
2 weatherproof speakers with mount, 5.25" woofers 0.5" tweeter and 35 W RMS
-8-ohm PA speaker systems with an excellent sound for general applications
-2-way system with 13.5 cm woofer (5.25") and 1.5 cm tweeter (0.5")
-Weatherproof (IP65) plastic cabinet with metal grille and cover for the connectors
-Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles

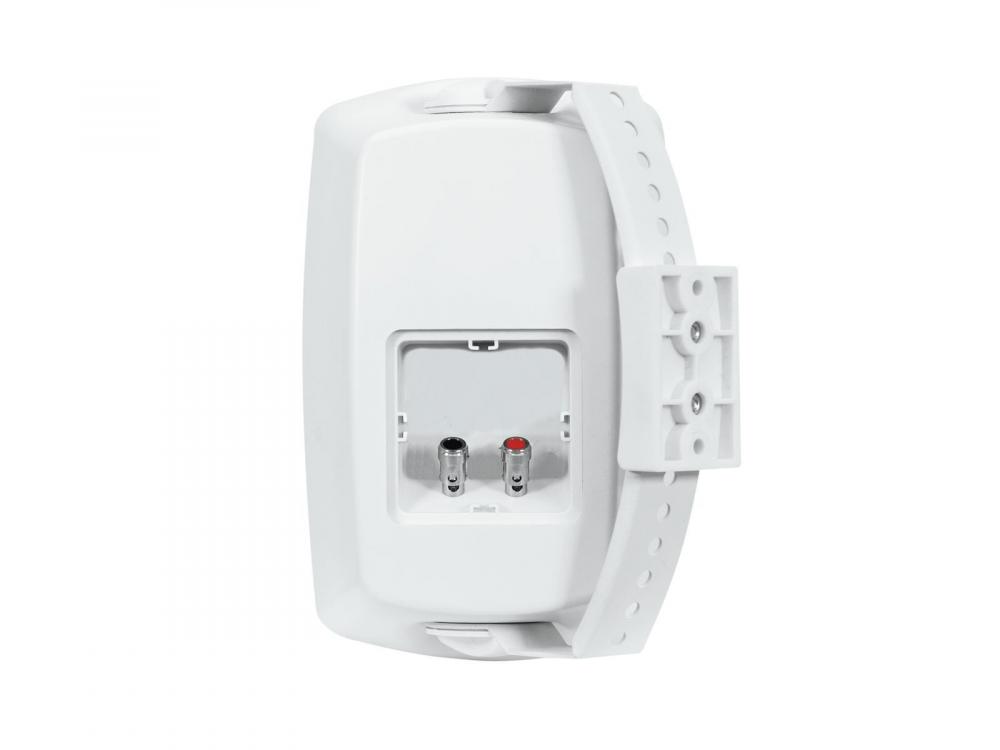

-Connection via pole terminals
-Packed as a pair
-For indoor and outdoor PA applications
Audio
Frequency response, from
80 Hz
Frequency response, to
20000 Hz
Electrical
IP rating
65
power consumption watt, max
35.00 W
Mechanical
weight
2.20 kg
width
160.00 mm
height
255.00 mm
length
163.00 mm

add to list

Collect interesting products in a list and download tender specifications at once

show list

Downloads
no files provided by the manufacturer
