Info | |
---|---|
order code |
11036923
|
product link | |
EAN |
4026397543636
|
Product Name |

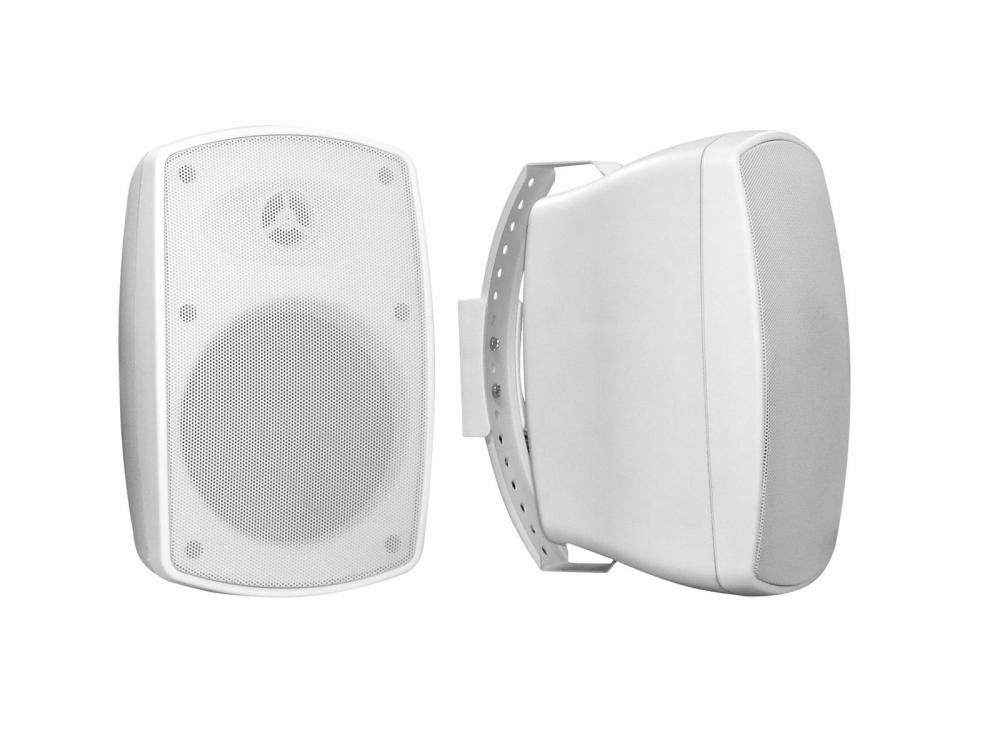

OMNITRONIC OD-5A Wall Speaker active white 2x
|
technical overview |
Power supply: 230 V AC, 50 Hz Circuitry: class D Components: 13.5 cm woofer (5.25"), 1.5 cm tweeter (0.5") Connection: RCA, unbal. spring terminals, bal. Sensitivity: 89 dB Maximum SPL: 93 dB Dispersion angle: 170° x 170° Dimensions (L x W x H): 163 x 160 x 255 mm Weight: 3 kg Color: White Size of woofer: (5") ca. 13 cm Rated power: 35 W RMS Program power: 75 W Frequency range: 80 - 20000 Hz Height: 25,5 cm Depth: 16 cm Width: 16,3 cm Attachment: Panning and tilting mounting bracket for ceiling or wall installation in most varying angles Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with Euro plug (M) Power supply: 230 V AC, 50 Hz |
main features |

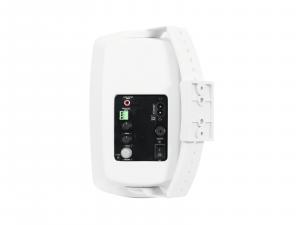

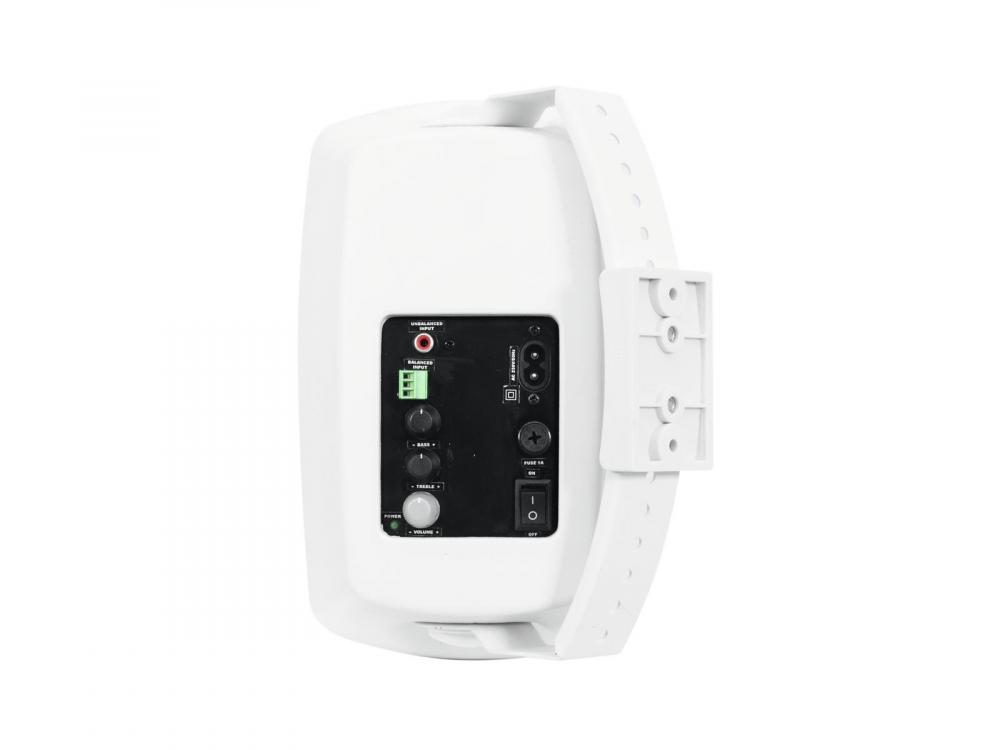

2 active speakers with mount, 5.25" woofers and 35 W RMS -Dedicated PA speaker systems for fixed installations -2-way system with 13.5 cm woofer (5.25") and dome tweeter, magnetic shielding -Class D circuitry: optimum sound and power at low weight and compact dimensions -Separate controls for volume, high and low frequencies -Each speaker system is equipped with an unbalanced RCA input and balanced spring terminals -Attractive plastic cabinet with metal grille -Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles -Packed as a pair -For indoor PA applications -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with Euro plug (M) (provided) |
Audio | |
Frequency response, from |
80 Hz
|
Frequency response, to |
20000 Hz
|
Electrical | |
power consumption watt, max |
35.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Mechanical | |
weight |
3.00 kg
|
width |
160.00 mm
|
height |
255.00 mm
|
length |
163.00 mm
|
color |
white
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
no files provided by the manufacturer |
