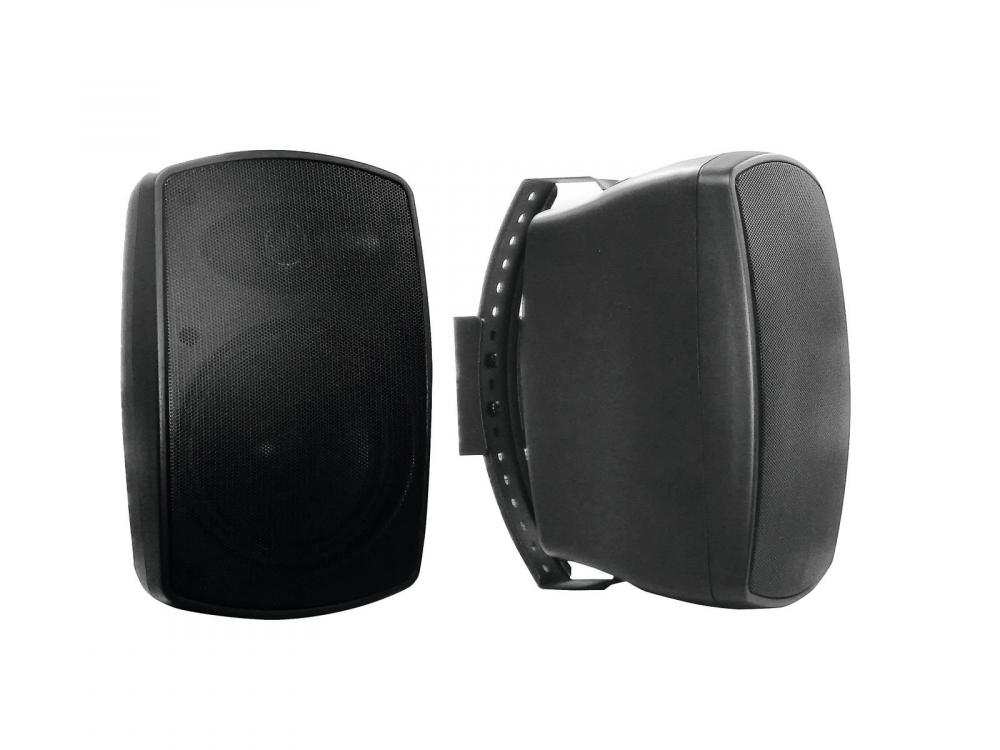

OMNITRONIC OD-6A Wall Speaker active black 2x

OMNITRONIC

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC OD-6A Wall Speaker active black 2x

Info
order code
11036928
product link
EAN
4026397543681
Product Name
OMNITRONIC OD-6A Wall Speaker active black 2x
technical overview
Power supply: 230 V AC, 50 Hz
Circuitry: class A/B
Components: 16.5 cm woofer (6.5"), 2.5 cm tweeter (1")
Connection: RCA, unbal.
3.5 mm jack, unbal.
spring terminals, bal.
Sensitivity: 89 dB
Maximum SPL: 96 dB
Dispersion angle: 170° x 170°
Dimensions (L x W x H): 195 x 195 x 300 mm
Weight: 4,4 kg
Color: Black
Size of woofer: (6,5") ca. 17 cm
Rated power: 45 W RMS
Program power: 90 W
Frequency range: 80 - 20000 Hz
Height: 30 cm
Depth: 19,5 cm
Width: 19,5 cm
Attachment: Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with Euro plug (M)
Power supply: 230 V AC, 50 Hz
main features
2 active speakers with mount, 6.5" woofers and 45 RMS
-Dedicated PA speaker systems for fixed installations
-2-way system with 16.5 cm woofer (6.5") and dome tweeter, magnetic shielding
-Class A/B circuitry: optimum sound and power at low weight and compact dimensions

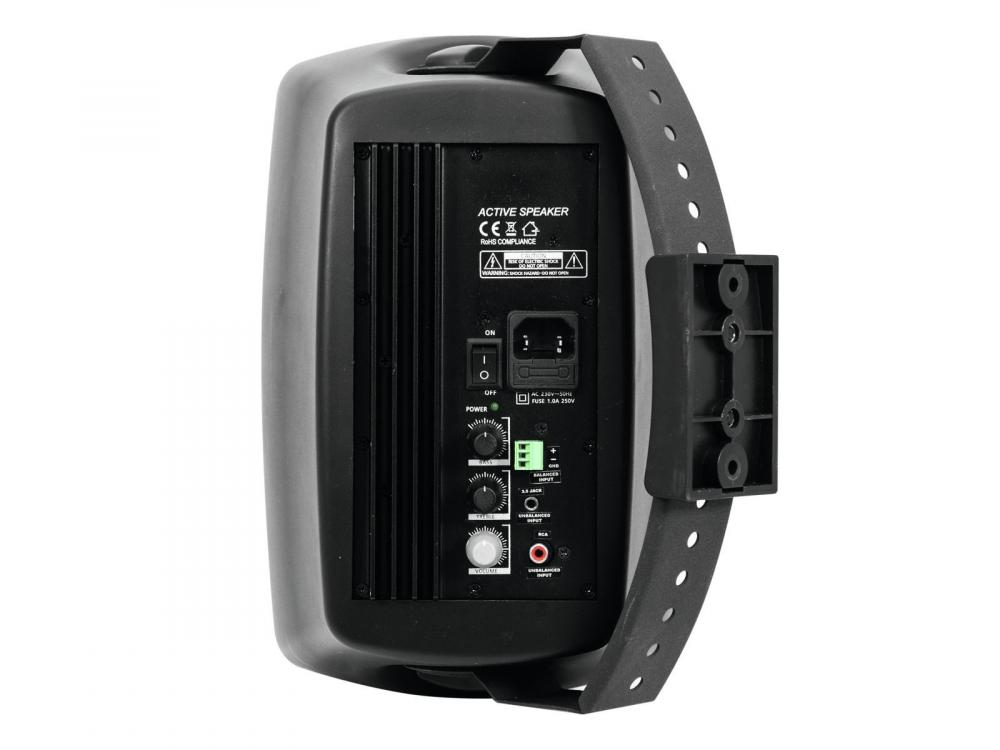

-Separate controls for volume, high and low frequencies
-Each speaker system is equipped with an unbalanced RCA input and balanced spring terminals
-Additional 3.5 mm jack input, ideal for portable MP3 players
-Attractive plastic cabinet with metal grille

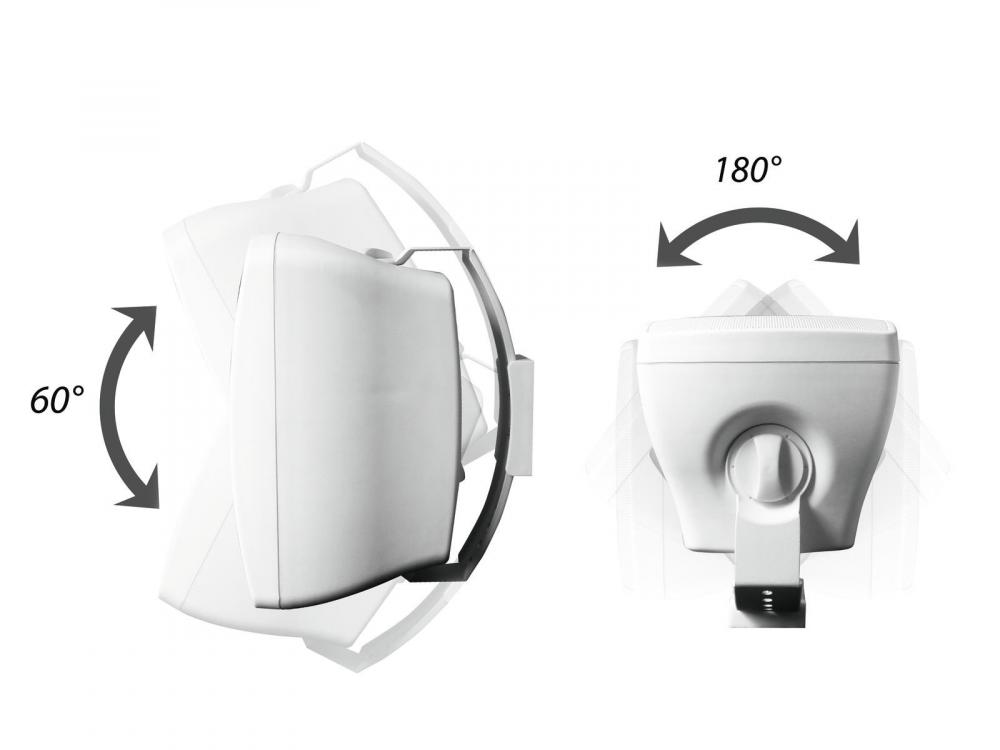

-Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles
-Packed as a pair
-For indoor PA applications
-Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with Euro plug (M) (provided)
Audio
Frequency response, from
80 Hz
Frequency response, to
20000 Hz
Electrical
power consumption watt, max
45.00 W
AC Volts, min
230 V
AC Volts, max
230 V
power input connector
IEC-60320 C13/C14
AC Frequency, min
50 Hz
AC Frequency, max
50 Hz
Mechanical
weight
4.40 kg
width
195.00 mm
height
300.00 mm
length
195.00 mm
color
black
