Info | |
---|---|
order code |
11036929
|
product link | |
EAN |
4026397543698
|
Product Name |

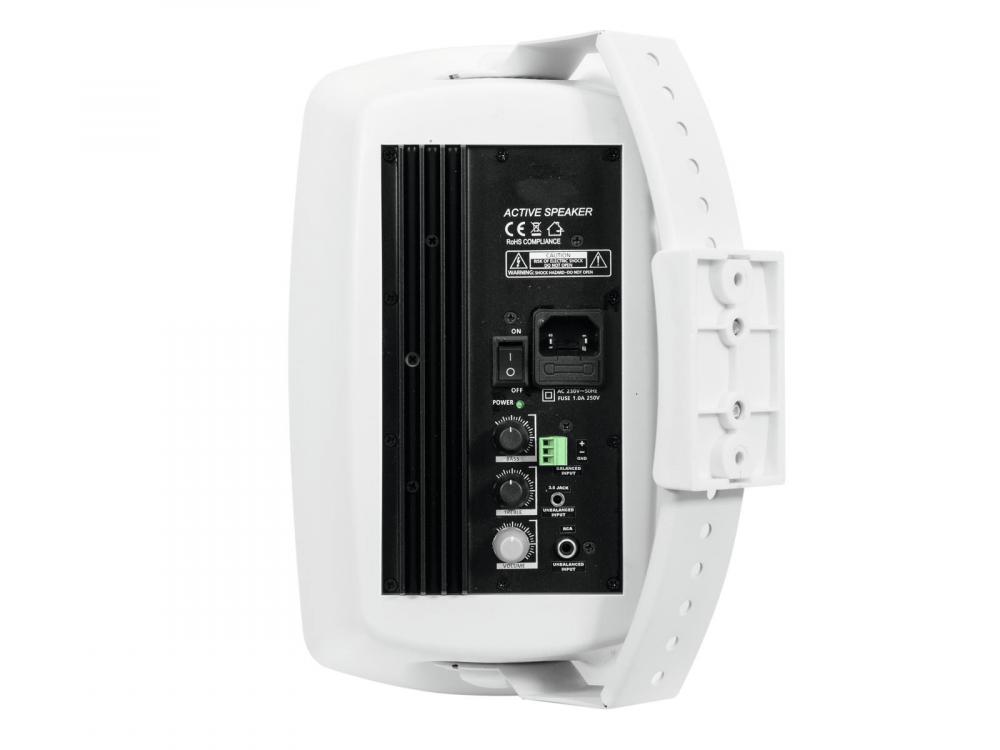

OMNITRONIC OD-6A Wall Speaker active white 2x
|
technical overview |
Power supply: 230 V AC, 50 Hz Circuitry: class A/B Components: 16.5 cm woofer (6.5"), 2.5 cm tweeter (1") Connection: RCA, unbal. 3.5 mm jack, unbal. spring terminals, bal. Sensitivity: 89 dB Maximum SPL: 96 dB Dispersion angle: 170° x 170° Dimensions (L x W x H): 195 x 195 x 300 mm Weight: 4,4 kg Color: White Size of woofer: (6,5") ca. 17 cm Rated power: 40 W RMS Program power: 80 W Frequency range: 80 - 20000 Hz Height: 30 cm Depth: 19,5 cm Width: 19,5 cm Attachment: Panning and tilting mounting bracket for ceiling or wall installation in most varying angles Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with Euro plug (M) Power supply: 230 V AC, 50 Hz |
main features |
2 active speakers with mount, 6.5" woofers and 45 RMS -Dedicated PA speaker systems for fixed installations -2-way system with 16.5 cm woofer (6.5") and dome tweeter, magnetic shielding -Class A/B circuitry: optimum sound and power at low weight and compact dimensions -Separate controls for volume, high and low frequencies -Each speaker system is equipped with an unbalanced RCA input and balanced spring terminals -Additional 3.5 mm jack input, ideal for portable MP3 players -Attractive plastic cabinet with metal grille -Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles -Packed as a pair -For indoor PA applications -Power connection: Mains Input Socket (M) IEC connector (M) mounting version Power supply cord with Euro plug (M) (provided) |
Audio | |
Frequency response, from |
80 Hz
|
Frequency response, to |
20000 Hz
|
Electrical | |
power consumption watt, max |
40.00 W
|
AC Volts, min |
230 V
|
AC Volts, max |
230 V
|
power input connector |
IEC-60320 C13/C14
|
AC Frequency, min |
50 Hz
|
AC Frequency, max |
50 Hz
|
Mechanical | |
weight |
4.40 kg
|
width |
195.00 mm
|
height |
300.00 mm
|
length |
195.00 mm
|
Collect interesting products in a list and download tender specifications at once
Downloads |
---|
Bedienungsanleitung |
---|
00094881.pdf |
