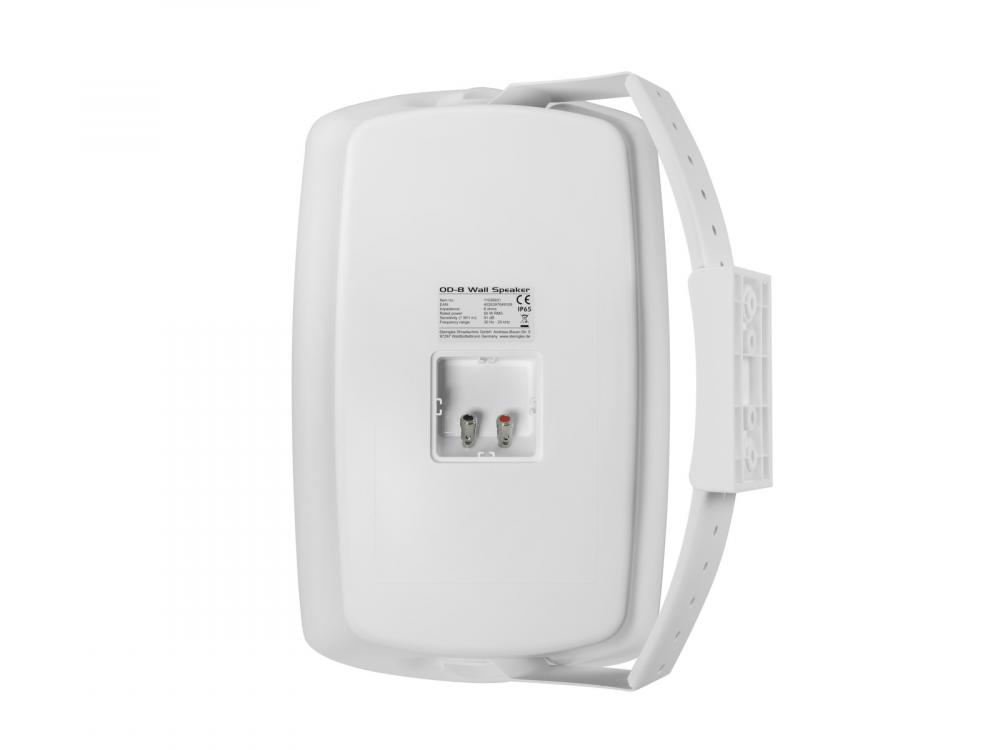

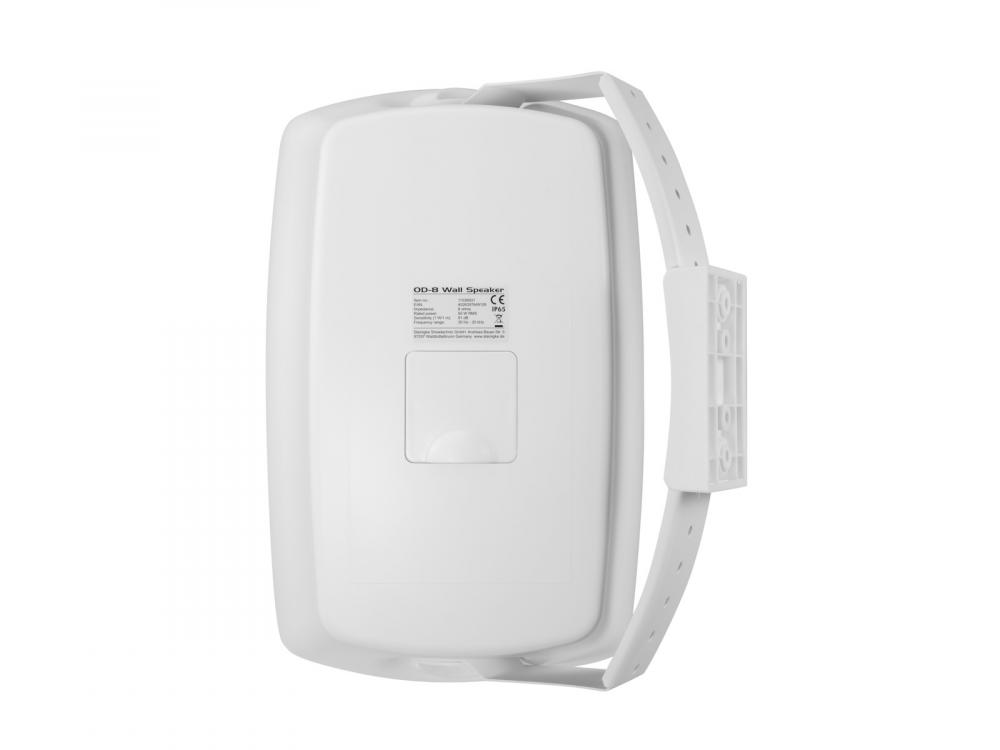

OMNITRONIC OD-8 Wall Speaker 8Ohm white 2x

OMNITRONIC

1
2
3
4

Technical specifications, datasheets, descriptions and tender texts for OMNITRONIC OD-8 Wall Speaker 8Ohm white 2x

Info
order code
11036931
product link
EAN
4026397649109
Product Name
OMNITRONIC OD-8 Wall Speaker 8Ohm white 2x
technical overview
Components: 20 cm woofer (8"), 2.5 cm tweeter (1")
Connection: pole terminals
Sensitivity: 91 dB
Maximum SPL: 111 dB
Dispersion angle: 170° x 170°
Dimensions (L x W x H): 240 x 245 x 380 mm
IP classification: IP65
Color: White
Size of woofer: (8") ca. 20 cm
Rated power: 50 W RMS
Program power: 100 W
Attachment: Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
Width: 24,5 cm
Depth: 24 cm
Height: 38 cm
Material: Plastic
main features
2 weatherproof speakers with mount, 8" woofers 1" tweeter and 50 W RMS
-8-ohm PA speaker systems with an excellent sound for general applications
-2-way system with 20 cm woofer (8") and 2.5 cm silk dome tweeter (1")
-Weatherproof (IP65) plastic cabinet with metal grille and cover for the connectors
-Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles
-Connection via pole terminals
-Packed as a pair
-For indoor and outdoor PA applications
Electrical
IP rating
65
power consumption watt, max
50.00 W
Mechanical
width
245.00 mm
height
380.00 mm
length
240.00 mm
enclosure material
Plastic
